EM300U21
| amount | price | discount |
|---|---|---|
| 1 | 258,00 € | – |
| 5 | 250,26 € | 3% / 7,74 € |
| 10 | 245,10 € | 5% / 12,90 € |
| 20 | 237,36 € | 8% / 20,64 € |
| 50 | 227,04 € | 12% / 30,96 € |

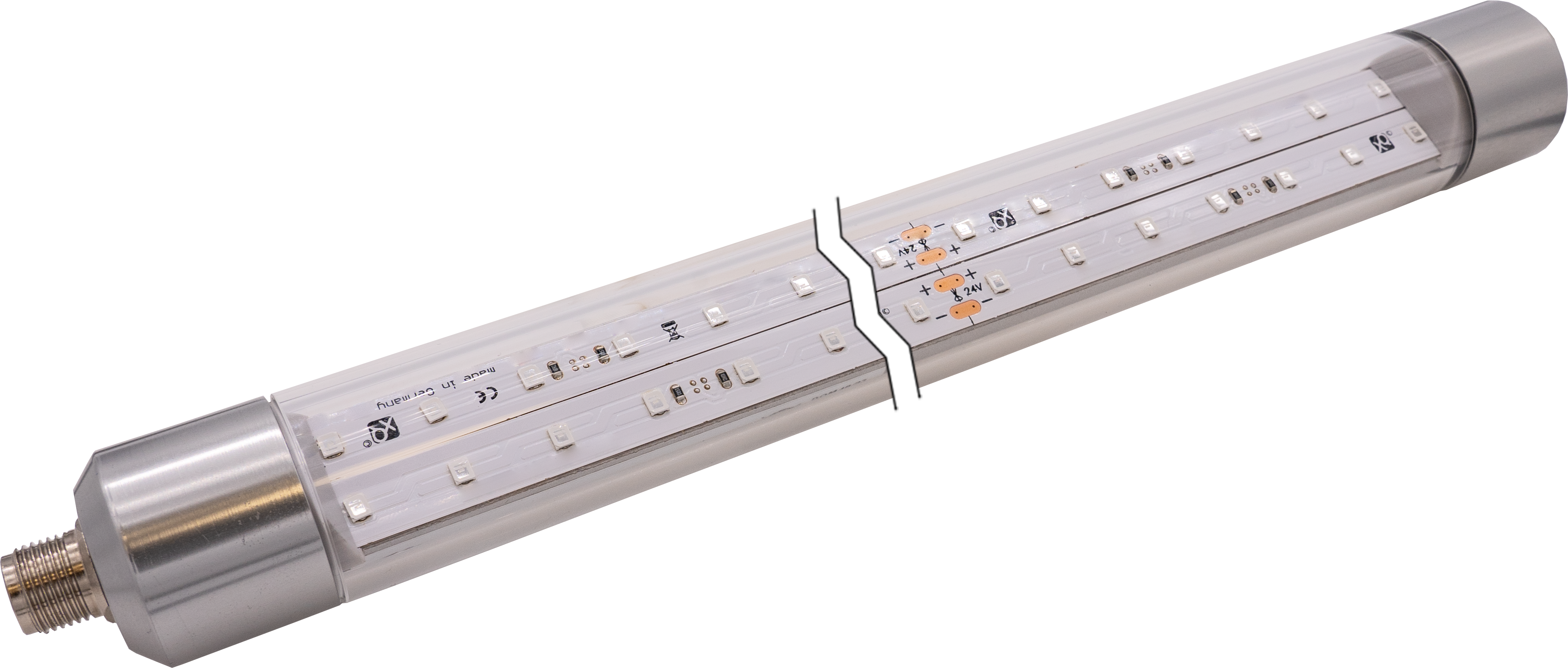

LED lights - Machine and bench lights
LED lights are needed in almost every industrial sector. Illumination tailored to the respective workplace ensures better visibility, improves production quality, increases workplace safety and also helps to save energy costs. The long life, independent of switching cycles, reduces maintenance costs and increases availability. LED lights are used to illuminate workstations, operating ranges of machines, switching cabinets and a number of other areas of application.
Electrical properties
- Type of electrical connection
- Connector M12
- Power
- 5.76W
- Number of pins
- 3
- Protection class
- III
- Reverse polarity protection
- Operating voltage
- Electrical connection
Mechanical properties
- Design
- Pipe
- Light field width
- 25mm
- Length
- 261mm
- Light field length
- 198mm
- Storage temperature
- 0 - 40°C
- Degree of protection (IP)
- IP67
- Front screen scattering behavior
- clear
- Housing material
- Aluminum
- Front screen material
- Polymethyl methacrylate
- Diameter
- 30mm

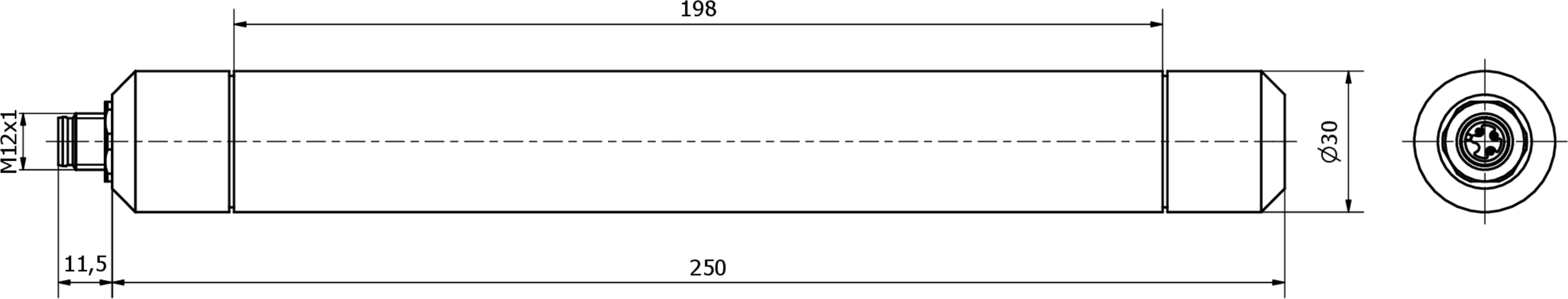

- dimensions
Optical properties
- Risk group
- 3
- Lamp
- LED
- Light source
- Ultraviolet
- Angle of beam spread
- 120°
- Wavelength of the sensor
- 395nm
Other properties
- Ambient temperature
- 0 - 40°C
- Important note
- La radiación UV irrita y daña los ojos y puede provocar irritaciones cutáneas. Peligro de ceguera. No mire a la luz UV.
Assembly
Fixing material design M30
Connection technology
Cable sockets M12 3-wire
Cable sockets M12 4-pin field attachable
Cable sockets M12 4-wire
Cable sockets M12 5-pin field attachable
Cable sockets M12 5-wire
Cable sockets M12-socket M12-connector 4-wire
Other sensors
Brightness module
Power supply 24V DC / 1A plug-in power supply pin 1/3
Power supply 24V DC / 2 – 10A
Datasheets
Manuals
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 482 KB
-
pdfEU declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
Whitepapers
Application examples
| Classification | Class |
|---|---|
| eClass-7.0 | 27110390 |
| eClass-7.1 | 27110390 |
| eClass-8.0 | 27110390 |
| eClass-9.0 | 27110345 |
| eClass-9.1 | 27110345 |
| ETIM-6.0 | EC000348 |
| ETIM-7.0 | EC000348 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 190 machine illuminations |
| packaging dimensions | 47 x 43 x 330mm |
| gross weight | 318g |
| 3,22kg CO₂e | |
| Customs tariff number | 94054239 |
| WEEE number | 40951076 |
