LED lights - Machine and bench lights

EM550120

EM550120
List price
166,20 €
amount price discount
1 166,20 € –
5 161,21 € 3% / 4,99 €
10 157,89 € 5% / 8,31 €
20 152,90 € 8% / 13,30 €
50 146,26 € 12% / 19,94 €
Scarce

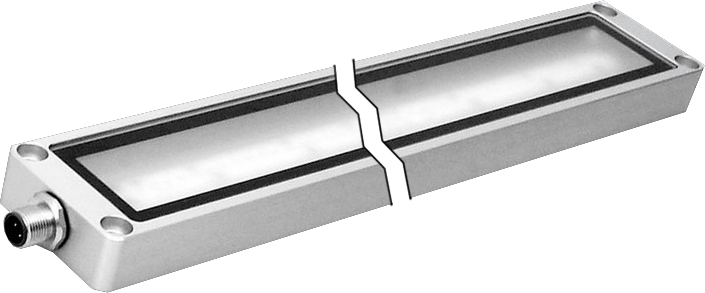

LED machine light, 55x165x20mm, white light, 7W, 1000lx, 5000K, 22-28V DC, M12-connector 4-pin, IP67, aluminum + float glass tempered
circuit diagram

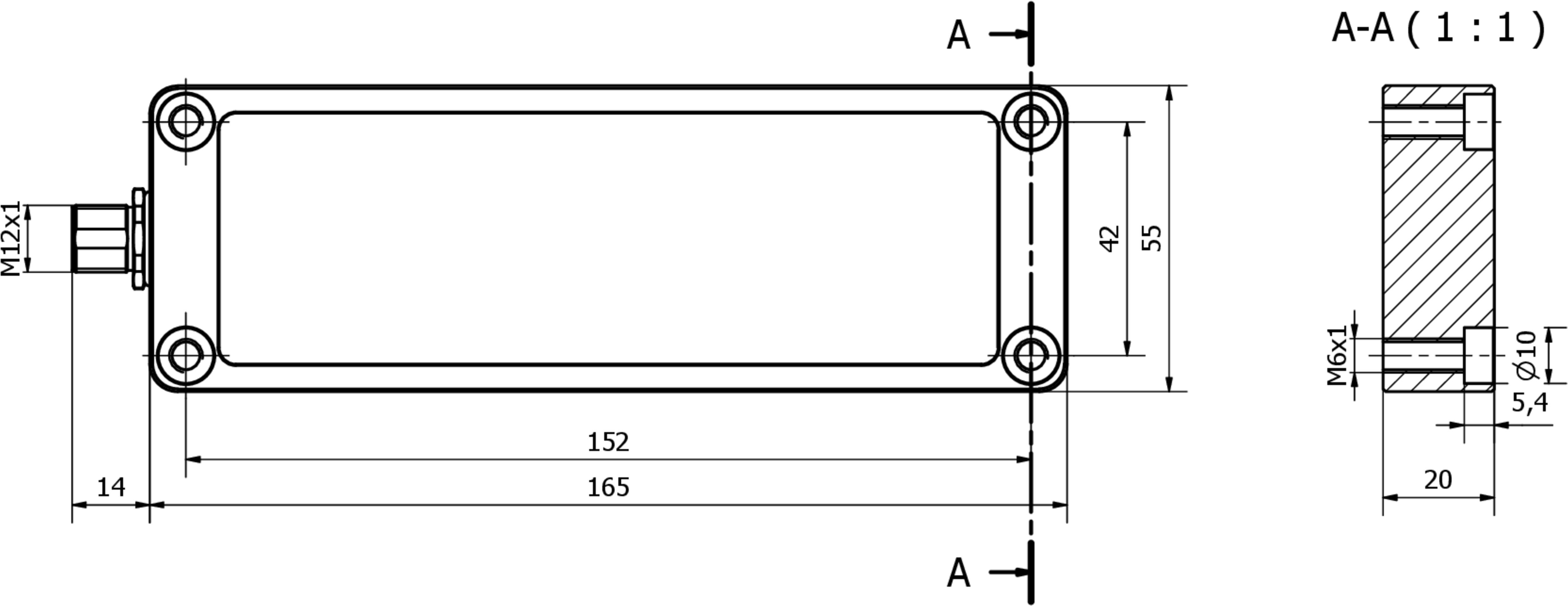

dimensional drawing
3D model
Compare

LED lights - Machine and bench lights

These resilient lights offer the optimum combination of brightness, output, design and degree of protection. With 150 lumens per watt and an angle of emitted beam of 120 degrees, they are the right choice when a lot of light is needed. They are resistant to the most common coolants and lubricants and can therefore be used in harsh environments.

Electrical properties

Type of electrical connection
Connector M12
Rated operating current
292mA
Power
7W
Luminous flux
1,050lm
Number of pins
4
Protection class
III
Luminous efficiency
150lm/W
Reverse polarity protection
Operating voltage
Electrical connection

Mechanical properties

Design
Cuboid
Width
55mm
Height
20mm
Length
165mm
Storage temperature
-20 - 40°C
Degree of protection (IP)
IP67
Front screen scattering behavior
diffuse
Housing material
Aluminum
Front screen material
Float glass tempered
dimensions

Optical properties

Risk group
0
Illuminance at 500mm distance
1,000lx
Illumination in the center (distance 1 m)
250lx
Color temperature
5,000K
Lamp
LED
Light source
White light
Angle of beam spread
120°

Other properties

Ambient temperature
-20 - 40°C
Harsh environmental conditions
Yes
