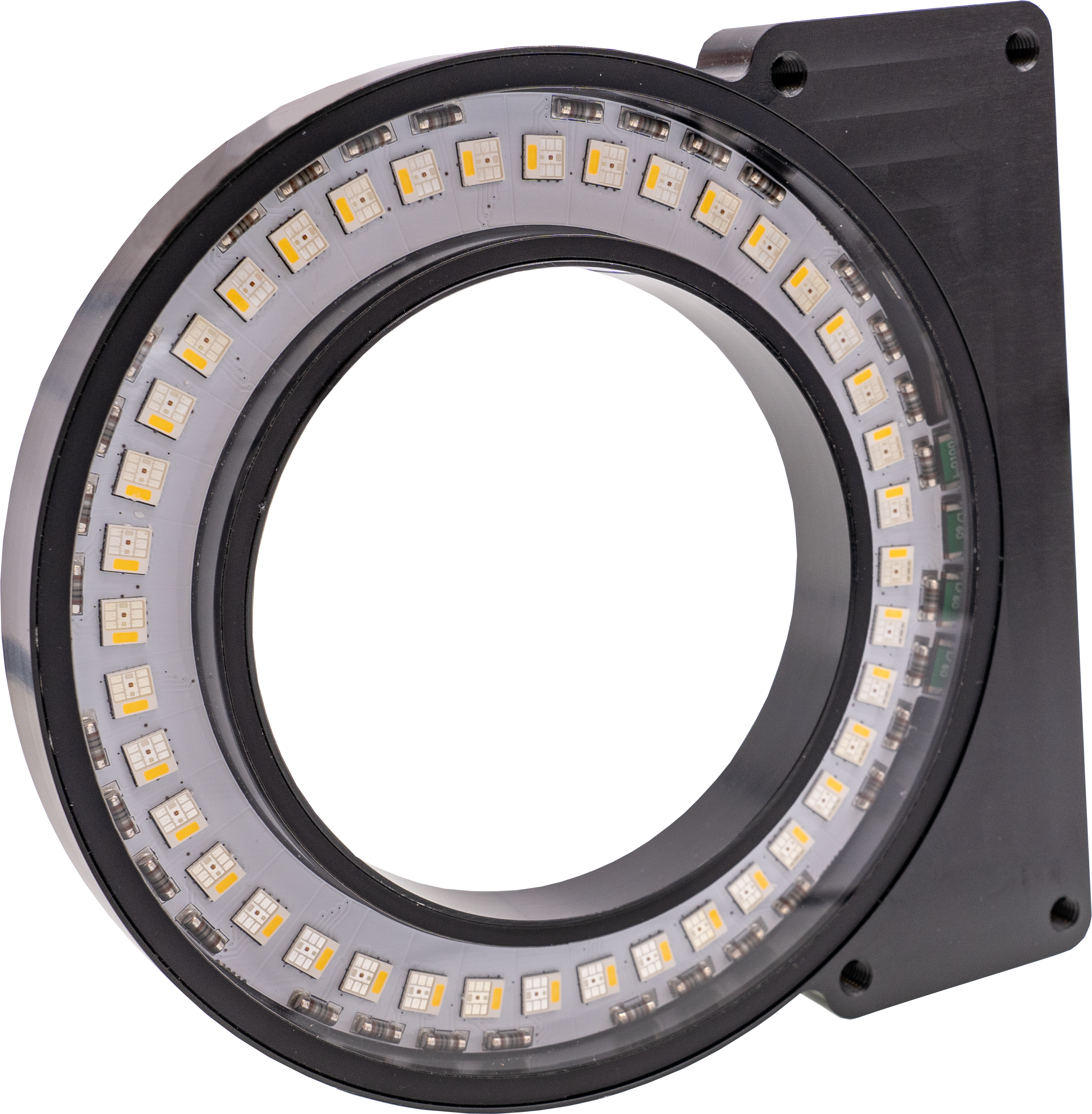

LED ring light, Ø130mm, RGBW, 11W, M12-connector 8-pin, IP54, aluminum+PMMA
circuit diagram

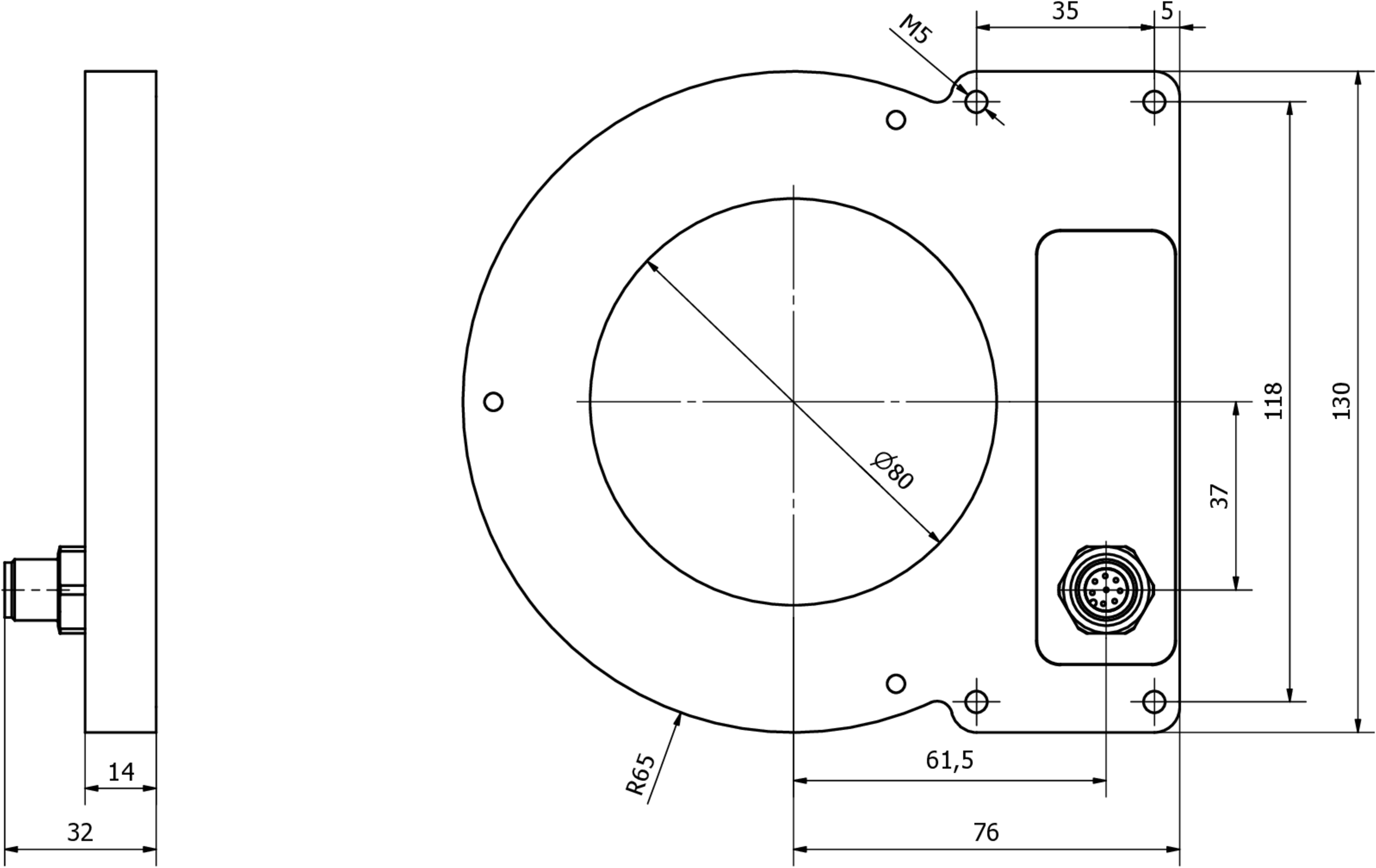

dimensional drawing
3D model
Compare

camera additional lighting - Ring lights

For inspection tasks of any kind with a camera sensor, the selection of the right illumination is essential, since only high-contrast images can be reproducibly evaluated. And here the illumination has the decisive influence. The selection depends on various factors such as the distance to the test object, its size, the component criterion to be tested or the expected environmental conditions.

Electrical properties

Type of electrical connection
Connector M12
Rated operating current
900mA
Flash controller
Required
Power
11W
Max. peak current
1,800mA
Number of pins
8
Protection class
III

Mechanical properties

Width
130mm
Height
14mm
Inner diameter
80mm
Length
141mm
Opening diameter
80mm
Degree of protection (IP)
IP54
Front screen scattering behavior
clear
Housing material
Aluminum
Front screen material
Polymethyl methacrylate
Working distance range
150 - 300mm

Optical properties

Risk group
1
Color temperature
4,000K
Lamp
LED

Other properties

Features
with lens feed-through
Range of functions
Relative air humidity (non-condensing)
30 - 70%
Ambient temperature
10 - 30°C
Operational mode
Flash operation, Permanent operation, Switching operation
Important note
Es obligatorio un controlador LED para el funcionamiento. Una alimentación directa con 24VDC destruirá la luminaria.
