DISCONTINUED PRODUCT

ER430170

ER430170
Successor model?
We would be pleased to advise you!
LED Ring lights, camera, Ø45mm 13high, White light, 2.4W, 7500K, 19-30V DC, Cable connector M8 3pin 300m, IP64, Aluminum+PMMA, Mounting on lenses
circuit diagram

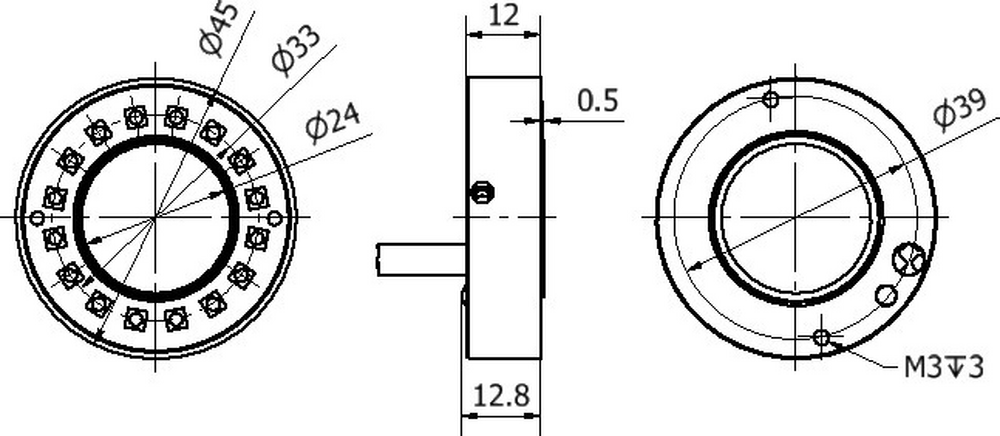

dimensional drawing
3D model
Compare

camera additional lighting - Ring lights

For any kind of inspection tasks with a camera sensor the lighting is essential, as only high-contrast images enable reproducible evaluations. Here the lighting has a decisive influence. The choice depends on different factors such as the distance to the test object, its size, the component criteria to be tested or the expected environmental conditions.

Electrical properties

Type of electrical connection
Cable connector M8
Rated operating current
100mA
Flash controller
No
Power
2.4W
Number of pins
3
Protection class
III
Operating voltage
Electrical connection

Mechanical properties

Height
12.8mm
Inner diameter
24mm
Cable length
0.3m
Mounting method
Degree of protection (IP)
IP64
Front screen scattering behavior
clear
Housing material
Aluminum
Front screen material
Polymethyl methacrylate
Diameter
45mm
dimensions

Optical properties

Risk group
0
Number of LEDs
16
Color temperature
7,300K
Lamp
LED
Light source
White light
Angle of beam spread
80°

Other properties

Ambient temperature
5 - 45°C
Operational mode
Permanent operation, Switching operation
