EZ550320
| amount | price | discount |
|---|---|---|
| 1 | 149,00 € | – |
| 5 | 144,53 € | 3% / 4,47 € |
| 10 | 141,55 € | 5% / 7,45 € |
| 20 | 137,08 € | 8% / 11,92 € |
| 50 | 131,12 € | 12% / 17,88 € |
Available

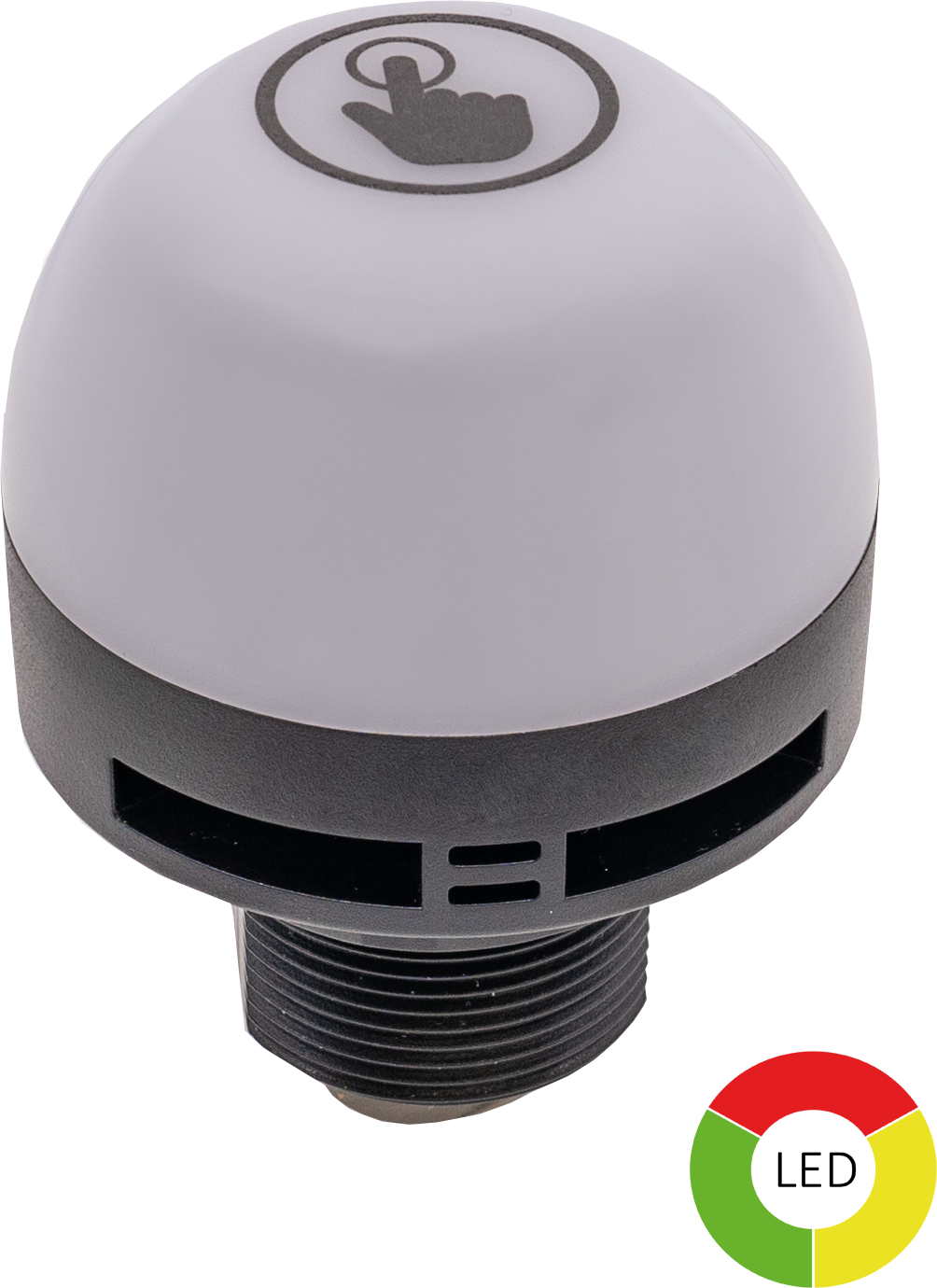

LED signal light, touch button, Ø55mm, overall length 79mm, multicolor LED, signal transducer, status display 360°, 24VDC, M12 cable connector 5-pin, IP65/IP69k, polycarbonate
including Nut
Compare
LED lights - Signal lights
The dome lights are suitable for safely signaling the status of machines and systems. The colored light, which is visible from all sides, can be used to signal various statuses. The different colors can indicate warnings, pre-warnings, dangers, lack of material or operational readiness. Thanks to the high degree of protection, the lights are also protected against dust and moisture.
Electrical properties
- Type of switching function
- Normally open contact (NO)
- Type of electrical connection
- Connector M12
- Turn-off delay
- 100s
- Rated operating current
- 60mA
- Rated switching current
- 200mA
- Volume
- 85dB
- Power
- 1.44W
- Number of pins
- 5
- Protection class
- III
- Version of the acoustic signal generator
- Continuous tone (85dB, 3480Hz)
- Operating voltage
- Electrical connection
Mechanical properties
- Design
- Round
- Installation depth
- 35mm
- Thread pitch
- 1.5mm
- Height
- 79mm
- Mounting method
- Panel mounting
- Degree of protection (IP)
- IP65 / IP69k
- Front screen scattering behavior
- diffuse
- Housing material
- Plastic (ABS)
- Front screen material
- Polycarbonate
- Thread dimension
- M30
- Diameter
- 55mm

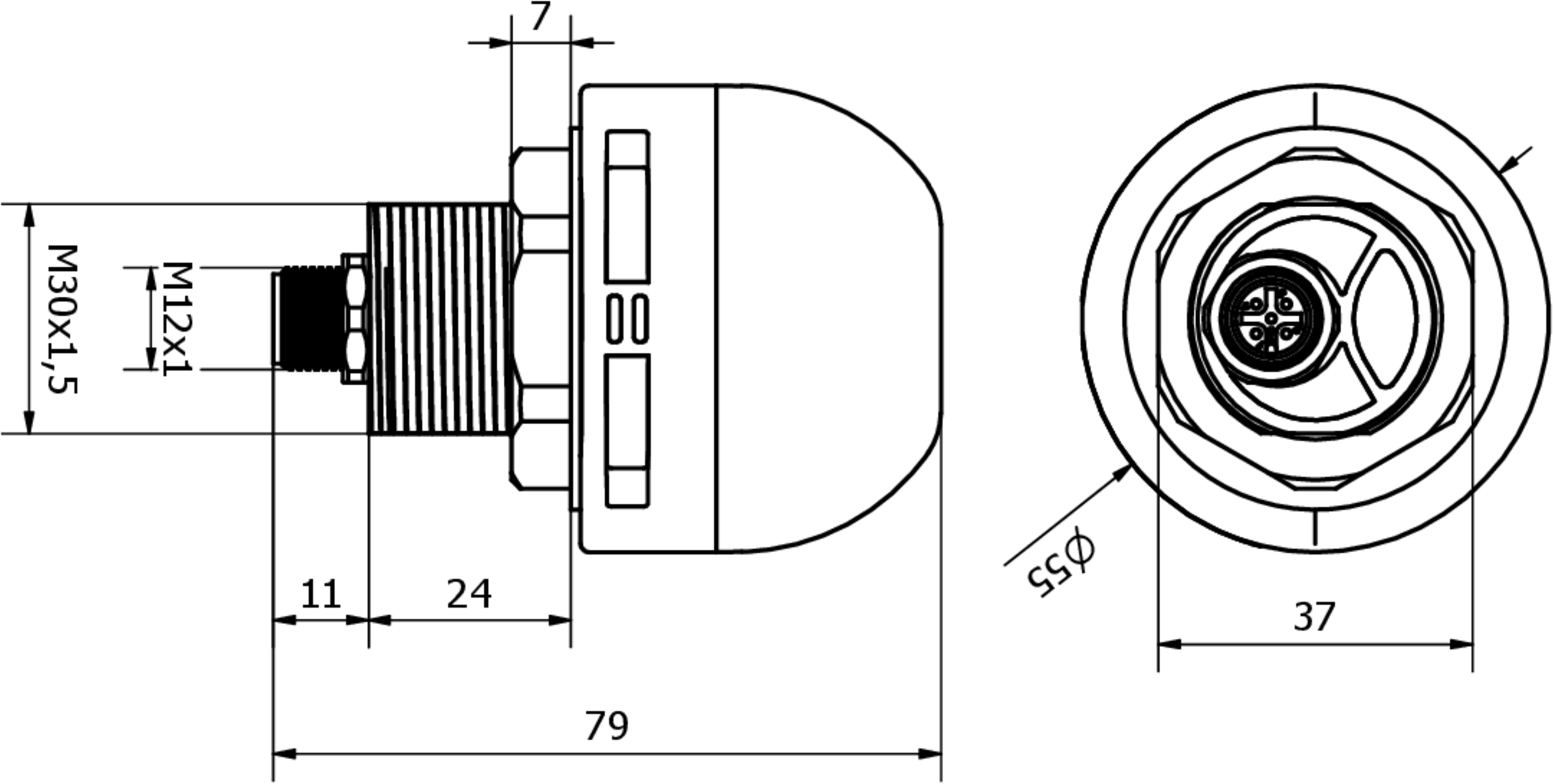

- dimensions
Optical properties
- Risk group
- 0
- Lamp
- LED
- Light source
- Multi-colored LED
- Angle of beam spread
- 180°
- Signal color
- Yellow, Green, Red
Other properties
- Features
- Integrated touch button, with acoustic signal transducer
- Average nominal service life
- 50,000h
- Ambient temperature
- -20 - 50°C
- Important note
You can find accessories for EZ550320
in these product groups:
Assembly
Mounting for signal lights with M30
Connection technology
Cable sockets M12 5-pin field attachable
Cable sockets M12 5-wire
Cable sockets M12 5-wire shielded
Other sensors
Power supply 24V DC / 2 – 10A
Datasheets
Manuals
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 481 KB
-
pdfEU declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
-
pdfFlyer LED lights for industryPDF-file, 12 MB
-
pdfLED signal lightsPDF-file, 9.3 MB
-
pdfProducts that inspirePDF-file, 8.5 MB
Whitepapers
Application examples
| Classification | Class |
|---|---|
| eClass-7.0 | 27110390 |
| eClass-7.1 | 27110390 |
| eClass-8.0 | 27110390 |
| eClass-9.0 | 27110345 |
| eClass-9.1 | 27110345 |
| ETIM-6.0 | EC000348 |
| ETIM-7.0 | EC000348 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 190 machine illuminations |
| packaging dimensions | 75 x 75 x 90mm |
| gross weight | 100g |
| Carbon footprint | 0,04kg CO₂e |
| Customs tariff number | 94054239 |
| WEEE number | 40951076 |
