AY000116
accessories sensor, Fixture kit, Metal, ball joint
Available
DISCONTINUED PRODUCT
IB21A795
Successor model?
We would be pleased to advise you!
We would be pleased to advise you!

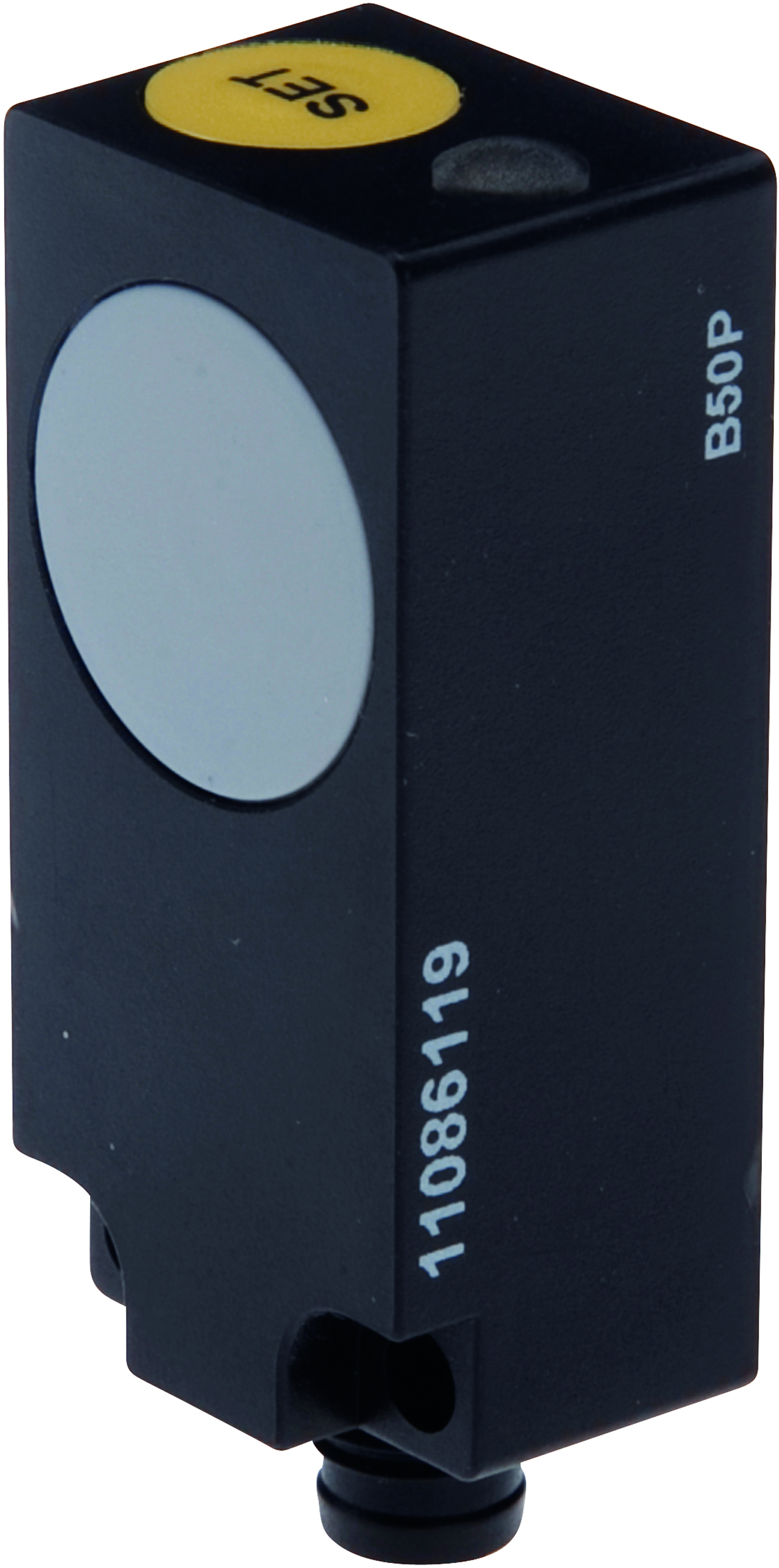

sensor inductive, analog, 42x15x20mm, Quasi-flat, Sn: 0-10, 15-30V DC, 0-10V, Connector M8 4pin, IP67, Plastic (polyester), resolution 10µm
Compare
Inductive sensors - Distance measurement
Inductive proximity switches are contact-free sensors. They detect all conductive metals, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or frontally. Inductive proximity switches are used for presence detection (e.g. goods carriers), positioning (e.g. dampers), counting (e.g. nuts /bolts), speed detection (e.g. for cog wheels), on conveyor systems (e.g. hose feedings) or distance measurements (e.g. press-in checking) of metallic objects.

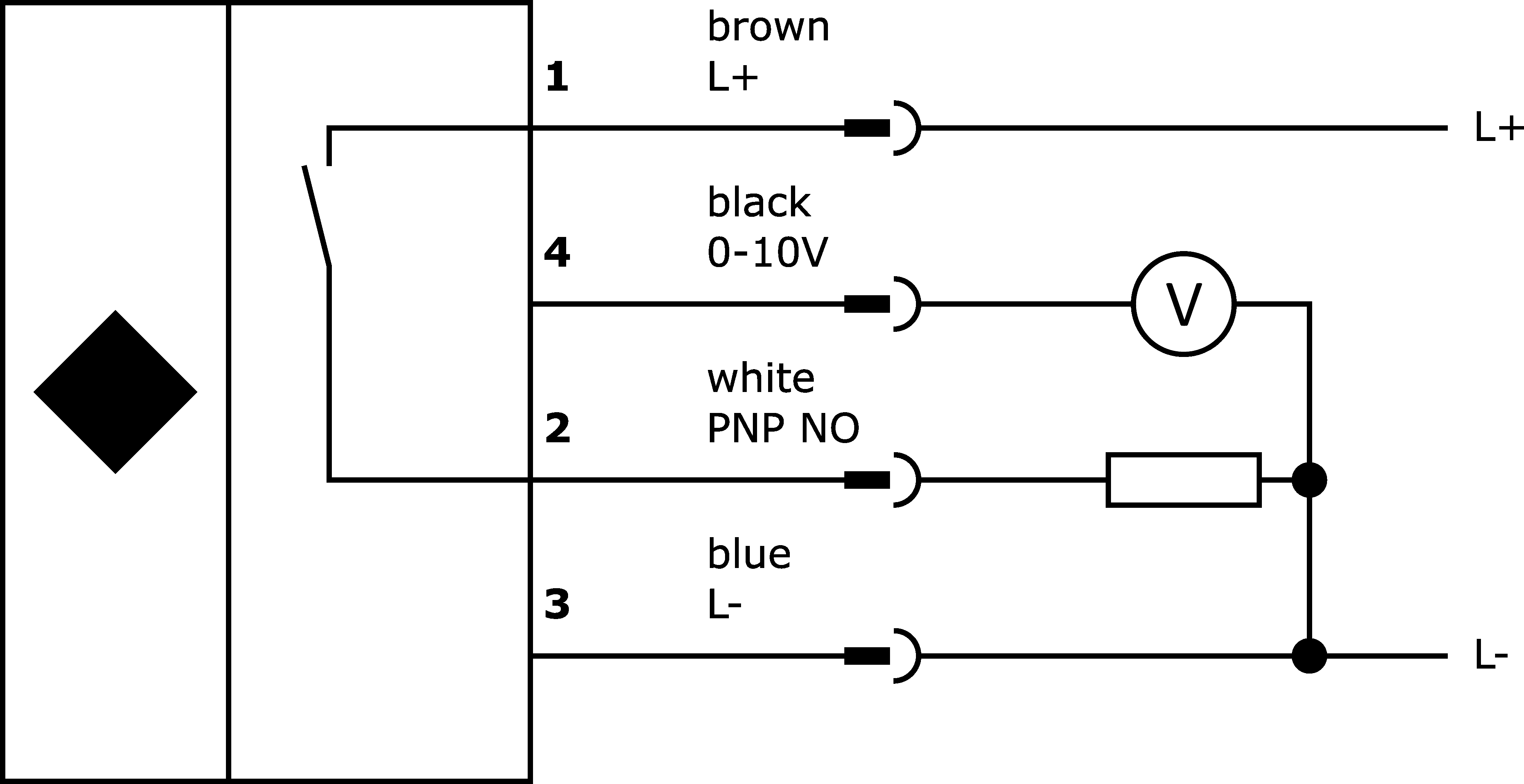

Electrical properties
- Response/decay time
- 2.5ms
- Resolution
- 0.01mm
- Type of analog output
- 0 - 10V
- Type of electrical connection
- Connector M8
- Type of switching output
- PNP
- Setting procedure
- Teach-In
- No-load current
- 30mA
- Number of pins
- 4
- Voltage drop
- 5V
- Temperature drift
- ±5 % Performance stability over the entire temperature range
- Absolute linearity deviation
- 0.05mm
- Absolute repeat accuracy
- 0.015mm
- Measuring range
- 0 - 10mm
- Short circuit protection, Reverse polarity protection
Mechanical properties
- Design
- Cuboid
- Width
- 20mm
- Height
- 42mm
- Length
- 15mm
- Mechanical mounting condition for sensor
- semi-flush
- Degree of protection (IP)
- IP67
- Housing material
- Plastic PET
Other properties
- Ambient temperature
- -25 - 70°C
You can find accessories for IB21A795
in these product groups:
Assembly
Fixing material design 21
Mounting system for AY000116
Available
Connection technology
Adapter M8 socket 4-pin / M12 connector 4-pin
Cable sockets M8 4-pin field-attachable
Cable sockets M8 4-wire
Cable sockets M8 4-wire shielded
Cable sockets M8-socket M12-connector 4-wire
