AM000087
accessories magnetic, Cable clip, Plastic
Available
Magnetic field sensors - Sensors for T-slot
MZ070125
| amount | price | discount |
|---|---|---|
| 1 | 54,30 € | – |
| 5 | 52,67 € | 3% / 1,63 € |
| 10 | 51,59 € | 5% / 2,72 € |
| 20 | 49,96 € | 8% / 4,34 € |
| 50 | 47,78 € | 12% / 6,52 € |
Available
Sensor magnetic, cylinder, 6.2mm T-slot, 22x23x10mm, 10-30V DC, 1x PNP NO, M12 plug connector 4-pin, IP67, zinc diecast, LED, 2.8mT, lateral installation, position of sensor surface device edge area
Compare
Magnetic field sensors - Sensors for T-slot
For many tasks in the field of automation technology, it is necessary to recognize the motional processes in pneumatic and hydraulic cylinders and to detect the position of the piston with precision. For this, magnetic cylinder sensors are used.
Electrical properties
- Number of switching outputs
- 1
- Type of switching function
- Normally open contact (NO)
- Type of electrical connection
- Connector M12
- Type of switching output
- PNP
- Rated switching current
- 200mA
- Absolute hysteresis
- 1mm
- No-load current
- 15mA
- Magnetic sensitivity
- 2.8mT
- Number of pins
- 4
- Switching frequency
- 1,000Hz
- Sensor surface (active)
- Border area / edge area
- Voltage drop
- 2V
- Absolute repeat accuracy
- 0.1mm
- Display
- LED display
- Short circuit protection, Reverse polarity protection
Mechanical properties
- Design
- Cuboid
- Width
- 10.1mm
- Height
- 22mm
- Length
- 23mm
- Sensor surface position
- Border area of the device
- Mounting access, cylinder groove
- Lateral
- Degree of protection (IP)
- IP67
- Housing material
- Zinc die-cast
Other properties
- Suitable for
- 6.2mm T-slot
- Cylinder version
- With T-groove
- Ambient temperature
- -25 - 75°C
- Harsh environmental conditions
- Yes
You can find accessories for MZ070125
in these product groups:
Assembly
Cable clip - T-groove
Fixing material for MZ07 / MZA7
Holder MZ07 for cylinder 16
Mounting for MZ07 /MZA7 metal
Available
Available
Available
Positive stop for MZ07
Available
Connection technology
Adapter M12 socket 3-pin / M8 connector 3-pin
Cable sockets M12 3-wire
Cable sockets M12 3-wire with LED
Cable sockets M12 4-pin Field-attachable with LED
Cable sockets M12-socket M8-connector 3-wire
Cable sockets M12-socket with LED M8-connector 3-wire
Inverters M12
Logic modules M12
Pulse/pause counter M12
Timer stages M12
Other sensors
Power supply 24V DC / 100mA switching amplifier
Protection cap, teflon M12
Tool
Multifunction tool
Sensor tester
Datasheets

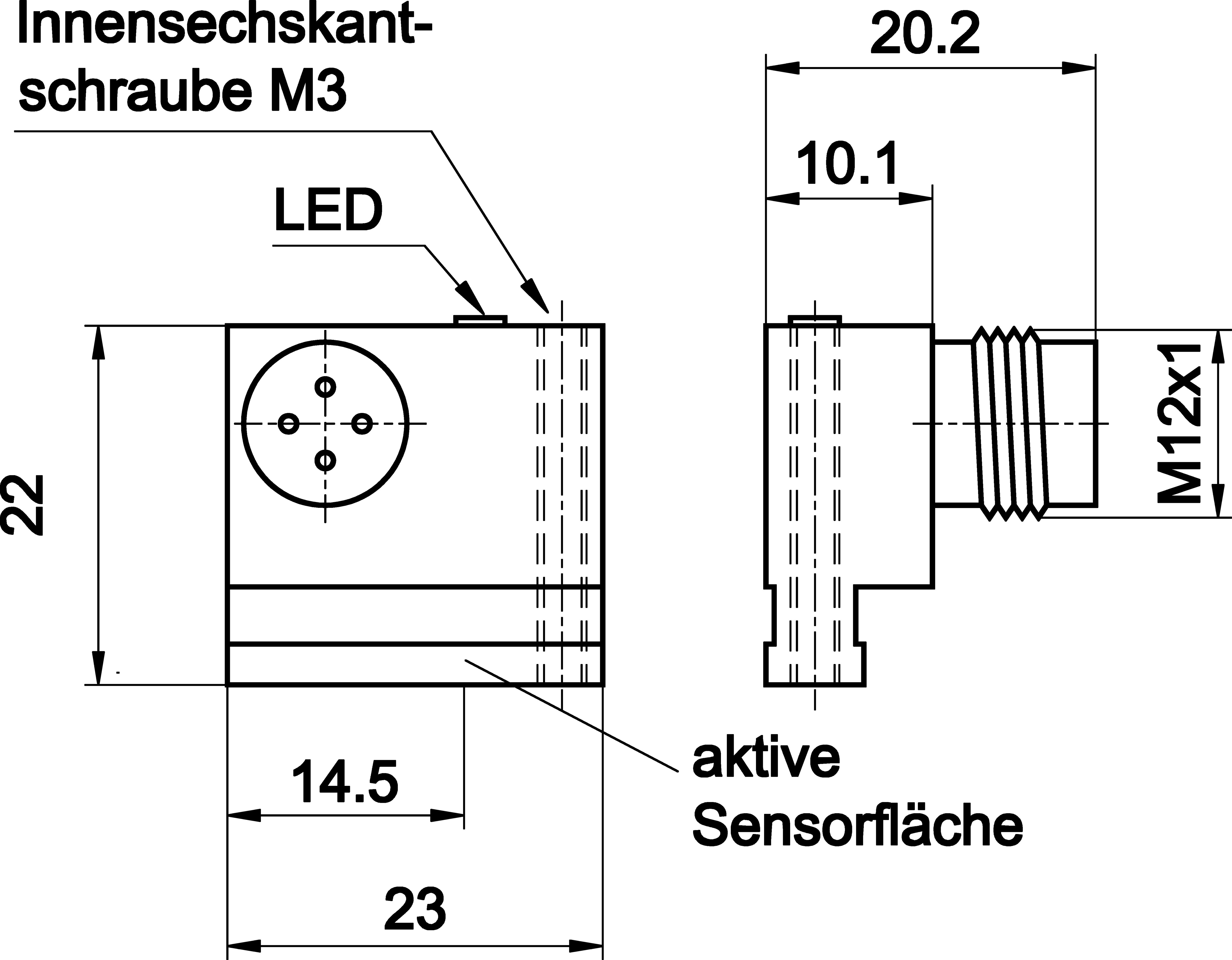

Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 480 KB
-
pdfEU declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Links
Product flyers
| Classification | Class |
|---|---|
| eClass-7.0 | 27270104 |
| eClass-7.1 | 27270104 |
| eClass-8.0 | 27270104 |
| eClass-9.0 | 27270104 |
| eClass-9.1 | 27270104 |
| ETIM-6.0 | EC002544 |
| ETIM-7.0 | EC002544 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 220 pneumatic cylinder sensors |
| packaging dimensions | 100 x 25 x 130mm |
| gross weight | 20g |
| 0,1kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
