PT230020
| amount | price | discount |
|---|---|---|
| 1 | 413,70 € | – |
| 5 | 401,29 € | 3% / 12,41 € |
| 10 | 393,02 € | 5% / 20,69 € |
| 20 | 380,60 € | 8% / 33,10 € |
| 50 | 364,06 € | 12% / 49,64 € |
Scarce
Sensor laser, diffuse reflection sensor, 50x50x23mm, Sn:100-5000mm, time-of-flight, 18-30V DC, -40-60°C, 1x PNP/NPN NC/NO, 0-10V/4-20mA, IO-Link, M12 plug connector 5-pin, IP67, plastic ABS+plastic, 0.25kHz, laser diode, red light, dot, parameterization
Compare
Laser sensors - Distance measurement
Optical sensors work contactless. They detect objects, regardless of their properties (e.g. shape, color, surface structure, material). The basic mode of operation is based on the transmitter and receiver of light. There are three different versions: 1. the through-beam sensor consists of two separate devices, a transmitter and a receiver, which are aligned with each other. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. in the reflex light barrier, the transmitter and receiver are located in one device. The transmitted light beam is reflected onto the receiver by a reflector to be mounted opposite. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. the diffuse reflection sensor has a transmitter and receiver in one device. The transmitted light beam is reflected by the object to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.
Electrical properties
- Response/decay time
- 4ms
- Number of switching outputs
- 1
- Resolution
- 5mm
- Type of switching function
- Normally closed contact/normally open contact
- Type of analog output
- 0 - 10V, 4 - 20mA

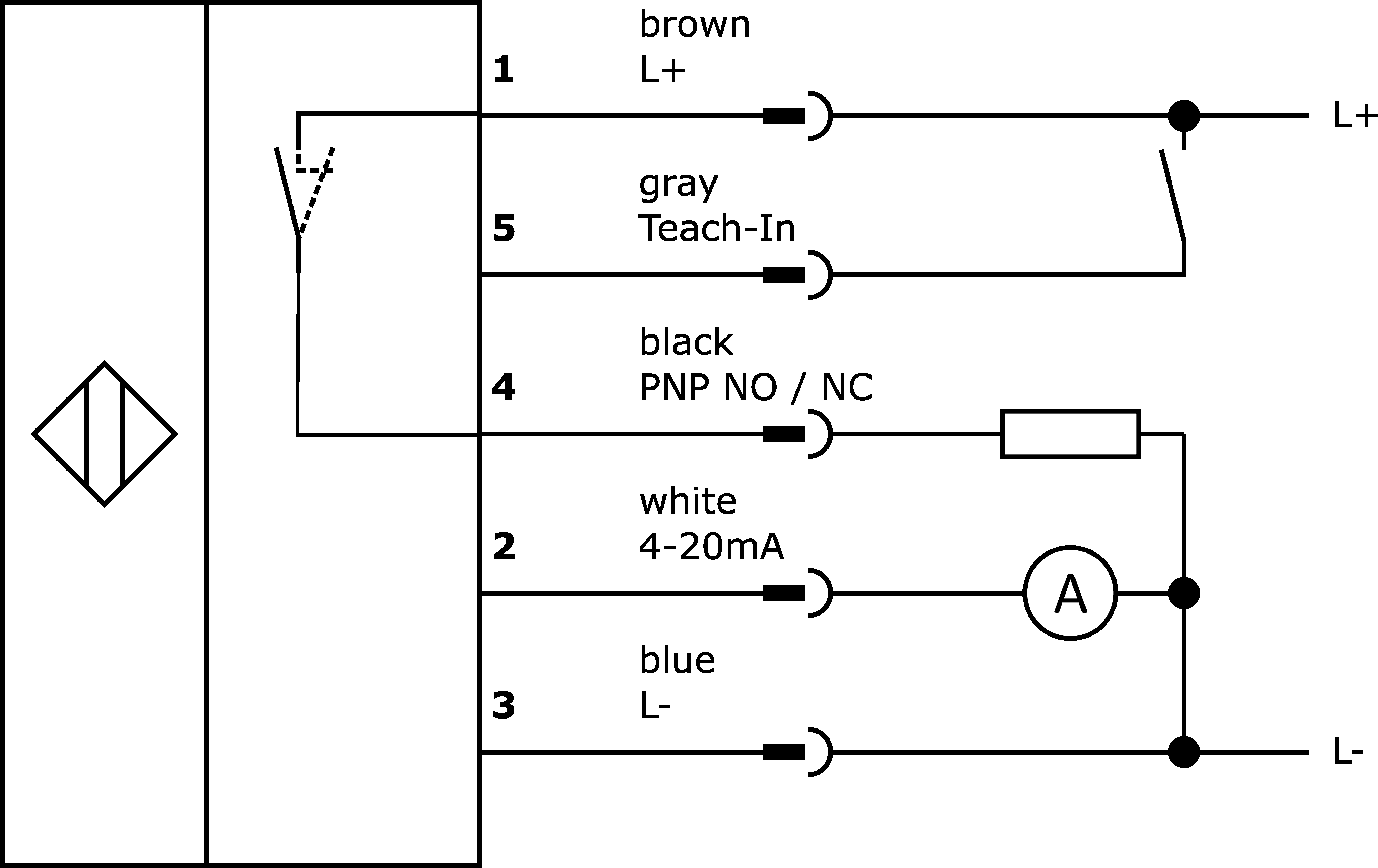

- Type of electrical connection
- Connector M12
- Type of switching output
- PNP/NPN
- Rated switching current
- 100mA
- Readiness delay
- 5,000ms
- Setting procedure
- Parameterization
- Laser power
- 1mW
- No-load current
- 60mA
- Number of pins
- 5
- Residual ripple
- 10%
- Switching frequency
- 250Hz
- Absolute linearity deviation
- 15mm
- Absolute repeat accuracy
- 12mm
- Measurement principle
- time-of-flight
- Supported communication interface
- IO-Link
- Measuring range
- 100 - 5,000mm
- Display
- LED display
- Short circuit protection, Reverse polarity protection

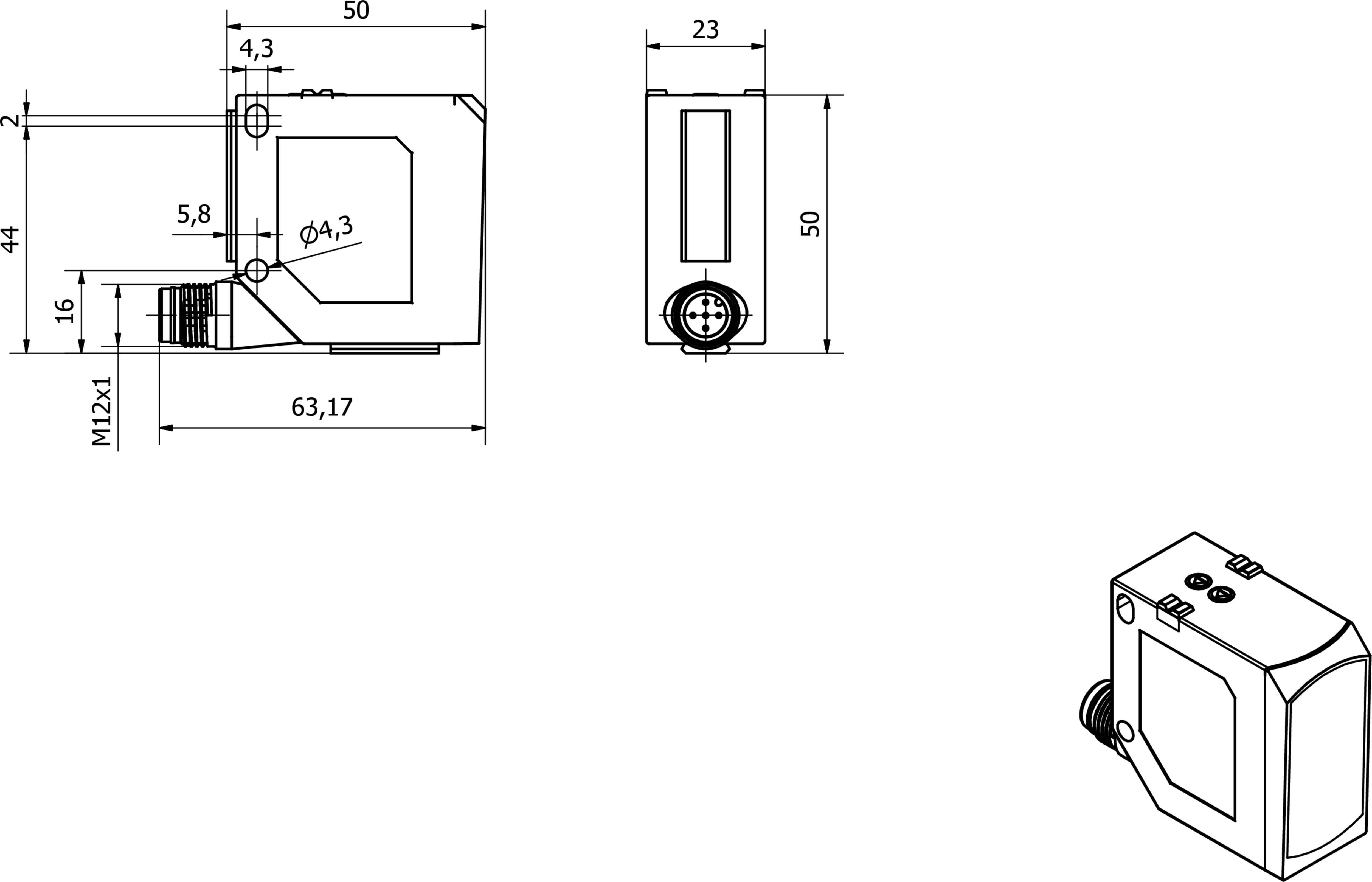

Mechanical properties
- Design
- Cuboid
- Width
- 23mm
- Height
- 50mm
- Length
- 50mm
- Storage temperature
- -40 - 80°C
- Degree of protection (IP)
- IP67 / IP69k
- Active area material of sensor
- Plastic
- Housing material
- Plastic (ABS)
Optical properties
- Laser class
- Class 1
- Light source
- Laser diode, red light
- Light beam form
- Point
- Wavelength of the sensor
- 655nm
Other properties
- Ambient temperature
- -40 - 60°C
- Reference medium / object
- Material with 90% reflectivity
- IO-Link version
- V1.1
You can find accessories for PT230020
in these product groups:
Assembly
Fixing material design 19 / 23
Available
Mounting for OT/PT23
Connection technology
Cable sockets M12 5-wire shielded
Other sensors
Power supply 24V DC / 2 – 10A
Programming / parameterization
IO-Link master
Tool
Sensor tester
Datasheets
Manuals
Drawings
Interfaces
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 483 KB
-
pdfEU declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
-
pdfFlyer IO-LinkPDF-file, 8.2 MB
-
pdfSensor solutions for the foil industryPDF-file, 2.7 MB
-
pdfProducts that inspirePDF-file, 8.5 MB
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 27270801 |
| eClass-7.1 | 27270801 |
| eClass-8.0 | 27270801 |
| eClass-9.0 | 27270801 |
| eClass-9.1 | 27270801 |
| ETIM-6.0 | EC001825 |
| ETIM-7.0 | EC001825 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| OzDS-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| MTTF value | 177Jahr(e) |
| IPF Product Group | 169 laser diffuse reflection sensors (analog) |
| packaging dimensions | 60 x 30 x 91mm |
| gross weight | 60g |
| 0,23kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
