NEW HIGH-POWER LED SPOTFOR HIGH-SPEED CAMERA OC29 APPLICATIONS AND MORE
Due to the short exposure time, a high light output is
advantageous for high-speed camera shots in order to achieve
the highest possible number of images per second (fps - frames
per second). A requirement that is perfectly met by the new
ES540020 high-power spotlight from ipf electronic with an
illuminance of 100,000 lux (color temperature 5000K) at a
distance of 500mm from an object.
The beam angle of the 16 high-power LEDs is 20°, allowing the
desired recording area to be specifically illuminated. The heat
dissipation of the light with an output of 43W takes place via
the cooler with active fan integrated in the sturdy aluminum
housing.
The optionally available power supply unit NY000008 with
on/off switch and M12 connection socket for the light‘s plug
enables continuous operation of the high-power LED spotlight.
For other applications, the spotlight can also be used in flash
mode with the internal flash controller.

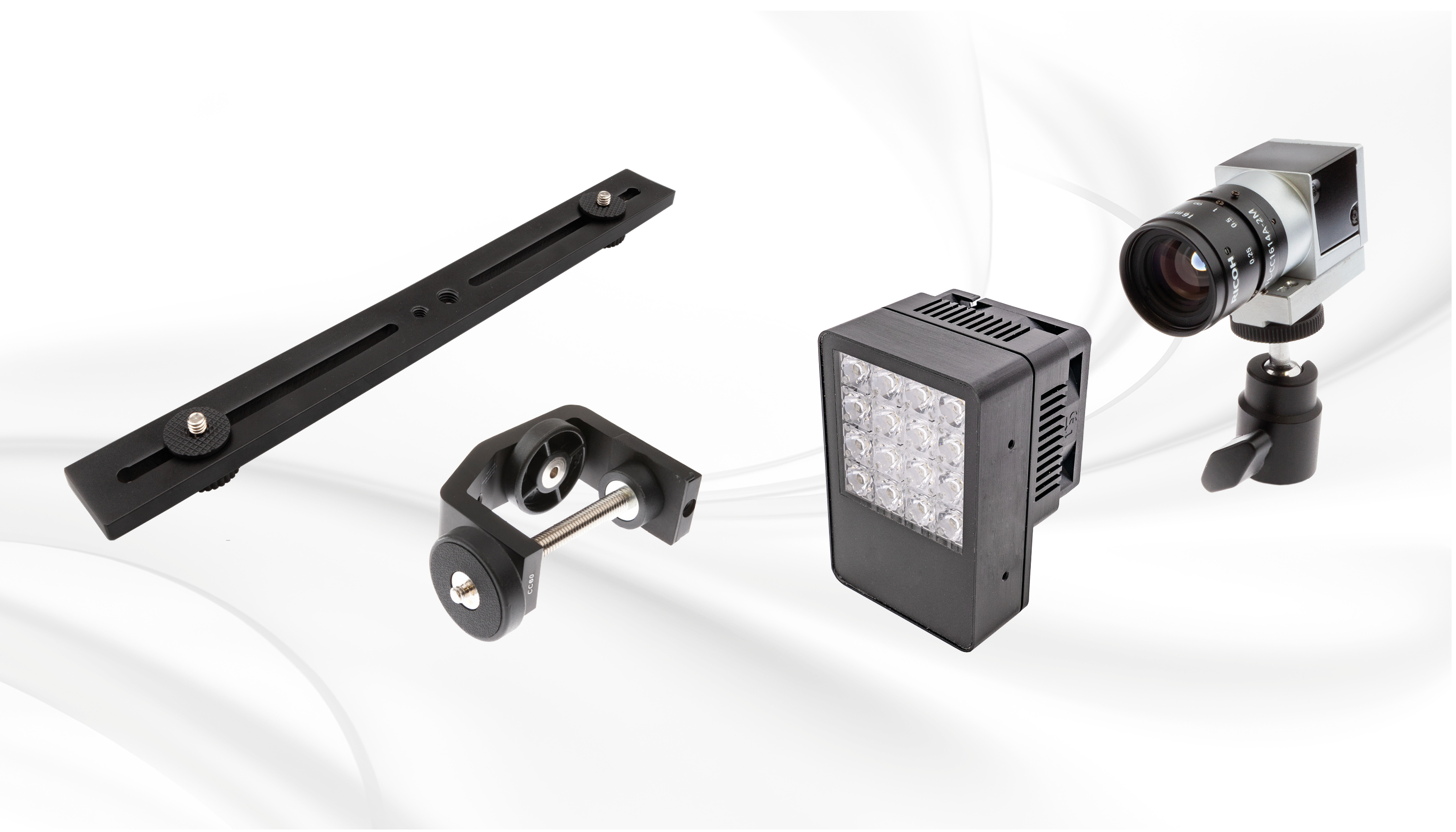

The ES540020 can also be attached to the accessories of the
OC29 high-speed camera from ipf electronic via the ¼-inch
thread: e.g. traverse (AO000568), screw clamp (AO000577)
and ball joint (AO000578). (sf)
