Individual data sheet
PDF-file, 819 KB
Measuring transducer - DIN rail mounting
BA565900
| amount | price | discount |
|---|---|---|
| 1 | 413,00 € | – |
| 5 | 400,61 € | 3% / 12,39 € |
| 10 | 392,35 € | 5% / 20,65 € |
| 20 | 379,96 € | 8% / 33,04 € |
| 50 | 363,44 € | 12% / 49,56 € |
Scarce
Measuring transducer, Analog / digital, 99x114x22mm, 0-10V/4-20mA / 0 … 20 mA, 20-253V AC, 20-253V DC, -40-70°C, Relay contact, Clamp, IP20, Plastic PC
Compare
Measuring transducer - DIN rail mounting
Electrical properties
- Type of analog input
- 0 - 20mA, 0 - 10V, 4 - 20mA
- Type of electrical connection
- Clamped terminal connection

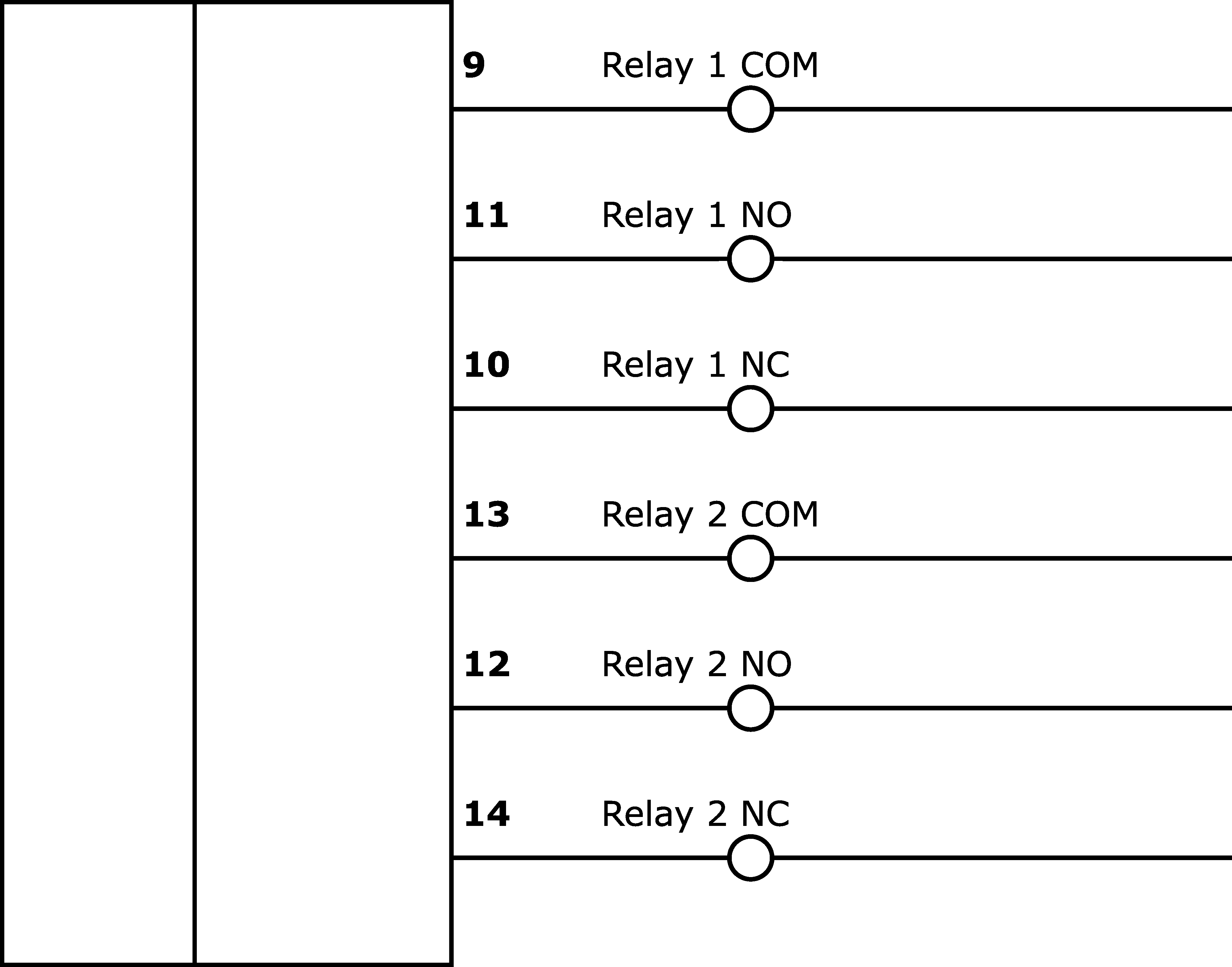

- Type of switching output
- Relay contact
- Setting procedure
- Jumper
- Power consumption
- 1.75VA
- Max. continuous current
- 6A
- Max. switching current
- 10A
- Relative measurement accuracy
- 0.4%
- Resistance of current input
- 50Ohm
- Resistance of voltage input
- 100kOhm
- Output functions
- Switching point, valControl de dos puntos
- Short circuit protection, Reverse polarity protection

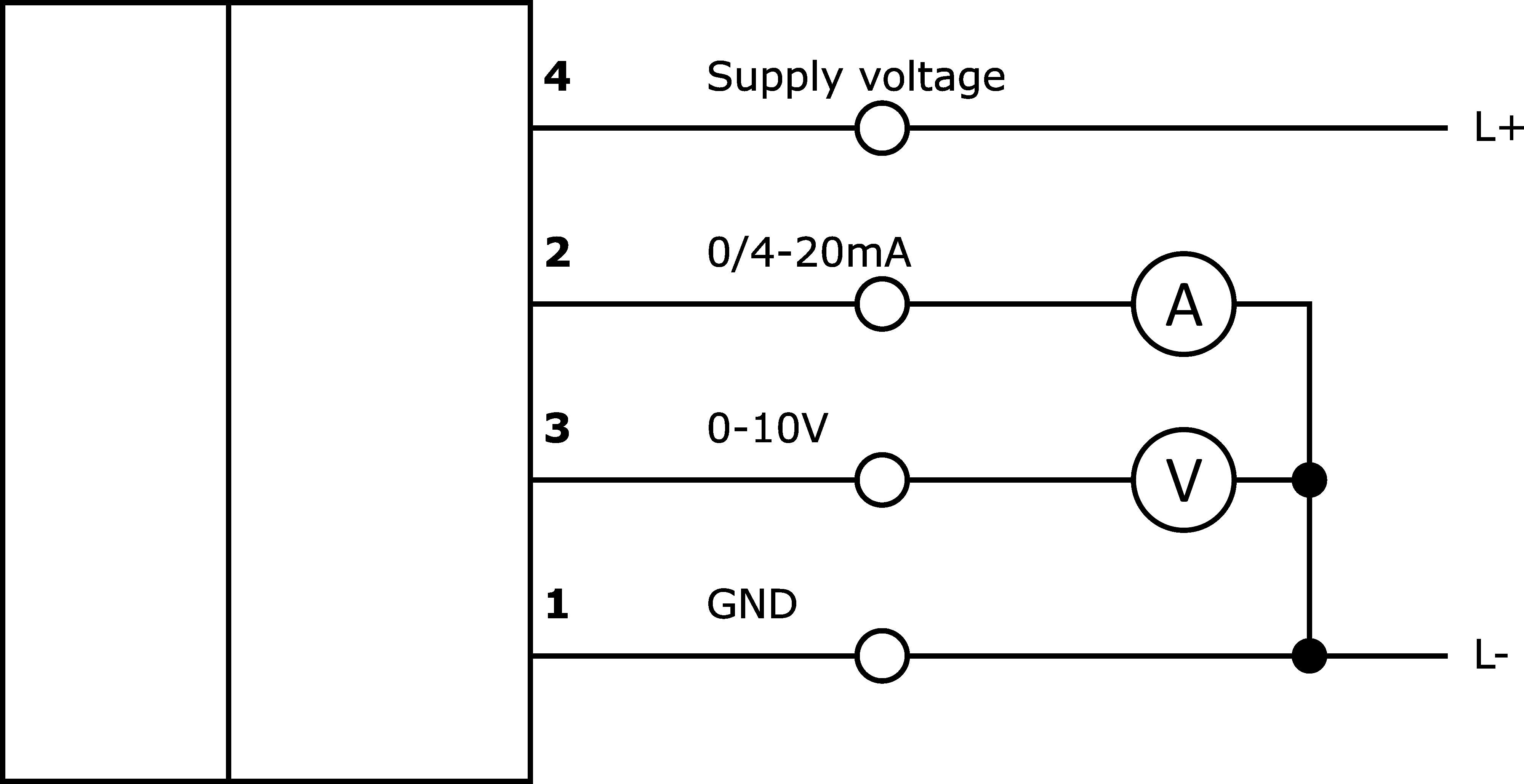

- Operating voltage
- Electrical connection
Mechanical properties
- Width
- 22.5mm
- Height
- 99mm
- Length
- 114mm
- Storage temperature
- -40 - 100°C
- Mounting method
- Top hat rail
- Degree of protection (IP)
- IP20
- Housing material
- Plastic PC
- dimensions
Other properties
- Ambient temperature
- -40 - 70°C
Datasheets
Manuals
Drawings
Product Compliance
| Classification | Class |
|---|---|
| eClass-7.0 | 27210301 |
| eClass-7.1 | 27210301 |
| eClass-8.0 | 27210301 |
| eClass-9.0 | 27210301 |
| eClass-9.1 | 27210301 |
| ETIM-6.0 | EC011231 |
| ETIM-7.0 | EC011231 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| MTTF value | 274Jahr(e) |
| IPF Product Group | 550 measuring transducer |
| packaging dimensions | 124 x 28 x 149mm |
| gross weight | 170g |
| 0,41kg CO₂e | |
| Customs tariff number | 85437090 |
| WEEE number | 40951076 |
