Pressure sensors - Pressure switch - DW16
DW164600
| amount | price | discount |
|---|---|---|
| 1 | 169,00 € | – |
| 5 | 163,93 € | 3% / 5,07 € |
| 10 | 160,55 € | 5% / 8,45 € |
| 20 | 155,48 € | 8% / 13,52 € |
| 50 | 148,72 € | 12% / 20,28 € |
Available
Pressure sensor, Ø16mm 79lang, -1-0bar, 10-30V DC, G1/8 "A / M5 inside, 2x PNP NC/NO, IO-Link, M8 plug connector 4-pin, IP65, plastic ABS, With display
Compare
Pressure sensors - Pressure switch - DW16
The vacuum and pressure sensors in the DW16 series with integrated display, 2 switching outputs and G1/8" process connection can be parameterized for specific applications via IO-Link or directly on the sensor (e.g. normally closed/ normally open, switching point, turn-off delay, pressure window, hysteresis settings).
They also provide valuable data during use via IO-Link (e.g. damping, switching frequency, etc.). With a response time of <2.5 ms, the compact devices are suitable for use in all conceivable handling and automation systems in which filtered, dry or lubricated compressed air is used, such as pressure monitoring, for vacuum control in vacuum traverses, for controlling compressors and much more.
Advantages
- Flexible parameterization via IO-Link interface
- Integrated display with menu-guided configuration
- Robust design (for pressure peaks up to max. 5bar or max. 16bar)
- Two configurable switching outputs
- Compact design (ø16mm)
Electrical properties
- Initial setting
- -1,000hPa
- Response/decay time
- 2.5ms
- Number of switching outputs
- 2
- Type of switching function
- Normally closed contact/normally open contact

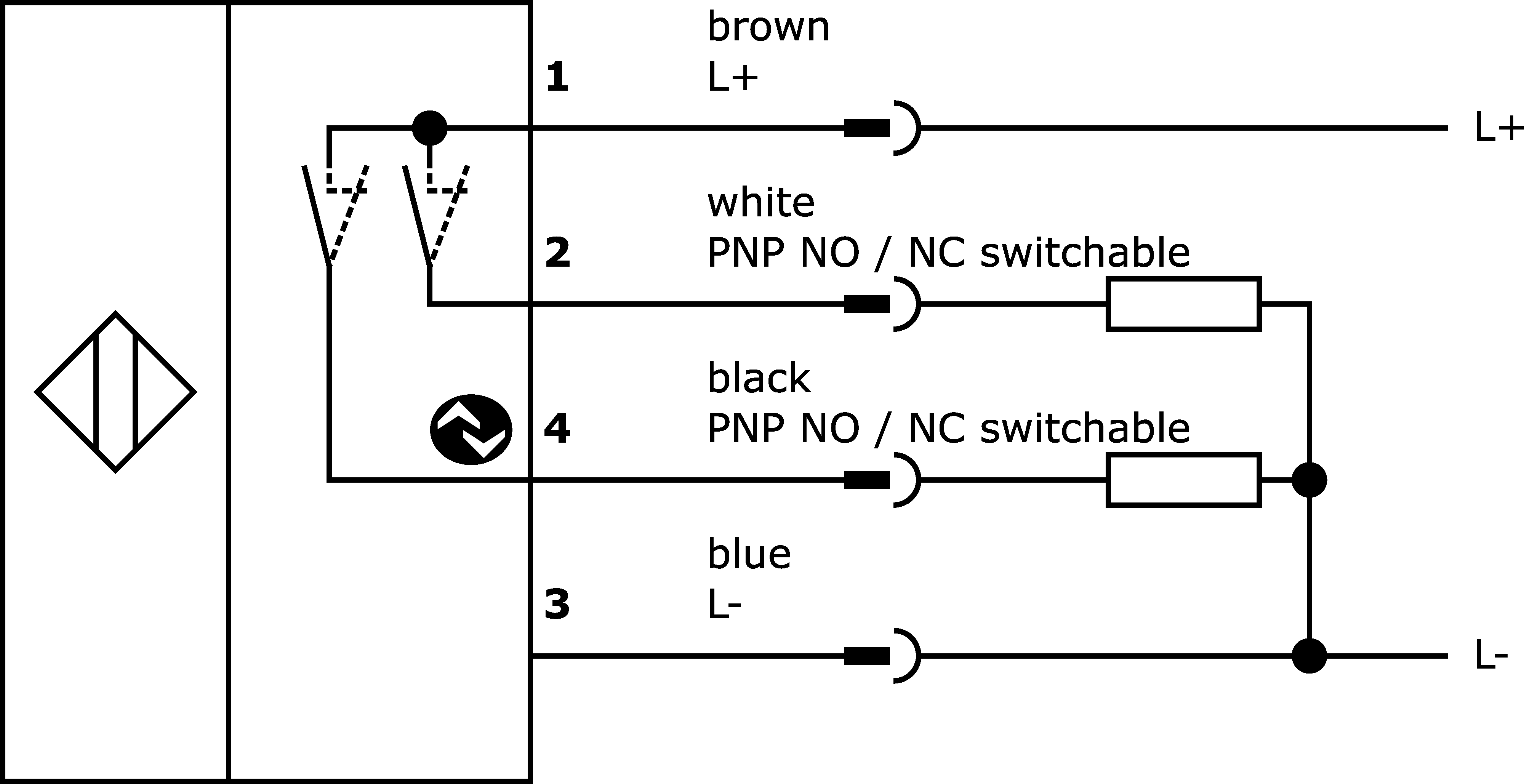

- Type of electrical connection
- Connector M8
- Type of switching output
- PNP
- Turn-off delay
- 0 - 999s
- Rated switching current
- 200mA
- Readiness delay
- 5,000ms
- Turn-on delay
- 0 - 99.9s
- Setting procedure
- Parameterization
- End setting
- 0hPa
- No-load current
- 15mA
- Measuring range pressure
- -1 - 0bar
- Measurement method
- Relative
- Number of pins
- 4
- Relative linearity deviation
- 0.5%
- Relative repeat accuracy
- 0.2%
- Residual ripple
- 10%
- Switching frequency
- 200Hz
- Voltage drop
- 2V
- Temperature drift over entire measuring range
- 1.5%
- Supported communication interface
- IO-Link
- Output functions
- Window function, Switching point, Hysteresis
- Display
- LCD display, LED display
- Suitable as limiter
- Yes
- Suitable as monitor
- Yes
- Short circuit protection, Reverse polarity protection
- Operating voltage
- 10-30VDC
- Electrical connection
- M8 4-pin plug connector
Mechanical properties
- Type of process connection
- G1/8 inch A / M5 inner
- Design
- Cylinder plain
- Thread length
- 7mm
- Thread pitch
- 0.91mm
- Length
- 79mm
- Maximum tightening torque
- 2.5Nm
- Max. operating pressure
- 5bar
- Nominal pressure
- -1bar
- Wrench size
- 16mm
- Degree of protection (IP)
- IP65
- Housing material
- Plastic (ABS)
- Diameter
- 16mm
- Long-term drift per year
- 0.1%
- Material of the process connection
- Nickel-plated (n-pltd) brass
- Material of the measuring cell
- Silicon (piezoresistive)
- dimensions
- Ø16mm, 79mm long
Other properties
- Range of functions
- Suitable for
- Air, Neutral gases
- Measuring display
- Relative
- Ambient temperature
- -25 - 85°C
- Important note
- Installation position Any (connection to pressure system with fan facing downwards)
- Reference medium / object
- Air
- IO-Link version
- V1.1
- Pneumatic applications
