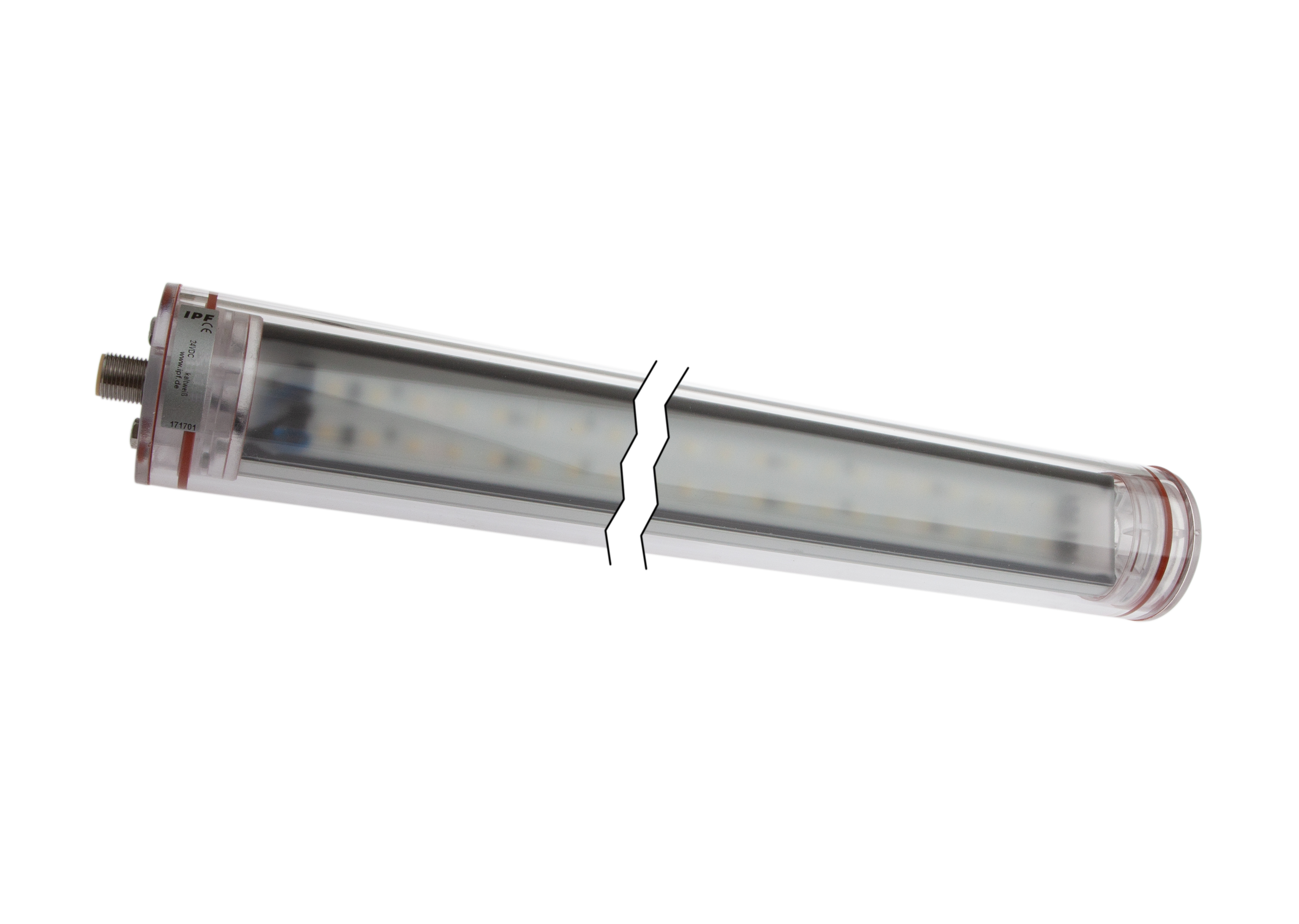

These robust and compact high-power surface-mounted LED lights impress with their high performance.
Thanks to their polycarbonate housing, the lights are suitable for use in production environments in the food and pharmaceutical industries.

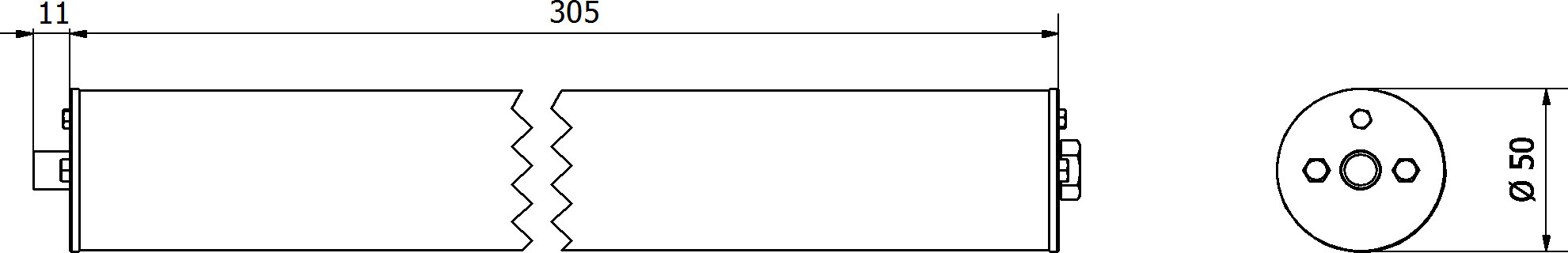

The luminaire diameter is 50 mm. Two cable strap holders and cable straps are included in the scope of delivery. The special aluminum housing also serves to dissipate heat. The lights can be used at ambient temperatures of up to
50 °C can be used.
The angle of emitted beam of 120° ensures that a large area is evenly illuminated.
The color temperature is 5,200 K. The use of SMD LEDs produces a uniform and flicker-free light.
Holders made of PP/V4A (AO000562) are available for the lights up.
The connection is made via an M12-connector made of V4A. The positive pole of the voltage supply can be connected via PIN 1 (brown)
as well as via PIN 4 (black).
| Classification | Class |
|---|---|
| eClass-7.0 | 27110390 |
| eClass-7.1 | 27110390 |
| eClass-8.0 | 27110390 |
| eClass-9.0 | 27110345 |
| eClass-9.1 | 27110345 |
| ETIM-6.0 | EC000348 |
| ETIM-7.0 | EC000348 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 190 machine illuminations |
| packaging dimensions | 80 x 80 x 405mm |
| gross weight | 712g |
| 2,8kg CO₂e | |
| Customs tariff number | 94054239 |
| WEEE number | 40951076 |
