| amount | price | discount |
|---|---|---|
| 1 | 65,00 € | – |
| 5 | 63,05 € | 3% / 1,95 € |
| 10 | 61,75 € | 5% / 3,25 € |
| 20 | 59,80 € | 8% / 5,20 € |
| 50 | 57,20 € | 12% / 7,80 € |

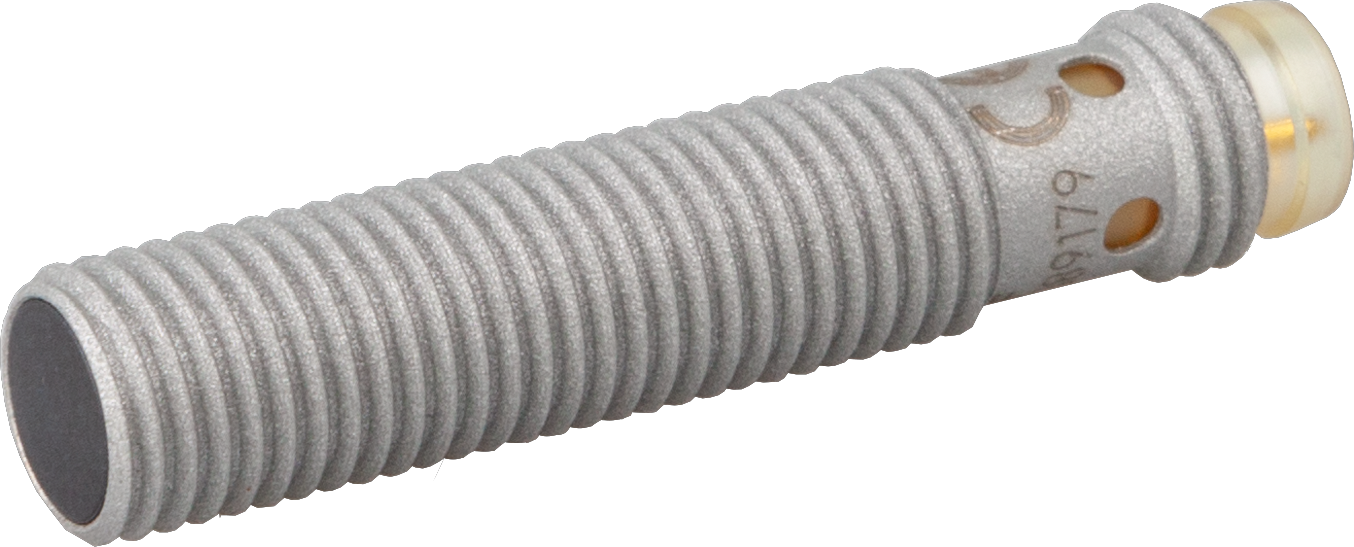

Inductive proximity switches are contactless sensors. They detect all conductive metals, irrespective of whether they are moving or not. The achievable switching distance of the devices depends on the object material and its dimensions. The vibration-resistant sensors can be approached from the side or front. Inductive proximity switches are used for presence detection (e.g. product carriers), positioning (e.g. furnace hatches), counting (e.g. nuts / bolts), speed detection (e.g. on toothed wheels), on conveyor systems (e.g. hose feeds) or for distance measurements (e.g. press-in checks) of metallic objects.
| Classification | Class |
|---|---|
| eClass-7.0 | 27270101 |
| eClass-7.1 | 27270101 |
| eClass-8.0 | 27270101 |
| eClass-9.0 | 27270101 |
| eClass-9.1 | 27270101 |
| ETIM-6.0 | EC002714 |
| ETIM-7.0 | EC002714 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| OzDS-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 207 inductive sensors (welding proof) |
| packaging dimensions | 150 x 10 x 220mm |
| gross weight | 17g |
| 0,13kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
