Diffuse-reflections sensor for integration - Capacitive

KY180120

KY180120
List price
65,80 €
amount price discount
1 65,80 €
5 63,83 € 3% / 1,97 €
10 62,51 € 5% / 3,29 €
20 60,54 € 8% / 5,26 €
50 57,90 € 12% / 7,90 €
On demand
Sensor capacitive, push buttons, M18x1, Ø 22/28,5mm, 30 long, 10-35V DC, -40-60°C, PNP, NO, static, M12 cable connector 5pin, IP67, VA/plastic PC, LED red/green
including 1x Nut
Compare

Diffuse-reflections sensor for integration - Capacitive

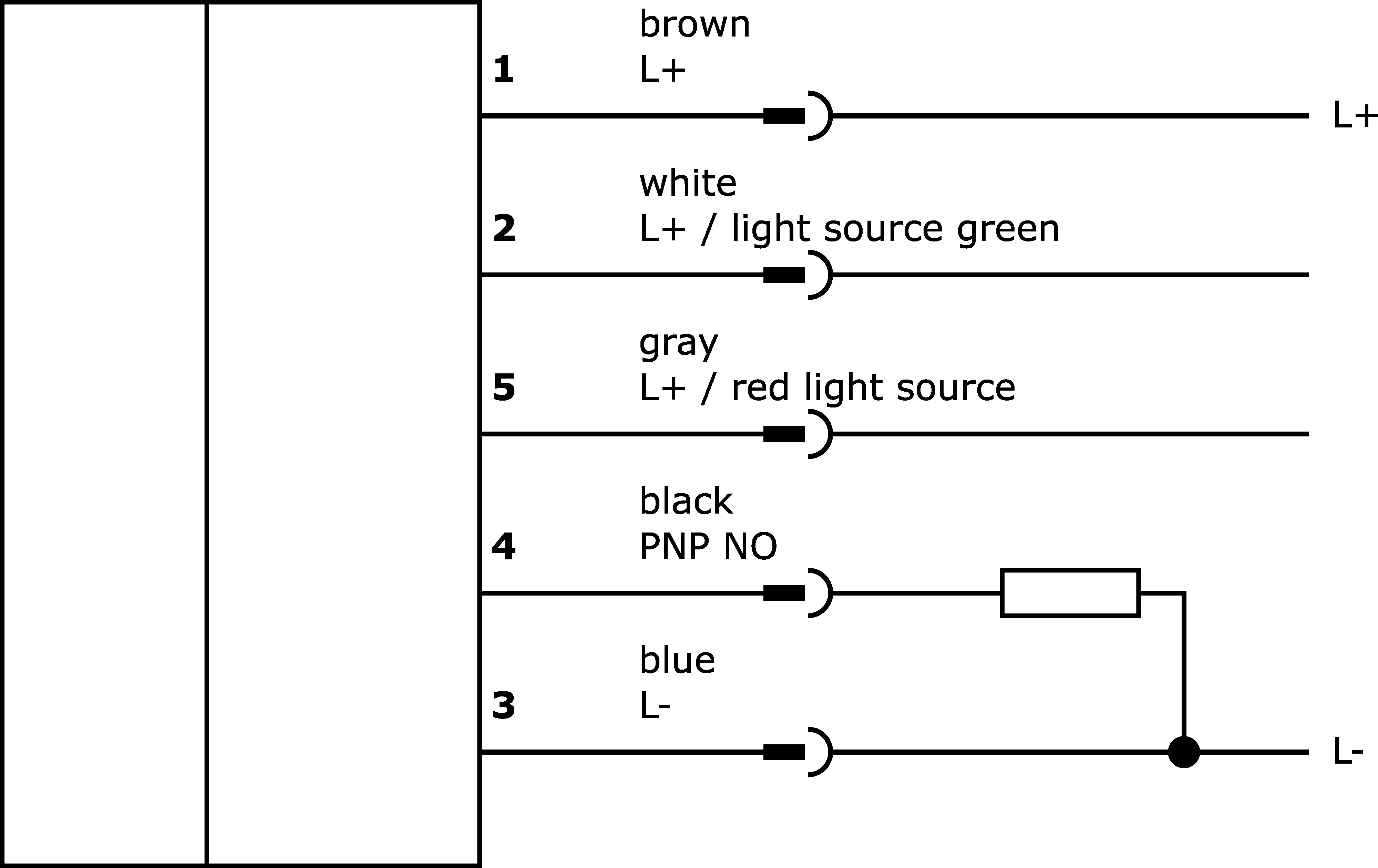

This diffuse-reflection sensor is a manual actuating element that can be easily installed in mounting holes with a diameter of 22.05mm and can thus also be replaced by existing mechanical sensors. The integrated thread (M18x1) and the supplied nut are used for fastening. The housing is made of stainless steel (1.4305), the actuating surface is made of polycarbonate. The diffuse-reflection sensor is classified according to the degree of protection IP67, the outer surfaces even correspond to the degree of protection IP69k, if the installation is carried out with suitable sealings. When the push button is touched with a finger, the switching output becomes active, as soon as the push button is released, the switching output returns to its original status. The device is equipped with two ring LEDs (red / green), which can be controlled separately.

Electrical properties

Type of switching function
Normally open contact
Type of electrical connection
Cable connector M12
Type of switching output
PNP
Rated switching current
200mA
Short-circuit protection
Yes
No-load current
50mA
Number of pins
5
Switching behavior of the output
Static
Reverse polarity protection
Yes
Operating voltage (DC)
10 - 35V
Display
LED display

Mechanical properties

Design
Round
Thread length
14.85mm
Thread pitch
1mm
Cable length
0.3m
Head shape
Flat
Sensor length
29.35mm
Hole diameter
22.5mm
Maximum tightening torque
1Nm
Mounting method
Counter thread
Degree of protection (IP)
IP67
Active area material of sensor
Plastic PC
Housing material
Stainless steel 1.4305
M18

Other properties

Ambient temperature
-40 - 60°C
With front ring
Yes
You can find accessories for KY180120 in these product groups:

Cable sockets M12 5-wire shielded

Cable sockets M12 5-pin field attachable

Classification Class
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
IPF Product Group 690 diverse sensors
packaging dimensions 43 x 43 x 105mm
Customs tariff number 85365019
WEEE number 40951076
