Magnetic field sensors - Sensors for T-slot

MR074107

MR074107
List price
34,00 €
amount price discount
1 34,00 € –
5 32,98 € 3% / 1,02 €
10 32,30 € 5% / 1,70 €
20 31,28 € 8% / 2,72 €
50 29,92 € 12% / 4,08 €
Scarce
sensor magnetic, reed, 6.2mm T-groove, 4,3x29x6,2mm, 230V AC/DC, 1x Dry reed contact NO, Cable 2pin 2.5m PVC, IP67, Plastic, mounting Lateral, Sensor surface position Center of the device

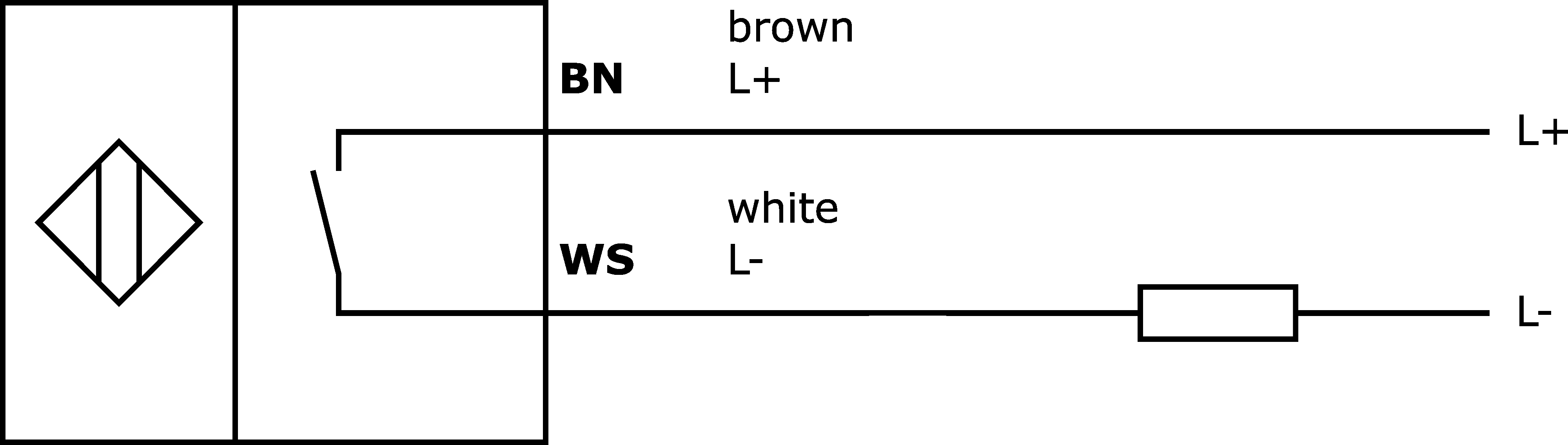

circuit diagram
3D model
Compare

Magnetic field sensors - Sensors for T-slot

Electrical properties

Number of switching outputs
1
Type of switching function
Normally open contact (NO)
Type of electrical connection
Cable
Type of switching output
Dry reed contact
Rated switching current
30mA
Contact life
≤ 10^5 ... 10^6 circuitry
Number of pins
2

mechanical properties

Number of cores
3
Tightening torque
0.35Nm
Design
Cuboid
Width
6.2mm
Height
4.3mm
Cable length
2.5m
Length
29mm
Sensor surface position
Center of the device
Mounting access, cylinder groove
Lateral
Degree of protection (IP)
IP67
Housing material
Plastic
material of cable sheath
Plastic (PVC)

other properties

Suitable for
6.2mm T-slot
Cylinder version
With T-groove
Ambient temperature
-25 - 80°C
You can find accessories for MR074107 in these product groups:

Assembly

Fixing material for MZ07 / MZA7

AM000037
AM000037
accessories magnetic, Mounting clip, 18x19x19mm, span 8.3-9.4mm, Plastic, For sensor MZ07, for Cylinder, 8round
10,10 €
Your price
On demand
AM000038
AM000038
accessories magnetic, Mounting clip, 20x21x19mm, span 10.2-11.95mm, Plastic, For sensor MZ07, for Cylinder, 10round
10,10 €
Your price
Available
AM000039
AM000039
accessories magnetic, Mounting clip, 22x22x19mm, span 12.15-13.8mm, Plastic, For sensor MZ07, for Cylinder, 12round
10,10 €
Your price
Available
AM000040
AM000040
accessories magnetic, Mounting clip, 25x27x19mm, span 16-18.1mm, Plastic, For sensor MZ07, for Cylinder, 16round
10,10 €
Your price
Available
AM000041
AM000041
accessories magnetic, Mounting clip, 30x34x19mm, span 20.1-21.8mm, Plastic, For sensor MZ07, for Cylinder, 20round
10,10 €
Your price
Available
AM000042
AM000042
accessories magnetic, Mounting clip, 35x37x19mm, span 25.2-27.3mm, Plastic, For sensor MZ07, for Cylinder, 25round
10,10 €
Your price
Available
AM000043
AM000043
accessories magnetic, Mounting clip, 42x40x19mm, span 32.6-35mm, Plastic, For sensor MZ07, for Cylinder, 32round
11,00 €
Your price
Available
AM000044
AM000044
accessories magnetic, Mounting clip, 50x45x19mm, span 40.8-42.8mm, Plastic, For sensor MZ07, for Cylinder, 40round
11,00 €
Your price
Available
AM000045
AM000045
accessories magnetic, Mounting clip, 60x55x19mm, span 50.7-53mm, Plastic, For sensor MZ07, for Cylinder, 50round
11,00 €
Your price
Scarce
AM000046
AM000046
accessories magnetic, Mounting clip, 74x67x19mm, span 63.4-66mm, Plastic, For sensor MZ07, for Cylinder, 63round
11,00 €
Your price
Scarce
AM000048
AM000048
Accessories Magnetic, mounting clip, 55x47x10mm, span 40.5-43mm, plastic, for sensor 9round, for cylinder 40round
20,80 €
Your price
On demand

Connection technology

Cable connectors M12 4-pin field-attachable

VK003026
VK003026
Cable connector, Angular, Suitable for self-assembly, Screw connection, Ø3-6.5mm, 4A, 240V, -25-90°C, M12 Male…
10,10 €
Your price
Available
VK003028
VK003028
Cable connector, Straight, Suitable for self-assembly, Screw connection, Ø3-6.5mm, 4A, 240V, -25-90°C, M12 Male…
10,50 €
Your price
Available
VK003828
VK003828
Cable connector, Straight, Suitable for self-assembly, Screw connection, Ø3-6.5mm, 4A, 240V, -25-90°C, M12 Male…
14,70 €
Your price
On demand
VK003C28
VK003C28
Cable connector, Straight, Suitable for self-assembly, Screw connection, Ø4-8mm, 4A, 240V, -25-90°C, M12 Male…
12,50 €
Your price
Available
VK003D26
VK003D26
Cable connector, Angular, Suitable for self-assembly, Quick connection, Ø4-5.1mm, 4A, 32V, -25-85°C, M12 Male…
15,30 €
Your price
Available
VK003D29
VK003D29
Cable connector, Straight, Suitable for self-assembly, Quick connection, Ø5.5-8mm, 6A, 50V, -25-85°C, M12 Male…
16,60 €
Your price
Available
VK003E28
VK003E28
Cable connector, Straight, Suitable for self-assembly, Screw connection, Ø4-5mm, 4A, 250V, -25-90°C, M12 Male…
17,40 €
Your price
Available
VK003S28
VK003S28
Cable connector, Straight, Suitable for self-assembly, Quick connection, Ø4-5.1mm, 4A, 32V, -25-85°C, M12 Male…
12,60 €
Your price
Available

Cable connectors M8 3-pin field-attachable

VK003076
VK003076
Cable connector, Angular, Suitable for self-assembly, Soldering connection, 4A, 60V, -40-85°C, M8 Male (connector) 3pin,…
12,70 €
Your price
Available
VK003078
VK003078
Cable connector, Straight, Suitable for self-assembly, Soldering connection, Ø3.5-5mm, 4A, 60V, -40-85°C, M8 Male…
11,40 €
Your price
On demand
VK003176
VK003176
Cable connector, Angular, Suitable for self-assembly, Screw connection, Ø5mm, 4A, 60V, -40-85°C, M8 Male (connector)…
24,80 €
Your price
Available
VK003178
VK003178
Cable connector, Straight, Suitable for self-assembly, Screw connection, Ø3.5-5mm, 4A, 60V, -40-85°C, M8 Male…
11,60 €
Your price
Available
VK003S78
VK003S78
Cable connector, Straight, Suitable for self-assembly, Quick connection, Ø4-5.1mm, 4A, 32V, -25-85°C, M8 Male…
13,00 €
Your price
Available

Inverters – terminal

VY850001
VY850001
Inverter/signal-inversion/turn-off delay, 85x65x18mm, 0.01-10s, 12-30V DC, 1x NC/NO, Clamp 8pin, IP40, Plastic, Plug-in…
87,20 €
Your price
Available
VY850002
VY850002
Inverter/signal-inversion/turn-off delay, 85x65x18mm, 0.01-10s, 12-30V DC, 1x NC/NO, Clamp 8pin, IP40, Plastic, Plug-in…
87,20 €
Your price
Scarce
VY85C102
VY85C102
Inverter/signal-inversion/turn-on delay, 85x65x18mm, 0.01-10s, 10-30V DC, 1x NC/NO, Clamp 8pin, IP40, Plastic, Plug-in…
87,20 €
Your price
Scarce

Sheath

AY000141
AY000141
Plastic sheath, Ø17mm, Inner diameter 10mm, -40-250°C, Glass fiber with silicone rubber, Short-term resistance to weld…
39,30 €
Your price
Available
Classification Class
eClass-7.0 27270104
eClass-7.1 27270104
eClass-8.0 27270104
eClass-9.0 27270104
eClass-9.1 27270104
ETIM-6.0 EC002544
ETIM-7.0 EC002544
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 221 pneumatic cylinder sensors (low cost / reed)
packaging dimensions 120 x 20 x 190mm
gross weight 52g
Carbon footprint 0,26kg CO₂e
customs tariff number 85365080
WEEE number 40951076
