DISCONTINUED PRODUCT

MR07C453

MR07C453
Successor model?
We would be pleased to advise you!

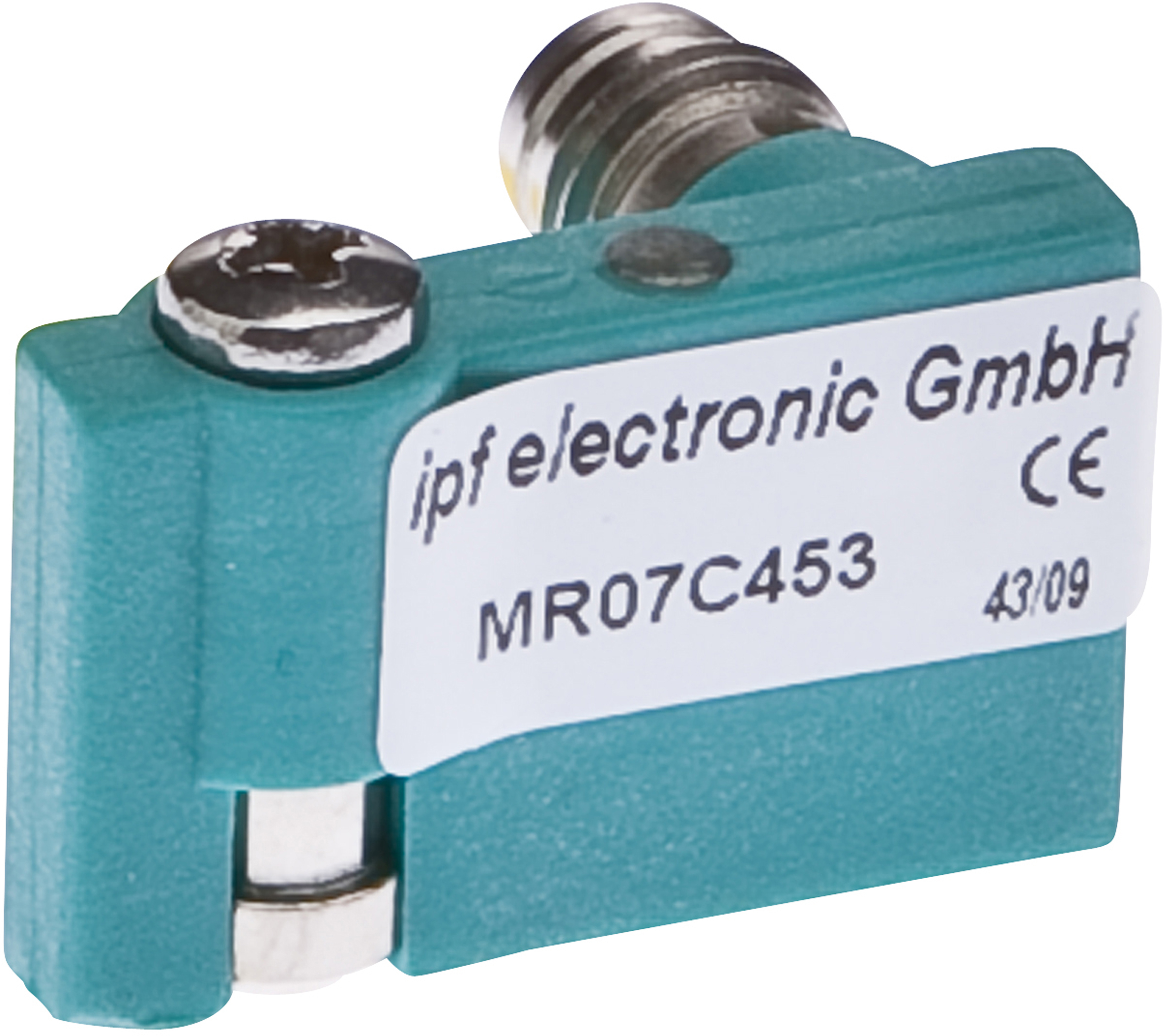

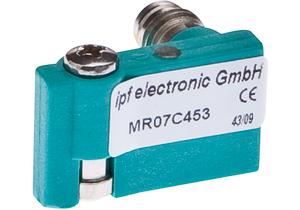

sensor magnetic, reed, 6.2mm T-groove, 5x16x26mm, 10-30V AC/DC, 1x Dry reed contact NO, Connector M8 3pin, IP67, Plastic, LED, mounting Lateral

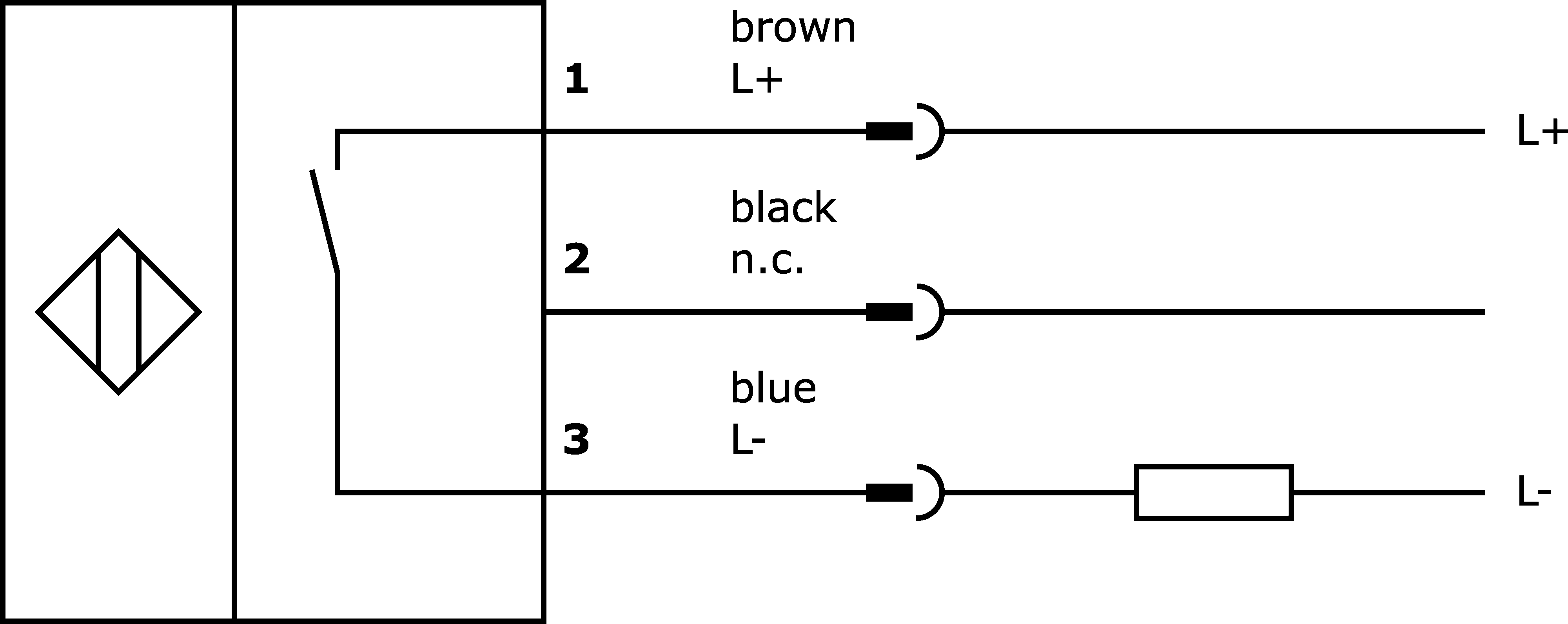

circuit diagram
3D model
Compare

Magnetic field sensors - Sensors for T-slot

Electrical properties

Number of switching outputs
1
Type of switching function
Normally open contact (NO)
Type of electrical connection
Connector M8
Type of switching output
Dry reed contact
Rated switching current
30mA
Contact life
≤ 10^5 ... 10^6 circuitry
Number of pins
3
Switching capacity
0.9VA

Mechanical properties

Design
Cuboid
Width
26mm
Height
5mm
Length
16mm
Mounting access, cylinder groove
Lateral
Degree of protection (IP)
IP67
Housing material
Plastic

Other properties

Suitable for
6.2mm T-slot
Cylinder version
With T-groove
Ambient temperature
-25 - 80°C
You can find accessories for MR07C453 in these product groups:

Assembly

Fixing material for MZ07 / MZA7

AM000037
AM000037
accessories magnetic, Mounting clip, 18x19x19mm, span 8.3-9.4mm, Plastic, For sensor MZ07, for Cylinder, 8round
10,10 €
Your price
On demand
AM000038
AM000038
accessories magnetic, Mounting clip, 20x21x19mm, span 10.2-11.95mm, Plastic, For sensor MZ07, for Cylinder, 10round
10,10 €
Your price
Available
AM000039
AM000039
accessories magnetic, Mounting clip, 22x22x19mm, span 12.15-13.8mm, Plastic, For sensor MZ07, for Cylinder, 12round
10,10 €
Your price
Scarce
AM000040
AM000040
accessories magnetic, Mounting clip, 25x27x19mm, span 16-18.1mm, Plastic, For sensor MZ07, for Cylinder, 16round
10,10 €
Your price
Available
AM000041
AM000041
accessories magnetic, Mounting clip, 30x34x19mm, span 20.1-21.8mm, Plastic, For sensor MZ07, for Cylinder, 20round
10,10 €
Your price
Available
AM000042
AM000042
accessories magnetic, Mounting clip, 35x37x19mm, span 25.2-27.3mm, Plastic, For sensor MZ07, for Cylinder, 25round
10,10 €
Your price
Available
AM000043
AM000043
accessories magnetic, Mounting clip, 42x40x19mm, span 32.6-35mm, Plastic, For sensor MZ07, for Cylinder, 32round
11,00 €
Your price
Available
AM000044
AM000044
accessories magnetic, Mounting clip, 50x45x19mm, span 40.8-42.8mm, Plastic, For sensor MZ07, for Cylinder, 40round
11,00 €
Your price
Available
AM000045
AM000045
accessories magnetic, Mounting clip, 60x55x19mm, span 50.7-53mm, Plastic, For sensor MZ07, for Cylinder, 50round
11,00 €
Your price
Scarce
AM000046
AM000046
accessories magnetic, Mounting clip, 74x67x19mm, span 63.4-66mm, Plastic, For sensor MZ07, for Cylinder, 63round
11,00 €
Your price
Scarce
AM000048
AM000048
Accessories Magnetic, mounting clip, 55x47x10mm, span 40.5-43mm, plastic, for sensor 9round, for cylinder 40round
20,80 €
Your price
On demand

Connection technology

Inverters M8

VYR90270
VYR90270
Signal inversion, Ø9mm 32long, 10-35V DC, 1x NC, M8 0.3m, IP67, Aluminum
131,80 €
Your price
Scarce
VYR91170
VYR91170
Inverter, Ø9mm 32long, PNP/NPN, 10-35V DC, 1x NO, M8 0.3m, IP67, Aluminum
131,80 €
Your price
Available
VYR91270
VYR91270
Inverter/signal-inverted, Ø9mm 32long, PNP/NPN, 10-35V DC, 1x NC, M8 0.3m, IP67, Aluminum
149,60 €
Your price
Scarce
Classification Class
eClass-7.0 27270104
eClass-7.1 27270104
eClass-8.0 27270104
eClass-9.0 27270104
eClass-9.1 27270104
ETIM-6.0 EC002544
ETIM-7.0 EC002544
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 221 pneumatic cylinder sensors (low cost / reed)
packaging dimensions 80 x 20 x 135mm
gross weight 8g
Customs tariff number 85365019
WEEE number 40951076
