OC539D21
Scarce
Sensor Optical, camera, black/white, 113x38x53mm, 100fps, CMOS(1/3"), 752x480, focal distance 16mm, 5x PNP programmable/configurable, M12-connector 12pin, IP67, aluminum powder-coated+PMMA, with Profinet
Compare
Camera systems - Process monitoring
Camera sensors are used to simultaneously check various properties of objects (e.g., completeness, dimensional accuracy, position, damages, labeling). This takes place independent of the component position virtually in real time. Camera sensors are image processing systems that combine image sensor and image processing computer with image processing software in a metal housing. Depending on the version, lens and illumination unit are also integrated in the housing or must be additionally mounted. The camera sensors are set using an intuitive software program. On the device, object-specific check programs can be stored that contain the respective feature checks. These programs can be activated depending on the object that is to be inspected. The rugged housing design makes possible use under harsh environmental conditions.
Electrical properties
- Number of digital outputs
- 5
- Number of digital inputs
- 5
- Number of switching outputs
- 5
- Type of switching function
- Programmable/configurable
- Type of electrical connection
- Connector M12
- Type of switching output
- PNP
- Rated switching current
- 100mA
- Property picture system
- Setting procedure
- Application software
- Error image memory
- 32
- No-load current
- 208mA
- Power consumption
- 5VA
- Measuring time for high speed
- 100fps
- Number of pins
- 12
- Type of plug-in contact, communication interface
- Female (socket)
- Type of plug-in connection, communication interface
- Connector M12

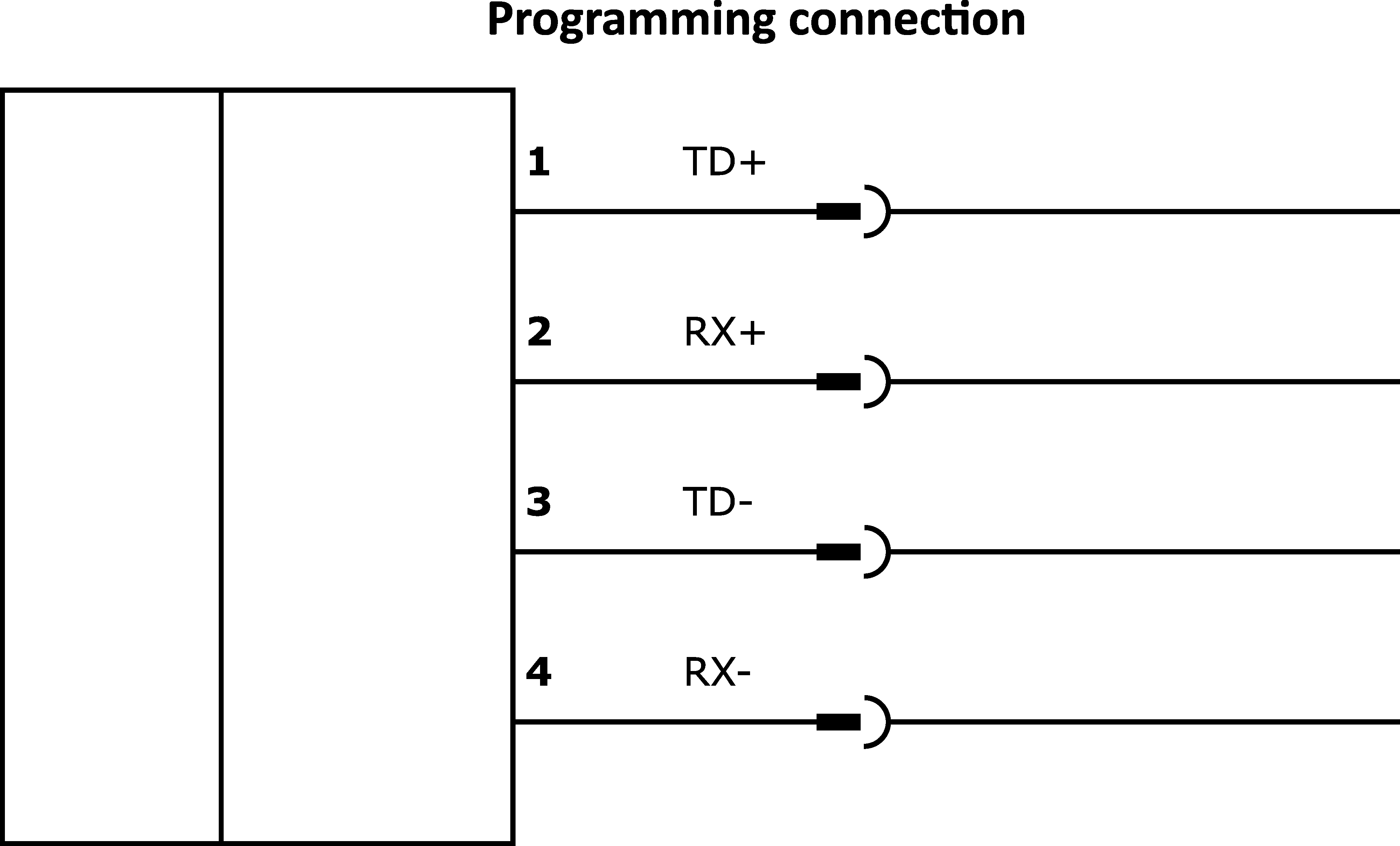

- Number of pins of interface connection
- 4
- Supported communication interface
- Ethernet, Profinet
- Short circuit protection, Reverse polarity protection
- Operating voltage
- Electrical connection
Mechanical properties
- Width
- 53mm
- Height
- 113mm
- Length
- 38mm
- Surface
- With powder coating
- Degree of protection (IP)
- IP67
- Active area material of sensor
- Plastic (PMMA)
- Housing material
- Aluminum
- dimensions
Optical properties
- Risk group
- 1
- Resolution of image recorder
- 752x480
- Image recorder
- CMOS(1/3")
- Focal distance range
- 16mm
- Light source
- White light
- Measuring time for high resolution
- 50fps
- Object evaluation regardless of position
- Yes
- Pick and place
- Yes
- Minimum focal distance
- 100mm
- For geometry
- distance, count edges, edge tracking, circle detection, point position determining, angle measurement
- For part location
- on edges, on contours, at text lines, on circles
- For feature comparison
- size of area, count surfaces, brightness, compare contours, count contour points, compare pattern, find object position, contrast
Other properties
- Relative air humidity (non-condensing)
- 0 - 90%
- Ambient temperature
- 5 - 55°C
