AY000014
accessories sensor, Reduction sleeve, M18, Plastic
Scarce
Optical sensors - Retro-reflective sensors
OR180323
| amount | price | discount |
|---|---|---|
| 1 | 133,60 € | – |
| 5 | 129,59 € | 3% / 4,01 € |
| 10 | 126,92 € | 5% / 6,68 € |
| 20 | 122,91 € | 8% / 10,69 € |
| 50 | 117,57 € | 12% / 16,03 € |
Available
Optical sensor, reflex type, M18x1, 65 mm long, polarized red light, spot, manual setting, Sn: 200–4000, 10–30 V DC, PNP programmable/configurable, 4-pin M12 connector, IP67, nickel-plated brass + plastic, with polarizing filter
including Nut
Compare
Optical sensors - Retro-reflective sensors
Optical sensors operate contactless. They detect objects regardless of their characteristics (e.g., shape, color, surface texture, material). Their basic principle of operation is based on the transmission and reception of light. There are three versions: 1. The through-beam sensor consists of two separate devices—a transmitter and a receiver—that are aligned with each other. When the light beam between the two devices is interrupted, the switching output integrated into the receiver changes its status. 2. In a reflective light barrier, the transmitter and receiver are housed in a single device. The transmitted light beam is reflected toward the receiver by a reflector mounted opposite it. As soon as the light beam is interrupted, the switching output integrated into the device changes its status. 3. In a diffuse reflection sensor, the transmitter and receiver are housed in a single device. The emitted light beam is reflected by the object to be detected. As soon as the receiver detects the reflected light, the switching output integrated into the device changes its status.
Electrical properties
- Response/decay time
- 1ms
- Type of switching function
- Programmable/configurable

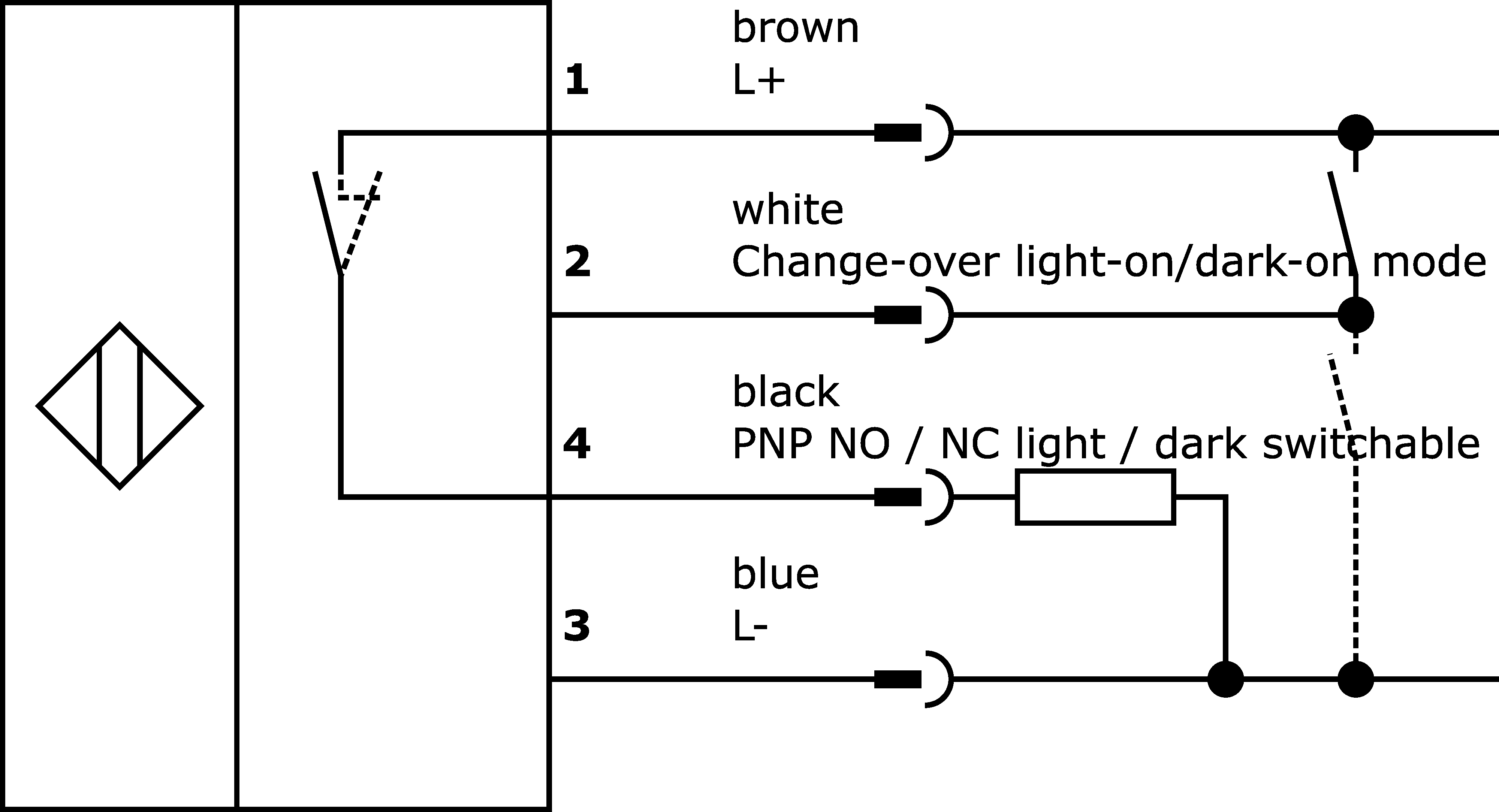

- Type of electrical connection
- Connector M12
- Type of switching output
- PNP
- Rated switching current
- 100mA
- Setting procedure
- Potentiometer
- No-load current
- 15mA
- Number of pins
- 4
- Switching distance
- 200 - 4,000mm
- Switching frequency
- 500Hz
- Voltage drop
- 2V
- Scanning function
- Light-/dark-on mode
- Decay time
- 1ms
- Adjustable output functions
- Switching point
- Display
- LED display
- protection functions
- short circuit protection, reverse polarity protection
mechanical properties
- Design
- Cylinder, screw-thread
- Thread length
- 36.5mm
- Thread pitch
- 1mm
- Length
- 65.1mm
- Surface
- nickel-plated
- Degree of protection (IP)
- IP67
- Active area material of sensor
- Plastic
- Housing material
- brass
- Thread dimension
- M18
- Diameter
- 18mm
optical properties
- Light source
- Polarized red light
- Light beam form
- Point
- Wavelength of the sensor
- 880nm
other properties
- Ambient temperature
- -25 - 55°C
- Reference medium / object
- AO000007
You can find accessories for OR180323
in these product groups:
Assembly
Adapter sleeve M18 to Ø20
Fixing material ball-head holder
Available
Fixing material design M18
Scarce
Available
Available
Mounting system for AY000117
Available
Mounting system, cylindrical, M18
Available
Attachments
Cleaning air nozzle M18
On demand
Heat-protection glass M18
Connection technology
Adapter M12 socket 4-pin / M8 connector 4-pin
Cable sockets M12 4-pin field attachable
Cable sockets M12 4-wire
Cable sockets M12 4-wire shielded
Cable sockets M12 4-wire with LED
Cable sockets M12-socket M12-connector 4-wire
Cable sockets M12-socket with LED M12-connector 4-wire
Other sensors
Protection cap, teflon M12
Reflectors and reflective films
Datasheets
Manuals
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 481 KB
-
pdfEU declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 27270902 |
| eClass-7.1 | 27270902 |
| eClass-8.0 | 27270902 |
| eClass-9.0 | 27270902 |
| eClass-9.1 | 27270902 |
| ETIM-6.0 | EC002717 |
| ETIM-7.0 | EC002717 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 100 optical sensors |
| packaging dimensions | 77 x 25 x 123mm |
| gross weight | 70g |
| Carbon footprint | 1,98kg CO₂e |
| customs tariff number | 85365019 |
| WEEE number | 40951076 |
