Safety systems - Light curtains - body protection

OY360112

OY360112
List price
915,00 €
Scarce

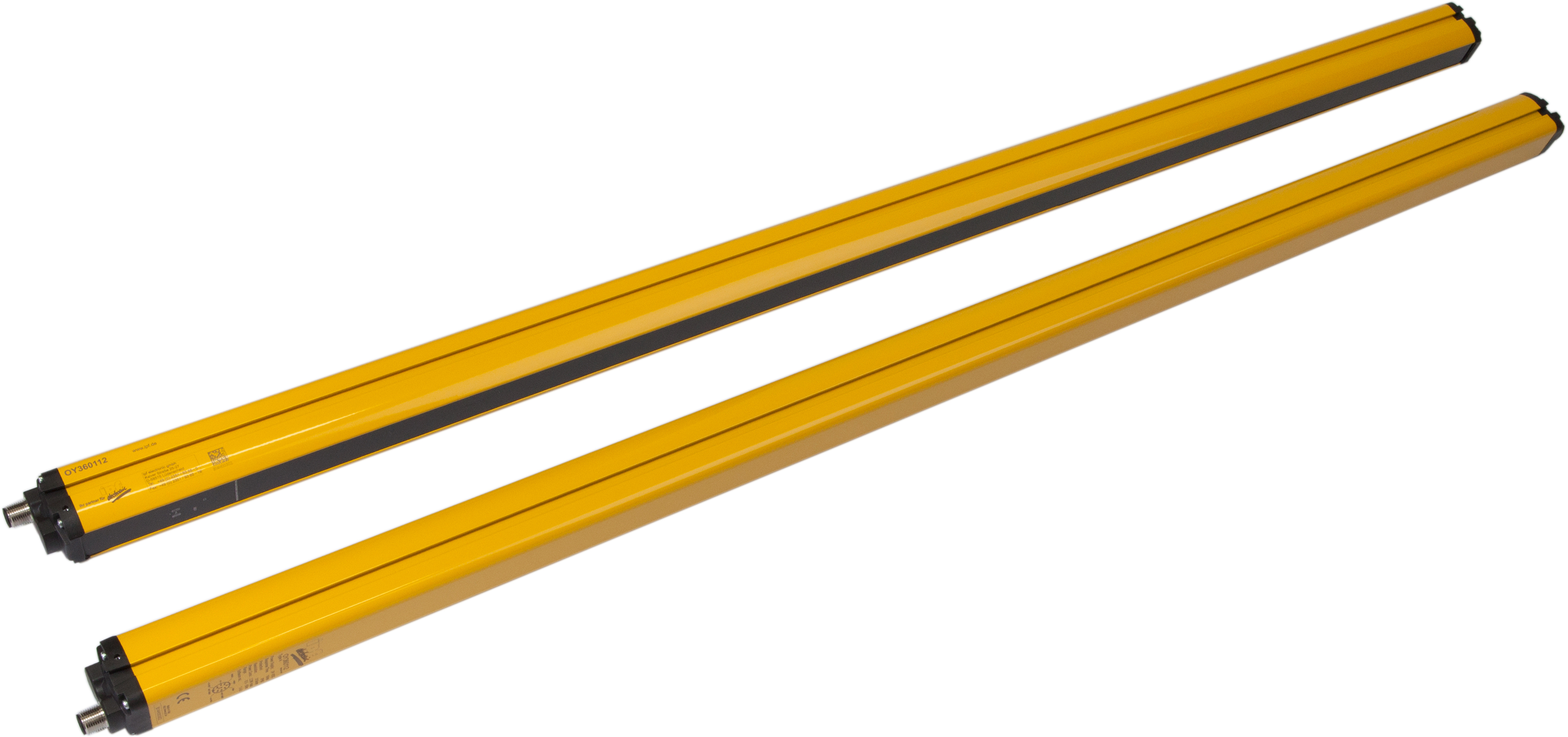

Light curtain, 41 x 1064 x 35 mm, field height 915, resolution 315 mm, Sn: 0.3–50 m, 24 V DC, PNP NO, 500 mA, M12 connector 8-pin/4-pin, IP65, painted aluminum + PMMA, safety
including Holder, Transmitter and receiver

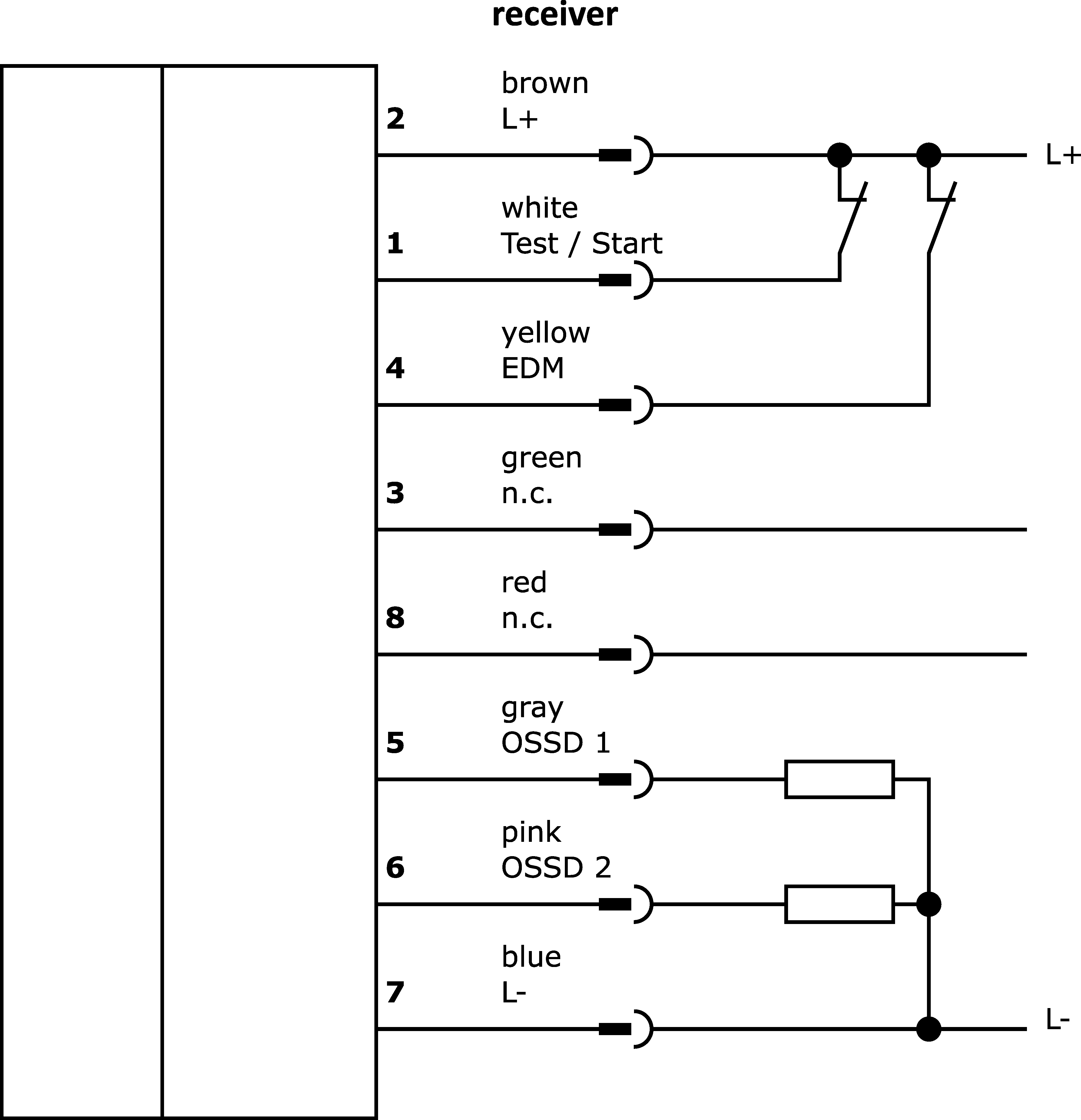

circuit diagram
3D model
Compare

Safety systems - Light curtains - body protection

Safety light curtains are suitable for safeguarding hazardous areas on machines in accordance with applicable standards. Three device groups are available: body protection (2-, 3-, and 4-beam), hand protection (30 mm resolution), and finger protection (14 mm resolution). Within each group, devices with different protected field heights are offered. These systems have wide applications in conveyor systems, welding robots, and cutting and bending machines.

Electrical properties

Number of safe semiconductor outputs
2
Resolution
315mm
Type of switching function
Normally open contact (NO)
Type of electrical connection
Connector M12
Type of switching output
OSSD, dual channel
Rated switching current
500mA
No-load current, receiver
75mA
No-load current, transmitter
30mA
Number of pins, receiver
8
Number of pins, transmitter
4
Reaction time
16ms
Switching distance
300 - 50,000mm
Protection class
III
Display
LED display
protection functions
short circuit protection, reverse polarity protection
Operating voltage
24 VDC
Electrical connection
M12 Connector

mechanical properties

Width
35mm
Field height
915mm
Height
41mm
Length
1,064mm
Surface
Varnished
Degree of protection (IP)
IP65
Active area material of sensor
Plastic (PMMA)
Housing material
aluminum
dimensions
1064 x 35 x 41 mm

optical properties

Number of beams
4
Wavelength of the sensor
880nm

other properties

Range of functions
Barcode, Monitoring function for downstream devices, Restart lockout
Suitable for
Safety Functions
Relative air humidity (non-condensing)
15 - 95%
Safety category
Category 4
Safety type in acc. with IEC 61496-1
4
Ambient temperature
0 - 55°C
