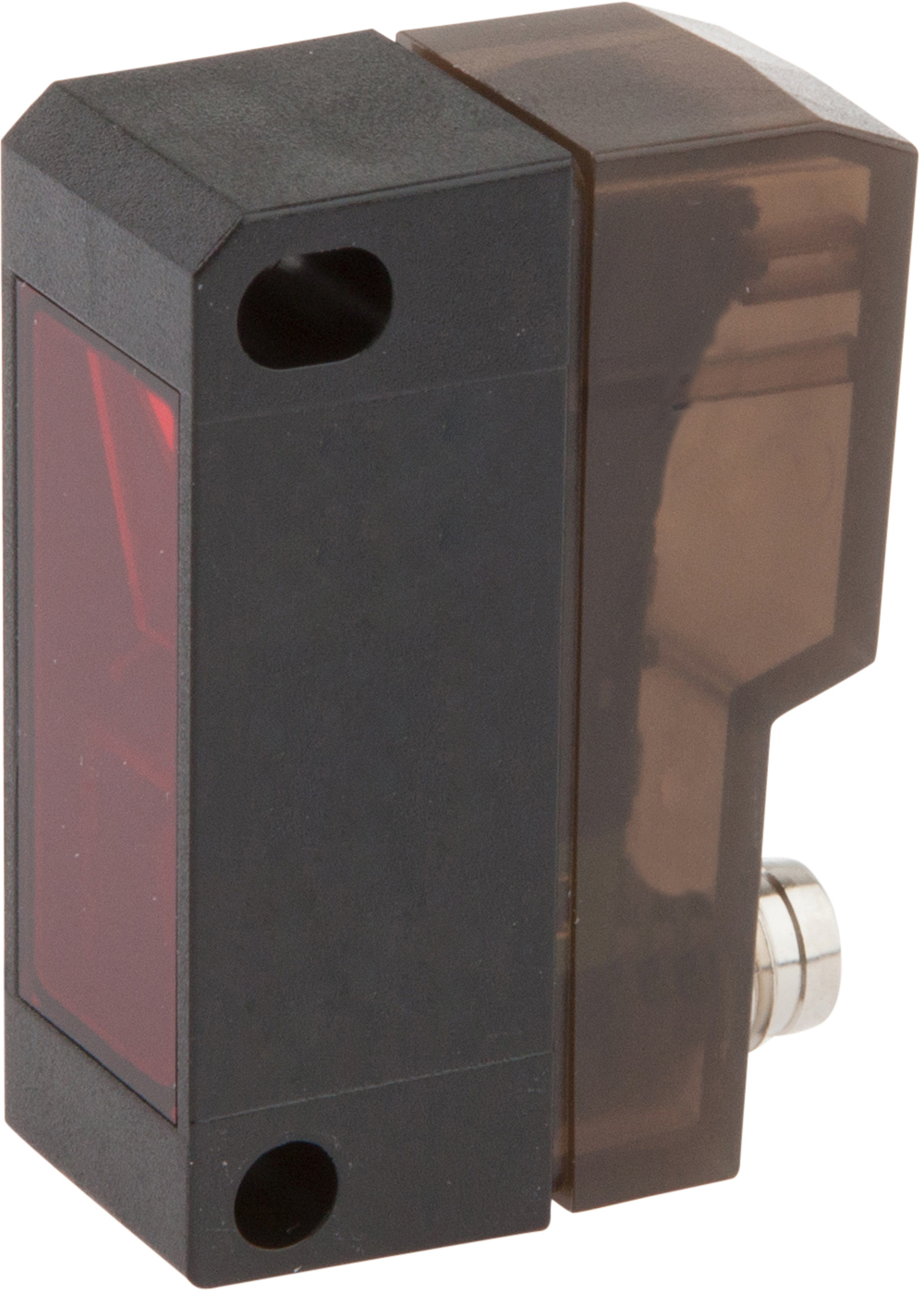

sensor laser, reflective, 15x32x43mm, Laser diode, red light, Point, Teach-In, Sn: 10000, 10-30V DC, PNP Anticoincidence, Connector M8 4pin, IP67, Plastic+PMMA
Compare
Laser sensors - Retro-reflective sensors
Optical sensors function contactlessly. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). The basic operating principle is based on the transmission and reception of light. There are three different versions: 1. The through-beam sensor consists of two separate devices, a transmitter and a receiver that are aligned with one another. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. With the retro-reflective sensor, the transmitter and receiver are located in one device. The emitted light beam is reflected back to the receiver by a reflector that is to be mounted opposite the device. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. With the diffuse reflection sensor, the transmitter and receiver are in one device. The emitted light beam is reflected by the object that is to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.
Electrical properties
- Response/decay time
- 0.25ms
- Type of switching function
- Exclusive-OR
- Type of electrical connection
- Connector M8
- Type of switching output
- PNP
- Rated switching current
- 100mA
- Setting procedure
- Teach-In
- No-load current
- 35mA
- Number of pins
- 4
- Switching distance
- 0 - 10,000mm
- Switching frequency
- 2,000Hz
- Voltage drop
- 2.2V
- Scanning function
- Light-/dark-on mode
- Decay time
- 0.25ms
- Absolute repeat accuracy
- 0.1mm
- Display
- LED display
- Short circuit protection, Reverse polarity protection
Mechanical properties
- Width
- 43mm
- Height
- 14.8mm
- Length
- 32.5mm
- Maximum tightening torque
- 0.8Nm
- Degree of protection (IP)
- IP67
- Active area material of sensor
- Plastic (PMMA)
- Housing material
- Plastic
Optical properties
- Laser class
- Class 1
- Light source
- Laser diode, red light
- Light beam form
- Point
- Wavelength of the sensor
- 650nm
Other properties
- Ambient temperature
- -10 - 50°C
