Connection technology - Cable sockets / connectors pre-assembled on two sides

VK03E210

VK03E210
List price
29,70 €
Scarce
Connection cable, 0.3m, M12 socket 4-pin straight, M12 connector 12-pin straight, 4-core, PUR (polyurethane) black, 30V, -30-90°C, IP67, suitable for trailing chain and torsion resistant, oils and cooling lubricants, welding area, silicone-free

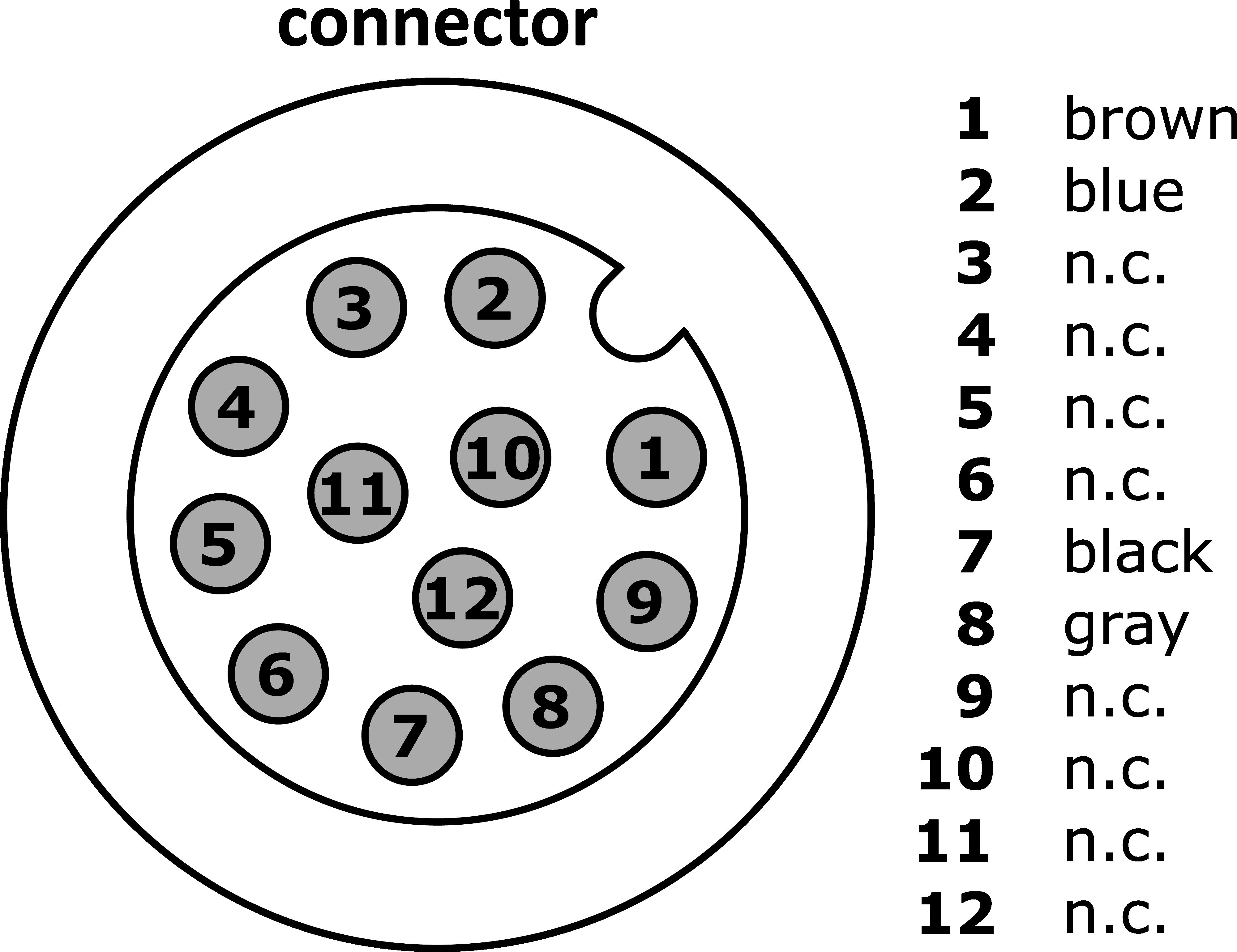

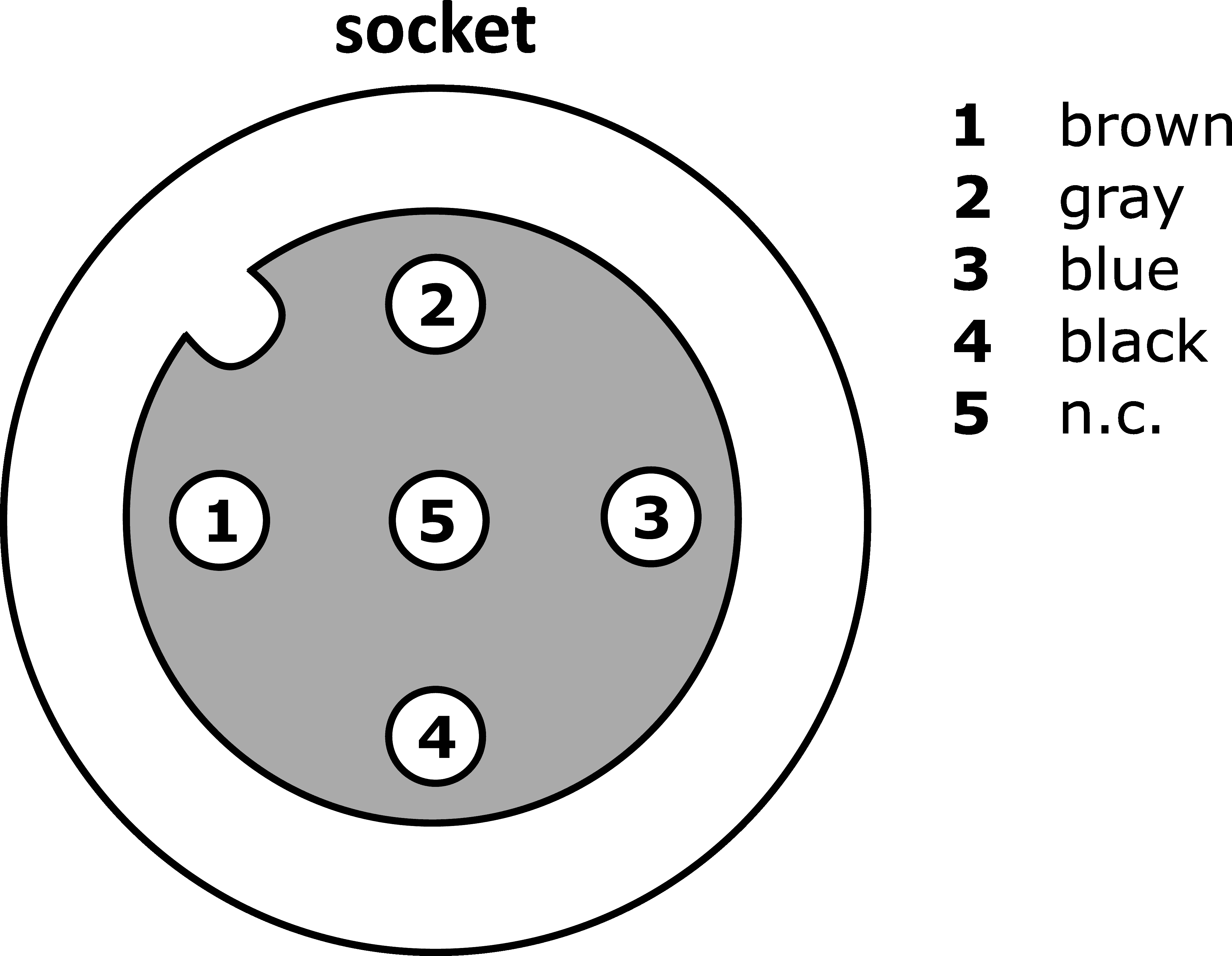

circuit diagram
dimensional drawing
3D model
Compare

Connection technology - Cable sockets / connectors pre-assembled on two sides

This connection cable has pre-wired connections on both sides. It can be used to cost-effectively integrate end devices with a plug connection via a distribution terminal or a logic module.

One side of the VK03E210 is equipped with a straight 4-pin M12 cable socket and the other with a straight 12-pin M12 cable connector. The cores of the line with a plastic sheath (PUR) can each be loaded with 1.5A.

Electrical properties

Type of plug-in contact, A connection
Female (socket)
Type of plug-in contact, B connection
Male (connector)
Type of A electrical connection
M12
Type of B electrical connection
M12
Number of pins of A connection
4
Number of pins of B connection
12
Ampacity
1.5A
Coding of connection A
A

Mechanical properties

Number of cores
4
Cable sheath color
black
Cable length
0.3m
Cable infeed of A connection
straight
Cable infeed of B connection
straight
Maximum tightening torque of connection A
1Nm
Maximum tightening torque of connection B
1Nm
bending cycles
5 million cycles
Degree of protection (IP)
IP67
Torsion cycles
+/-360°/m, ≥ 2 million cycles
Contact coating material
Gold
Material of cable sheath
Contact body material
Brass
Material of the screw fitting
Brass

Optical properties

Degree of soiling
3

Other properties

Flame retardant
in accordance with EN 60332-2-2
Ambient temperature
-30 - 90°C
Classification Class
eClass-7.0 27279218
eClass-7.1 27279218
eClass-8.0 27279218
eClass-9.0 27060311
eClass-9.1 27060311
ETIM-6.0 EC001855
ETIM-7.0 EC001855
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
UL / CSA approval number E509333
OzDS-compliant Yes
POP-compliant Yes
TSCA-compliant Yes
SCIP number 02a19814-641f-4f49-a2cd-c7af668205a6
IPF Product Group 851 cable sockets / connectors (both side ready made)
packaging dimensions 150 x 20 x 200mm
gross weight 36g
0,13kg CO₂e
Customs tariff number 85444290
WEEE number 40951076
