VK50F003

VK50F003
List price
18,90 €
Available
Connection cable, 5m, valve plug type A 2-pin + PE, free cable end, 3x0.75mm², angular, PUR (polyurethane), Ø5.7mm, 30VAC/DC, -30-90°C, IP67, suitable for trailing chain and torsion resistant, oils and cooling lubricants, welding area, silicone-free, LED, transil diode
circuit diagram
dimensional drawing
3D model
Compare

Connection technology - Cable sockets / connectors pre-assembled on one side

ipf cable sockets are mainly used for the electrical connection of sensors. Their properties are characterized by the robust version, in the highest degrees of protection (IP67 | IP68 | IP69K) and with 360° shielding on request. With the features: bus-compatible, drag chain and robot-compatible, oil and chemical-resistant, welding spark-resistant, cleaning agent-resistant or resistant to high-pressure and steam jet cleaning, the enlarged temperature range up to +230°C, rapid interconnection (technology) or special data transmission properties, the cable sockets meet all the requirements of automation technology.

Electrical properties

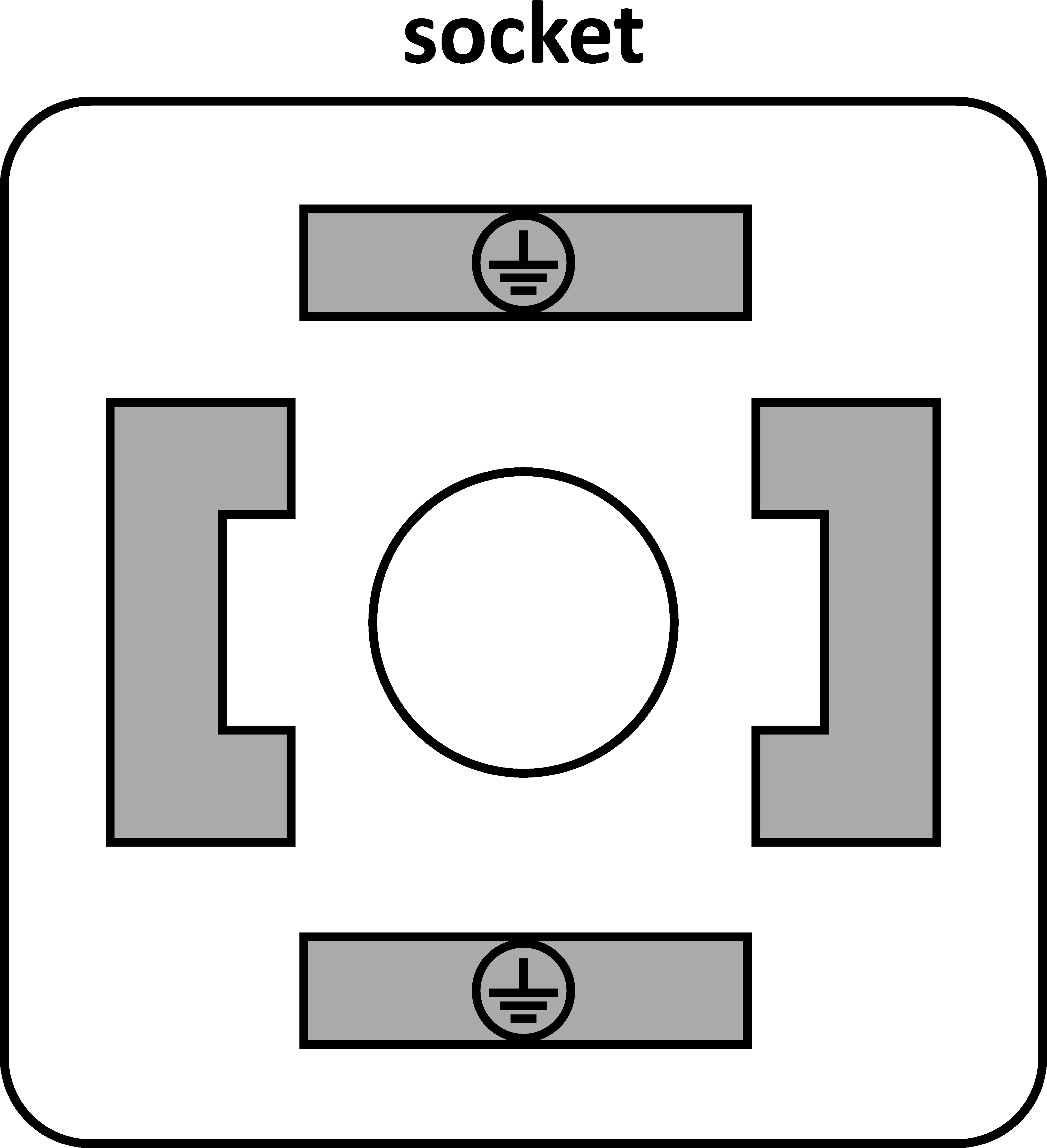

Type of plug-in contact, A connection
Female (socket)
Type of A electrical connection
Valve connector type A
Type of B electrical connection
Free conductor end
Number of pins of A connection
3
Ampacity
10A
Display
LED display
Operating voltage
30VAC(50Hz) | 30VDC
Electrical connection
3-wire 5m

Mechanical properties

Line diameter
5.7mm
Wire assembly
42 x 0.15 mm
Conductor cross-section
0.75mm²
Number of cores
3
Bending radius (flexible)
57mm
Bending radius (fixed)
28.5mm
Cable length
5m
Cable infeed of A connection
angular
bending cycles
≥ 2 million cycles
Degree of protection (IP)
IP67
Torsion cycles
+/-180°/m, ≥ 1 million cycles
Contact coating material
silver
Housing material
TPU
Material of cable sheath
Contact body material
Plastic (PA)
Perm. ambient temperature of cable, fixed cable
-40 - 90°C
Perm. ambient temperature of cable, flexible cable
-30 - 90°C
Contact material
CuZn

Optical properties

Degree of soiling
3

Other properties

Flame retardant
in accordance with EN 60332-2-2
Classification Class
eClass-7.0 27279218
eClass-7.1 27279218
eClass-8.0 27279218
eClass-9.0 27060311
eClass-9.1 27060311
ETIM-6.0 EC001855
ETIM-7.0 EC001855
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
OzDS-compliant Yes
POP-compliant Yes
TSCA-compliant Yes
IPF Product Group 850 cable sockets / connectors (one side ready made)
packaging dimensions 300 x 250 x 500mm
gross weight 259g
Customs tariff number 85444290
WEEE number 40951076
