VL150122
| amount | price | discount |
|---|---|---|
| 1 | 42,80 € | – |
| 5 | 41,52 € | 3% / 1,28 € |
| 10 | 40,66 € | 5% / 2,14 € |
| 20 | 39,38 € | 8% / 3,42 € |
| 50 | 37,66 € | 12% / 5,14 € |
Available
Logic module, 10x41x26mm, OR, 2fold, 10-30V DC, sensor side M8 Female (socket) 3pin, control side M8 Male (connector) 3pin, IP67, Plastic
Compare
Logic module - Y-distributor
Connecting digital signals directly at the machine can contribute to significant cost and effort minimization. A classic application is the linking of different signals directly in the field. Thus, it is possible to avoid long line paths of many individual devices, which significantly reduces the wiring effort and the need for control inputs. All input signals on the logic modules are visualized by integrated LED and are electrically decoupled from each other. In this way, influences from one device to the other are reliably prevented. The outputs of the modules are overload-proof and the upcoming signal is also indicated by an LED. In addition to logical input signal connections such as AND and OR, versions with signal change control are also available. The ipf logic modules are available for DIN rail mounting or as field modules. Therefor and because of the robust housing, which is characterized by a high degree of protection against the penetration of dust and water, our devices can be used in all areas of machines, equipment and tools.
Electrical properties
- Number of inputs per logic unit
- 2
- Number of electrical connections, A connection
- 2
- Number of electrical connections, B connection
- 1
- Number of logic units
- 1
- Type of A electrical connection
- M8
- Type of B electrical connection
- M8
- Rated switching current
- 200mA
- No-load current
- 0.1mA
- Logic
- OR
- Number of pins of A connection
- 3
- Number of pins of B connection
- 3
- Switching frequency
- 5,000Hz
- Operating voltage (DC)
- 10 - 30V
- A1 = E1 ∨ E2
- Display
- LED display
Mechanical properties
- Width
- 26mm
- Height
- 10mm
- Length
- 40.6mm
- Mounting method
- Screw mounting
- Degree of protection (IP)
- IP67
- Housing material
- Plastic
Other properties
- Ambient temperature
- -25 - 70°C
You can find accessories for VL150122
in these product groups:
Cable sockets M12-socket with LED M8-connector 3-wire
Cable sockets M8 3-wire
Cable sockets M12-socket M8-connector 3-wire
Cable sockets M8 3-wire with LED
Cable sockets M8-socket with LED M8-connector 3-wire
Cable sockets M8-socket M12-connector 3-wire
Cable sockets M8-socket M8-connector 3-wire
Datasheets
Drawings
-
jpgBlueprintJPG-file, 28 KB
-
dwg2DDWG-file, 333 KB
-
stp3DSTP-file, 194 KB
-

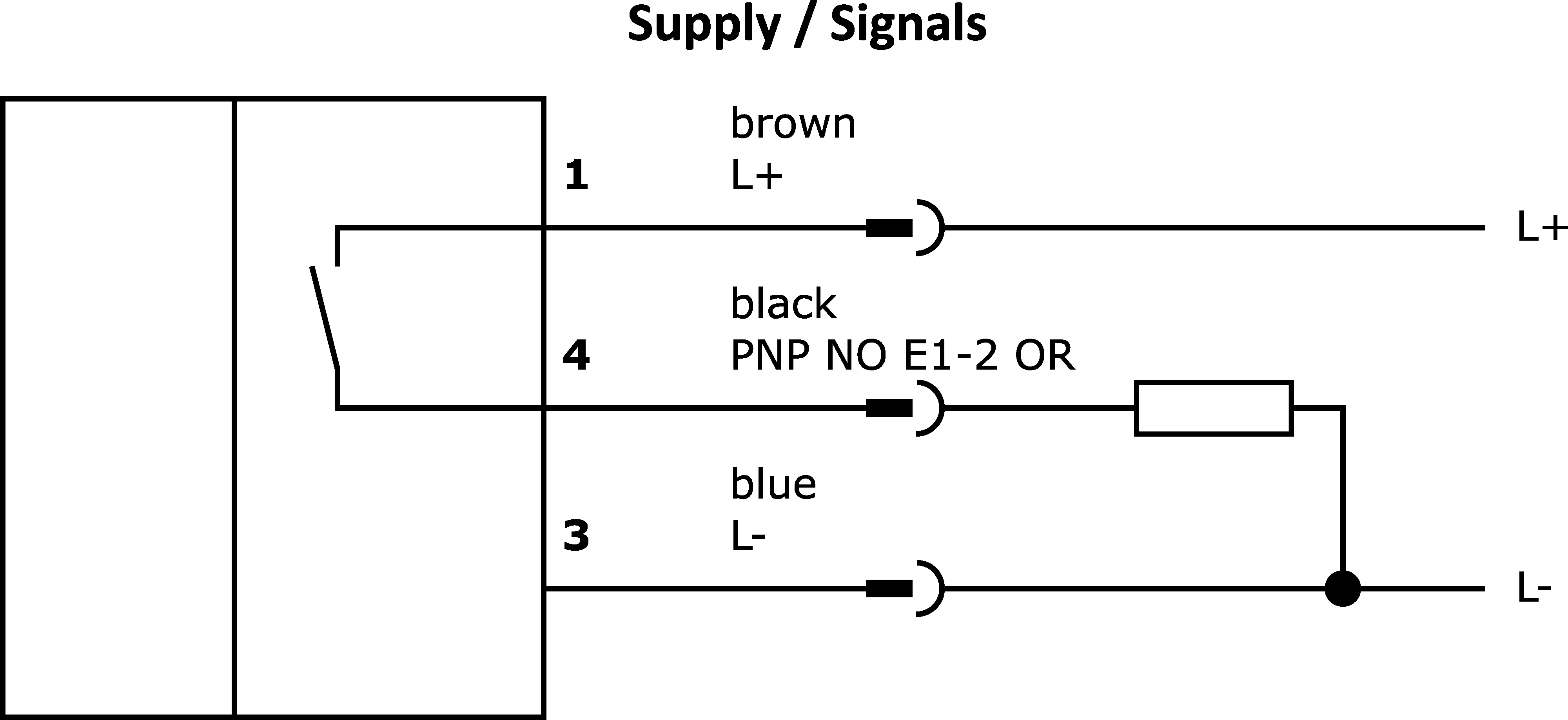

pngWiring diagram - internetPNG-file, 21 KB
