EZ500330
| amount | price | discount |
|---|---|---|
| 1 | 178,40 € | – |
| 5 | 173,05 € | 3% / 5,35 € |
| 10 | 169,48 € | 5% / 8,92 € |
| 20 | 164,13 € | 8% / 14,27 € |
| 50 | 156,99 € | 12% / 21,41 € |
Scarce
LED signal light, Ø50, 4 segments, 4.3W, 24V DC, with signal transducer, M12-connector 8-pin, IP20, aluminum+PC
Compare
LED lights - Signal lights
The signal towers in the series are equipped with fixed colors and can be used instantaneously.
The segments can be controlled separately via the inputs, and the columns are also equipped with an acoustic signal transducer (95 dB), which significantly increases perception and ensures a good signaling effect thanks to 360° visibility.
Electrical properties
- Type of electrical connection
- Connector M12
- Rated operating current
- 180mA
- Power
- 4.3W
- Number of pins
- 8
- Protection class
- III
- Version of the acoustic signal generator
- Buzzer (95dB)
- Reverse polarity protection
- Operating voltage

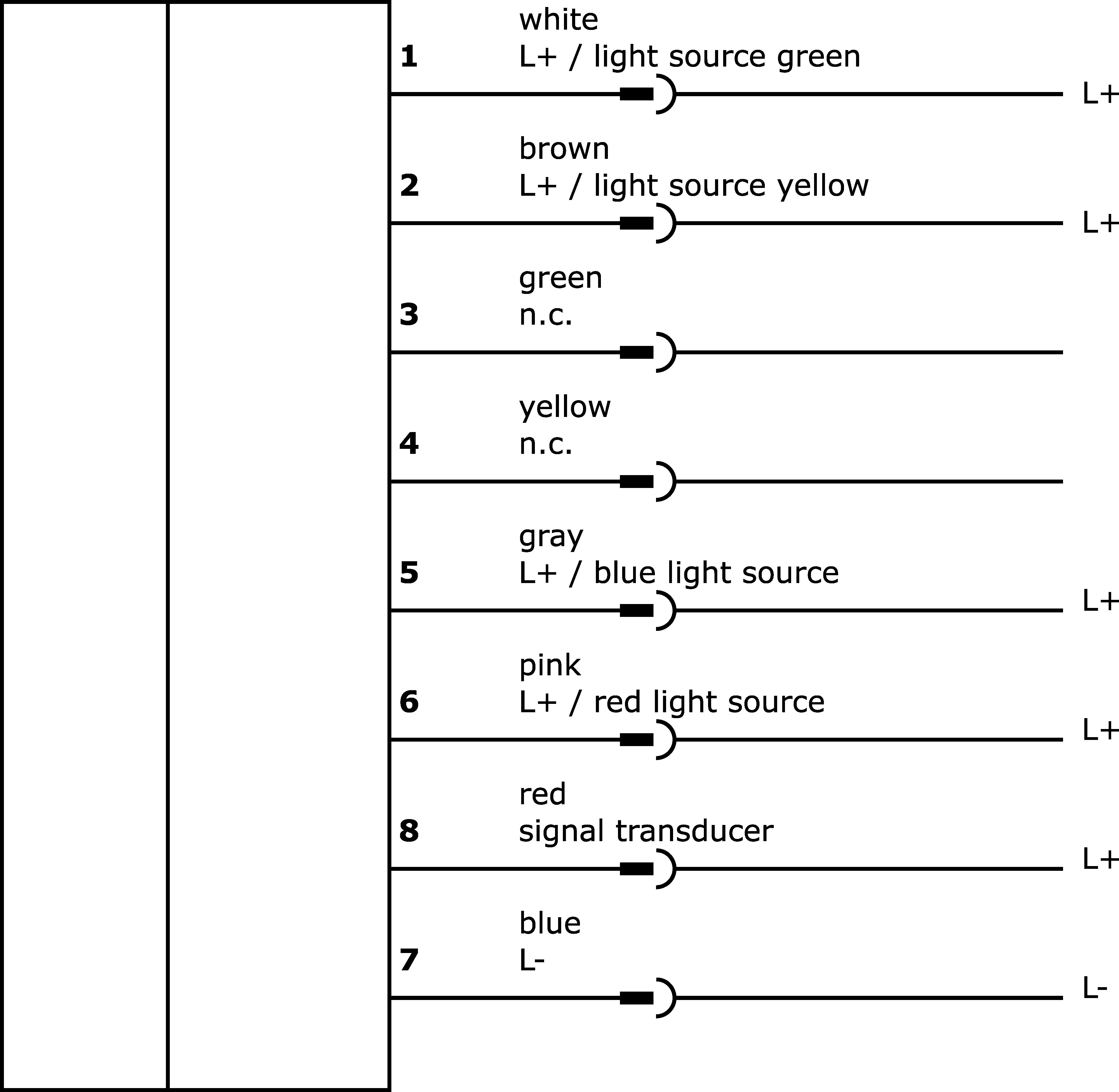

- Electrical connection
Mechanical properties
- Design
- Pipe
- Thread pitch
- 1.5mm
- Height
- 231mm
- Degree of protection (IP)
- IP20
- Front screen scattering behavior
- diffuse
- Housing material
- Aluminum
- Front screen material
- Polycarbonate
- Thread dimension
- M30
- Diameter
- 50mm
- dimensions
Optical properties
- Risk group
- 0
- Lamp
- LED
- Light source
- Multi-colored LED
- Angle of beam spread
- 360°
- Signal color
- Blue, Yellow, Green, Red
Other properties
- Ambient temperature
- 0 - 50°C
- Important note
- The light up cannot be opened non-destructively.
- Number of segments
- 4
You can find accessories for EZ500330
in these product groups:
Assembly
Mounting for EZ5003
Available
Connection technology
Cable socket M12 8-pin field-attachable
Cable sockets M12 8-wire non-shielded
Cable sockets M12 8-wire shielded
Other sensors
Labeling plate for EZ500330
Power supply 24V DC / 2 – 10A
Datasheets

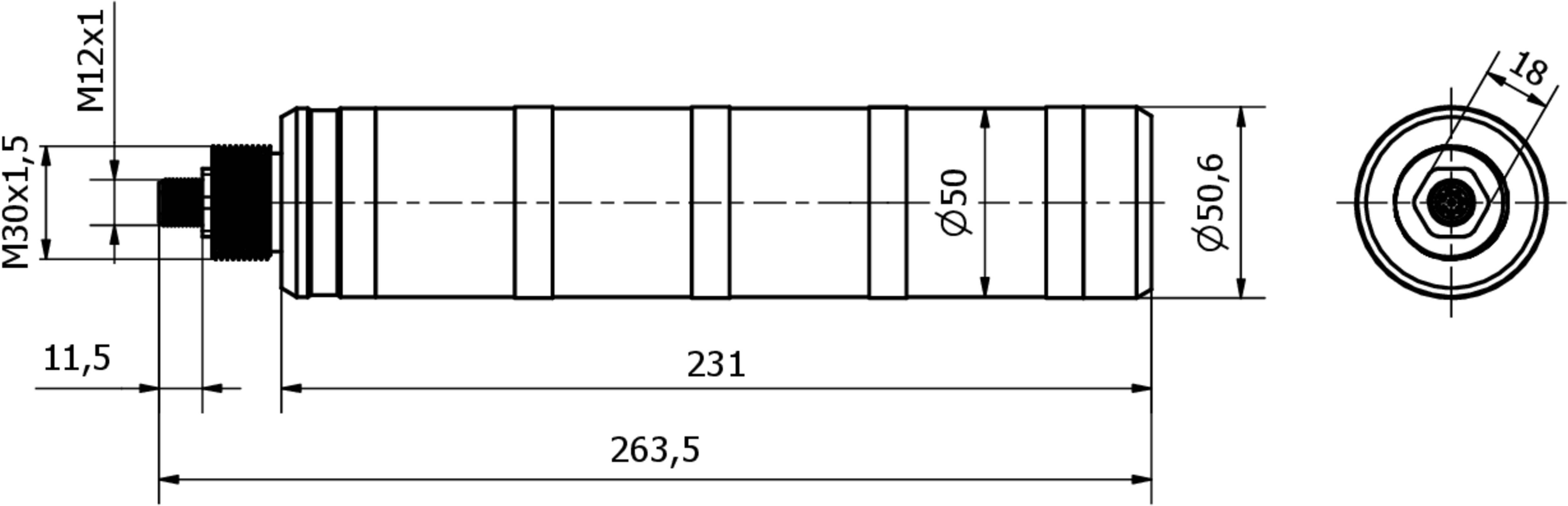

Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 480 KB
-
pdfEU declaration of conformityPDF-file, 253 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
-
pdfFlyer LED lights for industryPDF-file, 12 MB
-
pdfLED signal lightsPDF-file, 9.3 MB
-
pdfProducts that inspirePDF-file, 8.5 MB
Whitepapers
Application examples
| Classification | Class |
|---|---|
| eClass-7.0 | 27110390 |
| eClass-7.1 | 27110390 |
| eClass-8.0 | 27110390 |
| eClass-9.0 | 27110345 |
| eClass-9.1 | 27110345 |
| ETIM-6.0 | EC000348 |
| ETIM-7.0 | EC000348 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| ATEX-compliant | No |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 190 machine illuminations |
| packaging dimensions | 90 x 90 x 370mm |
| gross weight | 466g |
| 0,22kg CO₂e | |
| Customs tariff number | 94054239 |
| WEEE number | 40951076 |
