PE500145

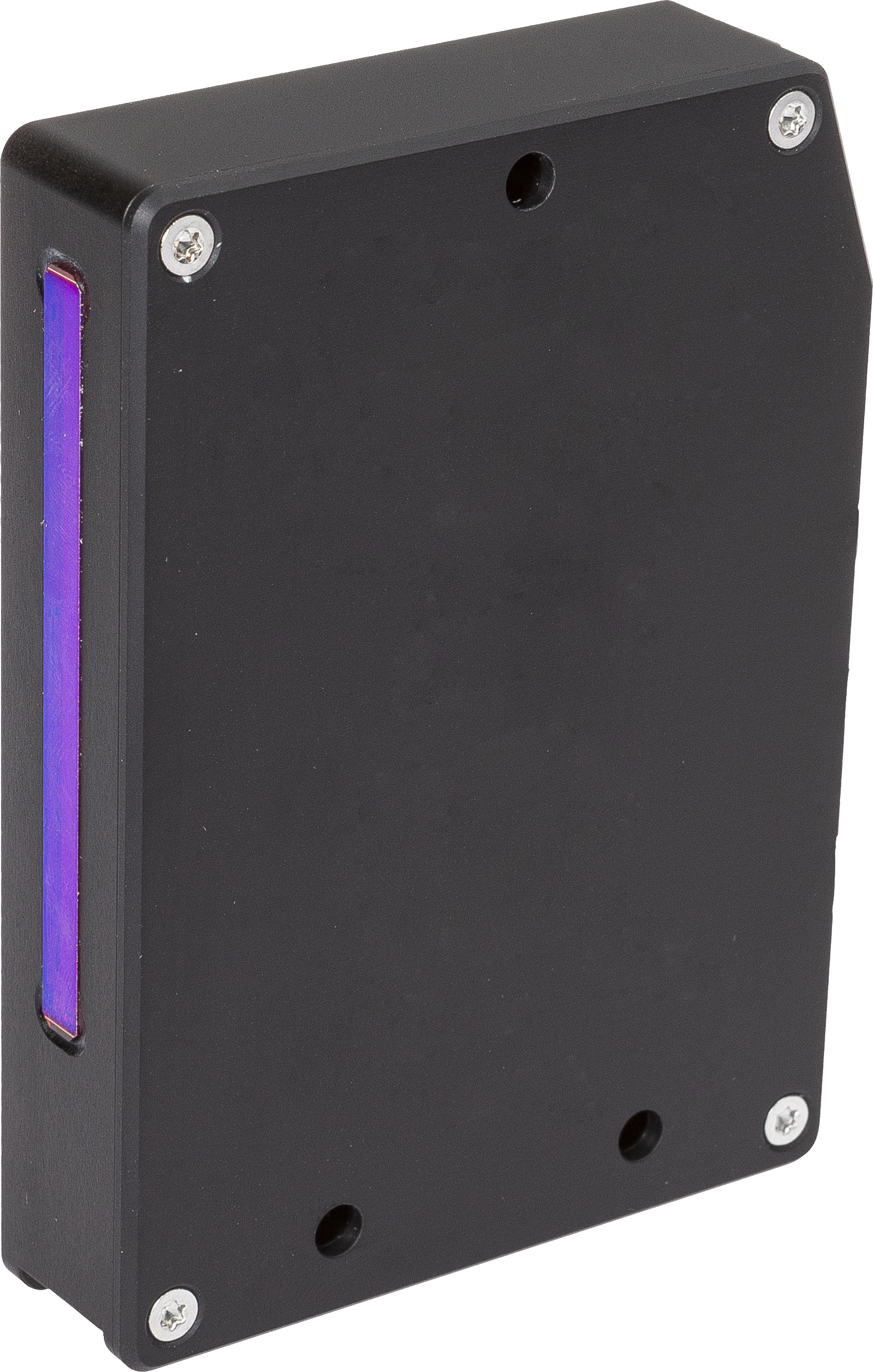

Laser sensors - Line sensors receivers
Optical sensors function contactlessly. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). The basic operating principle is based on the transmission and reception of light. There are three different versions: 1. The through-beam sensor consists of two separate devices, a transmitter and a receiver that are aligned with one another. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. With the retro-reflective sensor, the transmitter and receiver are located in one device. The emitted light beam is reflected back to the receiver by a reflector that is to be mounted opposite the device. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. With the diffuse reflection sensor, the transmitter and receiver are in one device. The emitted light beam is reflected by the object that is to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.
Electrical properties
- Resolution
- 0.02mm
- Type of communication interface, transmitter + receiver
- Connector M9
- Type of switching function
- Push-pull
- Type of analog output
- 0 - 10V, 4 - 20mA
- Type of electrical connection
- Connector M9
- Type of switching output
- PNP/NPN
- Rated switching current
- 100mA
- Setting procedure
- Parameterization
- Laser power
- 0.4mW
- No-load current
- 200mA

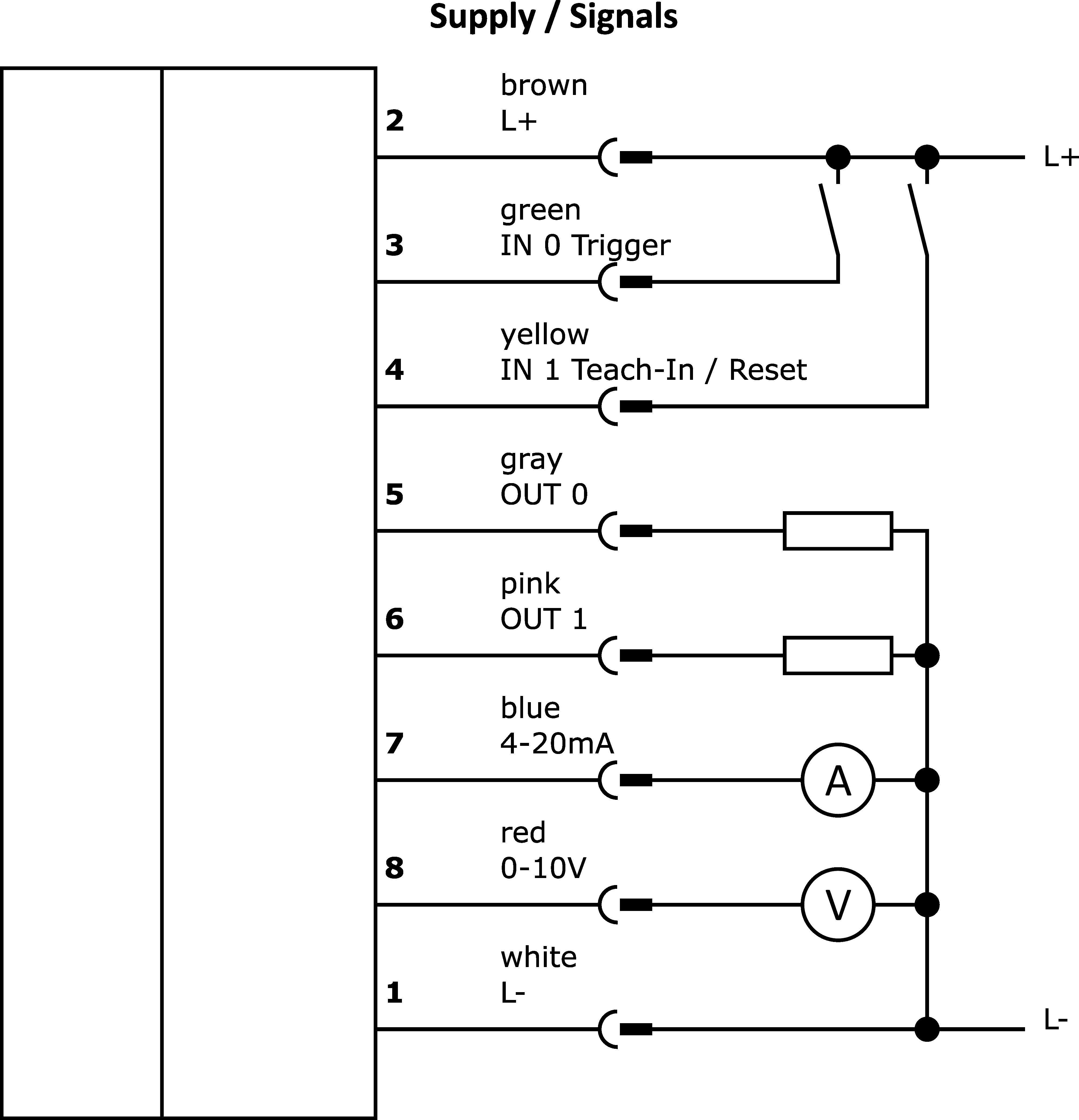

- Number of pins
- 8

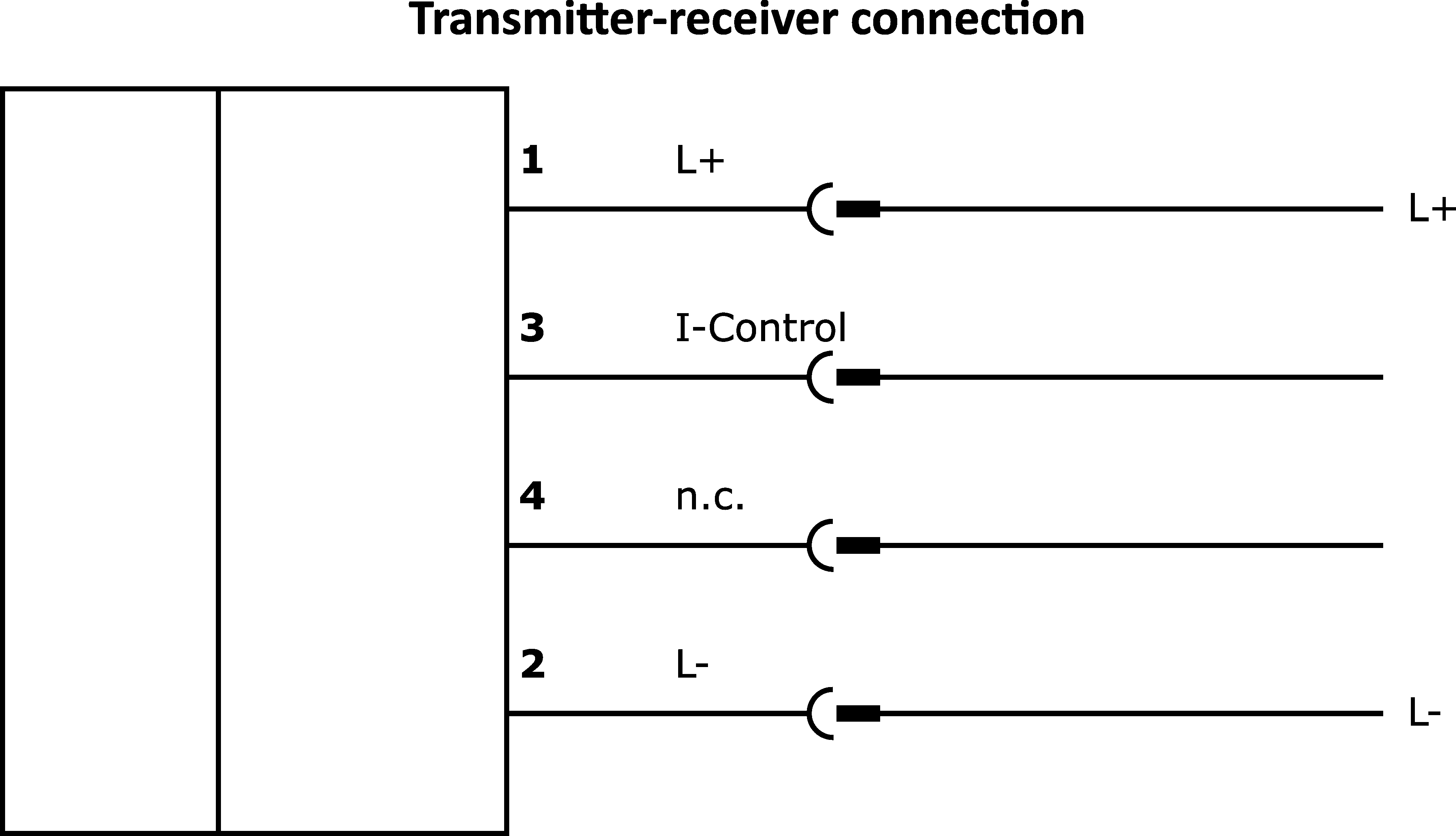

- Number of pins of communication interface, transmitter + receiver
- 4
- Residual ripple
- 10%
- Switching frequency
- 400Hz
- Scanning function
- Light-/dark-on mode
- Absolute repeat accuracy
- 0.02mm
- Type of plug-in contact, communication interface
- Female (socket)
- Type of plug-in connection, communication interface
- Connector M5
- Number of pins of interface connection
- 4
- Supported communication interface
- RS232
- Operating voltage (DC)
- 21.6 - 26.4V
- Measuring range
- 0 - 2,000mm
Mechanical properties
- Number of configurable switching outputs
- 2
- Design
- Cuboid
- Width
- 98mm
- Field height
- 48mm
- Height
- 20mm
- Length
- 75mm
- Storage temperature
- -20 - 85°C
- Surface
- teflon coated
- Degree of protection (IP)
- IP54
- Housing material
- Aluminum
Optical properties
- Filter
- Interference filter
- Light source
- Laser diode, red light
- Light beam form
- Line
- Wavelength of the sensor
- 670nm
Other properties
- Scope of delivery
- Receiver
- Ambient temperature
- -10 - 50°C
- Line sensor receiver
Cable connectors M5 Sub-D-socket
Cable connectors M9 M9-connector
Cable connectors M5 USB
M5 screw plug
Cable connectors M9
Programming adapter Ethernet
Cross-arm / mounting rail
Datasheets
Drawings
Software
-
zipUSB driverZIP-file, 2.2 MB
-
zipSoftware and operating instructionsZIP-file, 28 MB
-
zipSensorFinderZIP-file, 26 MB
Software older versions
Firmware
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 323 KB
-
pdfMaterial compliancePDF-file, 406 KB
-
pdfCE declaration of conformityPDF-file, 252 KB
-
pdfUL declaration of conformityPDF-file, 76 KB
-
pdfCCC declaration of conformityPDF-file, 73 KB
-
pdfCSA declaration of conformityPDF-file, 57 KB
Miscellaneous
Classification | Class |
---|---|
eClass-7.0 | 27270901 |
eClass-7.1 | 27270901 |
eClass-8.0 | 27270901 |
eClass-9.0 | 27270901 |
eClass-9.1 | 27270901 |
ETIM-6.0 | EC002716 |
ETIM-7.0 | EC002716 |
Property | Value |
---|---|
RoHS‑compliant | Yes |
Reach-compliant | Yes |
IPF Product Group | 165 laser line sensors |
packaging dimensions | 99 x 60 x 160mm |
gross weight | 250g |
Customs tariff number | 85365019 |
WEEE number | 40951076 |
