Laser sensors - Diffuse reflection sensors with background suppression
PT330570
| amount | price | discount |
|---|---|---|
| 1 | 222,30 € | – |
| 5 | 215,63 € | 3% / 6,67 € |
| 10 | 211,19 € | 5% / 11,12 € |
| 20 | 204,52 € | 8% / 17,78 € |
| 50 | 195,62 € | 12% / 26,68 € |
Available

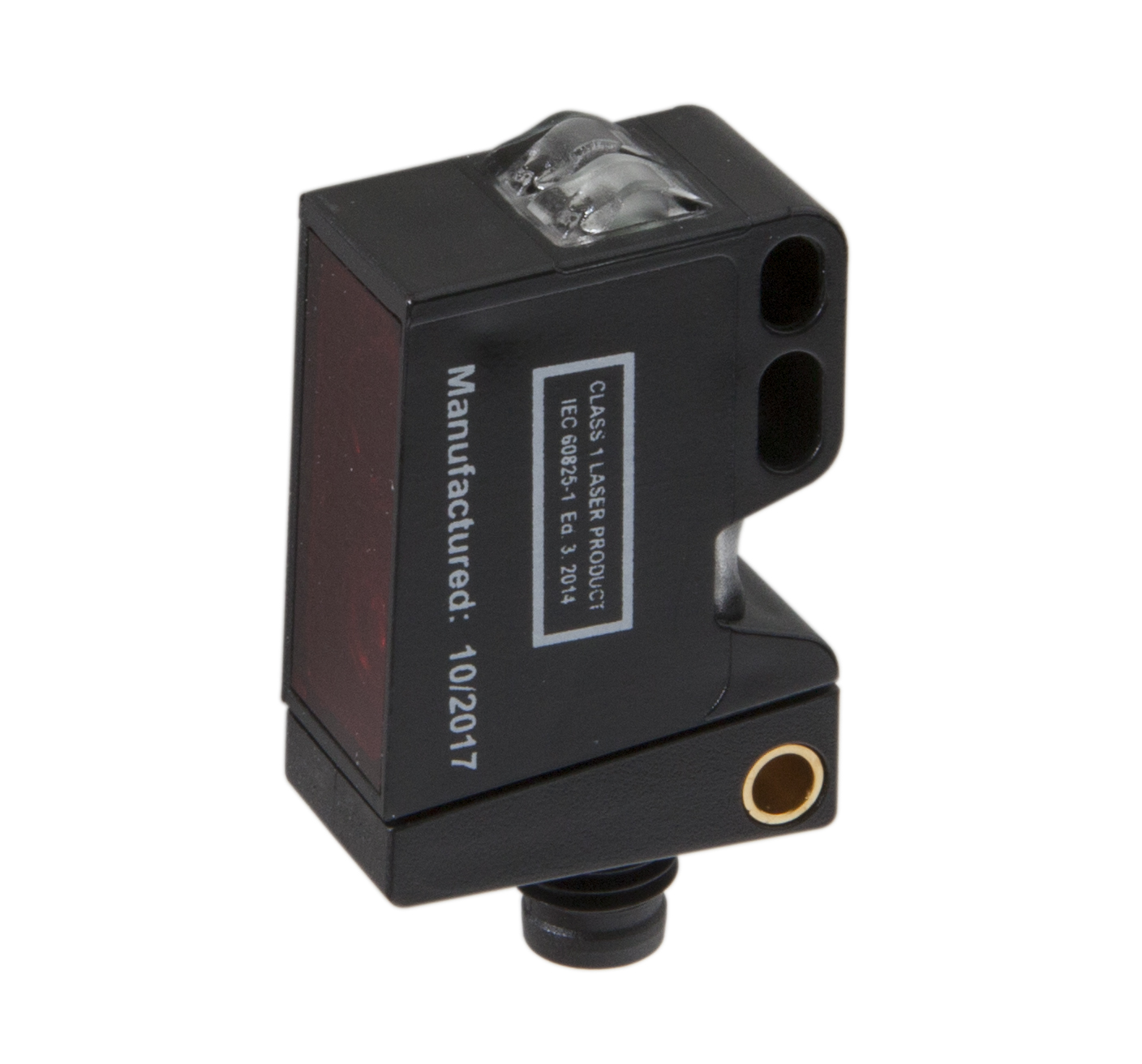

sensor laser, diffuse-reflection sensor, 39x23x13mm, Sn: 30-250, 11-30V DC, 1x PNP+NPN NC/NO, IO-Link, Connector M8 4pin, IP67, Plastic ASA+PMMA, 2kHz, Laser diode, red light, Point, Teach-In
Compare
Laser sensors - Diffuse reflection sensors with background suppression
Optical sensors function contactlessly. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). The basic operating principle is based on the transmission and reception of light. There are three different versions: 1. The through-beam sensor consists of two separate devices, a transmitter and a receiver that are aligned with one another. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. With the retro-reflective sensor, the transmitter and receiver are located in one device. The emitted light beam is reflected back to the receiver by a reflector that is to be mounted opposite the device. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. With the diffuse reflection sensor, the transmitter and receiver are in one device. The emitted light beam is reflected by the object that is to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.
Electrical properties
- Response/decay time
- 0.25ms
- Number of switching outputs
- 1
- Type of switching function
- Normally closed (n.o. for PNP) Normally closed (n.c. for NPN) - Adjustable
- Type of electrical connection
- Connector M8
- Type of switching output
- Push-pull
- Rated switching current
- 100mA
- Setting procedure
- Teach-In
- Laser power
- 1mW
- No-load current
- 30mA
- Number of pins
- 4
- Reaction time
- 0.25ms
- Switching distance
- 30 - 250mm
- Switching frequency
- 2,000Hz
- Voltage drop
- 2.5V
- Scanning function
- Light-/dark-on mode
- Decay time
- 0.25ms
- Absolute repeat accuracy
- 0.1mm
- Supported communication interface
- IO-Link
- Display
- LED display
- Short circuit protection, Reverse polarity protection

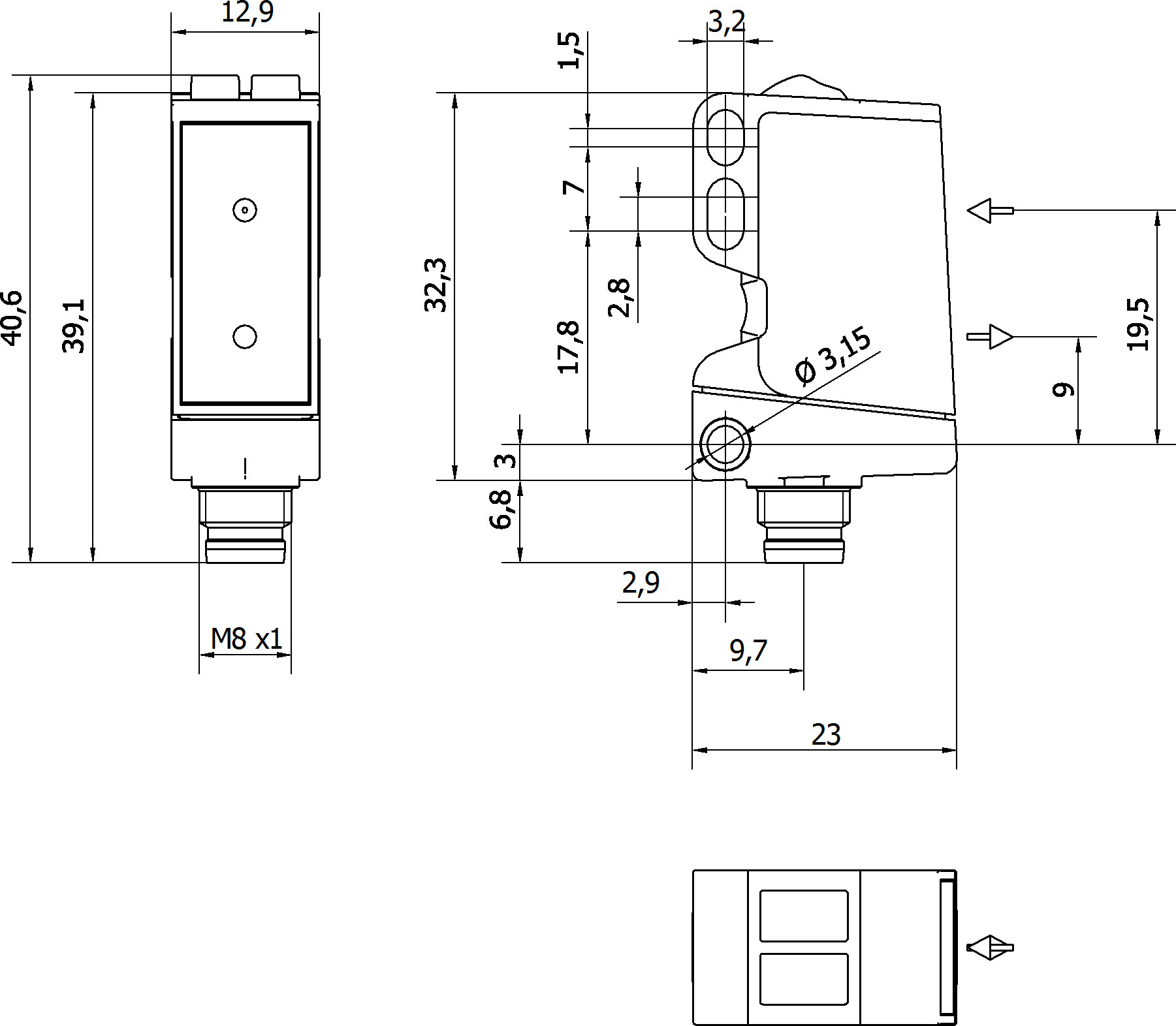

Mechanical properties
- Design
- Cuboid
- Width
- 12.9mm
- Height
- 39.1mm
- Length
- 23mm
- Degree of protection (IP)
- IP67
- Active area material of sensor
- Plastic (PMMA)
- Housing material
- Plastic ASA
Optical properties
- Laser class
- Class 1
- Light source
- Laser diode, red light
- Light beam form
- Point
- Wavelength of the sensor
- 650nm
- focus
- 80mm
Other properties
- Ambient temperature
- -10 - 60°C
- Reference medium / object
- Material with 90% reflectivity
- IO-Link version
- V1.1
You can find accessories for PT330570
in these product groups:
Assembly
Fixing material design 33
Connection technology
Adapter M8 socket 4-pin / M12 connector 4-pin
Cable sockets M8 4-pin field-attachable
Cable sockets M8 4-wire
Cable sockets M8-socket M12-connector 4-wire
Cable sockets M8-socket M8-connector 4-wire
Other sensors
Protection cap, teflon M8
Programming / parameterization
IO-Link master
Tool
Sensor tester
