AY000096
Accessories Sensor, mounting kit, metal, ball joint
Scarce
Laser sensors - Diffuse reflection sensors with background suppression
PT499370
| amount | price | discount |
|---|---|---|
| 1 | 497,90 € | – |
| 5 | 482,96 € | 3% / 14,94 € |
| 10 | 473,01 € | 5% / 24,90 € |
| 20 | 458,07 € | 8% / 39,83 € |
| 50 | 438,15 € | 12% / 59,75 € |
Available

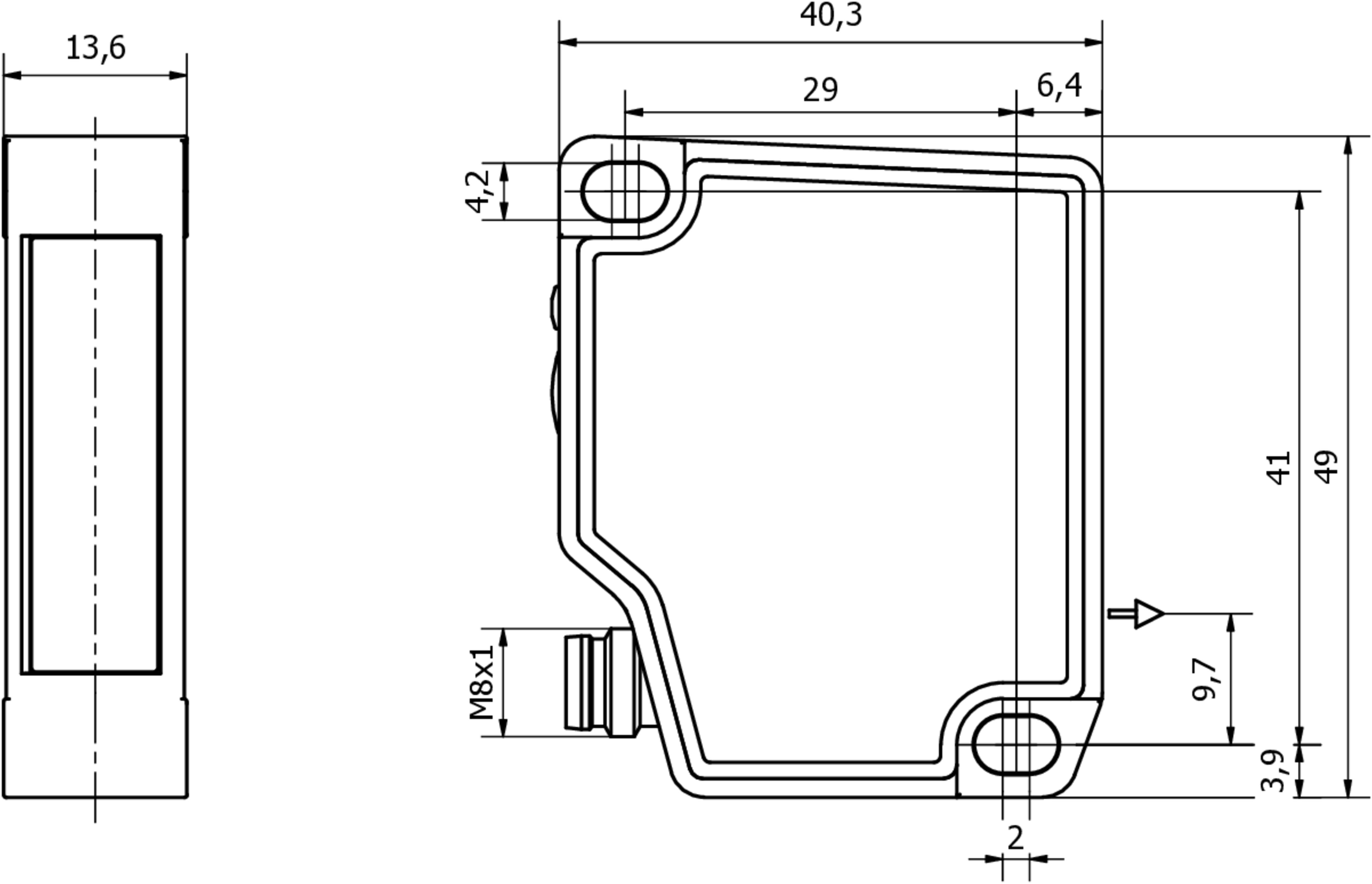

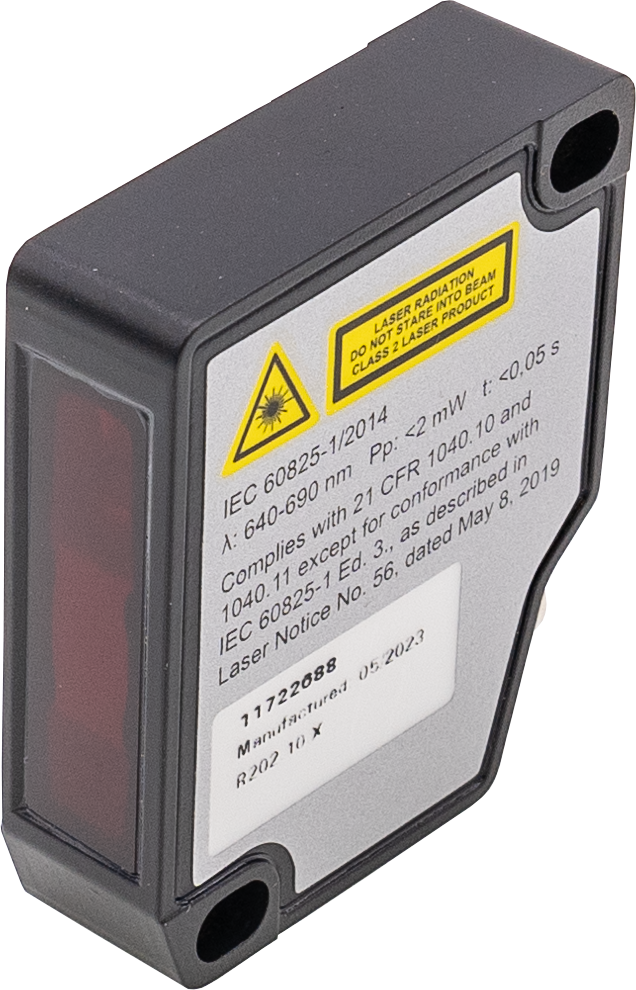

Laser Sensor, Diffuse Reflection Sensor, 49x40x14mm, Sn: 50-550, 12-28 V DC, 1x PNP NC/NO, 4-pin M8 connector, IP67, aluminum + glass, laser diode, red light, spot, teach-in
Compare
Laser sensors - Diffuse reflection sensors with background suppression
Optical sensors operate contactless. They detect objects regardless of their characteristics (e.g., shape, color, surface texture, material). Their basic operating principle is based on the transmission and reception of light. There are three versions: 1. The through-beam sensor consists of two separate devices—a transmitter and a receiver—that are aligned with each other. When the light beam between the two devices is interrupted, the switching output integrated into the receiver changes its status. 2. In a reflective light barrier, the transmitter and receiver are housed in a single device. The transmitted light beam is reflected toward the receiver by a reflector mounted opposite it. As soon as the light beam is interrupted, the switching output integrated into the device changes its status. 3. In a diffuse reflection sensor, the transmitter and receiver are housed in a single device. The emitted light beam is reflected by the object to be detected. As soon as the receiver detects the reflected light, the switching output integrated into the device changes its status.

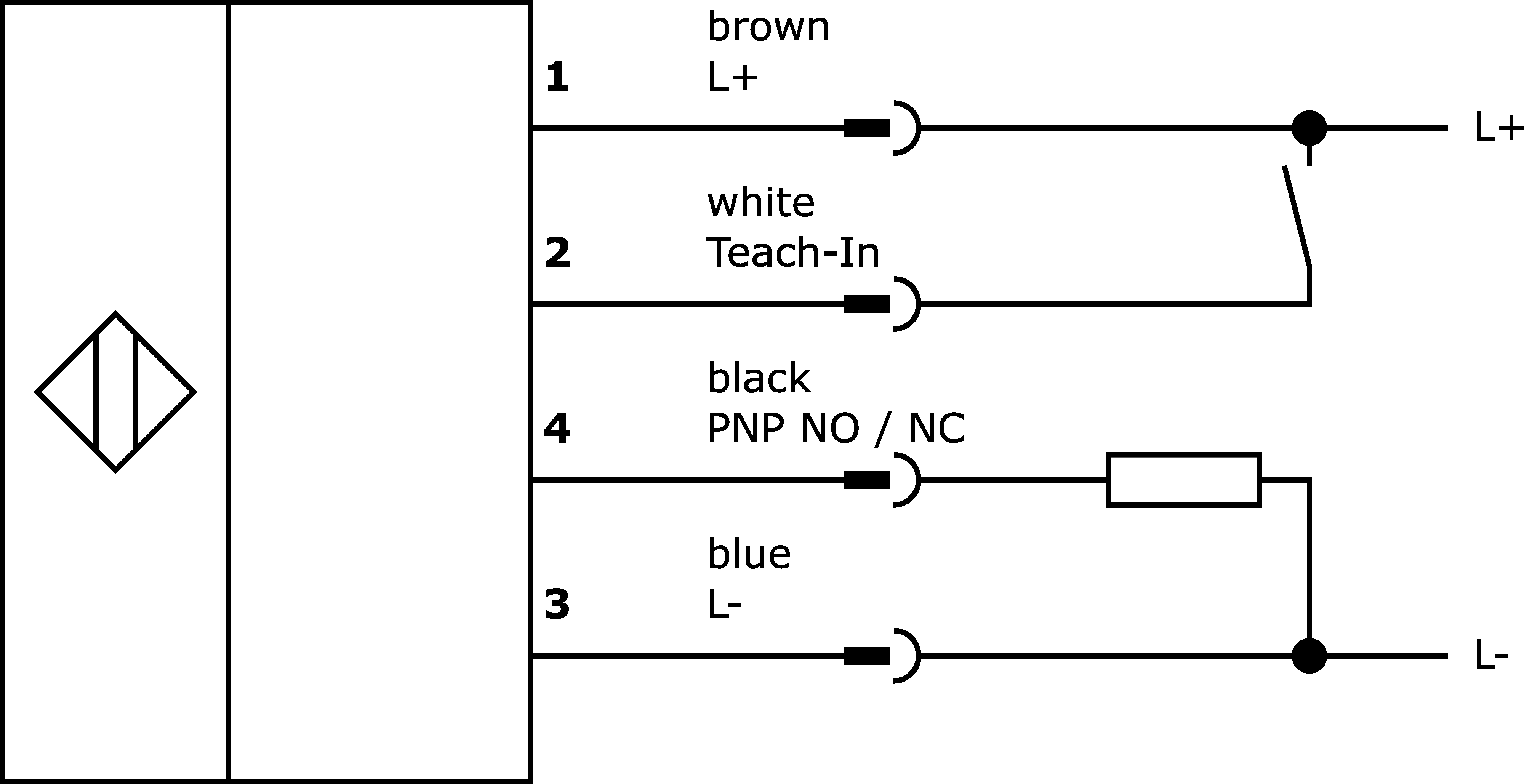

Electrical properties
- Number of switching outputs
- 1
- Type of switching function
- Normally closed contact/normally open contact
- Type of electrical connection
- M8-connector
- Type of switching output
- PNP
- Rated switching current
- 100mA
- Setting procedure
- Teach-In
- Laser power
- 1mW
- No-load current
- 50mA
- Number of pins
- 4
- Switching distance
- 50 - 550mm
- Voltage drop
- 2.8V
- Scanning function
- Light-/dark-on mode
- Measurement principle
- triangulation
- Display
- LED display
- protection functions
- reverse polarity protection
mechanical properties
- Design
- Cuboid
- Width
- 13.6mm
- Height
- 49mm
- Length
- 40.3mm
- Storage temperature
- -20 - 60°C
- Degree of protection (IP)
- IP67
- Active area material of sensor
- glass
- Housing material
- zinc die-cast
optical properties
- Laser class
- Class 2
- Light source
- Laser diode, red light
- Light beam form
- Point
- Triangulation
- Background suppression
- Wavelength of the sensor
- 660nm
- Light spot diameter at focal point
- 0.5mm
other properties
- Ambient temperature
- -10 - 50°C
- Reference medium / object
- Material with 90% reflectivity
You can find accessories for PT499370
in these product groups:
Assembly
Accessories design 49
Mounting system for AY000096
Connection technology
Adapter M8 socket 4-pin / M12 connector 4-pin
Cable sockets M8 4-pin field-attachable
Cable sockets M8 4-wire
Cable sockets M8 4-wire shielded
Cable sockets M8-socket M12-connector 4-wire
Cable sockets M8-socket M8-connector 4-wire
Cable sockets M8-socket with LED M8-connector 4-wire
Other sensors
License plate laser class 2
Power supply 24V DC / 2 – 10A
Protection cap, teflon M8
Tool
Sensor tester
Datasheets
Manuals
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 475 KB
-
pdfMaterial compliancePDF-file, 484 KB
-
pdfEU declaration of conformityPDF-file, 255 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
Whitepapers
Application examples
| Classification | Class |
|---|---|
| eClass-7.0 | 27270904 |
| eClass-7.1 | 27270904 |
| eClass-8.0 | 27270904 |
| eClass-9.0 | 27270904 |
| eClass-9.1 | 27270904 |
| ETIM-6.0 | EC002719 |
| ETIM-7.0 | EC002719 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| OzDS-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 160 laser sensor |
| packaging dimensions | 99 x 60 x 160mm |
| gross weight | 101g |
| Carbon footprint | 0,68kg CO₂e |
| customs tariff number | 85365019 |
| WEEE number | 40951076 |
