Inductive sensors - Norm switching distance

IB061174

IB061174
List price
62,40 €
amount price discount
1 62,40 €
5 60,53 € 3% / 1,87 €
10 59,28 € 5% / 3,12 €
20 57,41 € 8% / 4,99 €
50 54,91 € 12% / 7,49 €
Scarce

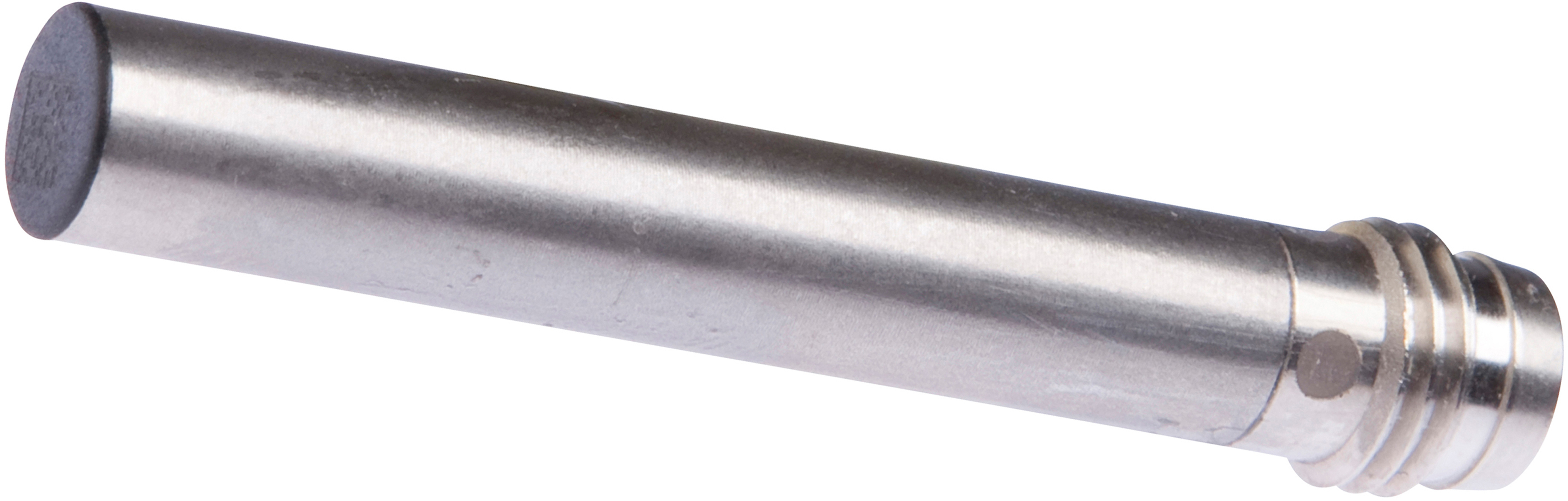

sensor inductive, Ø6,5mm 45long, Flush, Sn: 1.5, 10-30V DC, NPN NO, Connector M8 3pin, IP67, Stainless steel 1.4305
Compare

Inductive sensors - Norm switching distance

Inductive proximity switches are contact-free sensors. They detect all conductive metals, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or frontally. Inductive proximity switches are used for presence detection (e.g. goods carriers), positioning (e.g. dampers), counting (e.g. nuts /bolts), speed detection (e.g. for cog wheels), on conveyor systems (e.g. hose feedings) or distance measurements (e.g. press-in checking) of metallic objects.

Electrical properties

Type of switching function
Normally open contact (NO)
Type of electrical connection
Connector M8
Type of switching output
NPN
Rated switching current
200mA
Relative hysteresis
15%
Correction factor (aluminum)
0.3
Correction factor (copper)
0.2
Correction factor (brass)
0.4
Correction factor (St37)
1
Correction factor (stainl. steel)
0.7
Short-circuit protection
Yes
No-load current
15mA
Number of pins
3
Relative repeat accuracy
10%
Switching distance
1.5mm
Switching frequency
1,000Hz
Voltage drop
2V
Reverse polarity protection
Yes
Operating voltage (DC)
10 - 30V
Display
LED display

Mechanical properties

Alignment of cable entry
axial
Design
Cylinder plain
Cable infeed
axial
Length
45mm
Mechanical mounting condition for sensor
flush
Degree of protection (IP)
IP67
Active area material of sensor
Plastic (PBT)
Housing material
Stainless steel 1.4305
Diameter
6.5mm

Other properties

Ambient temperature
-25 - 70°C
You can find accessories for IB061174 in these product groups:

Sensor tester

Adapter M8 socket 3-pin / M12 connector 3-pin

Cable sockets M8-socket M12-connector 4-wire

Adapter M8 socket 3-pin / M8 connector 4-pin

Fixing material design 6.5round

Cable sockets M8-socket M8-connector 3-wire

Cable sockets M8 3-pin field-attachable

Protection cap, teflon M8

Cable sockets M8-socket M12-connector 3-wire

Cable sockets M8 3-wire

Plunger adapter for sensors IB06

Classification Class
eClass-7.0 27270101
eClass-7.1 27270101
eClass-8.0 27270101
eClass-9.0 27270101
eClass-9.1 27270101
ETIM-6.0 EC002714
ETIM-7.0 EC002714
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
OzDS-compliant Yes
POP-compliant Yes
TSCA-compliant Yes
IPF Product Group 203 inductive sensors (diverse)
packaging dimensions 100 x 17 x 120mm
gross weight 10g
Customs tariff number 85365019
