| amount | price | discount |
|---|---|---|
| 1 | 207,80 € | – |
| 5 | 201,57 € | 3% / 6,23 € |
| 10 | 197,41 € | 5% / 10,39 € |
| 20 | 191,18 € | 8% / 16,62 € |
| 50 | 182,86 € | 12% / 24,94 € |

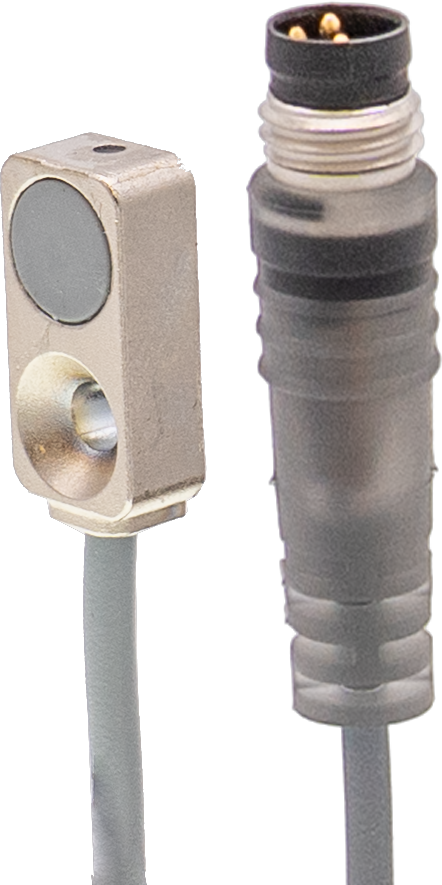

Inductive proximity switches are contactless sensors. They detect all conductive metals, regardless of whether they are moving or not. The achievable switching distance of the devices depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or from the front. Inductive proximity switches are used for presence detection (e.g., product carriers), positioning (e.g., furnace doors), counting (e.g., nuts/screws), speed detection (e.g., on gears), on conveyor systems (e.g., hose feeders), or distance measurements (e.g., press-fit inspection) of metallic objects.
| Classification | Class |
|---|---|
| eClass-7.0 | 27270802 |
| eClass-7.1 | 27270802 |
| eClass-8.0 | 27270802 |
| eClass-9.0 | 27270802 |
| eClass-9.1 | 27270802 |
| ETIM-6.0 | EC001818 |
| ETIM-7.0 | EC001818 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| OzDS-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 209 inductive sensors (analog) |
| packaging dimensions | 100 x 9 x 120mm |
| gross weight | 7g |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
