Linear and angular measurement - magnetic

MD420021

MD420021
List price
106,10 €
amount price discount
1 106,10 €
5 102,92 € 3% / 3,18 €
10 100,80 € 5% / 5,30 €
20 97,61 € 8% / 8,49 €
50 93,37 € 12% / 12,73 €
Scarce
sensor rotation angle, magnetic, Ø42mm 7high, 10-30V DC, -40-85°C, 1 V ... 10 V, Cable connector M12 3pin 0.3m PUR (Polyurethane), IP67, PA 6.6 (synthetic)
Compare

Linear and angular measurement - magnetic

A rotary encoder is a device that converts a rotary motion into a digital output signal, which can be processed on a subsequent evaluation electronics. All of our encoders operate according to the principle of optical scanning. Inside the device there is a pulse disc on which is – depending on the encoder - a unique (absolute) or repetitive (incremental) line graduation, which is scanned by an optical system. The turning of the encoder shaft causes rotation of the pulse disc, which results in a corresponding sampling signal of the optical system. This is finally implemented by an integrated electronics in encoder-specific output signals (e.g. multi-turn, RS422 etc.). For professional installation in many applications, shaft couplings or resilient bases for mounting brackets or flanges are used. In addition, the encoder shaft can be equipped with measuring wheels or pinions in various designs and sizes.Typical applications include the angle measurement on bending machines, length measuring of belt systems or speed measurement on winding systems.

Electrical properties

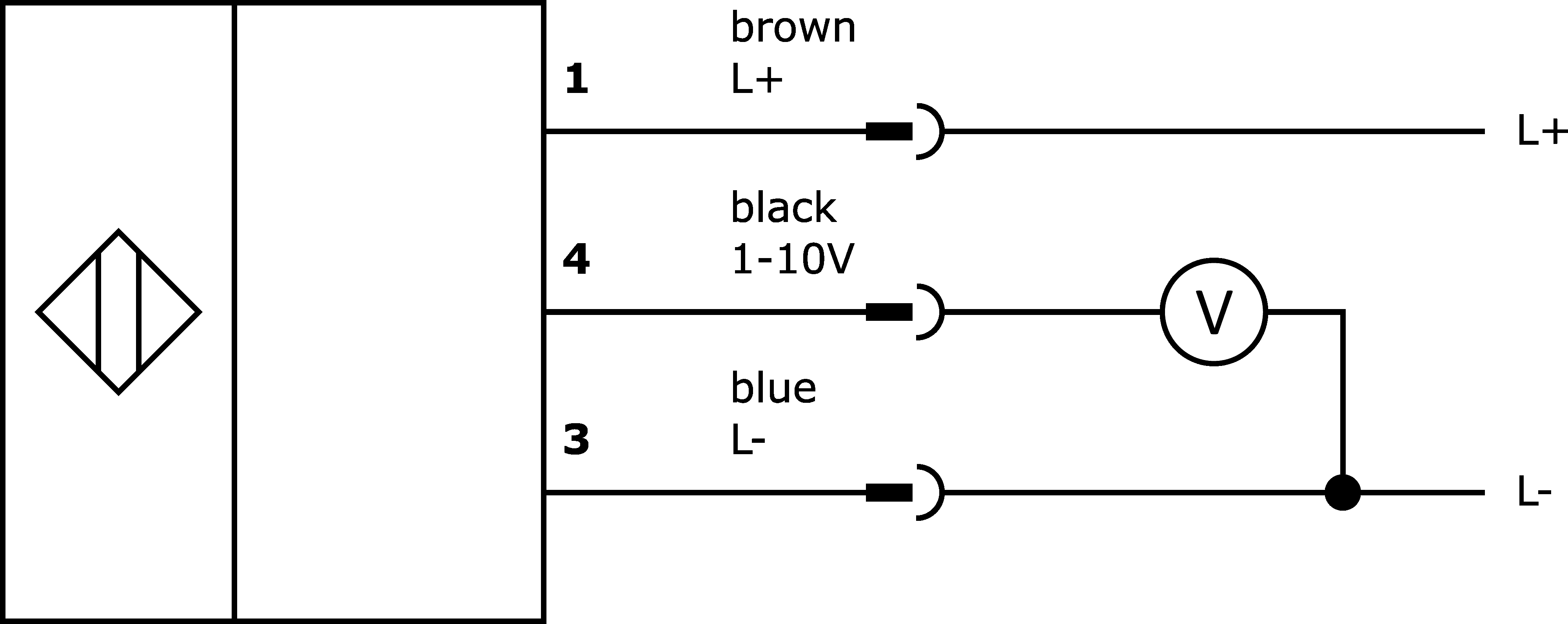

Type of analog output
1 - 10V
Type of electrical connection
Digital resolution
12Bit
Short-circuit protection
Yes
No-load current
15mA
Number of pins
3
Reverse polarity protection
Yes
Operating voltage (DC)
10 - 30V

Mechanical properties

Height
7mm
Cable length
0.3m
Cable infeed
radial
Degree of protection (IP)
IP67
Housing material
PA 6.6 (synthetic)
Material of cable sheath
Diameter
42mm

Other properties

Ambient temperature
-40 - 85°C
You can find accessories for MD420021 in these product groups:

Cable sockets M12 4-wire shielded

Cable sockets M12 4-pin field attachable

Mounting clip M12 connector/socket

Classification Class
eClass-7.0 27270705
eClass-7.1 27270705
eClass-8.0 27270705
eClass-9.0 27270705
eClass-9.1 27270705
ETIM-6.0 EC001852
ETIM-7.0 EC001852
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
OzDS-compliant Yes
POP-compliant Yes
TSCA-compliant Yes
IPF Product Group 690 diverse sensors
packaging dimensions 77 x 25 x 123mm
gross weight 70g
Customs tariff number 85365019
WEEE number 40951076
