Magnetic field sensors - Sensors for pneumatic cylinders

MRR90171

MRR90171
List price
27,20 €
amount price discount
1 27,20 € –
5 26,38 € 3% / 0,82 €
10 25,84 € 5% / 1,36 €
20 25,02 € 8% / 2,18 €
50 23,94 € 12% / 3,26 €
Available

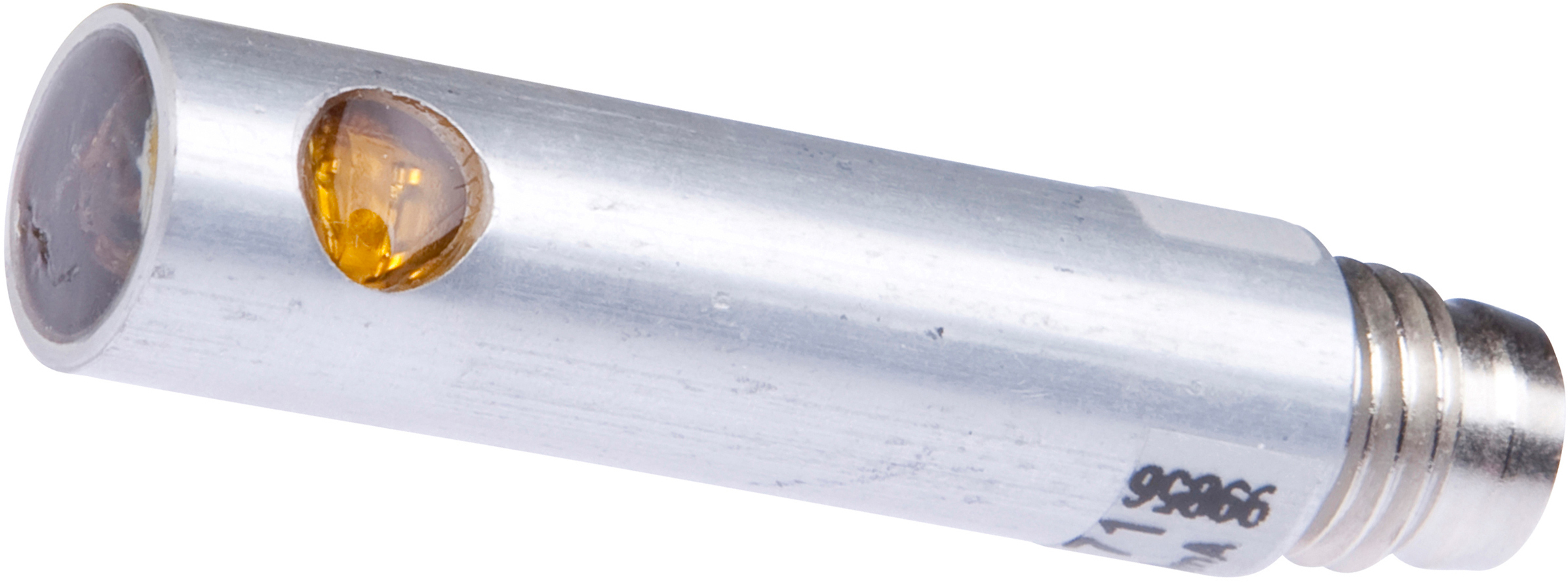

sensor magnetic, reed, 9mm round, Ø9mm 40long, 10-30V AC/DC, 1x Dry reed contact NO, Connector M8 3pin, IP67, Aluminum, LED, mounting Lateral, Sensor surface position Center of the device
circuit diagram
3D model
Compare

Magnetic field sensors - Sensors for pneumatic cylinders

Electrical properties

Number of switching outputs
1
Type of switching function
Normally open contact (NO)
Type of electrical connection
Connector M8
Type of switching output
Dry reed contact
Rated switching current
1,500mA
Absolute hysteresis
1mm
Number of pins
3
Switching frequency
500Hz
Voltage drop
0.2V
Absolute repeat accuracy
1mm
Display
LED display

Mechanical properties

Design
Cylinder plain
Length
40mm
Sensor surface position
Center of the device
Degree of protection (IP)
IP67
Housing material
Aluminum
Diameter
9mm

Other properties

Ambient temperature
-25 - 75°C
You can find accessories for MRR90171 in these product groups:

Assembly

Fixing material for MZR9

AM000011
AM000011
accessories magnetic, Mounting clip, 24x21x10mm, span 9.2-9.94mm, Polyoxymethylene (POM), For sensor 9round, for…
12,80 €
Your price
Available
AM000012
AM000012
accessories magnetic, Mounting clip, 26x21x10mm, span 11-11.9mm, Polyoxymethylene (POM), For sensor 9round, for…
12,80 €
Your price
Available
AM000013
AM000013
accessories magnetic, Mounting clip, 28x22x10mm, span 12.5-13.2mm, Polyoxymethylene (POM), For sensor 9round, for…
12,80 €
Your price
Available
AM000014
AM000014
accessories magnetic, Mounting clip, 34x22x10mm, span 16.5-17.2mm, Polyoxymethylene (POM), For sensor 9round, for…
13,30 €
Your price
Available
AM000015
AM000015
accessories magnetic, Mounting clip, 36x26x10mm, span 20.7-21.7mm, Polyoxymethylene (POM), For sensor 9round, for…
13,30 €
Your price
Available
AM000016
AM000016
accessories magnetic, Mounting clip, 40x32x10mm, span 26.5-28.2mm, Polyoxymethylene (POM), For sensor 9round, for…
13,30 €
Your price
Available
AM000021
AM000021
accessories magnetic, Mounting clip, 18x33x10mm, span 3.6-11.3mm, Zinc, For sensor 9round, for Cylinder, cylinder rail,…
12,80 €
Your price
Available
AM000022
AM000022
accessories magnetic, Mounting clip, 23x37x10mm, span 4.4-14.1mm, Zinc, For sensor 9round, for Cylinder, cylinder rail,…
14,90 €
Your price
Available
AM000023
AM000023
accessories magnetic, Mounting clip, 10mm wide, span 35.2-37mm, Plastic, For sensor 9round, for Cylinder, 35round, Screw…
20,30 €
Your price
Scarce
AM000024
AM000024
accessories magnetic, Mounting clip, 10mm wide, span 43.7-45.1mm, Plastic, For sensor 9round, for Cylinder, 43round,…
23,80 €
Your price
Scarce
AM000025
AM000025
accessories magnetic, Mounting clip, 10mm wide, span 52.5-54.5mm, Plastic, For sensor 9round, for Cylinder, 53round,…
23,50 €
Your price
Scarce
AM000026
AM000026
accessories magnetic, Mounting clip, 10mm wide, span 66-69.5mm, Plastic, For sensor 9round, for Cylinder, 67round, Screw…
49,70 €
Your price
Scarce
AM000029
AM000029
accessories magnetic, Installation tape, 5mm wide, Span 16-28mm, For sensor MZR9, Stainless steel
27,70 €
Your price
Available
AM000030
AM000030
accessories magnetic, Installation tape, 5mm wide, Span 16-28mm, For sensor MZR9, Stainless steel
28,70 €
Your price
Scarce
AM000031
AM000031
accessories magnetic, Installation tape, 5mm wide, Span 16-28mm, For sensor MZR9, Stainless steel
28,70 €
Your price
Scarce
AM000032
AM000032
accessories magnetic, Installation tape, 5mm wide, Span 28-39mm, For sensor MZR9, Stainless steel
29,10 €
Your price
Scarce
AM000033
AM000033
accessories magnetic, Installation tape, 5mm wide, Span 27.5-38mm, For sensor MZR9, Stainless steel
19,40 €
Your price
Available
AM000047
AM000047
accessories magnetic, Mounting clip, 47x39x10mm, span 32.8-33.6mm, Plastic, For sensor 9round, for Cylinder, 32round
20,30 €
Your price
Scarce

Connection technology

Cable sockets M8 3-pin field-attachable

VK003070
VK003070
Cable socket, Angular, Suitable for self-assembly, Soldering connection, Ø3.5-5mm, 4A, 60V, -40-85°C, M8 Female (socket)…
10,90 €
Your price
Available
VK003074
VK003074
Cable socket, Straight, Suitable for self-assembly, Soldering connection, Ø3.5-5mm, 4A, 60V, -40-85°C, M8 Female…
10,20 €
Your price
Available
VK003170
VK003170
Cable socket, Angular, Suitable for self-assembly, Screw connection, Ø5mm, 4A, 60V, -40-85°C, M8 Female (socket) 3pin,…
24,80 €
Your price
Available
VK003174
VK003174
Cable socket, Straight, Suitable for self-assembly, Screw connection, Ø3.5-5mm, 4A, 60V, -40-85°C, M8 Female (socket)…
11,60 €
Your price
Available
VK003S74
VK003S74
Cable socket, Straight, Suitable for self-assembly, Quick connection, Ø4-5.1mm, 4A, 32V, -25-85°C, M8 Female (socket)…
13,00 €
Your price
Available

Cable sockets M8 3-wire

VK200071
VK200071
Connection cable, 2m, M8 socket 3-pin angular, free cable end, 3x0.34mm², PUR (polyurethane), Ø4.3mm, 60V, -40-90°C,…
12,50 €
Your price
Available
VK200075
VK200075
Connection cable, 2m, M8 socket 3-pin straight, free cable end, 3x0.34mm², PUR (polyurethane), Ø4.3mm, 60V, -30-90°C,…
12,50 €
Your price
Available
VK20R071
VK20R071
Connection cable, 2m, M8 Female (socket) 3pin Angular, Free conductor end, 3x0.25mm², PUR (Polyurethane) Orange, Ø4.6mm,…
14,30 €
Your price
Scarce
VK20R075
VK20R075
Connection cable, 2m, M8 Female (socket) 3pin Straight, Free conductor end, 3x0.25mm², PUR (Polyurethane) Orange,…
14,30 €
Your price
Scarce
VK300071
VK300071
Connection cable, 3m, M8 3-pole angular, free cable end, 3x0.34mm², PUR (polyurethane), Ø4.3mm, 60V, -40-90°C, IP67,…
13,80 €
Your price
On demand
VK300075
VK300075
Connection cable, 3m, M8 socket 3-pin straight, free cable end, 3-core, PUR (polyurethane), suitable for trailing chain…
13,90 €
Your price
Available
VK500071
VK500071
Connection cable, 5m, M8 socket 3-pin angular, free cable end 3-pin, 3x0.34mm², PUR (polyurethane), Ø4.3mm, 250V,…
15,40 €
Your price
Available
VK500075
VK500075
Connection cable, 5m, M8 socket 3-pin straight, free cable end 3-pin, 3x0.34mm², PUR (polyurethane), Ø4.3mm, 60V,…
15,40 €
Your price
Available
VK50R071
VK50R071
Connection cable, 5m, M8 Female (socket) 3pin Angular, Free conductor end, 3x0.25mm², PUR (Polyurethane) Orange, Ø4.6mm,…
16,90 €
Your price
Available
VK50R075
VK50R075
Connection cable, 5m, M8 Female (socket) 3pin Straight, Free conductor end, 3x0.25mm², PUR (Polyurethane) Orange,…
16,90 €
Your price
On demand
VK50V071
VK50V071
Connection cable, 5m, M8 socket 3-pin angular, free cable end, 3x0.25mm², PUR/PVC, Ø3.9mm, 60V, -25-70°C, IP67
11,20 €
Your price
Available
VK50V075
VK50V075
Connection cable, 5m, M8 socket 3-pin straight, free cable end, 3x0.25mm², PUR/PVC, Ø3.9mm, 60V, -25-70°C, IP67
11,20 €
Your price
Available
VKA00071
VKA00071
Connection cable, 10m, M8 socket 3-pin angular, free cable end, 3x0.34mm², PUR (polyurethane), Ø4.3mm, 250V, -30-90°C,…
20,00 €
Your price
Available
VKA00075
VKA00075
Connection cable, 10m, M8 socket 3-pin straight, free cable end, 3x0.34mm², PUR (polyurethane), Ø4.3mm, 60V, -30-90°C,…
20,00 €
Your price
Available
VKA05075
VKA05075
Connection cable, 10m, M8 socket 3-pin straight, free cable end, 3-core, PUR (polyurethane), Ø4.8mm, shielded, suitable…
35,90 €
Your price
Scarce
VKAE0071
VKAE0071
Connection cable, 15m, M8 socket 3-pin angular, free cable end, 3x0.34mm², PUR (polyurethane), suitable for trailing…
25,50 €
Your price
Available
VKB00071
VKB00071
Connection cable, 20m, M8 socket 3-pin angular, free cable end, 3x0.34mm², PUR (polyurethane), suitable for trailing…
30,20 €
Your price
Available
VKB00075
VKB00075
Connection cable, 20m, M8 socket 3-pin straight, free cable end, 3x0.34mm², PUR (polyurethane), Ø4.3mm, 60V, -30-90°C,…
30,20 €
Your price
Available
VKC00075
VKC00075
Connection cable, 30m, M8 socket 3-pin straight, free cable end, 3x0.34mm², PUR (polyurethane), Ø4.3mm, 60V, -30-90°C,…
42,50 €
Your price
Available
VKE00075
VKE00075
Connection cable, 50m, M8 socket 3-pin straight, free cable end, 3x0.34mm², PUR (polyurethane), Ø4.3mm, 60V, -30-90°C,…
On demand

Cable sockets M8-socket M8-connector 3-wire

VK030F70
VK030F70
Connection cable, 0.3m, M8 socket 3-pin angular, M8 connector 3-pin straight, 3x0.34mm², PUR (polyurethane), 60V, IP67,…
12,50 €
Your price
Available
VK030F74
VK030F74
Connection cable, 0.3m, M8 socket 3-pin straight, M8 connector 3-pin straight, 3x0.34mm², PUR (polyurethane), 60V, IP67,…
12,50 €
Your price
Available
VK060F70
VK060F70
Connection cable, 0.6m, M8 socket 3-pin angular, M8 connector 3-pin straight, 3x0.34mm², PUR (polyurethane), 60V, IP67,…
12,70 €
Your price
Available
VK060F74
VK060F74
Connection cable, 0.6m, M8 socket 3-pin straight, M8 connector 3-pin straight, 3x0.34mm², PUR (polyurethane), 60V, IP67,…
12,70 €
Your price
Available
VK06RF70
VK06RF70
Connection cable, 0.6m, M8 socket 3-pin angular, M8 connector 3-pin straight, 3x0.25mm², PUR (polyurethane) orange,…
15,50 €
Your price
Scarce
VK100F70
VK100F70
Connection cable, 1m, M8 socket 3-pin angular, M8 connector 3-pin straight, 3x0.34mm², PUR (polyurethane), 60V, IP67,…
13,70 €
Your price
Available
VK100F74
VK100F74
Connection cable, 1m, M8 socket 3-pin straight, M8 connector 3-pin straight, 3x0.34mm², PUR (polyurethane), 60V, IP67,…
13,70 €
Your price
Available
VK10RF70
VK10RF70
Connection cable, 1m, M8 socket 3-pin angular, M8 connector 3-pin straight, 3x0.25mm², PUR (polyurethane) orange,…
16,00 €
Your price
Scarce
VK150F70
VK150F70
Connection cable, 1.5m, M8 socket 3-pin angular, M8 connector 3-pin straight, 3x0.34mm², PUR (polyurethane), 60V, IP67,…
13,90 €
Your price
Available
VK150F74
VK150F74
Connection cable, 1.5m, M8 socket 3-pin straight, M8 connector 3-pin straight, 3x0.34mm², PUR (polyurethane), 60V, IP67,…
13,90 €
Your price
Available
VK200F70
VK200F70
Connection cable, 2m, M8 socket 3-pin angular, M8 connector 3-pin straight, 3x0.34mm², PUR (polyurethane), 60V, IP67,…
14,20 €
Your price
Available
VK200F74
VK200F74
Connection cable, 2m, M8 socket 3-pin straight, M8 connector 3-pin straight, 3x0.34mm², PUR (polyurethane), 60V, IP67,…
14,20 €
Your price
Available
VK20RF70
VK20RF70
Connection cable, 2m, M8 socket 3-pin angular, M8 connector 3-pin straight, 3x0.25mm², PUR (polyurethane) orange,…
17,60 €
Your price
Available
VK250F74
VK250F74
Connection cable, 2.5m, M8 socket 3-pin straight, M8 connector 3-pin straight, 3x0.34mm², PUR (polyurethane), suitable…
14,40 €
Your price
Available
VK300F70
VK300F70
Connection cable, 3m, M8 socket 3-pin angular, M8 connector 3-pin straight, 3x0.34mm², PUR (polyurethane), 60V, IP67,…
15,10 €
Your price
Available
VK300F74
VK300F74
Connection cable, 3m, M8 socket 3-pin straight, M8 connector 3-pin straight, 3x0.34mm², PUR (polyurethane), 60V, IP67,…
15,10 €
Your price
Available
VK500F70
VK500F70
Connection cable, 5m, M8 socket 3-pin angular, M8 connector 3-pin straight, 3x0.34mm², PUR (polyurethane), 60V, IP67,…
20,00 €
Your price
Available
VK500F74
VK500F74
Connection cable, 5m, M8 socket 3-pin straight, M8 connector 3-pin straight, 3x0.34mm², PUR (polyurethane), 60V, IP67,…
20,00 €
Your price
Available
VKA00F74
VKA00F74
Connection cable, 10m, M8 socket 3-pin straight, M8 connector 3-pin straight, 3-core, PUR (polyurethane), suitable for…
23,70 €
Your price
Scarce

Cable sockets M8-socket with LED M8-connector 3-wire

VK030F72
VK030F72
Connection cable, 0.3m, M8 socket 3-pin angular, M8 connector 3-pin straight, 3x0.34mm², PUR (polyurethane), IP67, LED,…
18,50 €
Your price
Available
VK030F76
VK030F76
Connection cable, 0.3m, M8 socket 3-pin straight, M8 connector 3-pin straight, 3x0.25mm², PUR (polyurethane), IP67, LED,…
21,10 €
Your price
Available
VK060F72
VK060F72
Connection cable, 0.6m, M8 socket 3-pin angular, M8 connector 3-pin straight, 3x0.34mm², PUR (polyurethane), IP67, LED,…
19,00 €
Your price
Scarce
VK060F76
VK060F76
Connection cable, 0.6m, M8 socket 3-pin straight, M8 connector 3-pin straight, 3x0.25mm², PUR (polyurethane), IP67, LED,…
21,40 €
Your price
On demand
VK100F72
VK100F72
Connection cable, 1m, M8 socket 3-pin angular, M8 connector 3-pin straight, 3x0.34mm², PUR (polyurethane), IP67, LED,…
20,00 €
Your price
Available
VK100F76
VK100F76
Connection cable, 1m, M8 socket 3-pin straight, M8 connector 3-pin straight, 3x0.25mm², PUR (polyurethane), IP67, LED,…
21,80 €
Your price
On demand
VK150F72
VK150F72
Connection cable, 1.5m, M8 socket 3-pin angular, M8 connector 3-pin straight, 3x0.34mm², PUR (polyurethane), IP67, LED,…
21,00 €
Your price
Available
VK150F76
VK150F76
Connection cable, 1.5m, M8 socket 3-pin straight, M8 connector 3-pin straight, 3x0.25mm², PUR (polyurethane), IP67, LED,…
22,30 €
Your price
Scarce
VK200F72
VK200F72
Connection cable, 2m, M8 socket 3-pin angular, M8 connector 3-pin straight, 3x0.34mm², PUR (polyurethane), IP67, LED,…
21,60 €
Your price
Scarce
VK200F76
VK200F76
Connection cable, 2m, M8 socket 3-pin straight, M8 connector 3-pin straight, 3x0.25mm², PUR (polyurethane), IP67, LED,…
22,70 €
Your price
Available
VK300F72
VK300F72
Connection cable, 3m, M8 socket 3-pin angular, M8 connector 3-pin straight, 3x0.34mm², PUR (polyurethane), IP67, LED,…
22,40 €
Your price
Available
VK300F76
VK300F76
Connection cable, 3m, M8 socket 3-pin straight, M8 connector 3-pin straight, 3x0.25mm², PUR (polyurethane), IP67, LED,…
23,70 €
Your price
Scarce
VK500F72
VK500F72
Connection cable, 5m, M8 socket 3-pin angular, M8 connector 3-pin straight, 3x0.34mm², PUR (polyurethane), IP67, LED,…
24,30 €
Your price
Available
VK500F76
VK500F76
Connection cable, 5m, M8 socket 3-pin straight, M8 connector 3-pin straight, 3x0.25mm², PUR (polyurethane), IP67, LED,…
25,60 €
Your price
Available

Inverters M8

VYR90270
VYR90270
Signal inversion, Ø9mm 32long, 10-35V DC, 1x NC, M8 0.3m, IP67, Aluminum
131,80 €
Your price
Scarce
VYR91170
VYR91170
Inverter, Ø9mm 32long, PNP/NPN, 10-35V DC, 1x NO, M8 0.3m, IP67, Aluminum
131,80 €
Your price
Available
VYR91270
VYR91270
Inverter/signal-inverted, Ø9mm 32long, PNP/NPN, 10-35V DC, 1x NC, M8 0.3m, IP67, Aluminum
149,60 €
Your price
Scarce

Logic modules M8

VL300138
VL300138
Logic module, 26x136x30mm, OR, 2x4fold, 10-30V DC, sensor side M8 Female (socket) 3pin, control side M12 Male…
162,20 €
Your price
Scarce
VL300148
VL300148
Logic module, 26x136x30mm, AND, 4fold, 10-30V DC, sensor side M8 Female (socket) 3pin, control side M12 Male (connector)…
168,40 €
Your price
Scarce
VL310104
VL310104
Logic module, 27x88x31mm, AND/OR, 4-gang, 10-30V DC, -25-85°C, sensor side M8 socket 3-pin, control side M12 connector…
109,00 €
Your price
Scarce
VL310108
VL310108
Logic module, 27x130x31mm, AND/OR, 8gang, 10-30V DC, -25-85°C, 3-pin M8 socket on sensor side, 4-pin M12 connector on…
134,90 €
Your price
Available
VL31010A
VL31010A
Logic module, 27x150x31mm, AND/OR, 10-fold, 10-30V DC, -25-85°C, sensor side M8 socket 3-pin, control side M12 connector…
173,10 €
Your price
Available
VL310114
VL310114
Logic module, 27x88x31mm, AND, 2x2gang, 10-30V DC, -25-85°C, 3-pin M8 socket on sensor side, 5-pin M12 connector on…
109,00 €
Your price
Available
VL310118
VL310118
Logic module, 27x130x31mm, AND, 2x4gang, 10-30V DC, -25-85°C, 3-pin M8 socket on sensor side, 5-pin M12 connector on…
134,90 €
Your price
Available
VL31011A
VL31011A
Logic module, 27x150x31mm, AND, 2x5gang, 10-30V DC, -25-85°C, 3-pin M8 socket on sensor side, 5-pin M12 connector on…
173,10 €
Your price
Available
Classification Class
eClass-7.0 27270104
eClass-7.1 27270104
eClass-8.0 27270104
eClass-9.0 27270104
eClass-9.1 27270104
ETIM-6.0 EC002544
ETIM-7.0 EC002544
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 221 pneumatic cylinder sensors (low cost / reed)
packaging dimensions 80 x 17 x 120mm
gross weight 7g
0,3kg CO₂e
Customs tariff number 85365019
WEEE number 40951076
Compare
  • Vacancies
