Individual data sheet
PDF-file, 506 KB
NEW IN THE PROGRAM
NY000009
| amount | price | discount |
|---|---|---|
| 1 | 255,00 € | – |
| 5 | 247,35 € | 3% / 7,65 € |
| 10 | 242,25 € | 5% / 12,75 € |
| 20 | 234,60 € | 8% / 20,40 € |
| 50 | 224,40 € | 12% / 30,60 € |
On demand

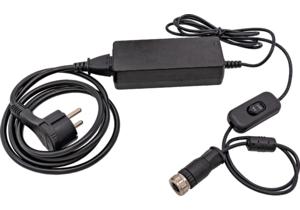

DC power supply, plug-in power supply, 165x65x35 mm, 24V DC, 5A, 100-240V AC, M12-connector 5-pin, plastic, total cable length 3350mm, with on/off switch , Schuko plug
including Connection cable
Compare
Power supplies - Plug-in power supply
Electrical properties
- Type of plug-in contact
- Female (socket)
- Type of A electrical connection
- M12 cable socket
- Type of B electrical connection
- Cold-device plug
- Output voltage
- 24V
- Power
- 120W
- Min. current load
- 5,000mA
- Operating voltage
- 100-240VAC(60Hz)
Mechanical properties
- Width
- 65mm
- Height
- 35mm
- Length
- 165mm
- Storage temperature
- -30 - 70°C
- Housing material
- Plastic
- dimensions
- 165x65x35mm
Other properties
- Features
- with on/off switch
| Classification | Class |
|---|---|
| eClass-7.0 | 27049002 |
| eClass-7.1 | 27049002 |
| eClass-8.0 | 27049002 |
| eClass-9.0 | 27040701 |
| eClass-9.1 | 27040701 |
| ETIM-6.0 | EC002540 |
| ETIM-7.0 | EC002540 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 400 power supply units |
| packaging dimensions | 230 x 61 x 290mm |
| gross weight | 966g |
| 1,69kg CO₂e | |
| Customs tariff number | 85044083 |
| WEEE number | 40951076 |
