Optical sensors - Diffuse reflection sensors with background suppression
OT98E193
| amount | price | discount |
|---|---|---|
| 1 | 195,30 € | – |
| 5 | 189,44 € | 3% / 5,86 € |
| 10 | 185,54 € | 5% / 9,77 € |
| 20 | 179,68 € | 8% / 15,62 € |
| 50 | 171,86 € | 12% / 23,44 € |
Available
sensor optical, diffuse-reflection sensor, 42x18x11mm, Sn: 5-450, 10-30V DC, -35-60°C, 2x PNP/NPN Anticoincidence, Connector M8 4pin, IP67 / IP69k, PC-ABS+PMMA, 1kHz, Polarity free red light, Point, Manual adjustment
Compare
Optical sensors - Diffuse reflection sensors with background suppression
Optical sensors function contactlessly. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). The basic operating principle is based on the transmission and reception of light. There are three different versions: 1. The through-beam sensor consists of two separate devices, a transmitter and a receiver that are aligned with one another. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. With the retro-reflective sensor, the transmitter and receiver are located in one device. The emitted light beam is reflected back to the receiver by a reflector that is to be mounted opposite the device. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. With the diffuse reflection sensor, the transmitter and receiver are in one device. The emitted light beam is reflected by the object that is to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.
Electrical properties
- Response/decay time
- 0.5ms
- Number of switching outputs
- 1
- Type of switching function
- Normally open (NO for PNP) Normally closed (NC for NPN)

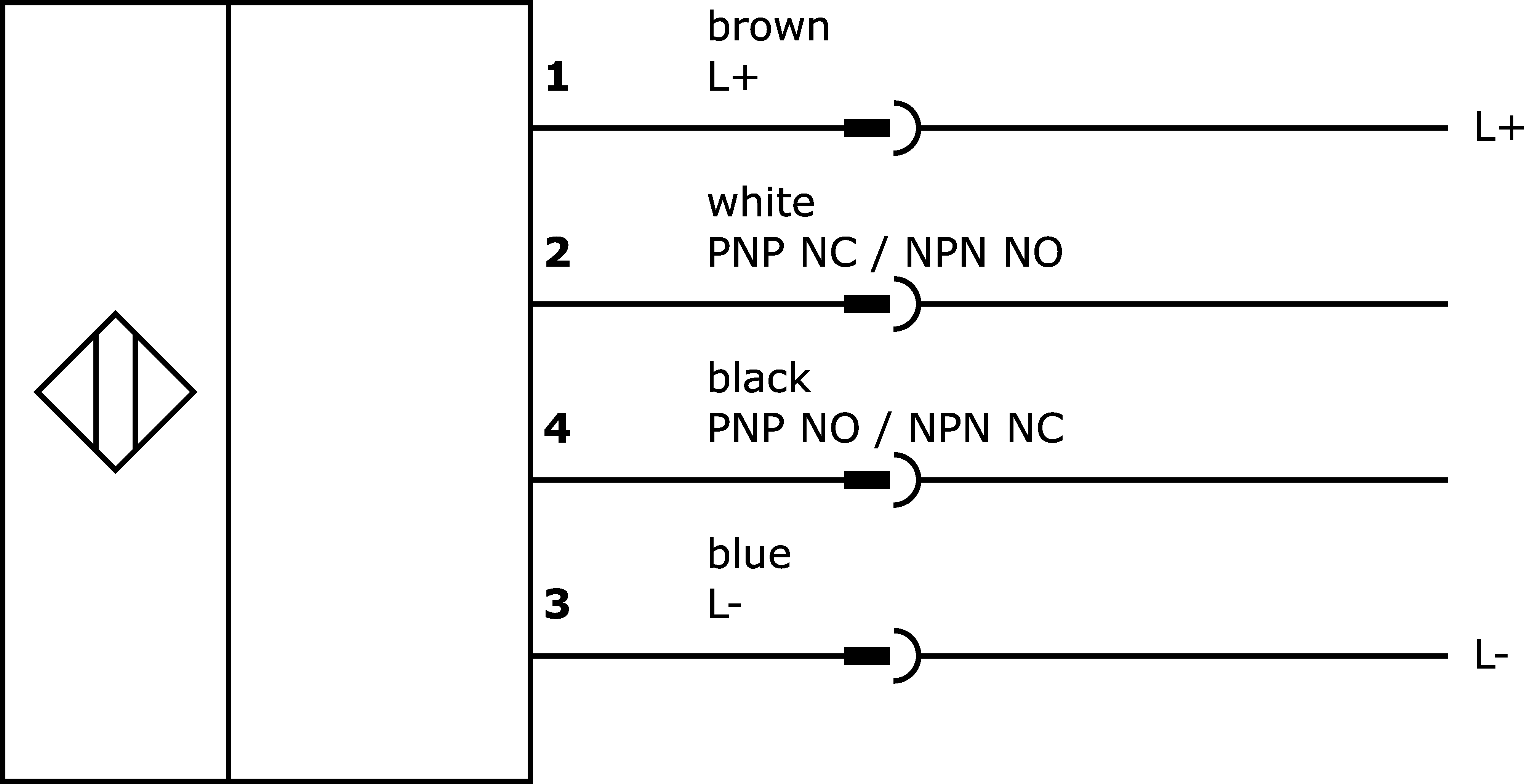

- Type of electrical connection
- Connector M8
- Type of switching output
- Push-pull
- Rated switching current
- 100mA
- Readiness delay
- 300ms
- Setting procedure
- Manual adjustment
- No-load current
- 15mA
- Number of pins
- 4
- Reaction time
- 0.5ms
- Residual ripple
- 15%
- Switching distance
- 15 - 415mm
- Switching frequency
- 1,000Hz
- Voltage drop
- 2V
- Scanning function
- Light-/dark-on mode
- Display
- LED display
- Short circuit protection, Reverse polarity protection
Mechanical properties
- Design
- Cuboid
- Width
- 11.4mm
- Height
- 41.9mm
- Length
- 18.3mm
- Storage temperature
- -40 - 70°C
- Degree of protection (IP)
- IP67 / IP69k
- Active area material of sensor
- Plastic (PMMA)
- Housing material
- PC-ABS
Optical properties
- Light source
- Polarity free red light
- Light beam form
- Point
- Wavelength of the sensor
- 633nm
- focus
- 200mm
Other properties
- Ambient temperature
- -35 - 60°C
- Reference medium / object
- Material with 90% reflectivity
You can find accessories for OT98E193
in these product groups:
Assembly
Fixing material design 09
Fixing material design 31
Available
Connection technology
Cable sockets M8 4-wire
Cable sockets M8-socket M12-connector 4-wire
Cable sockets M8-socket M8-connector 4-wire
Datasheets
Manuals
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 480 KB
-
pdfEU declaration of conformityPDF-file, 252 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
-
pdfFlyer food and beveragePDF-file, 1.7 MB
-
pdfSensor solutions for the foil industryPDF-file, 2.7 MB
-
pdfProducts that inspirePDF-file, 8.5 MB
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 27270904 |
| eClass-7.1 | 27270904 |
| eClass-8.0 | 27270904 |
| eClass-9.0 | 27270904 |
| eClass-9.1 | 27270904 |
| ETIM-6.0 | EC002719 |
| ETIM-7.0 | EC002719 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 100 optical sensors |
| packaging dimensions | 77 x 25 x 123mm |
| gross weight | 19g |
| 0,05kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
