Laser sensors - Through-beam sensors receivers
PE130175
| amount | price | discount |
|---|---|---|
| 1 | 263,30 € | – |
| 5 | 255,40 € | 3% / 7,90 € |
| 10 | 250,14 € | 5% / 13,17 € |
| 20 | 242,24 € | 8% / 21,06 € |
| 50 | 231,70 € | 12% / 31,60 € |
Scarce

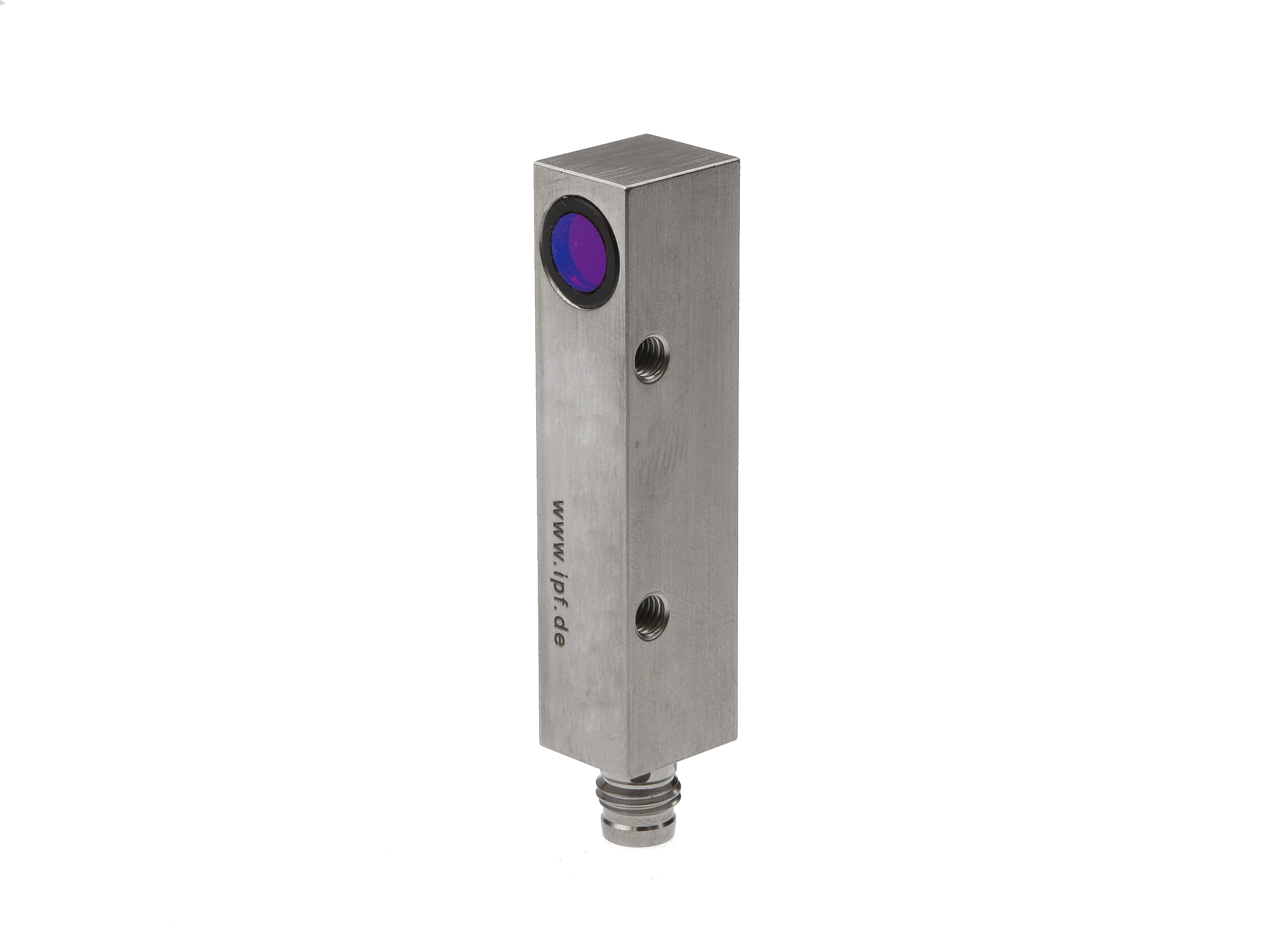

sensor laser, Through-beam sensor receiver, 64x14x12mm, aperture Ø1mm, Sn: 5m, 12-32V DC, PNP/NPN Push-pull, Connector M8 3pin, IP67, Brass Nickel-plated+Glass, Polarity free red light
Compare
Laser sensors - Through-beam sensors receivers
Optical sensors function contactlessly. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). The basic operating principle is based on the transmission and reception of light. There are three different versions: 1. The through-beam sensor consists of two separate devices, a transmitter and a receiver that are aligned with one another. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. With the retro-reflective sensor, the transmitter and receiver are located in one device. The emitted light beam is reflected back to the receiver by a reflector that is to be mounted opposite the device. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. With the diffuse reflection sensor, the transmitter and receiver are in one device. The emitted light beam is reflected by the object that is to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.
Electrical properties
- Resolution
- 0.5mm
- Type of switching function
- Normally open (NO for PNP) Normally closed (NC for NPN)
- Type of electrical connection
- Connector M8
- Type of switching output
- Push-pull
- Rated switching current
- 100mA
- No-load current
- 30mA
- No-load current, receiver
- 30mA
- Number of pins
- 3
- Switching distance
- 0 - 5,000mm
- Switching frequency
- 1,000Hz
- Voltage drop
- 2V
- Scanning function
- Light-/dark-on mode
- Absolute repeat accuracy
- 0.01mm
- Display
- LED display
- Short circuit protection, Reverse polarity protection

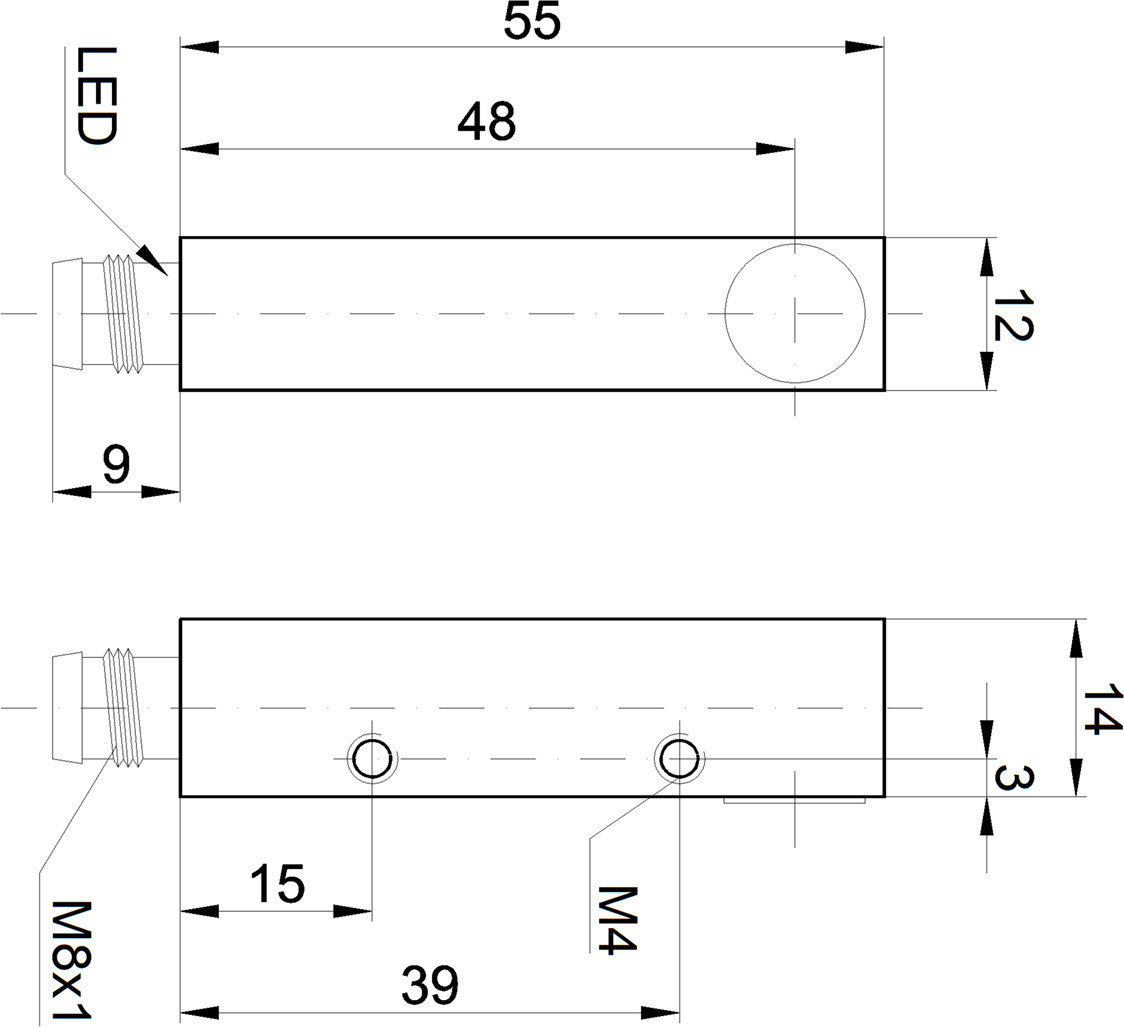

Mechanical properties
- Design
- Cuboid
- Aperture diameter
- 1mm
- Width
- 12mm
- Height
- 64mm
- Length
- 14mm
- Storage temperature
- 85°C
- Surface
- nickel-plated
- Degree of protection (IP)
- IP67
- Active area material of sensor
- glass
- Housing material
- Brass
Optical properties
- Filter
- Interference filter
- Light source
- Polarity free red light
- Light beam form
- Point
- Wavelength of the sensor
- 670nm
Other properties
- Ambient temperature
- -20 - 50°C
