PG400145

PG400145
Successor model: PG400146
Compare

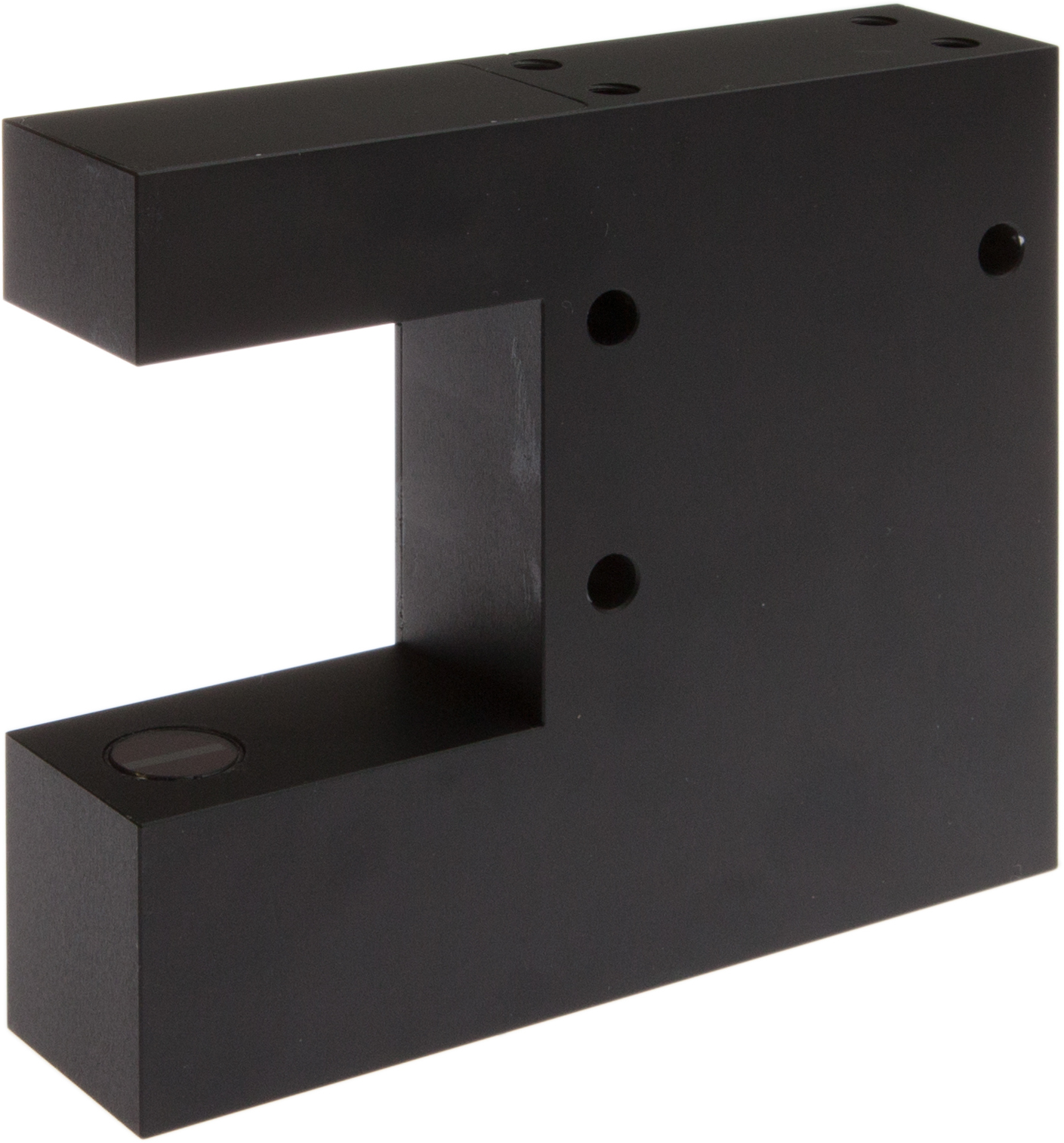

sensor laser, fork, 90x24x100mm, fork width 40mm, 15-30V DC, 2x Push-pull NC/NO, 0-10 V, Plug-in connection 8pin, Glass, Red light

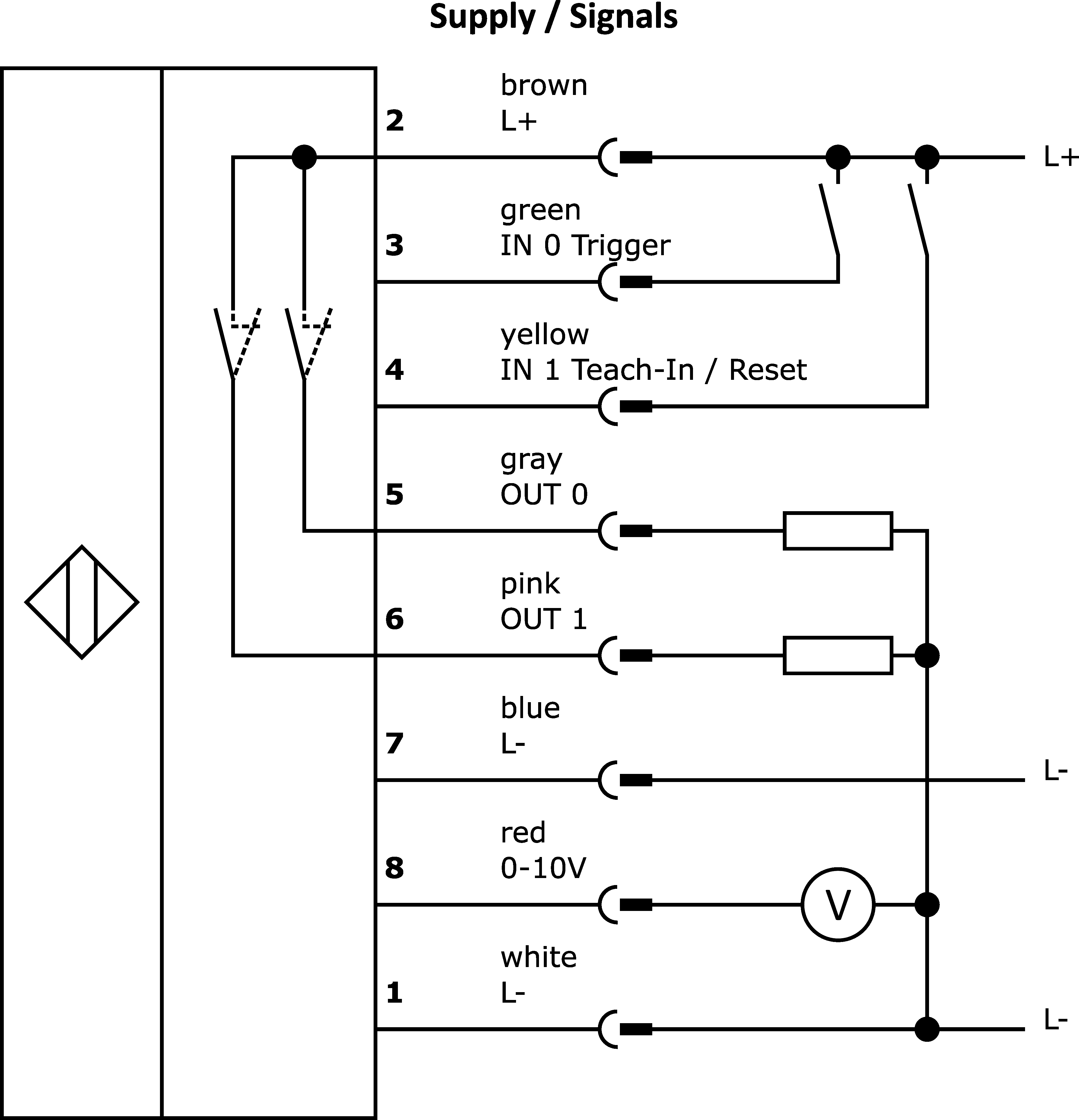

circuit diagram

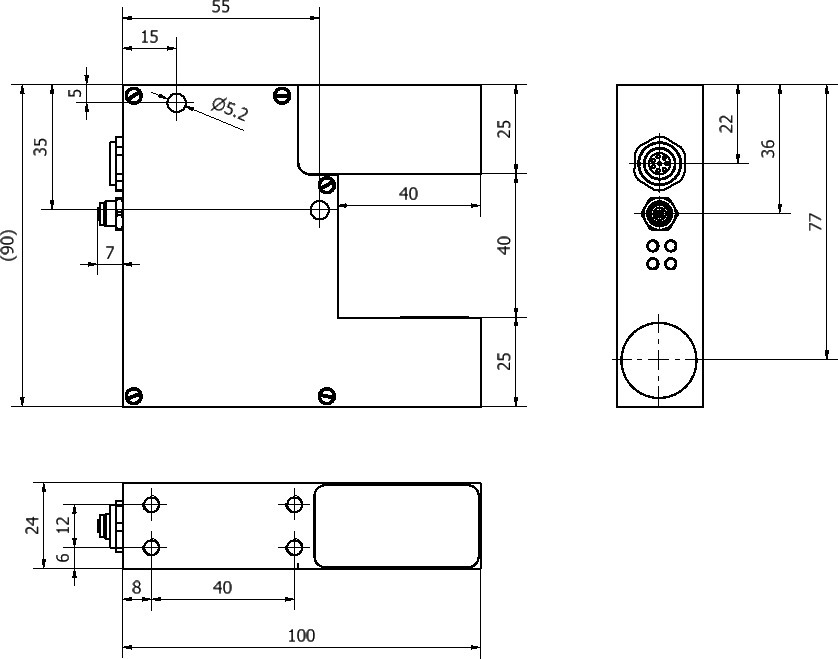

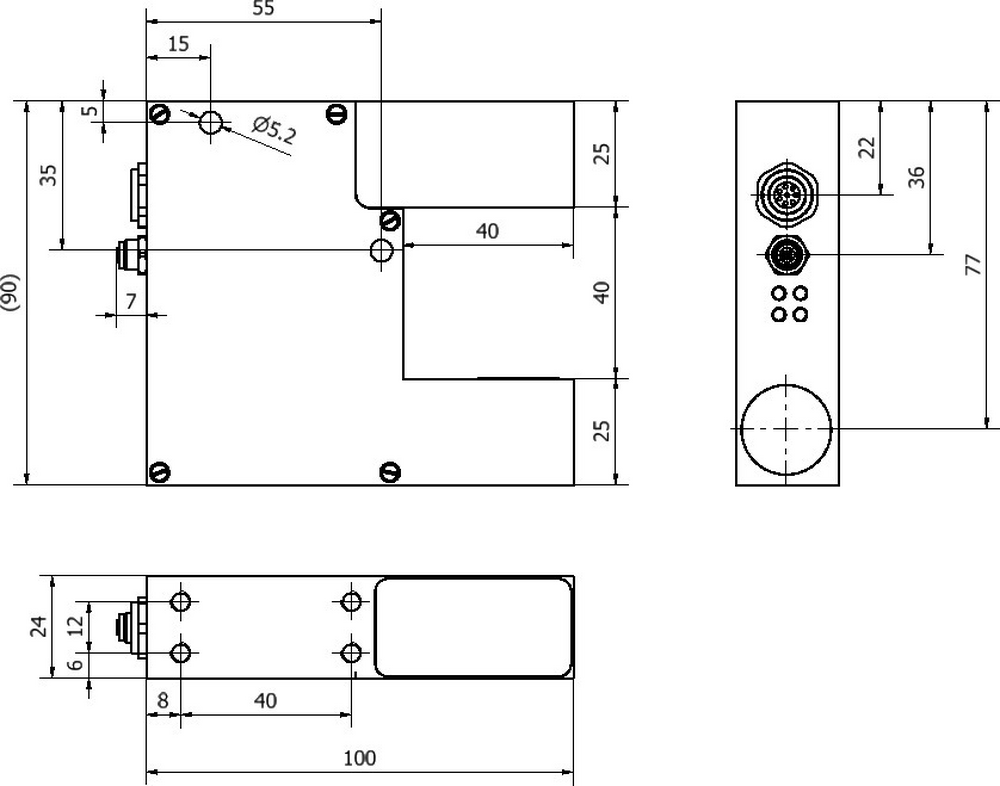

dimensional drawing
3D model
Compare

Laser sensors - Forked light barrier

Special design of through-beam sensor. Transmitter and receiver are located in the fork or angular limbs and are perfectly aligned to each other.

Electrical properties

Number of switching outputs
2
Resolution
0.016mm
Type of the forked light barrier
Standard
Type of switching function
Normally closed contact/normally open contact
Type of analog output
0 - 10V
Type of electrical connection
Plug-in connection
Type of switching output
Push-pull
Number of pins
8
Protection class
III
Scanning function
Light-/dark-on mode
Type of plug-in contact, communication interface
Female (socket)
Type of plug-in connection, communication interface
Connector M5
Number of pins of interface connection
4

Mechanical properties

Design
Cuboid
Width
100mm
Fork depth
40mm
Fork width
40mm
Height
90mm
Length
24mm
Active area material of sensor
glass

Optical properties

Line field length
16
Laser class
Class 1
Light source
red light
Min. object size
0.16mm

Other properties

Web edge control, Measurement of light beam coverage
You can find accessories for PG400145 in these product groups:

Connection technology

Cable connectors M5 Sub-D-socket

VK207F44
VK207F44
Connection cable RS232/Sub-D, 2m, M5 Male (connector) Straight, D-Sub Male (connector) 9pin Straight, PUR (Polyurethane)
95,60 €
Your price
Scarce

Cable connectors M5 USB

VK207U40
VK207U40
Connection cable RS232/USB, 2m, M5 Male (connector) Angular, USB-A Male (connector) Straight, PUR (Polyurethane)
172,30 €
Your price
On demand
VK207U44
VK207U44
Connection cable RS232/USB, 2m, M5 Male (connector) Straight, USB-A Male (connector) Straight, PUR (Polyurethane)
172,30 €
Your price
Scarce
VK507U40
VK507U40
Connection cable RS232/USB, 5m, M5 Male (connector) Angular, USB-A Male (connector) Straight, PUR (Polyurethane)
215,90 €
Your price
On demand
VK507U44
VK507U44
Connection cable RS232/USB, 5m, M5 Male (connector) Straight, USB-A Male (connector) Straight, PUR (Polyurethane)
215,90 €
Your price
Scarce

Cable connectors M9

VK207B41
VK207B41
Connection cable, 2m, M9 connector 8-pin angular, free cable end, 8x0.14mm², PUR (polyurethane), 125V, IP67, shielded,…
73,70 €
Your price
Scarce
VK207B45
VK207B45
Connection cable, 2m, M9 Male (connector) 8pin Straight, Free conductor end, 8x0.14mm², PUR (Polyurethane), 125V, IP67,…
73,70 €
Your price
Available
VK507B41
VK507B41
Connection cable, 5m, M9 connector 8-pin angular, free cable end, 8x0.14mm², PUR (polyurethane), 125V, IP67, shielded,…
112,80 €
Your price
Scarce
VK507B45
VK507B45
Connection cable, 5m, M9 connector 8-pin straight, free cable end, 8x0.14mm², PUR (polyurethane), 125V, IP67, shielded,…
102,10 €
Your price
Scarce
VKA07B45
VKA07B45
Connection cable, 10m, M9 connector 8-pin straight, free cable end, 8-core, PUR (polyurethane), shielded, oils and…
137,50 €
Your price
Available
VKBE7B45
VKBE7B45
Connection cable, 25m, M9 Male (connector) 8pin Straight, Free conductor end, 8wire, PUR (Polyurethane)
303,80 €
Your price
On demand

Programming adapter Ethernet

VKSI0297
VKSI0297
Connection cable RS232/Ethernet, 0.5m, M5 connector 4-pin straight, M12 connector 4-pin straight, D-coding, PUR…
300,50 €
Your price
Scarce

Other sensors

M5 screw plug

VK000053
VK000053
Screw plug, M5, Plastic, Black
1,60 €
Your price
Available
Classification Class
eClass-7.0 27270909
eClass-7.1 27270909
eClass-8.0 27270909
eClass-9.0 27270909
eClass-9.1 27270909
ETIM-6.0 EC002720
ETIM-7.0 EC002720
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
POP-compliant Yes
TSCA-compliant Yes
IPF Product Group 165 laser line sensors
