Laser sensors - Forked light barrier

PG400146

PG400146
List price
2.315,70 €
amount price discount
1 2.315,70 € –
5 2.246,23 € 3% / 69,47 €
10 2.199,92 € 5% / 115,79 €
20 2.130,44 € 8% / 185,26 €
50 2.037,82 € 12% / 277,88 €
On demand
sensor laser, fork, 100x24x90mm, fork width 40mm, 15-30V DC, 3x Push-pull NC/NO, 4-20 mA, Plug-in connection 8pin, IP54, Aluminum+Glass, Red light, Parameterization

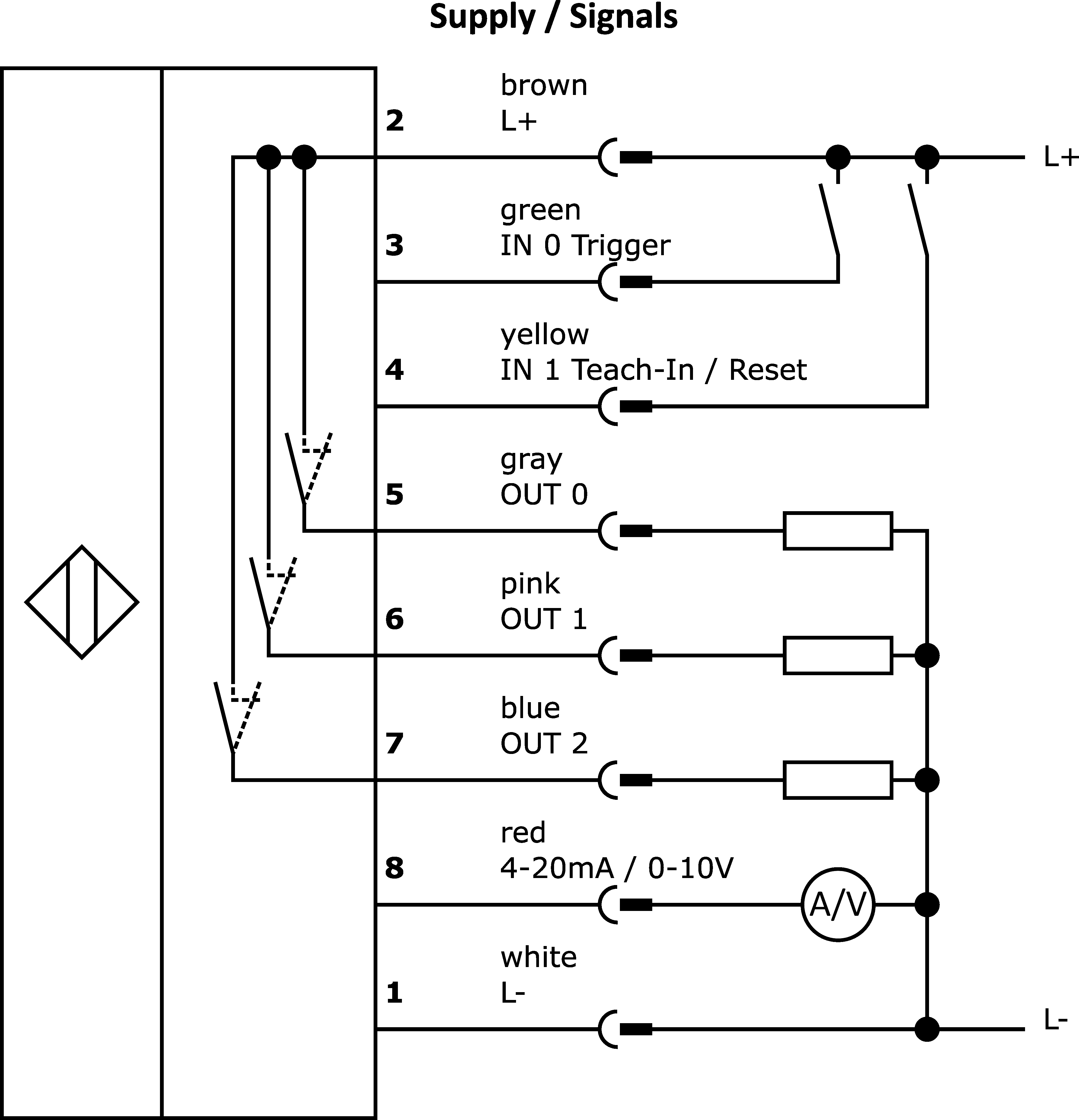

circuit diagram
dimensional drawing
3D model
Compare

Laser sensors - Forked light barrier

Special design of through-beam sensor. Transmitter and receiver are located in the fork or angular limbs and are perfectly aligned to each other.

Electrical properties

Number of switching outputs
3
Resolution
0.008mm
Type of the forked light barrier
Standard
Type of switching function
Normally closed contact/normally open contact
Type of analog output
0 - 10V, 4 - 20mA
Type of electrical connection
Plug-in connection
Type of switching output
Push-pull
Rated switching current
100mA
Setting procedure
Parameterization
No-load current
120mA
Number of pins
8
Repeatability +/-
8µm
Protection class
III
Scanning function
Light-/dark-on mode
Type of plug-in contact, communication interface
Female (socket)
Type of plug-in connection, communication interface
Connector M5
Number of pins of interface connection
4
Supported communication interface
RS232

Mechanical properties

Design
Cuboid
Width
90mm
Fork depth
40mm
Fork width
40mm
Height
100mm
Length
24mm
Degree of protection (IP)
IP54
Active area material of sensor
glass
Housing material
Aluminum

Optical properties

Aperture width
16mm
Aperture length
1mm
Line field width
1
Line field length
16
Laser class
Class 1
Light source
red light
Light beam form
Line
Wavelength of the sensor
670nm

Other properties

Ambient temperature
-10 - 50°C
Web edge control, Measurement of light beam coverage
