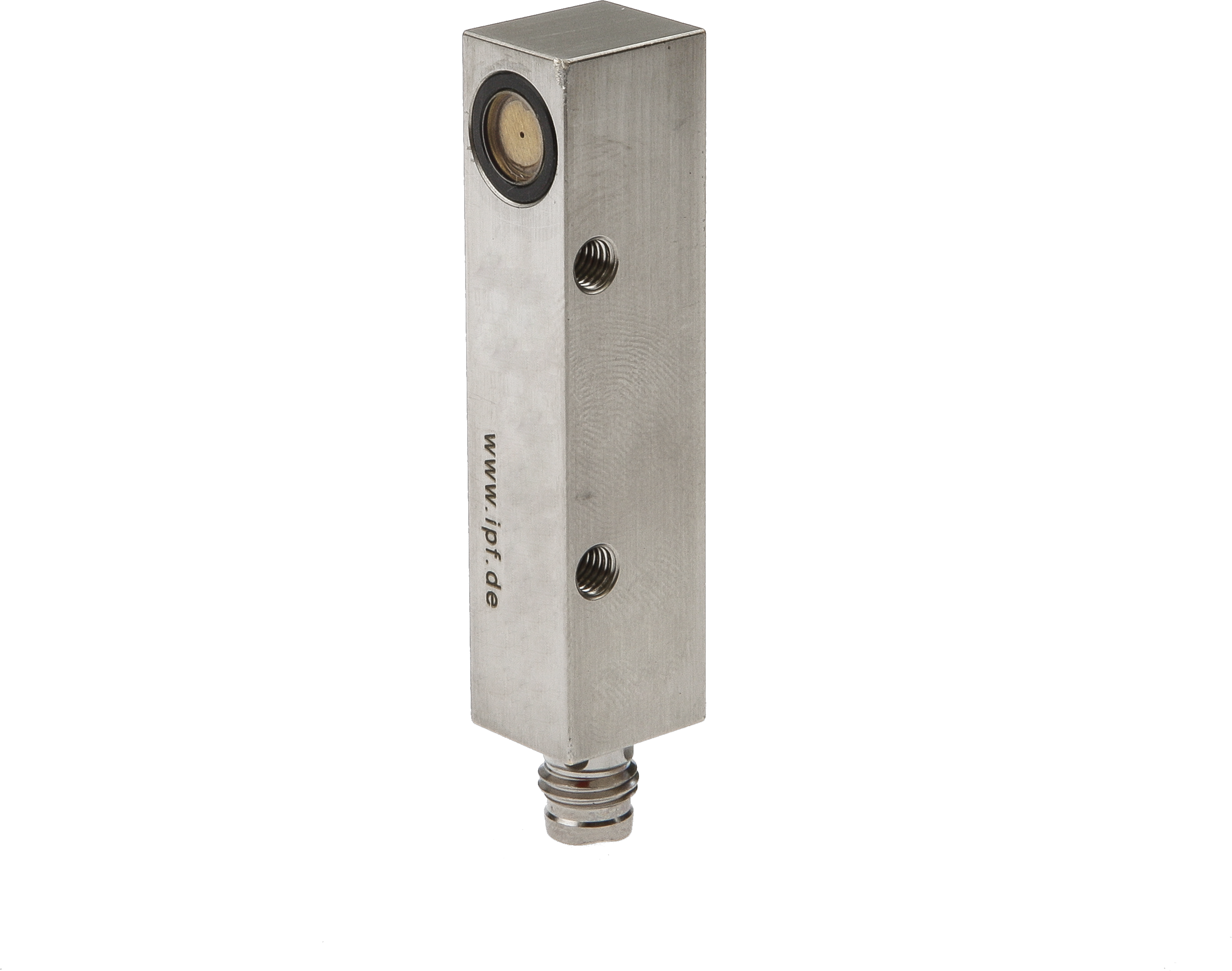

sensor laser, Through-beam sensor transmitter, 64x14x12mm, aperture Ø0.5mm, Sn: 1.5m, 12-32V DC, Connector M8 3pin, IP67, Brass Nickel-plated+Glass, Laser diode, red light
Compare
Laser sensors - Through-beam sensors transmitters
Optical sensors function contactlessly. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). The basic operating principle is based on the transmission and reception of light. There are three different versions: 1. The through-beam sensor consists of two separate devices, a transmitter and a receiver that are aligned with one another. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. With the retro-reflective sensor, the transmitter and receiver are located in one device. The emitted light beam is reflected back to the receiver by a reflector that is to be mounted opposite the device. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. With the diffuse reflection sensor, the transmitter and receiver are in one device. The emitted light beam is reflected by the object that is to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.
Electrical properties
- Type of electrical connection
- Connector M8
- Laser power
- 1mW
- No-load current
- 60mA
- No-load current, transmitter
- 60mA
- Number of pins
- 3
- Switching distance
- 0 - 1,500mm
- Reverse polarity protection
- Yes
- Operating voltage (DC)
- 12 - 32V
- Display
- LED display
Mechanical properties
- Design
- Cuboid
- Aperture diameter
- 0.5mm
- Width
- 12mm
- Height
- 64mm
- Length
- 14mm
- Storage temperature
- 85°C
- Surface
- nickel-plated
- Degree of protection (IP)
- IP67
- Active area material of sensor
- glass
- Housing material
- Brass
Optical properties
- Laser class
- Class 1
- Light source
- Laser diode, red light
- Light beam form
- Point
- Wavelength of the sensor
- 670nm
- Light spot diameter at focal point
- 0.25mm
Other properties
- Features
- with test input
- Scope of delivery
- Transmitter
- Ambient temperature
- -20 - 50°C
- Through-beam sensor transmitter
You can find accessories for PS130070
in these product groups:
Cable sockets M8-socket M8-connector 3-wire
Cable sockets M8 3-wire
Cable sockets M8 3-pin field-attachable
Cable sockets M8-socket M12-connector 3-wire
Cable sockets M8-socket with LED M8-connector 3-wire
Mounting system for AY000119
Available
Accessories PS13
Available
Precision bracket design 13
Adapter M8 socket 3-pin / M12 connector 3-pin
Cable sockets M8-socket with LED M12-connector 3-wire
Datasheets
Drawings
-

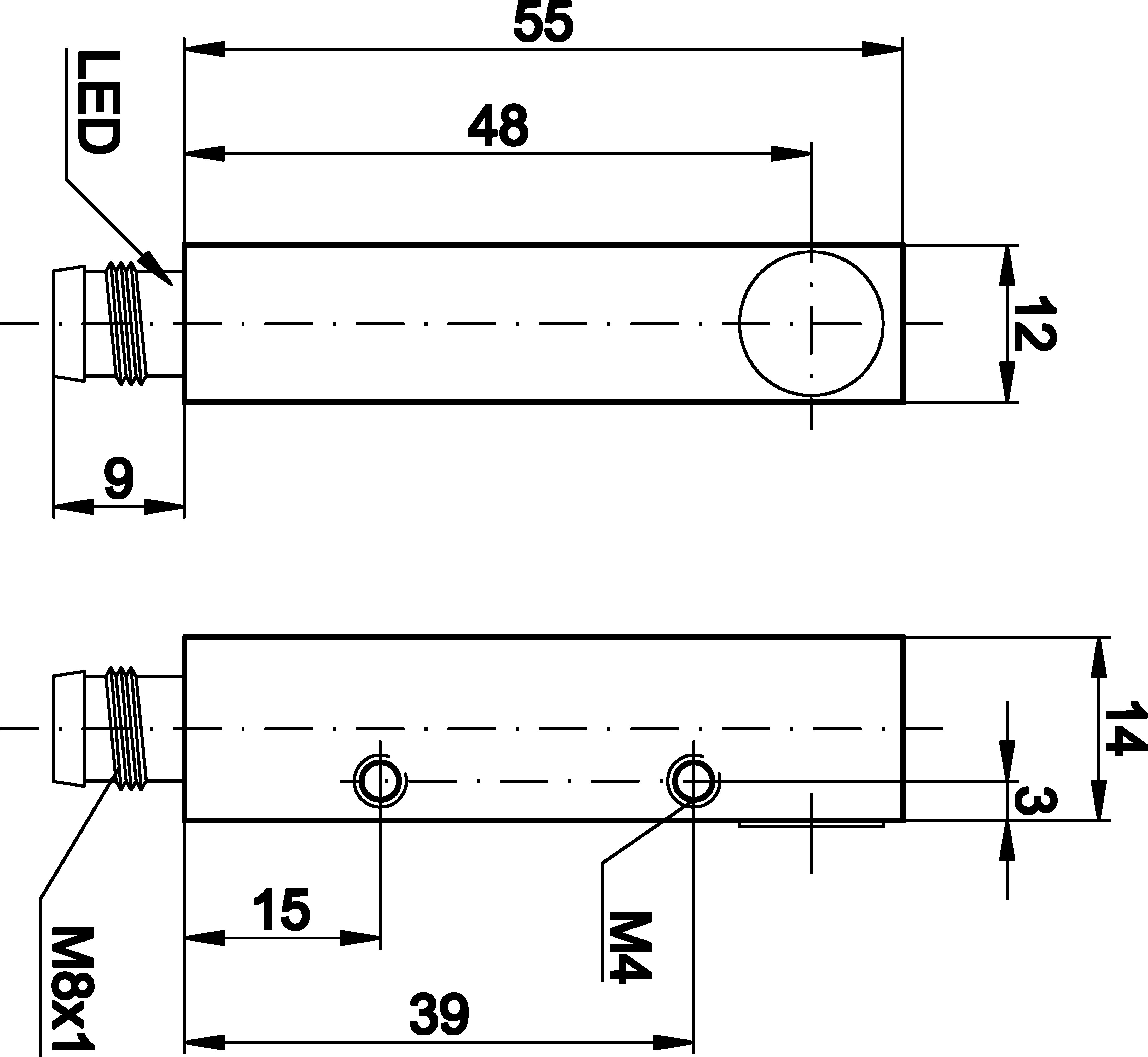

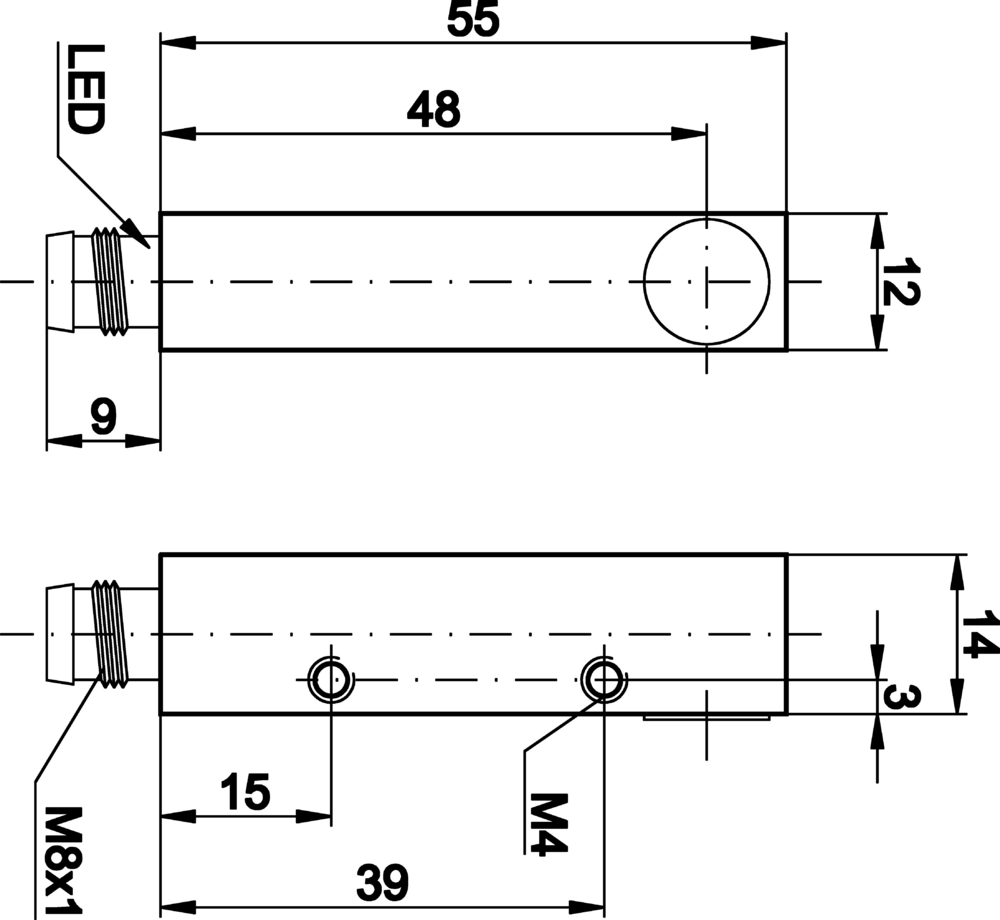

jpgBlueprintJPG-file, 432 KB
-
