PT3A0576
| amount | price | discount |
|---|---|---|
| 1 | 149,00 € | – |
| 5 | 144,53 € | 3% / 4,47 € |
| 10 | 141,55 € | 5% / 7,45 € |
| 20 | 137,08 € | 8% / 11,92 € |
| 50 | 131,12 € | 12% / 17,88 € |
Scarce
Laser Sensor, Diffuse Reflection Sensor, 38x21x11mm, Sn: 2500, 10–30 V DC, 1x PNP+NPN NC/NO, IO-Link, 4-pin M8 connector, IP67, ASA+PMMA plastic, 10 Hz, infrared laser diode, spot, teach-in
Compare
Laser sensors - Diffuse reflection sensors with background suppression
Optical sensors operate contactless. They detect objects regardless of their characteristics (e.g., shape, color, surface texture, material). Their basic principle of operation is based on the transmission and reception of light. There are three versions: 1. The through-beam sensor consists of two separate devices—a transmitter and a receiver—that are aligned with each other. When the light beam between the two devices is interrupted, the switching output integrated into the receiver changes its status. 2. In a reflective light barrier, the transmitter and receiver are housed in a single device. The transmitted light beam is reflected toward the receiver by a reflector mounted opposite it. As soon as the light beam is interrupted, the switching output integrated into the device changes its status. 3. In a diffuse reflection sensor, the transmitter and receiver are housed in a single device. The emitted light beam is reflected by the object to be detected. As soon as the receiver detects the reflected light, the switching output integrated into the device changes its status.
Electrical properties
- Response/decay time
- 50ms
- Number of switching outputs
- 1
- Type of switching function
- Normally closed (n.o. for PNP) Normally closed (n.c. for NPN) - Adjustable

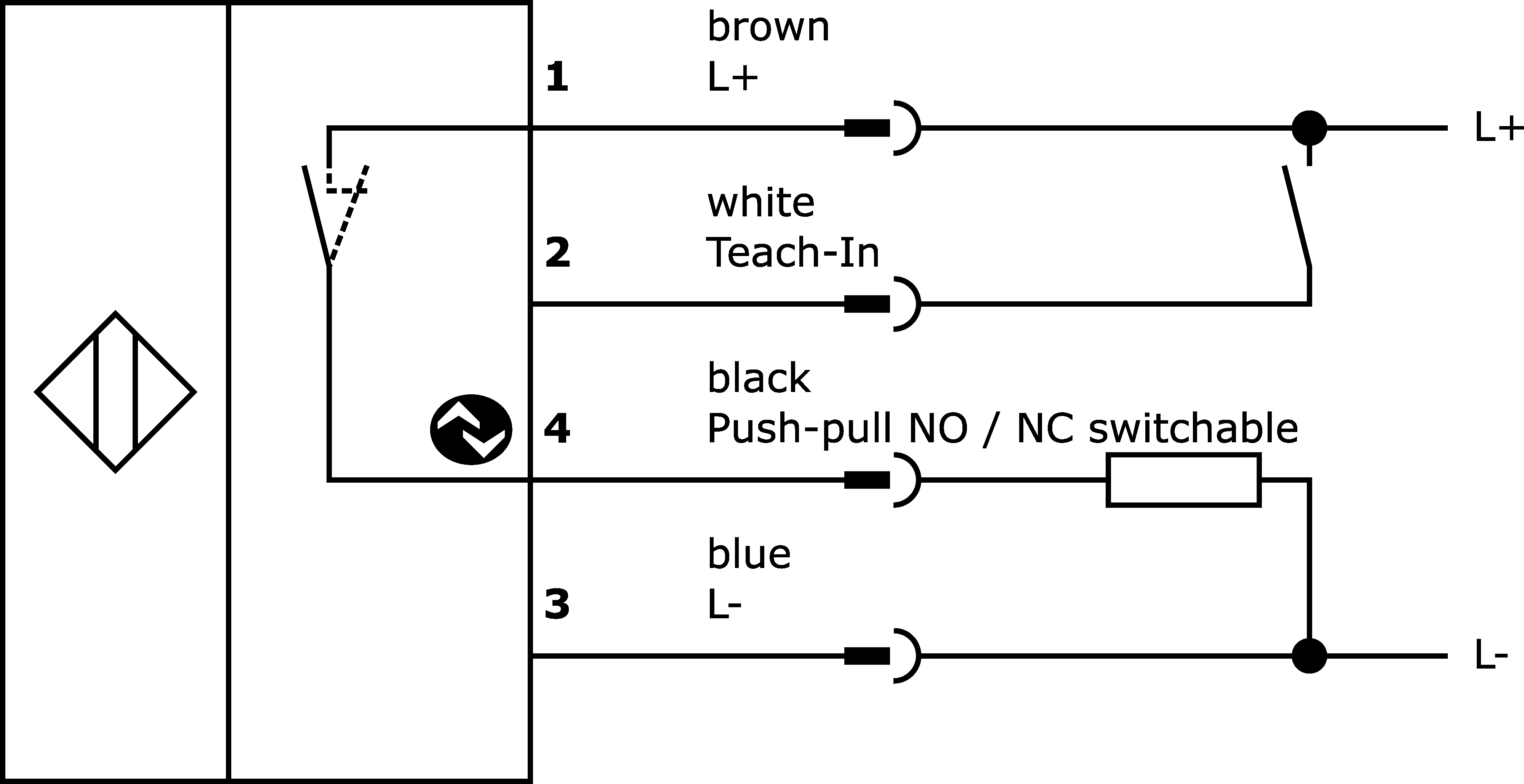

- Type of electrical connection
- Connector M8
- Type of switching output
- Push-pull
- Rated switching current
- 100mA
- Setting procedure
- Teach-In
- No-load current
- 55mA
- Number of pins
- 4
- Reaction time
- 0.5ms
- Switching distance
- 0 - 2,500mm
- Switching frequency
- 10Hz
- Voltage drop
- 2.5V
- Scanning function
- Light-/dark-on mode
- Decay time
- 50ms
- Absolute repeat accuracy
- 2mm
- Supported communication interface
- IO-Link
- Display
- LED display
- Short circuit protection, Reverse polarity protection
- Operating voltage
- 10–30 VDC
- Electrical connection
- M8 4-pin connector
Mechanical properties
- Design
- Cuboid
- Width
- 11mm
- Height
- 38.2mm
- Length
- 21mm
- Storage temperature
- -40 - 70°C
- Shock resistance
- 10g
- Degree of protection (IP)
- IP67
- Active area material of sensor
- Plastic (PMMA)
- Housing material
- Plastic ASA
- dimensions
- 21 x 11 x 38.2 mm
Optical properties
- Laser class
- Class 1
- Light source
- Laser diode, infrared light
- Light beam form
- Point
- Wavelength of the sensor
- 940nm
Other properties
- Ambient temperature
- -30 - 55°C
- Reference medium / object
- Material with 90% reflectivity
- IO-Link version
- V1.1
You can find accessories for PT3A0576
in these product groups:
Assembly
Fixing material design 33
Connection technology
Adapter M8 socket 4-pin / M12 connector 4-pin
Cable sockets M8 4-pin field-attachable
Cable sockets M8 4-wire
Cable sockets M8-socket M12-connector 4-wire
Cable sockets M8-socket M8-connector 4-wire
Other sensors
Protection cap, teflon M8
Programming / parameterization
IO-Link master
Tool
Sensor tester
Datasheets
Manuals
Drawings
Interfaces
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 475 KB
-
pdfMaterial compliancePDF-file, 482 KB
-
pdfEU declaration of conformityPDF-file, 254 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
Whitepapers
Application examples
| Classification | Class |
|---|---|
| eClass-7.0 | 27270904 |
| eClass-7.1 | 27270904 |
| eClass-8.0 | 27270904 |
| eClass-9.0 | 27270904 |
| eClass-9.1 | 27270904 |
| ETIM-6.0 | EC002719 |
| ETIM-7.0 | EC002719 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| OzDS-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 160 laser sensor |
| packaging dimensions | 77 x 25 x 123mm |
| gross weight | 31g |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
