Individual data sheet
PDF-file, 1,004 KB
Monitors - Position
WP050100
| amount | price | discount |
|---|---|---|
| 1 | 514,90 € | – |
| 5 | 499,45 € | 3% / 15,45 € |
| 10 | 489,16 € | 5% / 25,75 € |
| 20 | 473,71 € | 8% / 41,19 € |
| 50 | 453,11 € | 12% / 61,79 € |
On demand

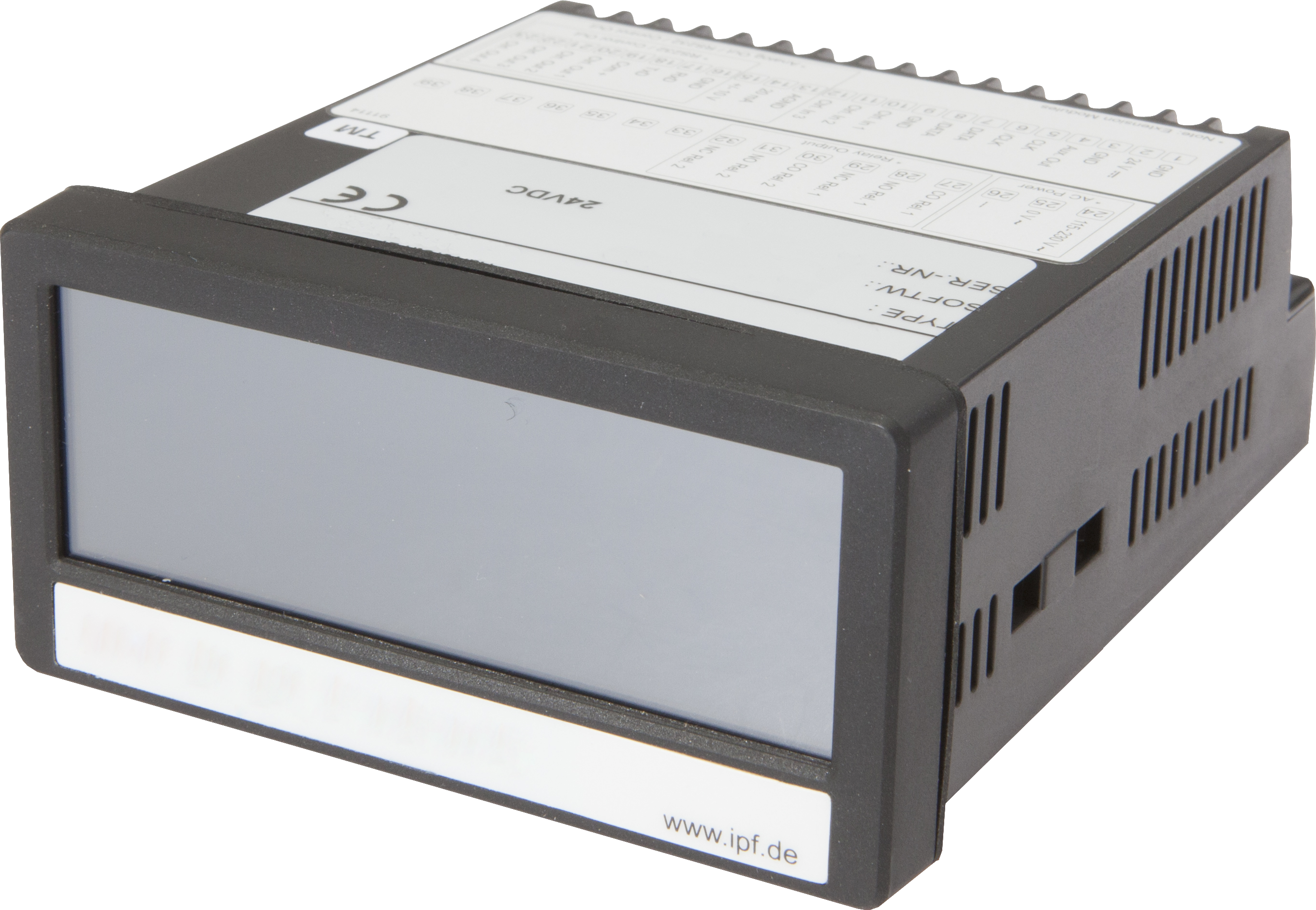

Monitor Position, 48x116x96 mm, LED display, 8 decades, 4x preset, 18–30 V DC, 4x PNP/NPN programmable/configurable, 0–10 V / 0 mA ... 20 mA, screw connection, IP65, plastic, backlight for the LCD display
Compare
Monitors - Position
Monitoring rotation speeds or rotating movements is necessary in many applications to ensure the proper operation of a system. Our rotation speed and standstill monitoring devices operate according to various functional principles: 1. Monitoring pulses from a transducer; 2. Measuring the frequency of the supply current using a current transformer. Depending on the model, our devices offer a wide range of functions. For further evaluation in a higher-level control (unit), the results are output, e.g. as a simple relay contact (over/underspeed) or as an analog output signal resolved to the set speed range.
Electrical properties
- Number of decades
- 8
- Number of presets to be set
- 4
- Number of switching outputs
- 4
- Type of 2nd switching function
- Programmable/configurable
- Type of 3rd switching function
- Programmable/configurable
- Type of 4th switching function
- Programmable/configurable
- Type of switching function
- Programmable/configurable
- Type of 2nd switching output
- PNP/NPN
- Type of 3rd switching output
- PNP/NPN
- Type of 4th switching output
- PNP/NPN
- Type of analog output
- 0 - 10V, 0 - 20mA
- Type of electrical connection
- Clamped terminal connection
- Type of switching output
- PNP
- Type of signal input A
- PNP
- Type of signal input B
- PNP/NPN
- Rated switching current
- 200mA
- Transducer power supply voltage
- 24V
- Transducer power supply current
- 250mA
- No-load current
- 100mA
- Switching voltage
- 24V
- supported communication interface
- RS232
- Display
- LED display (illuminated)
mechanical properties
- Width
- 96mm
- Installation depth
- 105mm
- Height
- 48mm
- Length
- 116mm
- Storage temperature
- -25 - 70°C
- Mounting method
- Panel mounting
- Degree of protection (IP)
- IP65
- Housing material
- plastic
other properties
- Ambient temperature
- -20 - 60°C
Datasheets
Manuals

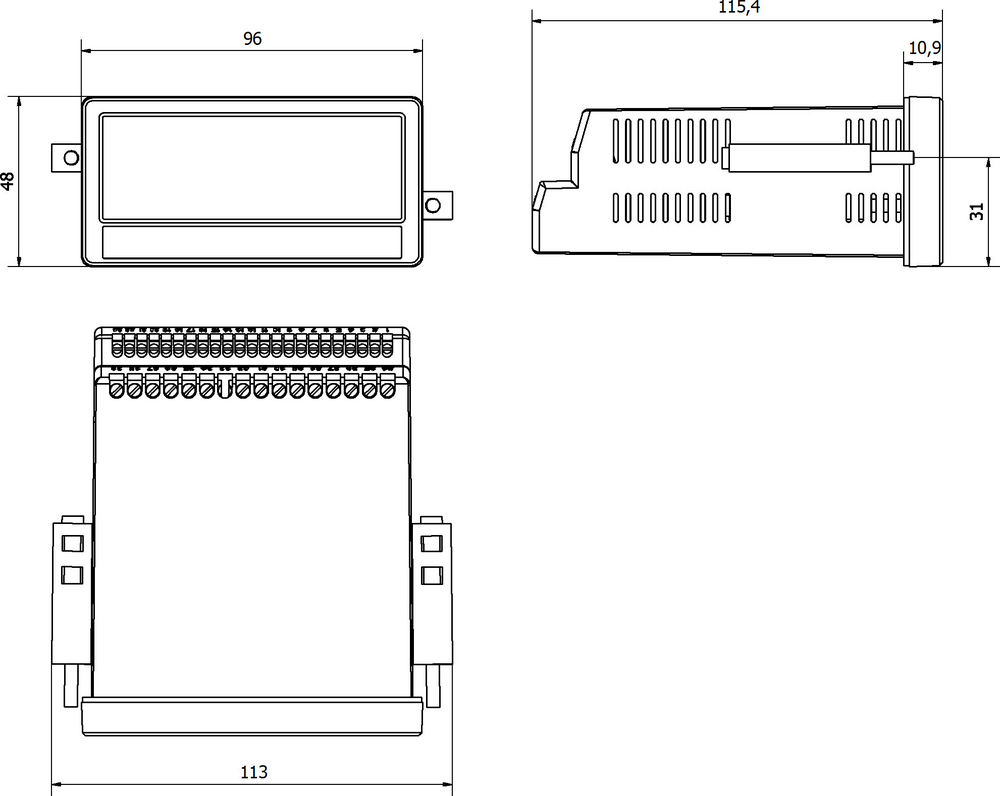

Drawings
Software
Product Compliance
| Classification | Class |
|---|---|
| eClass-7.0 | 27200316 |
| eClass-7.1 | 27200316 |
| eClass-8.0 | 27200316 |
| eClass-9.0 | 27200316 |
| eClass-9.1 | 27200316 |
| ETIM-6.0 | EC002300 |
| ETIM-7.0 | EC002300 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 650 monitors |
| packaging dimensions | 185 x 107 x 198mm |
| gross weight | 432g |
| Carbon footprint | 4,46kg CO₂e |
| customs tariff number | 90291000 |
| WEEE number | 40951076 |
