Hygiene & infection protection - Room climate monitoring
YY70F001
| amount | price | discount |
|---|---|---|
| 1 | 194,50 € | – |
| 5 | 188,67 € | 3% / 5,84 € |
| 10 | 184,78 € | 5% / 9,72 € |
| 20 | 178,94 € | 8% / 15,56 € |
| 50 | 171,16 € | 12% / 23,34 € |
Scarce
Sensor temperature, humidity, 70x70x25mm, 10-35V DC, 2x 4-20mA, terminals, plastic PVC, IP20
Compare
Hygiene & infection protection - Room climate monitoring
Environmental conditions Room temperature and air humidity
Electrical properties
- Type of analog output
- 4 - 20mA
- Type of electrical connection
- Clamped terminal connection
- Setting procedure
- Manual adjustment
- Measuring range, temperature
- 0 - 50°C
- Measuring accuracy of temperature
- ±0,5%
- Number of analog output channels
- 2
- Measuring range relative humidity
- 0 - 100%
- Operating voltage

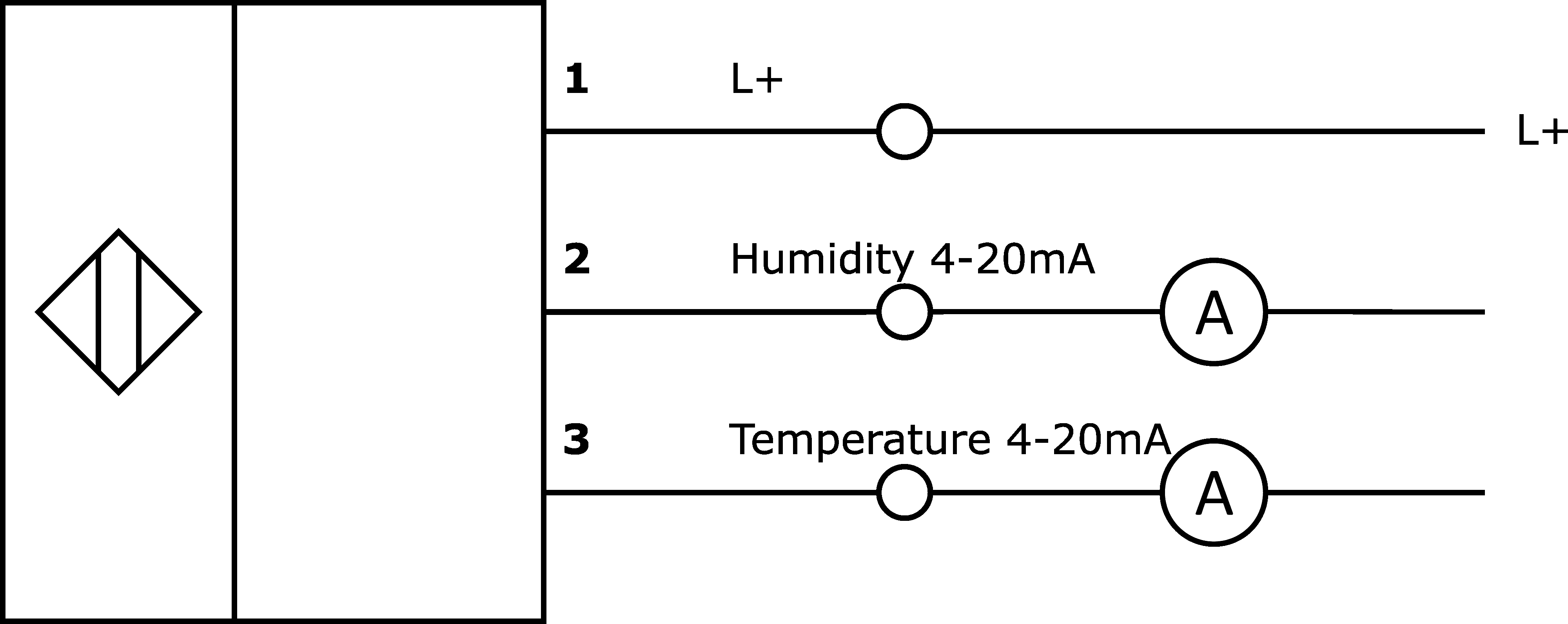

- Electrical connection
Mechanical properties
- Wire cross section
- 0.13 - 1.5mm²
- Design
- Cuboid
- Width
- 70mm
- Height
- 20mm
- Length
- 70mm
- Degree of protection (IP)
- IP20
- Housing material
- Plastic PC
- dimensions
Other properties
- Relative air humidity (non-condensing)
- 0 - 95%
- Ambient temperature
- -20 - 80°C
- Measuring accuracy of relative humidity
- <2%
Datasheets
Manuals
Product Compliance
| Classification | Class |
|---|---|
| eClass-7.0 | 27209090 |
| eClass-7.1 | 27209090 |
| eClass-8.0 | 27209090 |
| eClass-9.0 | 27209090 |
| eClass-9.1 | 27209090 |
| ETIM-6.0 | EC004666 |
| ETIM-7.0 | EC004666 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 310 temperature sensors |
| packaging dimensions | 50 x 121 x 76mm |
| gross weight | 73g |
| 0,68kg CO₂e | |
| Customs tariff number | 90258040 |
| WEEE number | 40951076 |
