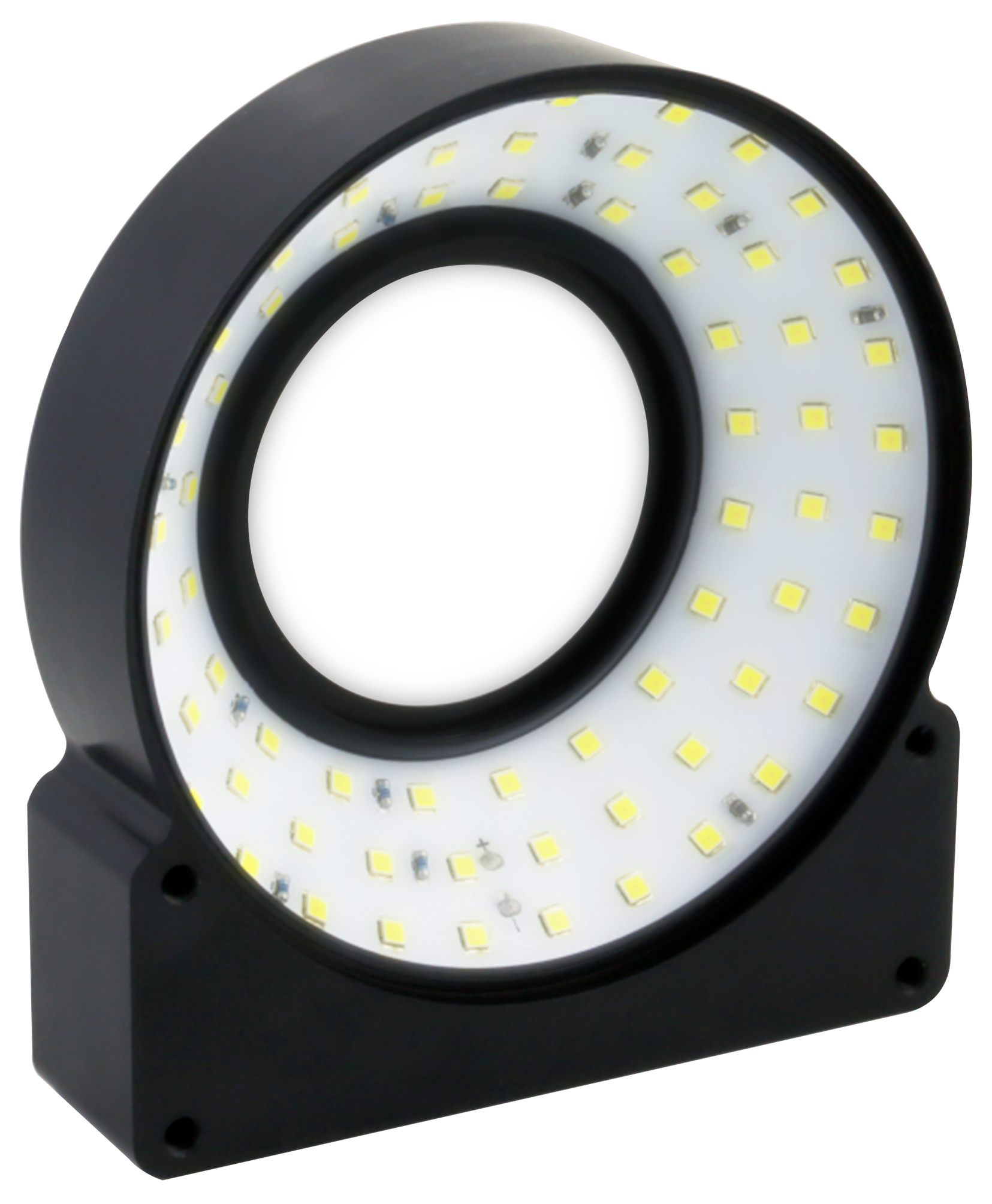

LED ring light, angular 45°, Ø110mm, white light, 11W, 5000K, M8 connector 4-pin, IP54, aluminum+PMMA
Compare
camera additional lighting - Ring lights
Selecting the right illumination is essential for all types of inspection tasks with a camera sensor, as only high-contrast images can be reproducibly evaluated. And illumination has a decisive influence here. The selection depends on various factors such as the distance to the test object, its size, the component criterion to be tested or the expected environmental conditions.
Ring lights provide a direct, focused incident light that is particularly suitable for round test objects as it does not produce any hard object shadows.
Lights are available with different diameters of the lens aperture, different light colors and outputs. The internal flash controller enables flash operation of the lights up, which may be required for short exposure times of the camera systems.
Electrical properties
- Type of electrical connection
- Connector M8
- Rated operating current
- 600mA
- Flash controller
- internal
- Power
- 11W
- Max. peak current
- 2,400mA
- Number of pins
- 4
- Protection class
- III
- Operating voltage
- Electrical connection
Mechanical properties
- Width
- 110mm
- Height
- 28mm
- Inner diameter
- 53mm
- Length
- 121mm
- Degree of protection (IP)
- IP54
- Housing material
- Aluminum
- Working distance range
- 30 - 200mm
- Diameter
- 110mm
- dimensions
Optical properties
- Risk group
- 1
- Color temperature
- 5,000K
- Light source
- White light
- Angle of beam spread
- 45°
Other properties
- Relative air humidity (non-condensing)
- 30 - 70%
- Ambient temperature
- 10 - 30°C
- Operational mode
- Flash operation, Permanent operation, Switching operation
You can find accessories for ER1A0170
in these product groups:
Assembly
Mounting for ring light ER1A0X70 on OC53 with C-mount
Connection technology
Cable sockets M8 4-pin field-attachable
Cable sockets M8 4-wire
Cable sockets M8-socket M8-connector 4-wire
Direct connection cable for OC53 with flash controller with M8
Datasheets

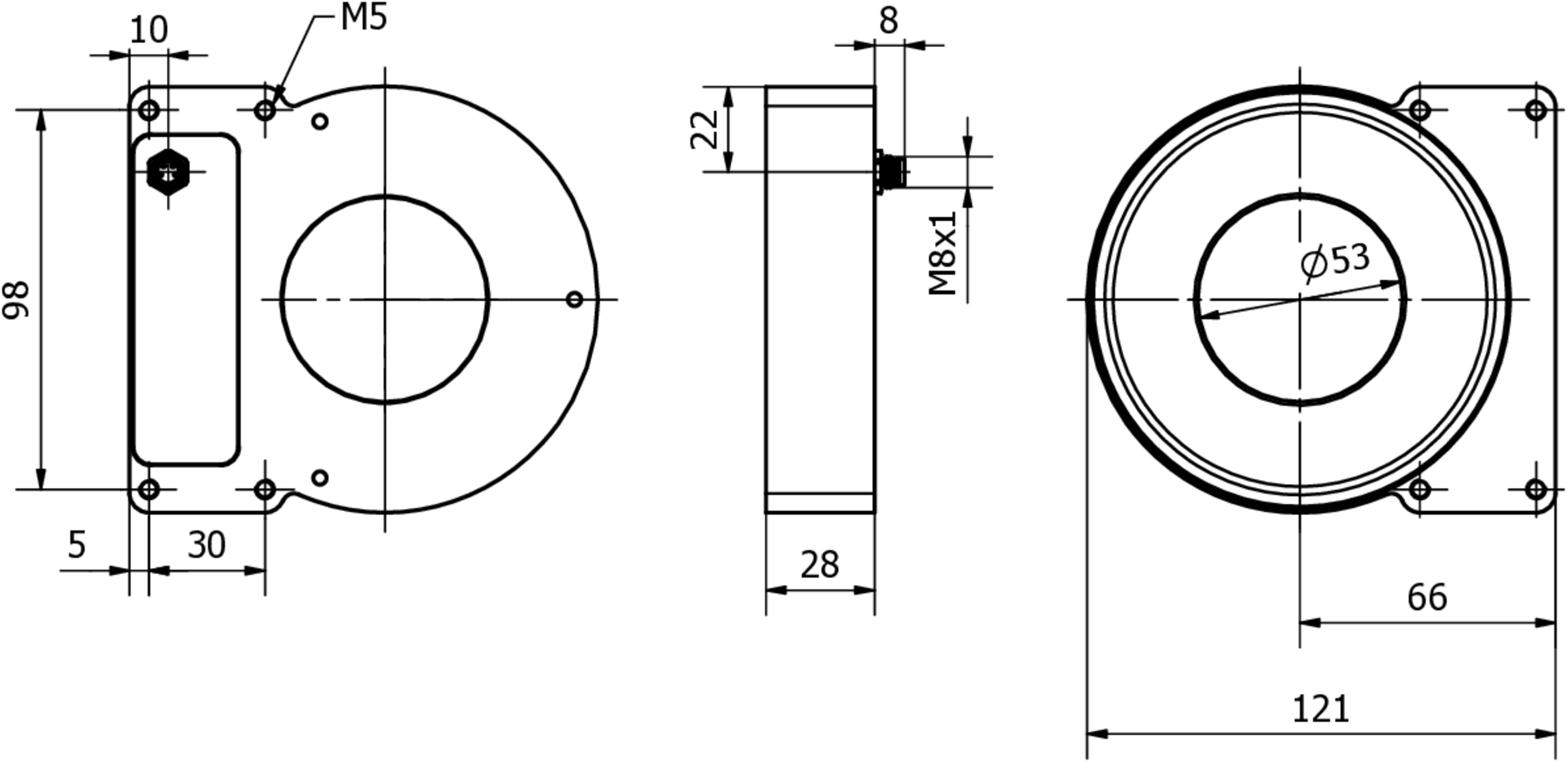

Drawings
