PT340070
| amount | price | discount |
|---|---|---|
| 1 | 396,00 € | – |
| 5 | 384,12 € | 3% / 11,88 € |
| 10 | 376,20 € | 5% / 19,80 € |
| 20 | 364,32 € | 8% / 31,68 € |
| 50 | 348,48 € | 12% / 47,52 € |
Scarce

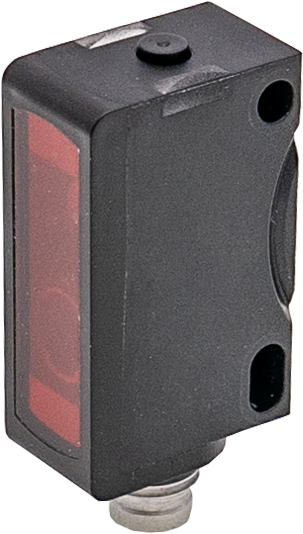

Sensor laser, diffuse reflection sensor, 41x20x12mm, Sn:20-100mm, triangulation, 13-30V DC, -20-60°C, 1x PNP/NPN NC/NO, 1-10V, IO-Link, M8 connector 4-pin, IP67, plastic ABS+PMMA, 1kHz, laser diode, red light, dot, teach-in
Compare
Laser sensors - Distance measurement
Optical sensors work contactless. They detect objects, regardless of their properties (e.g. shape, color, surface structure, material). The basic mode of operation is based on the transmitter and receiver of light. There are three different versions: 1. the through-beam sensor consists of two separate devices, a transmitter and a receiver, which are aligned with each other. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. in the reflex light barrier, the transmitter and receiver are located in one device. The transmitted light beam is reflected onto the receiver by a reflector to be mounted opposite. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. the diffuse reflection sensor has a transmitter and receiver in one device. The transmitted light beam is reflected by the object to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.
Electrical properties
- Response/decay time
- 3.4ms
- Number of switching outputs
- 1
- Resolution
- 0.12mm
- Type of switching function
- Normally closed contact/normally open contact
- Type of analog output
- 1 - 10V

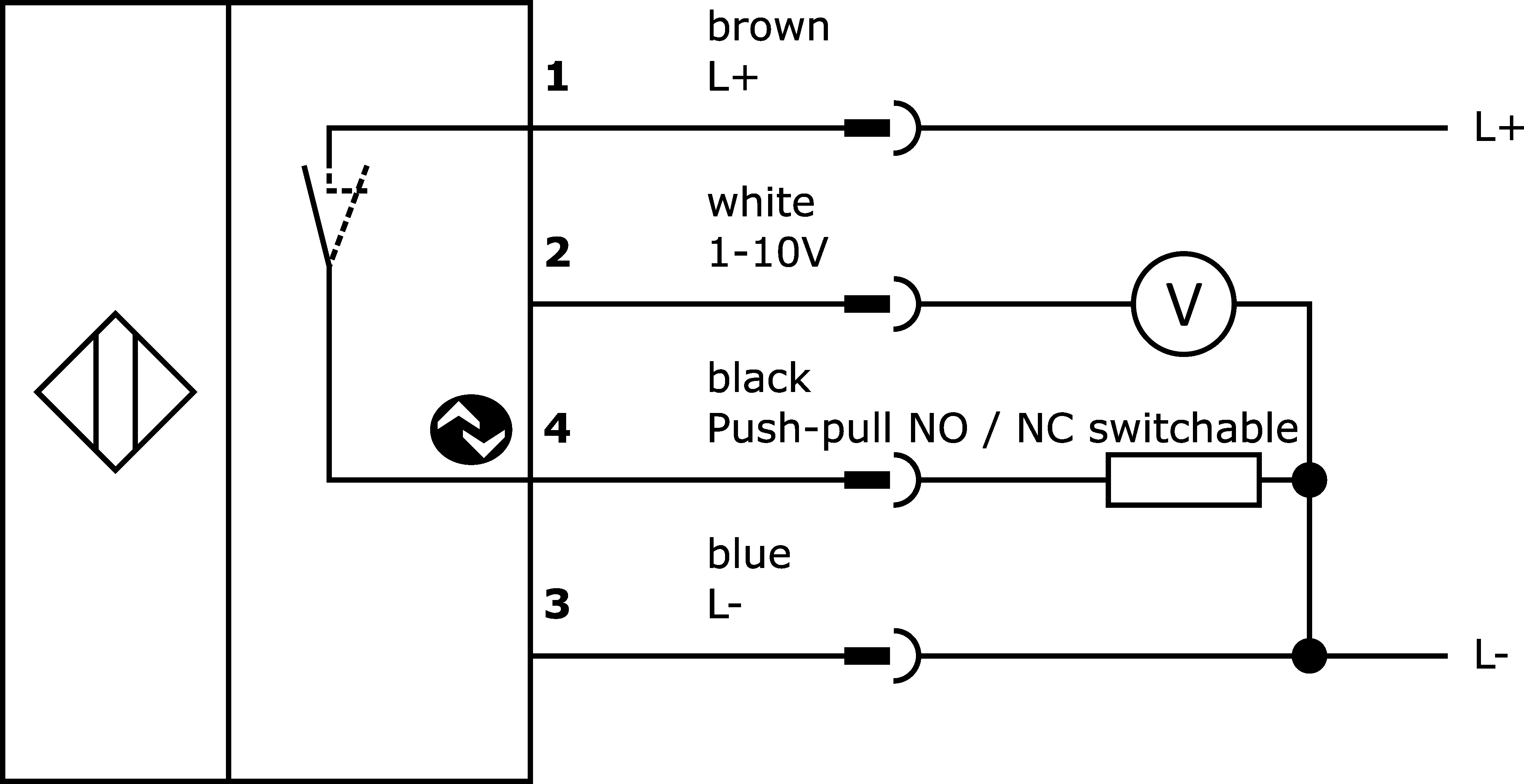

- Type of electrical connection
- Connector M8
- Type of switching output
- PNP/NPN
- Rated switching current
- 100mA
- Readiness delay
- 300ms
- Setting procedure
- Teach-In
- No-load current
- 30mA
- Number of pins
- 4
- Residual ripple
- 10%
- Switching frequency
- 1,000Hz
- Protection class
- II
- Absolute linearity deviation
- 0.25mm
- Absolute repeat accuracy
- 0.25mm
- Measurement principle
- triangulation
- Supported communication interface
- IO-Link
- Measuring range
- 20 - 100mm
- Display
- LED display
- Short circuit protection, Reverse polarity protection

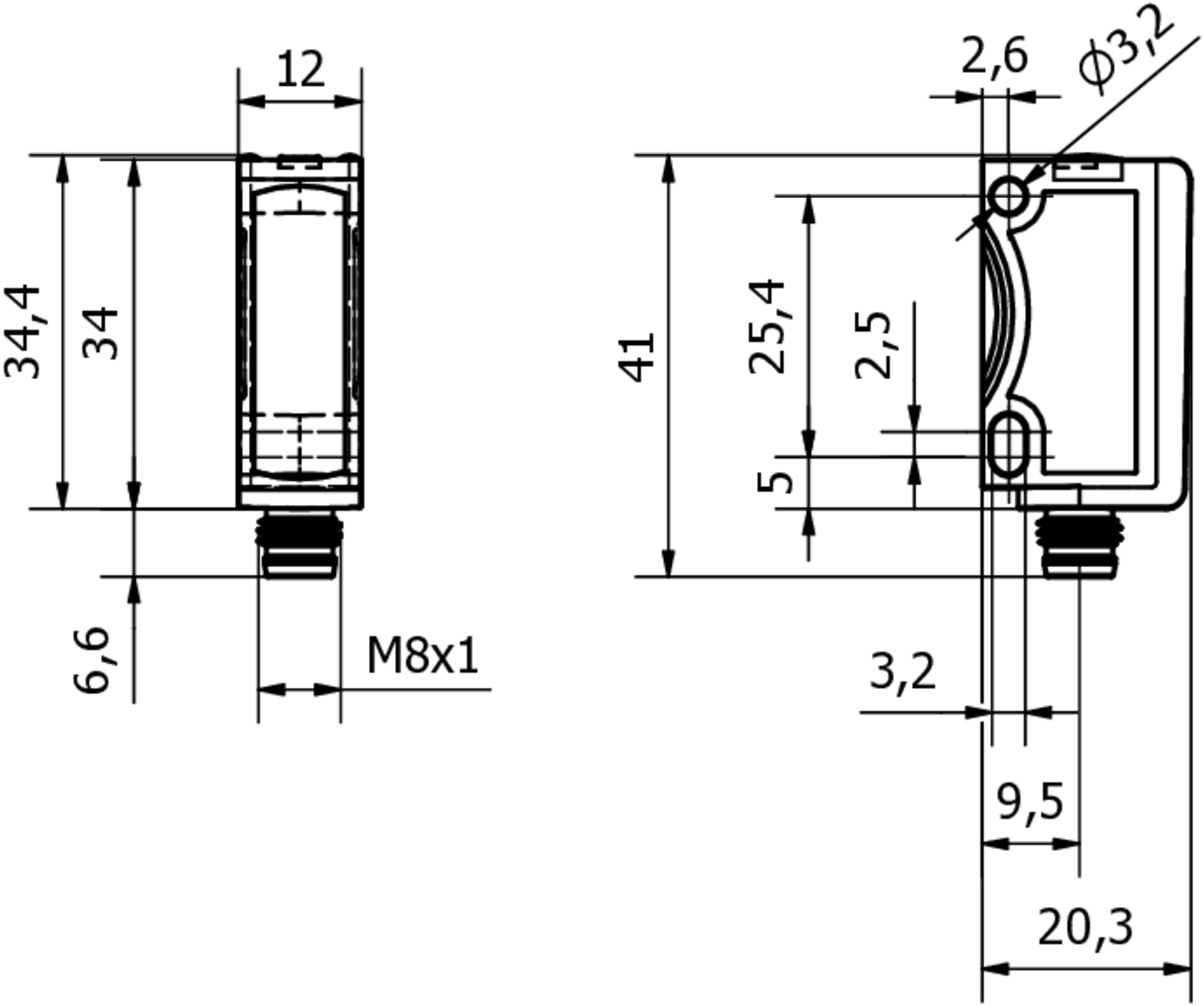

Mechanical properties
- Design
- Cuboid
- Width
- 12mm
- Height
- 40.6mm
- Length
- 20mm
- Storage temperature
- -40 - 80°C
- Degree of protection (IP)
- IP67 / IP69k
- Active area material of sensor
- Plastic (PMMA)
- Housing material
- Plastic (ABS)
Optical properties
- Laser class
- Class 1
- Light source
- Laser diode, red light
- Light beam form
- Point
- Light spot diameter at focal point
- 1mm
Other properties
- Ambient temperature
- -20 - 60°C
- Reference medium / object
- Material with 90% reflectivity
- IO-Link version
- V1.1
