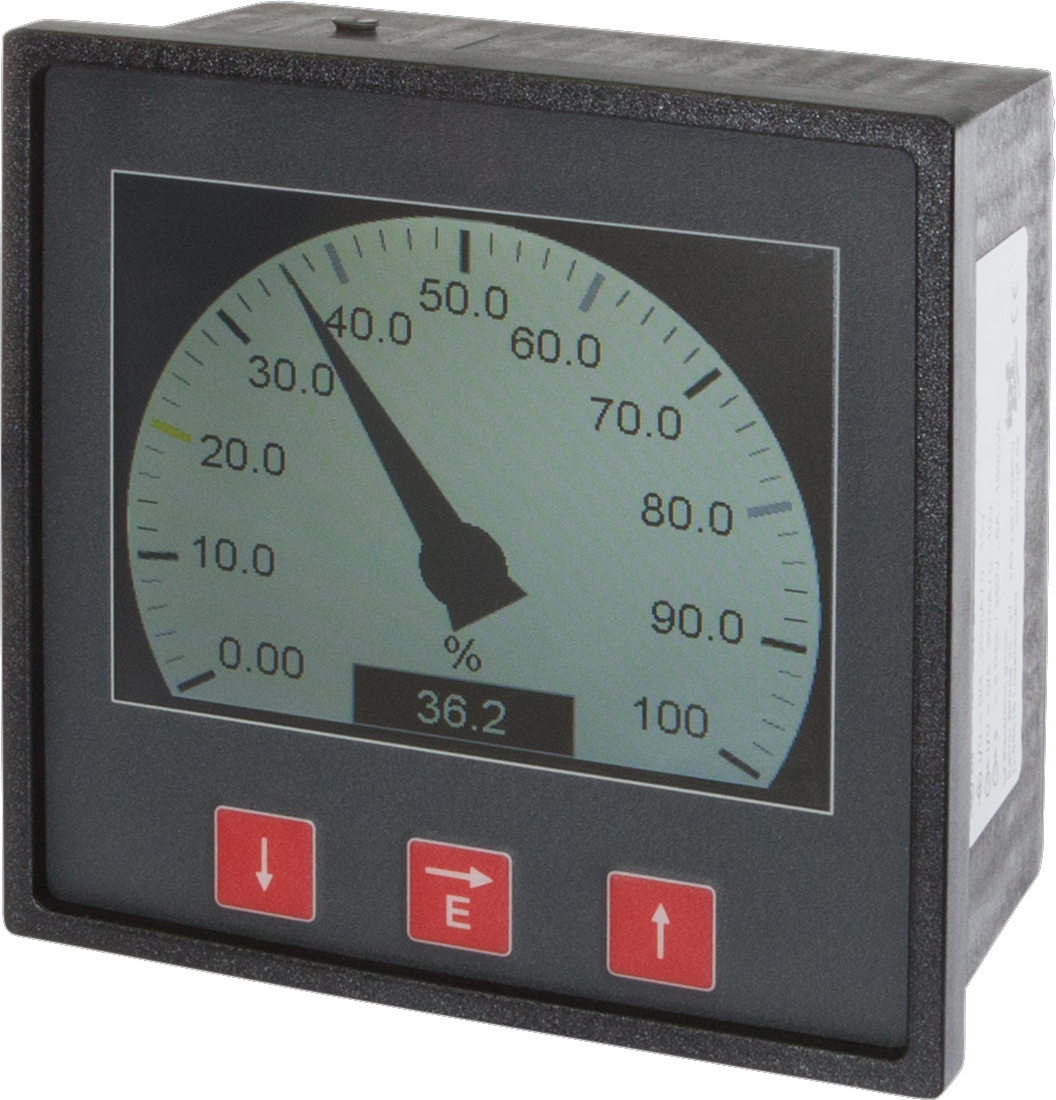

Measuring transducer - Front mounting
BA960900
| amount | price | discount |
|---|---|---|
| 1 | 1.001,00 € | – |
| 5 | 970,97 € | 3% / 30,03 € |
| 10 | 950,95 € | 5% / 50,05 € |
| 20 | 920,92 € | 8% / 80,08 € |
| 50 | 880,88 € | 12% / 120,12 € |
On demand
Measuring transducer, Analog / digital, analog, 96x114x96mm, 0-10V/4-20mA / 0 … 20 mA, 18-36V DC, 4x Relay contact NO (NO), 0-10V/4-20mA, Clamp, IP20, PPE, LCD, USB interface
Compare
Measuring transducer - Front mounting
Electrical properties
- Response/decay time
- 20ms
- Number of switching outputs
- 4
- Type of switching function
- Normally open contact (NO)
- Type of analog output
- 0 - 10V, 4 - 20mA
- Type of analog input
- 0 - 20mA, 0 - 10V, 4 - 20mA
- Type of electrical connection
- Clamped terminal connection
- Type of switching output
- Relay contact
- Rated switching current
- 6,000mA
- Digital resolution
- 14Bit
- Setting procedure
- Parameterization
- Transducer power supply voltage
- 24V
- Transducer power supply current
- 35mA
- Type of transducer power supply voltage
- DC
- Characteristic curve deviation
- 0.05%
- Power consumption
- 5VA
- Max. continuous current
- 6A
- Max. switching current
- 10A
- Relative measurement accuracy
- 0.4%
- Switching capacity
- 180VA
- Resistance of current input
- 50Ohm
- Decay time
- 20ms
- Resistance of voltage input
- 100kOhm
- Supported communication interface
- USB
- Output functions
- Window function, Switching point, Hysteresis, Regulación estándar de la señal, valControl de dos puntos
- Display
- LCD display, LED display
- Number of analog output channels
- 1
- Short circuit protection, Reverse polarity protection
- Operating voltage

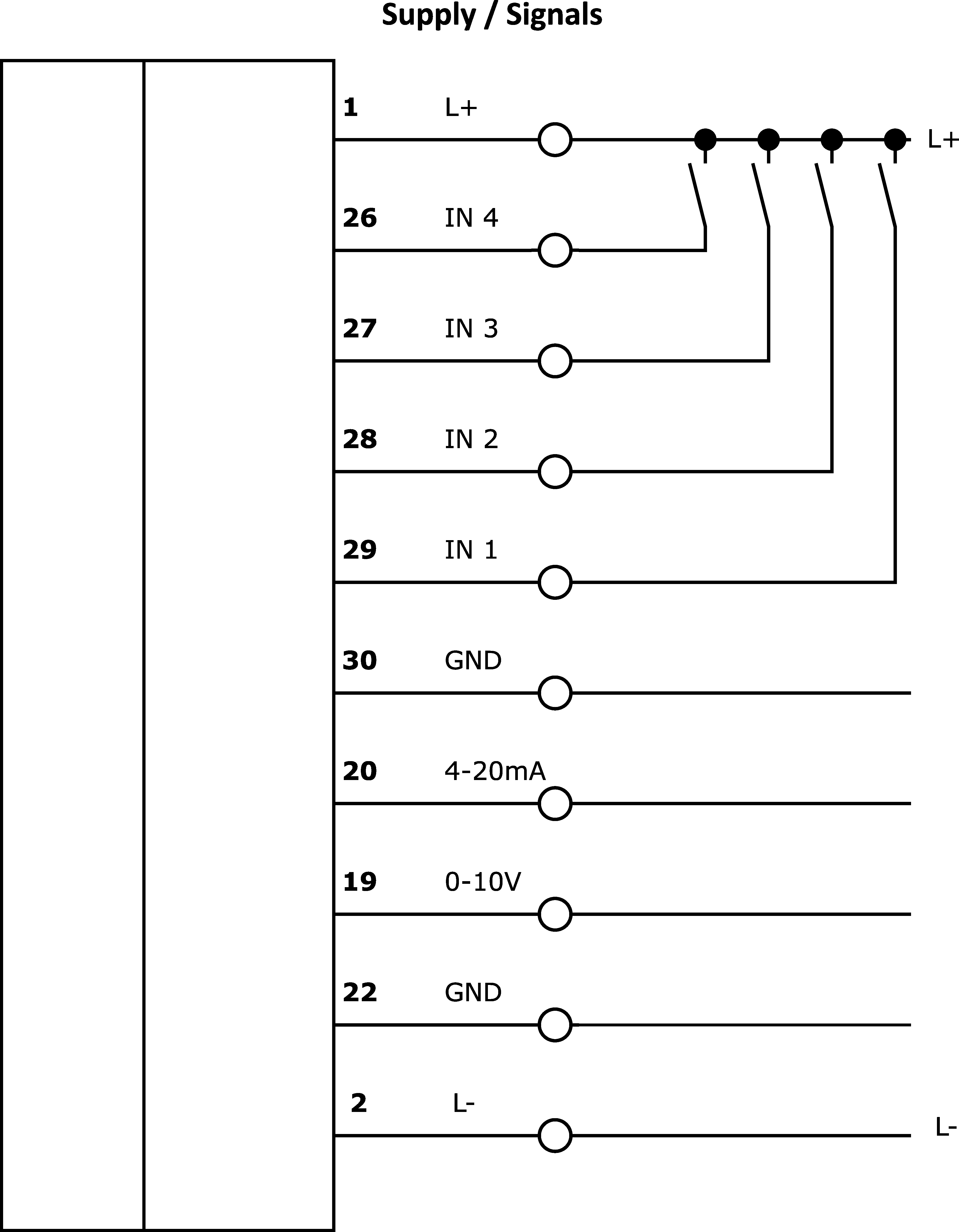

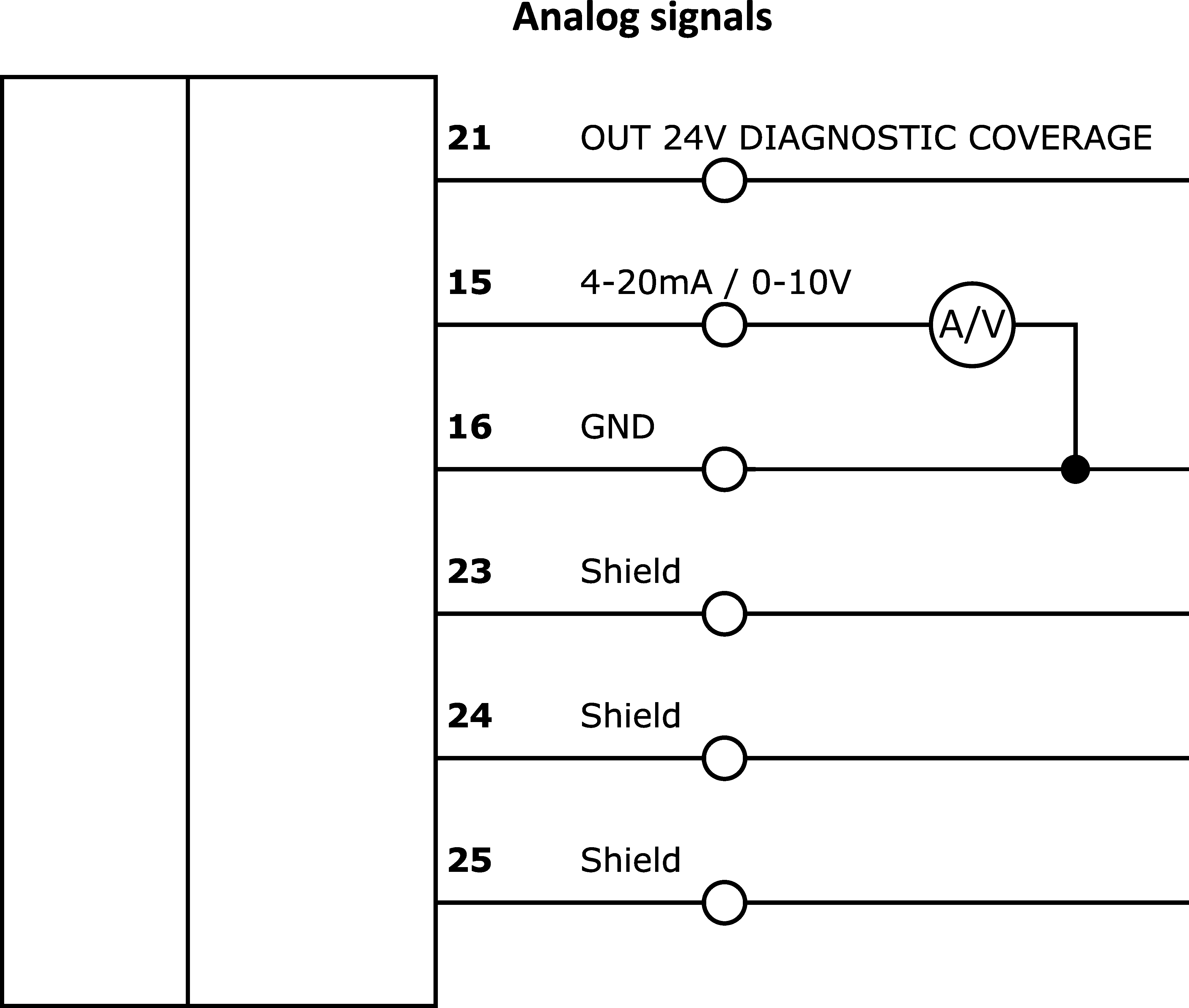

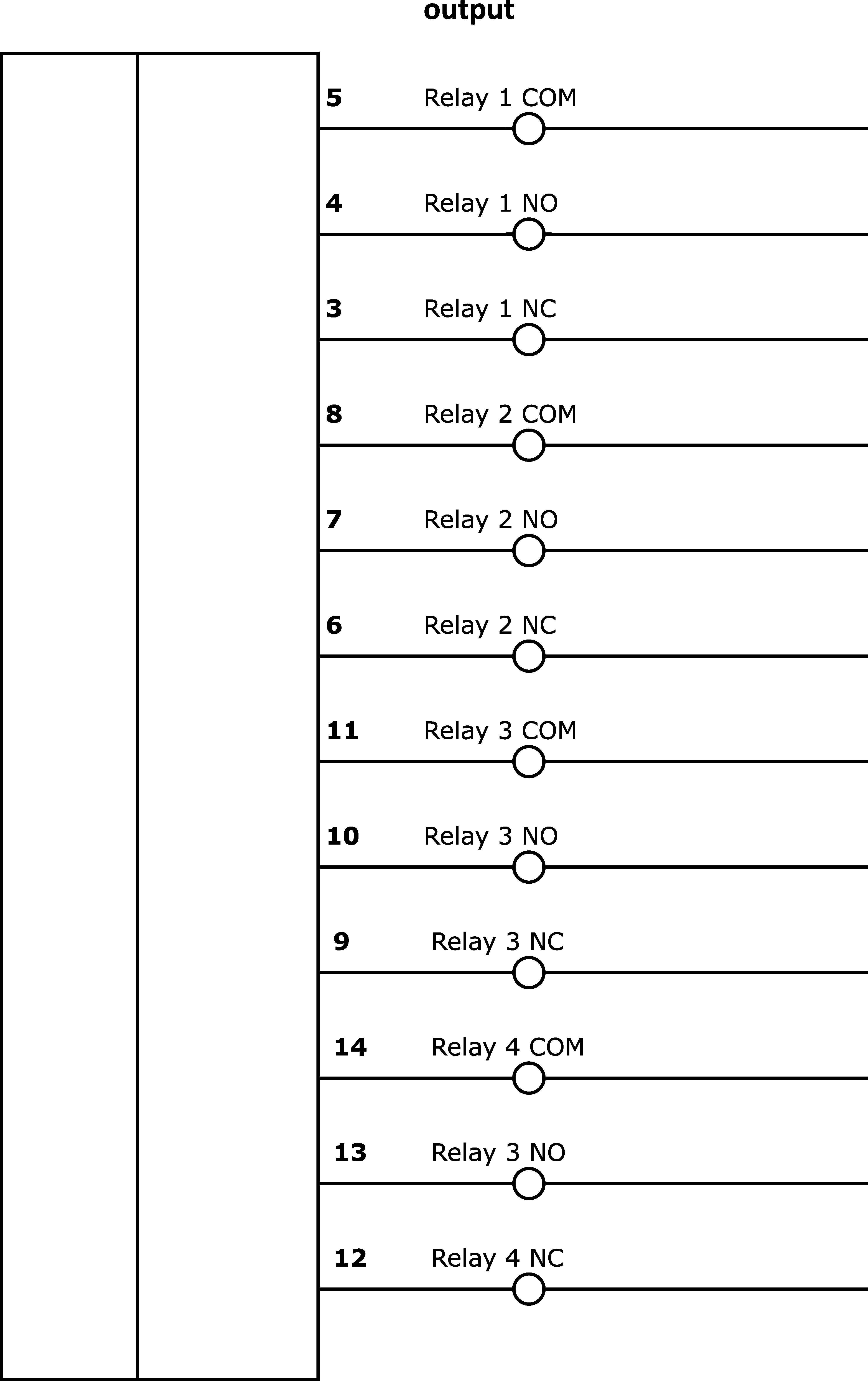

- Electrical connection
Mechanical properties
- Width
- 96mm
- Height
- 96mm
- Length
- 114mm
- Mounting method
- Panel mounting
- Degree of protection (IP)
- IP20
- Degree of protection (IP), front side
- IP54
- Housing material
- PPE

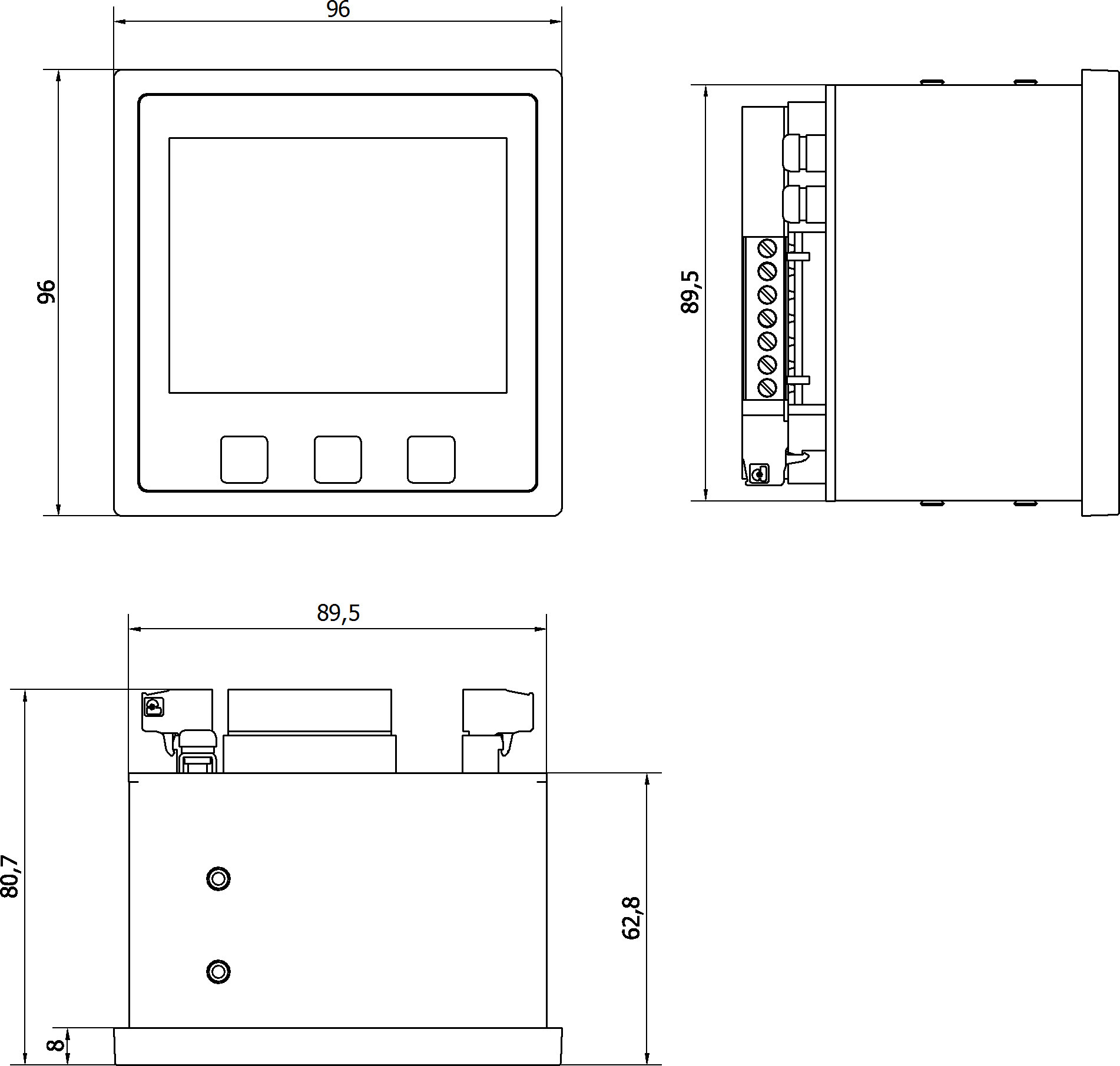

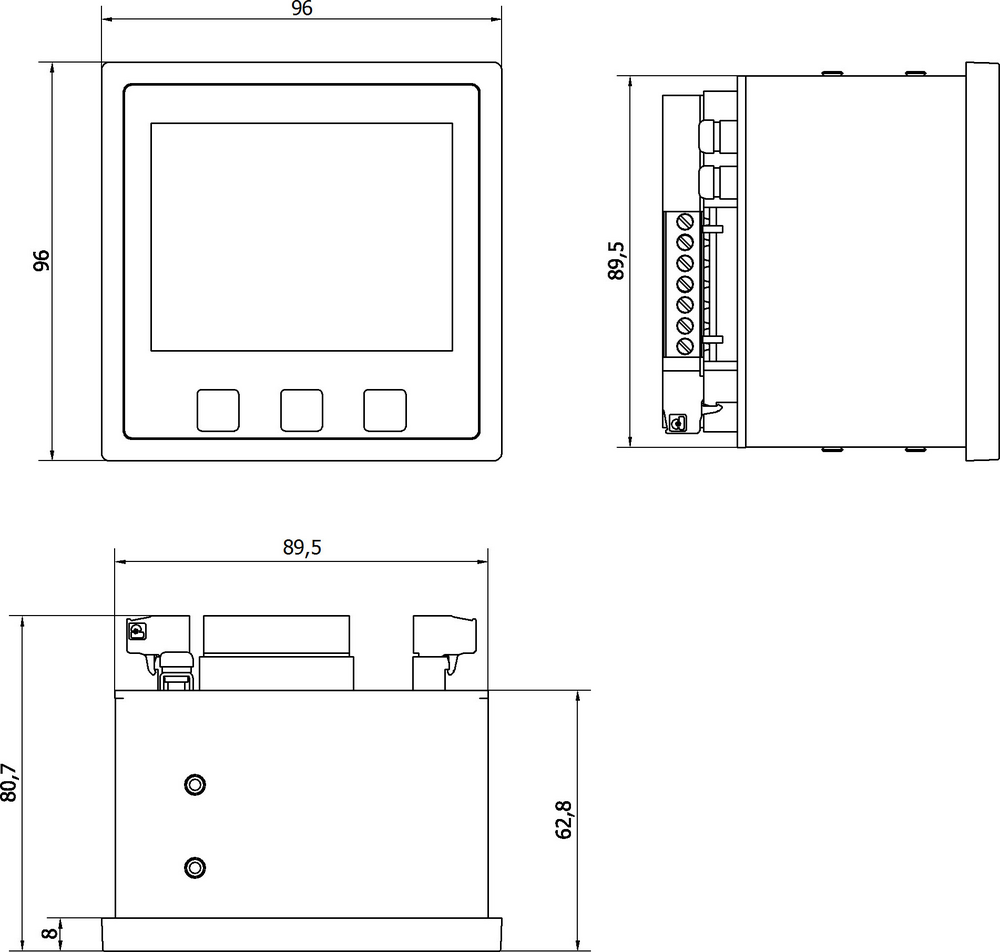

- dimensions
Other properties
- Ambient temperature
- -20 - 50°C
- Temperature drift per 10K
- 0.1%/10K
Datasheets
Manuals
Drawings
Product Compliance
| Classification | Class |
|---|---|
| eClass-7.0 | 27210301 |
| eClass-7.1 | 27210301 |
| eClass-8.0 | 27210301 |
| eClass-9.0 | 27210301 |
| eClass-9.1 | 27210301 |
| ETIM-6.0 | EC011231 |
| ETIM-7.0 | EC011231 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 550 measuring transducer |
| packaging dimensions | 138 x 95 x 210mm |
| 1,09kg CO₂e | |
| Customs tariff number | 85437090 |
| WEEE number | 40951076 |
