Measuring transducer - Electricity meter
CS180001
Scarce
Active energy meter, 118x18x68mm, 176-276V AC, 1-phase, direct, 45A, 2x pulse outputs, RS485 communication, MID, screw connection, IP20
Compare

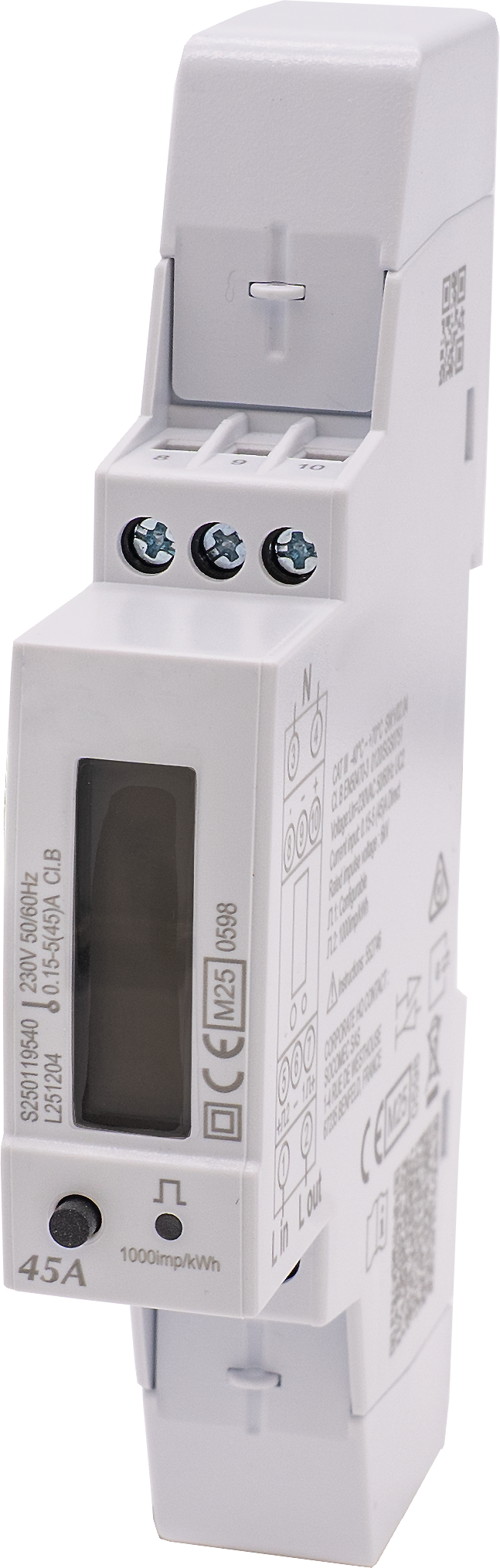

Measuring transducer - Electricity meter
The CS18 series are single-phase modular energy meters for displaying the various energies consumed and generated as well as the power and other measured values directly on the backlit LCD. They can be connected directly up to 45 A and are suitable for use in sub-billing applications thanks to their MID certification.
Electrical properties
- Number of outputs
- 2
- Type of electrical connection
- Clamped terminal connection
- Operating frequency
- 45 - 65Hz
- Setting procedure
- Parameterization
- Power consumption
- 3VA
- Max. continuous current
- 45A
- Max. switching current
- 0.02A
- Min. current load
- 250mA
- Supported communication interface
- Modbus RTU, RS485
- Display
- LCD display, LED display
- Accuracy
- Voltage measurement: 0.5%, Current measurement: 1%, Frequency measurement: 0.2%, Power measurement (active, reactive, apparent power): 1%, Power factor: 1%
- Pulse output 27mA at 5-27VDC
- 300V CAT III-UC1 according to IEC 61010-1
- 4kV 1minute, 6kV 1.2µs
- Pulse length 60 / 100 / 200ms, Output 1: 0.001 / 0.01 / 0.1 / 1kWh per pulse, Output 2: 1kWh per pulse
- 30 x Imax 10ms
- Operating voltage
- 176-276VAC(50Hz) | 176-276VAC(60Hz)

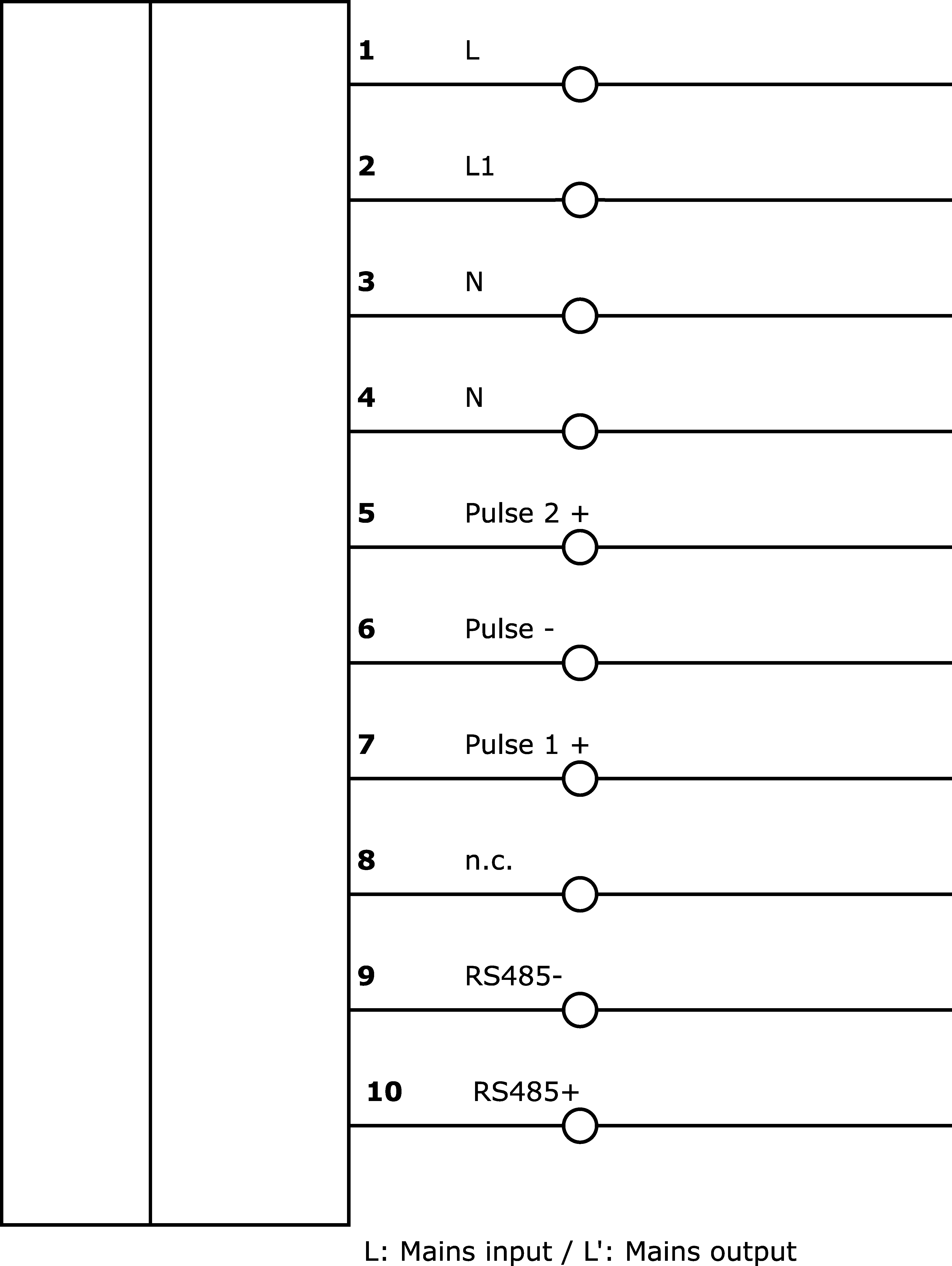

- Electrical connection
- Terminal connection
Mechanical properties
- Width
- 18mm
- Height
- 68mm
- Length
- 118mm
- Storage temperature
- -40 - 75°C
- Mounting method
- Top hat rail
- Degree of protection (IP)
- IP20
- Housing material
- Plastic
- 2.5 - 10mm²
- 1.5Nm

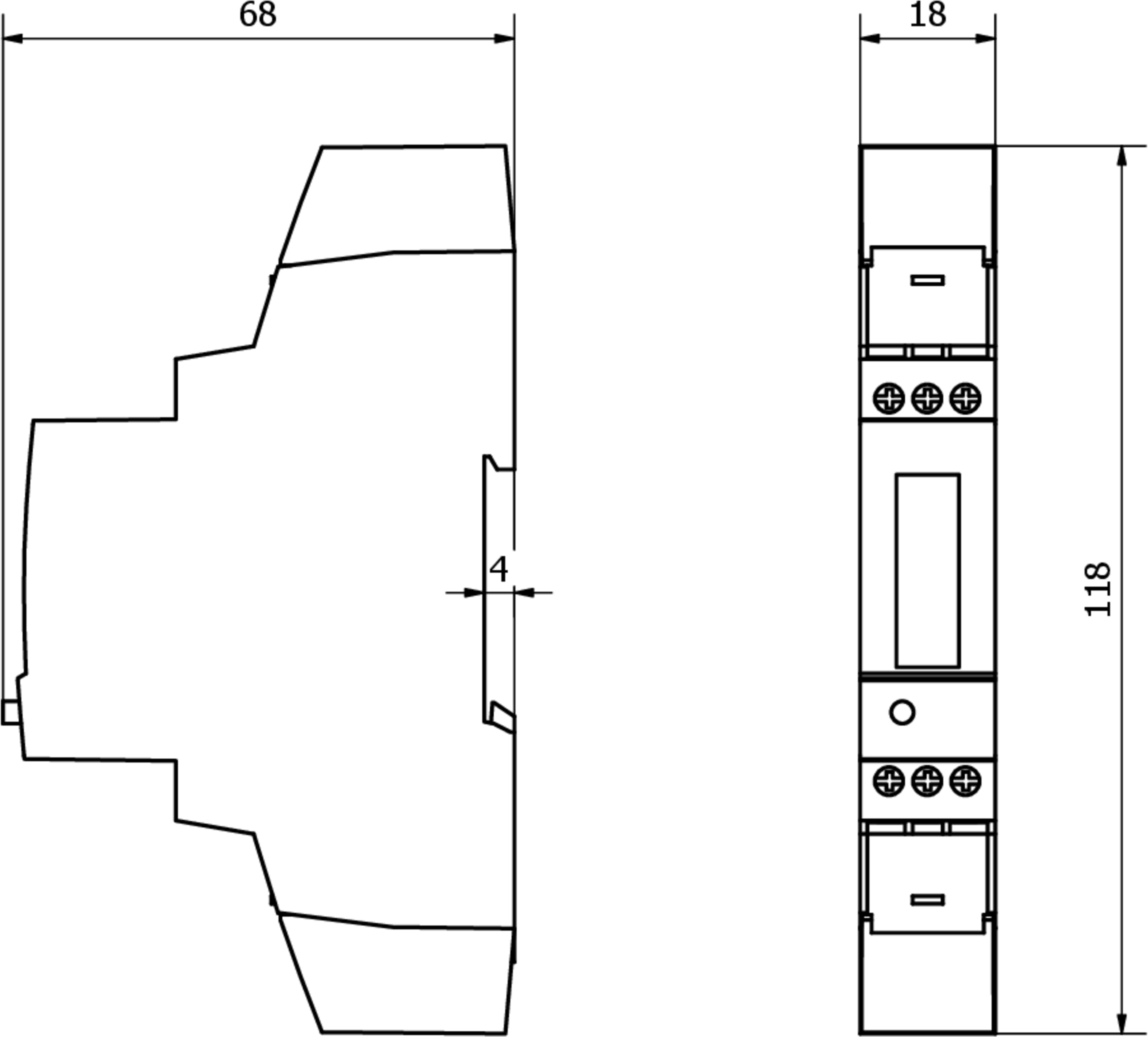

- dimensions
- 118x18x68mm
Other properties
- Relative air humidity (non-condensing)
- 0 - 95%
- Ambient temperature
- -40 - 70°C
- Important note
- Wire cross section 0.5-1.5mm² for S0 and COM terminals. Tightening torque 0.2Nm., Four tariffs can be managed via the communication interface
Datasheets
Drawings
Software
Product Compliance
| Classification | Class |
|---|---|
| eClass-7.0 | 27210301 |
| eClass-7.1 | 27210301 |
| eClass-8.0 | 27210301 |
| eClass-9.0 | 27210301 |
| eClass-9.1 | 27210301 |
| ETIM-6.0 | EC011231 |
| ETIM-7.0 | EC011231 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 730 special devices (diverse) |
| packaging dimensions | 40 x 75 x 105mm |
| gross weight | 127g |
| 0,25kg CO₂e | |
| Customs tariff number | 90283011 |
| WEEE number | 40951076 |
| 1.5Nm |
