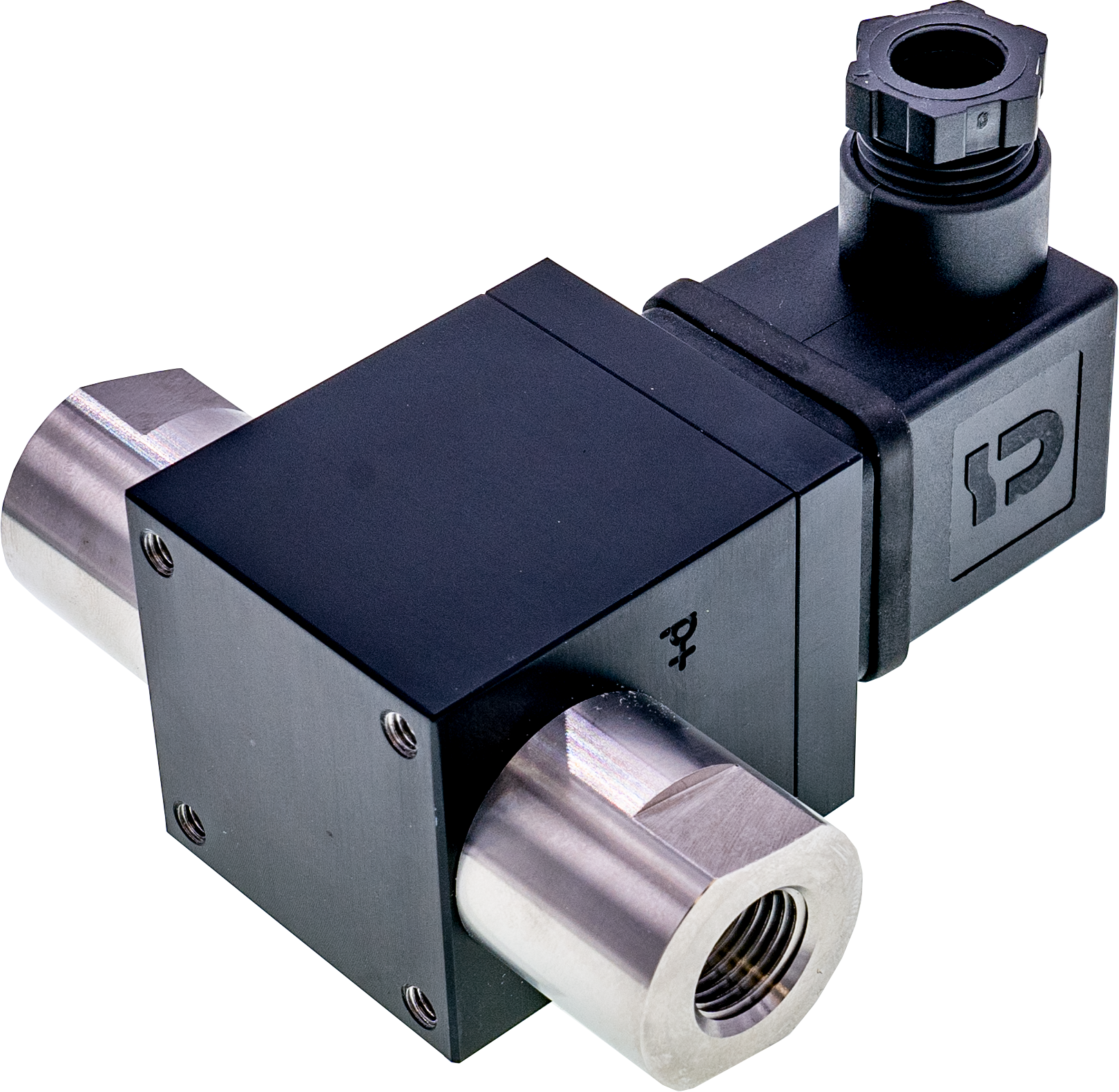

Pressure sensor, differential, 40x90x88mm, 0-0.4bar, 12-36V DC, G1/4", 4-20mA, ISO4400 connector, IP65, plastic, test report included

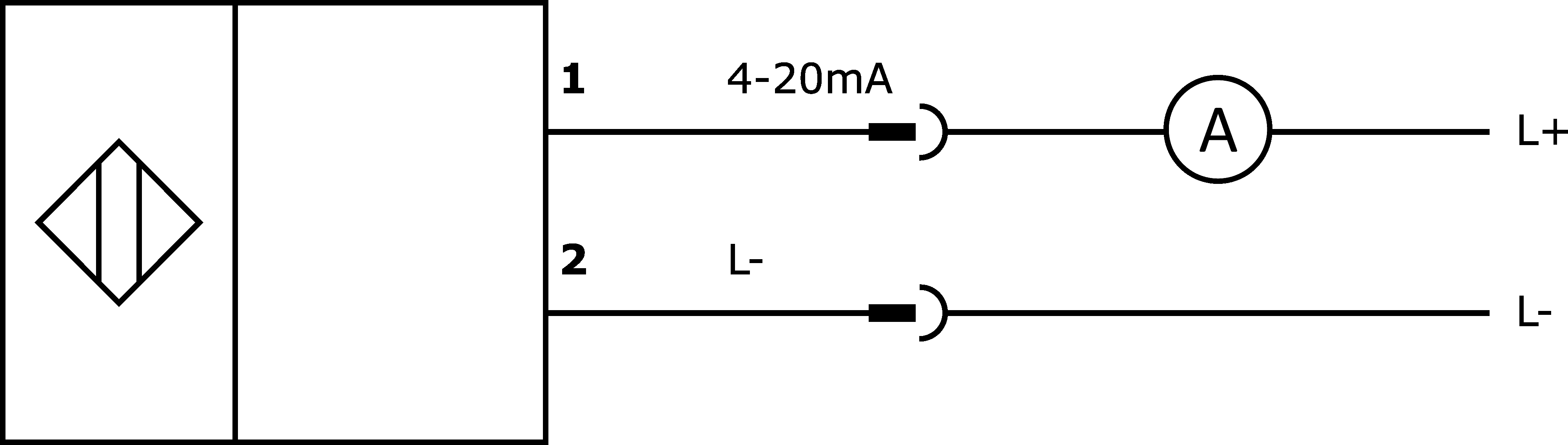

circuit diagram

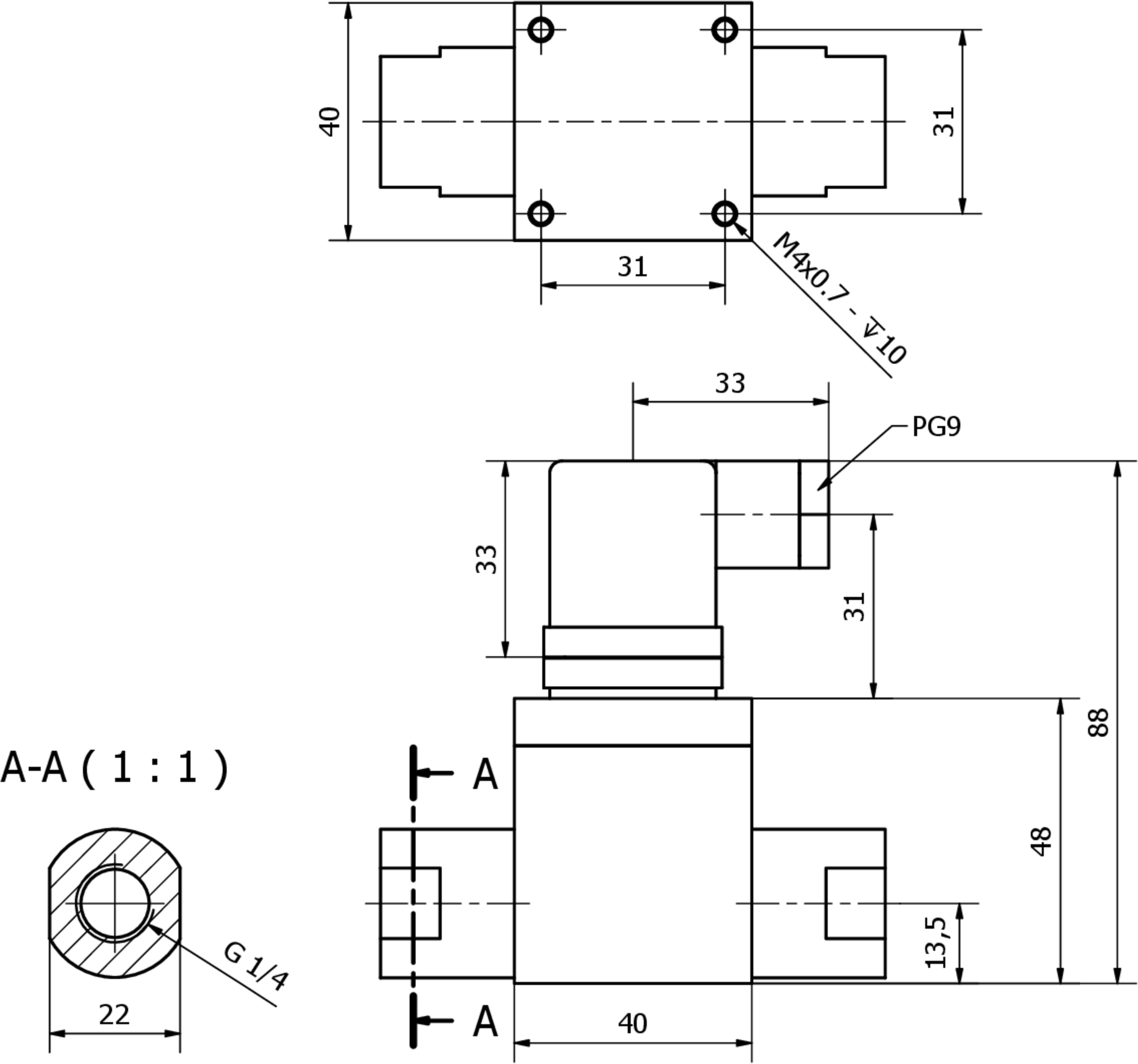

dimensional drawing
3D model
Compare

Pressure sensors - Differential pressure sensors

The article DW98F001 is a pressure sensor that couples two systems together via a diaphragm and converts the pressure difference into an electrical signal. It enables the mechanical integration of two systems, with one serving as a reference point and the other as the measurement result. The sensor is via a G1/8 inch process connection for connection to external systems. It has a pressure range of 0 to 0.4 bar, which is scaled to a current output of 4 - 20mA.

Electrical properties

Initial setting
0 - 400hPa
Type of analog output
4 - 20mA
Type of electrical connection
Valve connector type A
Measuring range pressure
0 - 0.4bar
Short circuit protection, Reverse polarity protection
Operating voltage
12-36VDC
Electrical connection
Valve plug type A

Mechanical properties

Type of process connection
G1/4 inch
Width
40mm
Height
88mm
Length
90mm
Max. operating pressure
1bar
Medium temperature
0 - 50°C
Nominal pressure
0.4bar
Shock resistance
100g
Degree of protection (IP)
IP65
Housing material
Aluminum
Sensing element material
Stainless steel 1.4435
Seal material at process connection
Plastic (FKM)
Material of the process connection
Stainless steel 1.4404
Material of the measuring cell
Stainless steel 1.4435
dimensions
90x40x88mm

Other properties

Features
including test report
Suitable for
Fluid group 2
Ambient temperature
-25 - 65°C
Classification Class
eClass-7.0 27200616
eClass-7.1 27200616
eClass-8.0 27200616
eClass-9.0 27200616
eClass-9.1 27200616
ETIM-6.0 EC011478
ETIM-7.0 EC011478
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
TSCA-compliant Yes
IPF Product Group 700 special devices
packaging dimensions 93 x 133 x 194mm
gross weight 495g
2,35kg CO₂e
Customs tariff number 90262020
WEEE number 40951076
