AO000082
accessories optical, Mounting angle bracket, 55x26x36mm, Angle, Steel
Available
Optical sensors - Retro-reflective sensors
OR430370
| amount | price | discount |
|---|---|---|
| 1 | 189,80 € | – |
| 5 | 184,11 € | 3% / 5,69 € |
| 10 | 180,31 € | 5% / 9,49 € |
| 20 | 174,62 € | 8% / 15,18 € |
| 50 | 167,02 € | 12% / 22,78 € |
Scarce
Optical sensor, reflective, 43x32x15 mm, Unpolarized red light, spot, teach-in, Sn: 7000, 10–30 V DC, PNP programmable/configurable, 4-pin M8 connector, IP67, ASA+PMMA plastic, for transparent objects
Compare
Optical sensors - Retro-reflective sensors
Optical sensors operate contactless. They detect objects regardless of their characteristics (e.g., shape, color, surface texture, material). Their basic operating principle is based on the transmission and reception of light. There are three versions: 1. The through-beam sensor consists of two separate devices—a transmitter and a receiver—that are aligned with each other. When the light beam between the two devices is interrupted, the switching output integrated into the receiver changes its status. 2. In a reflective light barrier, the transmitter and receiver are housed in a single device. The transmitted light beam is reflected toward the receiver by a reflector mounted opposite it. As soon as the light beam is interrupted, the switching output integrated into the device changes its status. 3. In a diffuse reflection sensor, the transmitter and receiver are housed in a single device. The emitted light beam is reflected by the object to be detected. As soon as the receiver detects the reflected light, the switching output integrated into the device changes its status.
Electrical properties
- Response/decay time
- 0.1ms
- Type of switching function
- Programmable/configurable

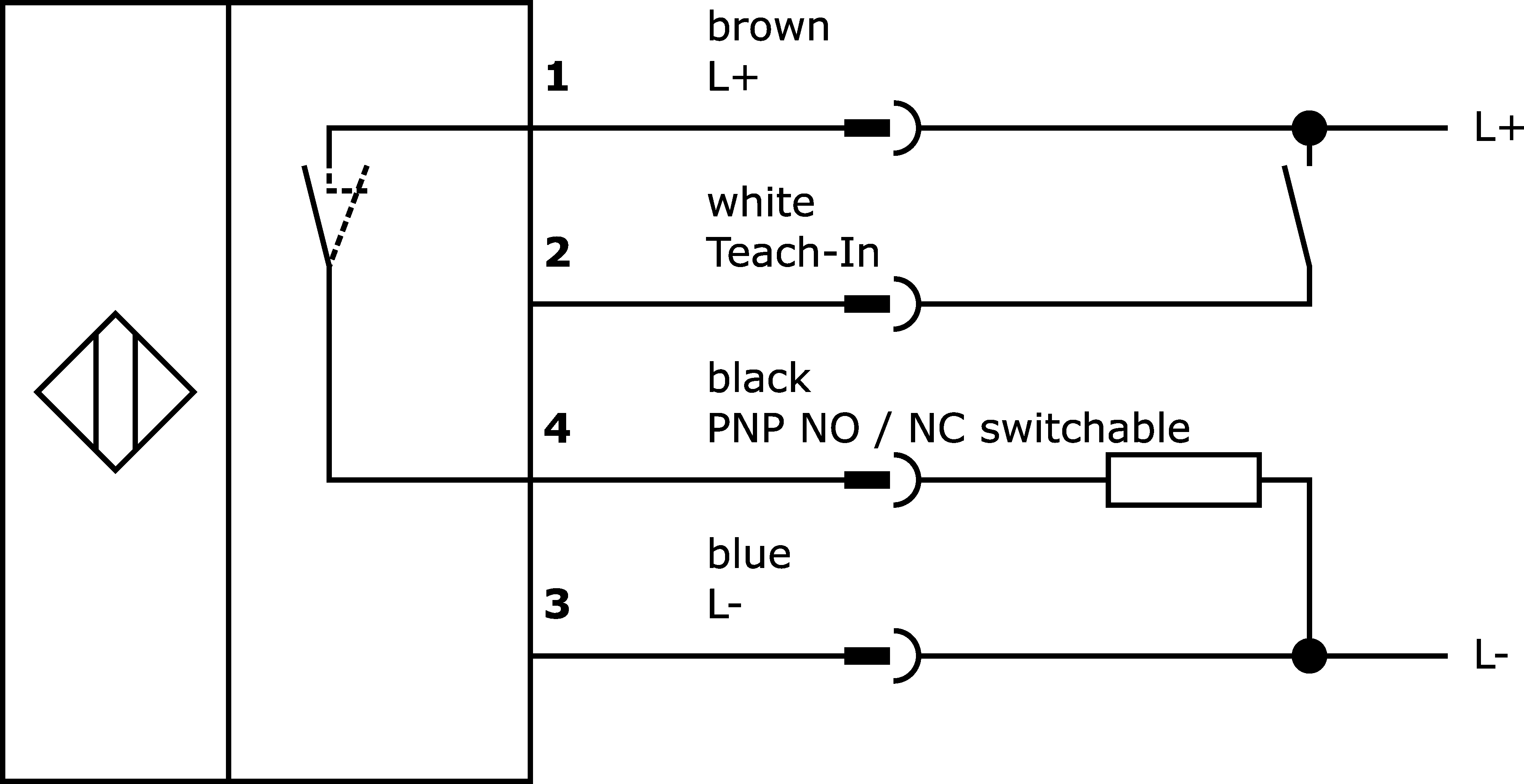

- Type of electrical connection
- M8-connector
- Type of switching output
- PNP
- Rated switching current
- 100mA
- Setting procedure
- Teach-In
- No-load current
- 40mA
- Number of pins
- 4
- Switching distance
- 0 - 7,000mm
- Switching frequency
- 5,000Hz
- Voltage drop
- 2.2V
- Scanning function
- Light-/dark-on mode
- Decay time
- 0.1ms
- Adjustable output functions
- Switching point
- Display
- LED display
- protection functions
- short circuit protection, reverse polarity protection
mechanical properties
- Design
- Cuboid
- Width
- 14.8mm
- Height
- 43mm
- Length
- 32.5mm
- Maximum tightening torque
- 0.8Nm
- Degree of protection (IP)
- IP67
- Active area material of sensor
- Plastic (PMMA)
- Housing material
- plastic ASA
optical properties
- Light source
- Polarity free red light
- Light beam form
- Point
- Wavelength of the sensor
- 660nm
other properties
- Ambient temperature
- -25 - 65°C
- Reference medium / object
- AO000007
- Applications
- Inquiry of transparent materials
You can find accessories for OR430370
in these product groups:
Assembly
Fixing material design 43
Available
Mounting system for AY000120
Available
Connection technology
Adapter M8 socket 4-pin / M12 connector 4-pin
Cable sockets M8 4-pin field-attachable
Cable sockets M8 4-wire
Cable sockets M8 4-wire shielded
Cable sockets M8-socket M12-connector 4-wire
Cable sockets M8-socket M8-connector 4-wire
Cable sockets M8-socket with LED M8-connector 4-wire
Other sensors
Protection cap, teflon M8
Reflectors and reflective films
Datasheets
Manuals
Drawings
Product Compliance
-
pdfUL declaration of conformityPDF-file, 98 KB
-
pdfUKCA declaration of conformityPDF-file, 474 KB
-
pdfMaterial compliancePDF-file, 482 KB
-
pdfEU declaration of conformityPDF-file, 255 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 27270902 |
| eClass-7.1 | 27270902 |
| eClass-8.0 | 27270902 |
| eClass-9.0 | 27270902 |
| eClass-9.1 | 27270902 |
| ETIM-6.0 | EC002717 |
| ETIM-7.0 | EC002717 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| UL / CSA approval number | E486083 |
| OzDS-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 100 optical sensors |
| packaging dimensions | 77 x 25 x 123mm |
| gross weight | 20g |
| Carbon footprint | 0,3kg CO₂e |
| customs tariff number | 85365019 |
| WEEE number | 40951076 |
