AY000118
accessories sensor, Fixture kit, Metal, ball joint
Available
Optical sensors - Line diffuse-reflection sensor
OY340145
| amount | price | discount |
|---|---|---|
| 1 | 1.672,00 € | – |
| 5 | 1.621,84 € | 3% / 50,16 € |
| 10 | 1.588,40 € | 5% / 83,60 € |
| 20 | 1.538,24 € | 8% / 133,76 € |
| 50 | 1.471,36 € | 12% / 200,64 € |
On demand

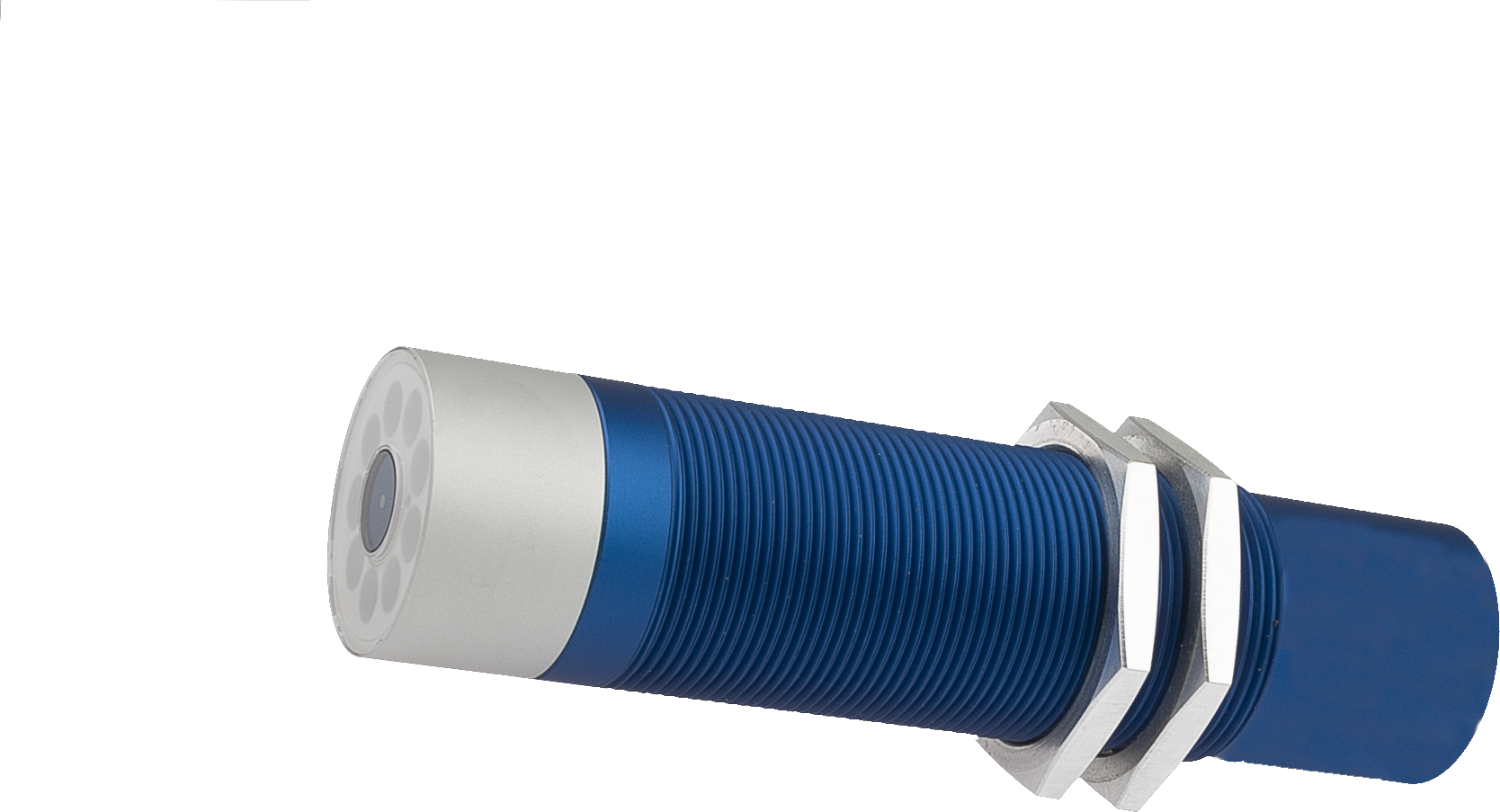

sensor optical, line, M34x1.5 133long, Sn: 50-60, 24V DC, 3x PNP/NPN Programmable/configurable, 0-10V/4-20mA, Connector M9 8pin, IP67, Aluminum Anodised, White light, Point, Parameterization, RS232
including Nut
Compare
Optical sensors - Line diffuse-reflection sensor
Optical sensors function contactlessly. They detect objects independent of their characteristics (e.g., shape, color, surface structure, material). The basic operating principle is based on the transmission and reception of light. There are three different versions: 1. The through-beam sensor consists of two separate devices, a transmitter and a receiver that are aligned with one another. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. With the retro-reflective sensor, the transmitter and receiver are located in one device. The emitted light beam is reflected back to the receiver by a reflector that is to be mounted opposite the device. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. With the diffuse reflection sensor, the transmitter and receiver are in one device. The emitted light beam is reflected by the object that is to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.

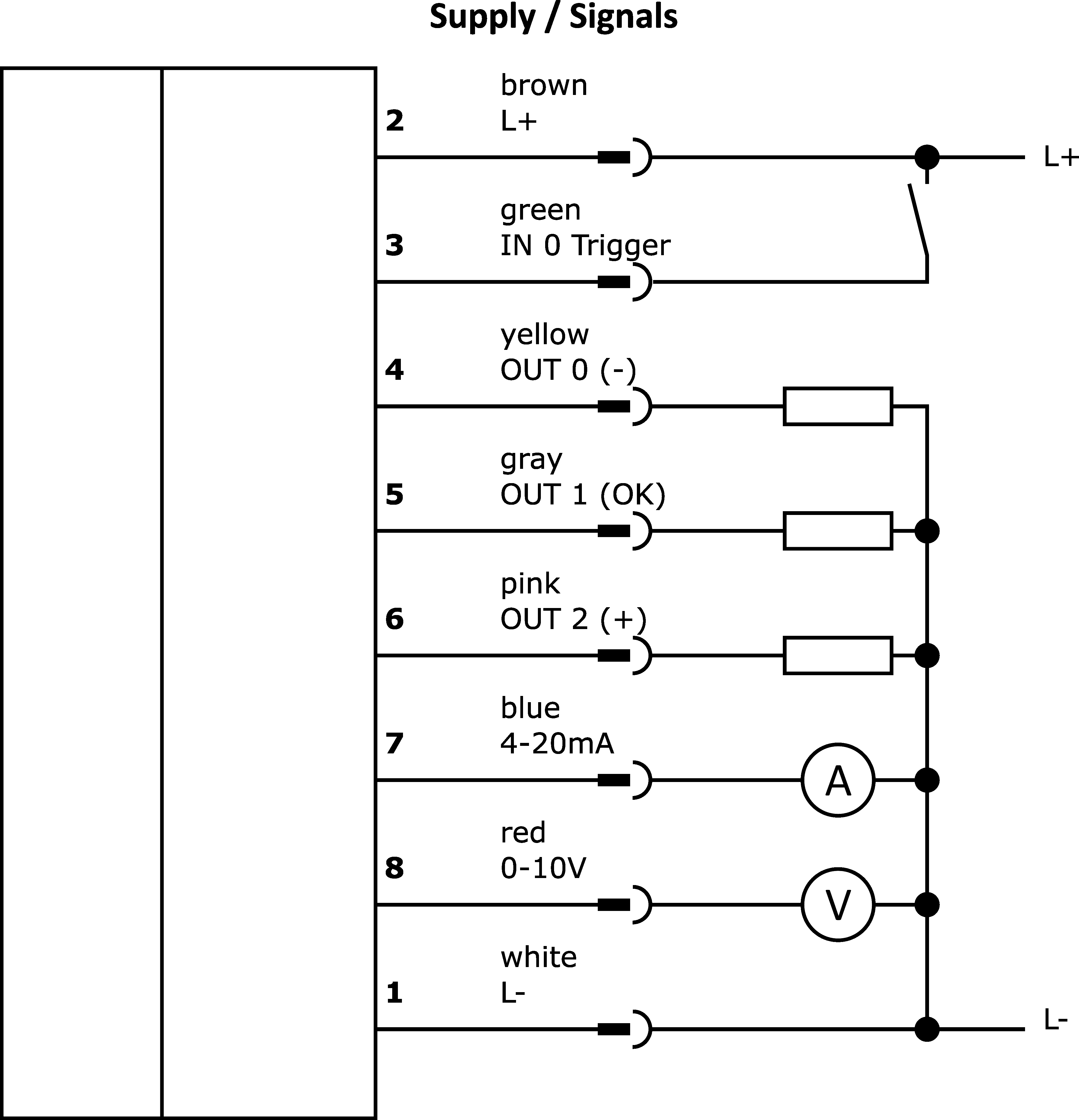

Electrical properties
- Number of switching outputs
- 3
- Type of switching function
- Programmable/configurable
- Type of analog output
- 0 - 10V, 4 - 20mA
- Type of electrical connection
- Connector M9
- Type of switching output
- PNP/NPN
- Rated switching current
- 100mA
- Setting procedure
- Parameterization
- No-load current
- 220mA
- Number of pins
- 8
- Repeatability +/-
- 20µm
- Switching distance
- 50 - 60mm
- Protection class
- III
- Clock frequency of the transmitter
- 0.5kHz
- Scanning function
- Light-/dark-on mode
- Type of plug-in contact, communication interface
- Female (socket)
- Type of plug-in connection, communication interface
- Connector M5
- Number of pins of interface connection
- 4
- Supported communication interface
- RS232
- Display
- LED display
- Short circuit protection
Mechanical properties
- Design
- Cylinder, screw-thread
- Thread length
- 74mm
- Thread pitch
- 1.5mm
- Length
- 133mm
- Row length
- 20mm
- Storage temperature
- -20 - 85°C
- Surface
- teflon coated
- Degree of protection (IP)
- IP67
- Housing material
- Aluminum
- Thread dimension
- M34
- Diameter
- 34mm
Optical properties
- Light source
- White light
- Light exit
- axial
- Light beam form
- Point
- Min. object size
- 0.1mm
Other properties
- Ambient temperature
- -10 - 60°C
You can find accessories for OY340145
in these product groups:
Assembly
Mounting design 34
Connection technology
Cable connectors M5 Sub-D-socket
Cable connectors M5 USB
Cable connectors M9
Programming adapter Ethernet
Other sensors
M5 screw plug
Available
Datasheets
Drawings
Software
-
zipSoftware and operating instructionsZIP-file, 28 MB
-
zipUSB driverZIP-file, 2.2 MB
-
zipSensorFinderZIP-file, 26 MB
Software older versions
-
zipSoftware and operating instructionsZIP-file, 7.2 MB
-
zipSoftware and operating instructionsZIP-file, 6.4 MB
-
zipSensorFinderZIP-file, 24 MB
Firmware
Firmware older versions
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 324 KB
-
pdfMaterial compliancePDF-file, 480 KB
-
pdfEU declaration of conformityPDF-file, 252 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
Whitepapers
Application examples
| Classification | Class |
|---|---|
| eClass-7.0 | 27270903 |
| eClass-7.1 | 27270903 |
| eClass-8.0 | 27270903 |
| eClass-9.0 | 27270903 |
| eClass-9.1 | 27270903 |
| ETIM-6.0 | EC001821 |
| ETIM-7.0 | EC001821 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 105 line sensors |
| packaging dimensions | 138 x 95 x 210mm |
| gross weight | 180g |
| 7,05kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
