Laser sensors - Forked light barrier

PG156501

PG156501
List price
466,10 €
amount price discount
1 466,10 € –
5 452,12 € 3% / 13,98 €
10 442,80 € 5% / 23,31 €
20 428,81 € 8% / 37,29 €
50 410,17 € 12% / 55,93 €
On demand
sensor laser, fork, 29x6x32mm, fork width 15mm, 12-30V DC, 1x PNP/NPN NC/NO, Cable 4pin 1m PUR (Polyurethane), IP67, Aluminum+Glass, Infrared light, 25kHz

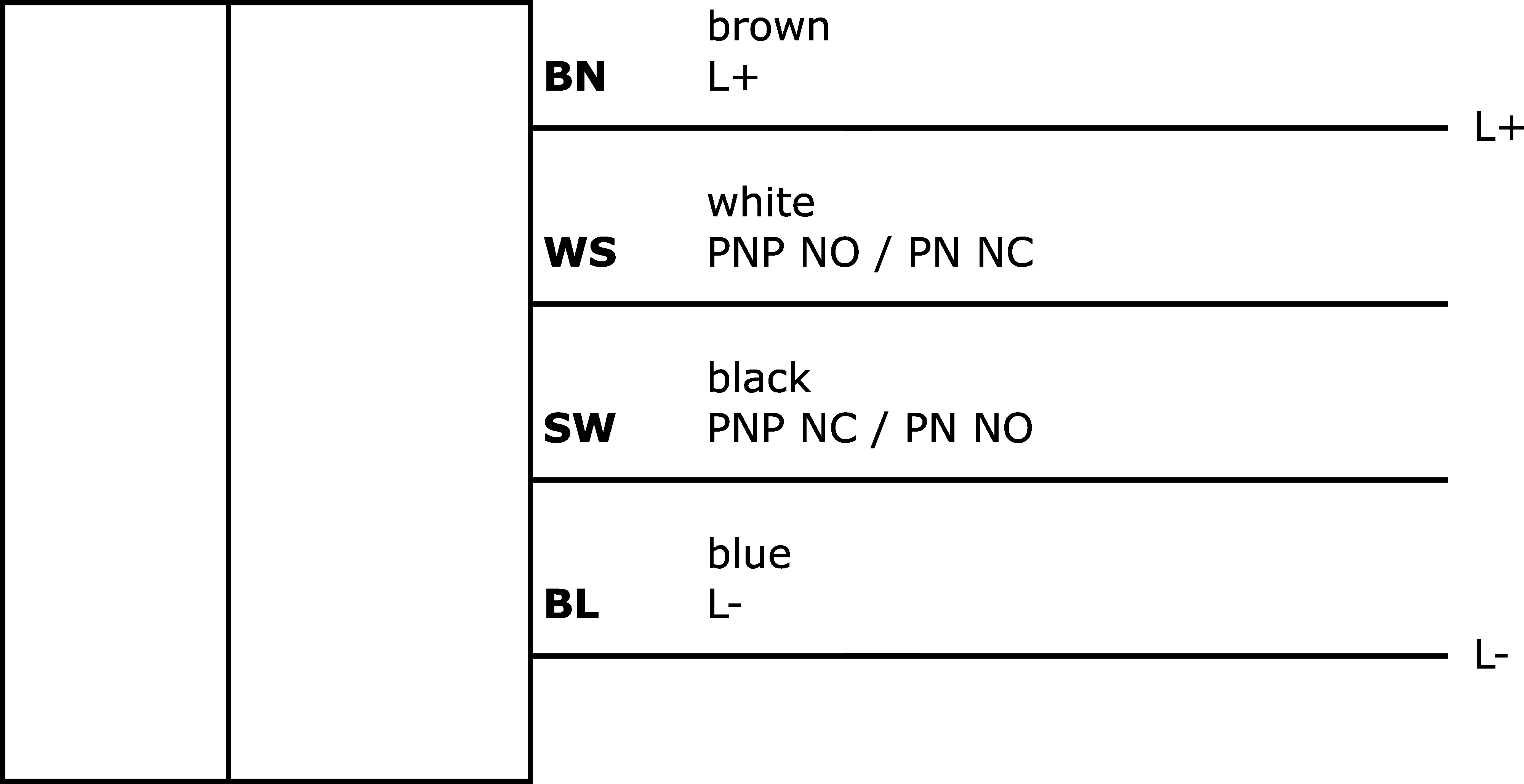

circuit diagram
dimensional drawing
3D model
Compare

Laser sensors - Forked light barrier

Special design of through-beam sensor. Transmitter and receiver are located in the fork or angular limbs and are perfectly aligned to each other.

Electrical properties

Response/decay time
0.02ms
Number of switching outputs
1
Resolution
0.4mm
Type of the forked light barrier
Standard
Type of switching function
Normally closed contact/normally open contact
Type of electrical connection
Cable
Type of switching output
PNP/NPN
Rated switching current
100mA
No-load current
20mA
Number of pins
4
Repeatability +/-
10µm
Switching frequency
25,000Hz
Protection class
III
Scanning function
Light-/dark-on mode
Decay time
0.02ms
Absolute repeat accuracy
0.01mm
protection functions
short circuit protection, reverse polarity protection

mechanical properties

Line diameter
3mm
Design
Cuboid
Aperture diameter
0.8mm
Width
31.5mm
Fork depth
13.5mm
Fork width
15mm
Height
29mm
Cable length
1m
Length
6mm
Degree of protection (IP)
IP67
Active area material of sensor
glass
Housing material
aluminum
material of cable sheath
plastic (PUR)

optical properties

Laser class
Class 1
Light source
Infrared light
Light beam form
Point
Min. object size
0.01mm
Wavelength of the sensor
850nm

other properties

Ambient temperature
-20 - 50°C
You can find accessories for PG156501 in these product groups:

Connection technology

Cable connectors M12 4-pin field-attachable

VK003026
VK003026
Cable connector, Angular, Suitable for self-assembly, Screw connection, Ø3-6.5mm, 4A, 240V, -25-90°C, M12 Male…
10,10 €
Your price
Available
VK003028
VK003028
Cable connector, Straight, Suitable for self-assembly, Screw connection, Ø3-6.5mm, 4A, 240V, -25-90°C, M12 Male…
10,50 €
Your price
Available
VK003828
VK003828
Cable connector, Straight, Suitable for self-assembly, Screw connection, Ø3-6.5mm, 4A, 240V, -25-90°C, M12 Male…
14,70 €
Your price
On demand
VK003C28
VK003C28
Cable connector, Straight, Suitable for self-assembly, Screw connection, Ø4-8mm, 4A, 240V, -25-90°C, M12 Male…
12,50 €
Your price
Available
VK003D26
VK003D26
Cable connector, angular, field-terminable, quick-connect, Ø4–5.1 mm, 4 A, 32 V, -25–85 °C, 4-pin M12-connector, IP67
15,30 €
Your price
Available
VK003D29
VK003D29
Cable connector, straight, field-terminable, quick-connect, Ø5.5–8 mm, 6 A, 50 V, -25–85 °C, 4-pin M12-connector, IP67
16,60 €
Your price
Available
VK003E28
VK003E28
Cable connector, Straight, Suitable for self-assembly, Screw connection, Ø4-5mm, 4A, 250V, -25-90°C, M12 Male…
17,40 €
Your price
Available
VK003S28
VK003S28
Cable connector, straight, field-terminable, quick-connect, Ø4–5.1 mm, 4 A, 32 V, -25–85 °C, 4-pin M12-connector, IP67
12,60 €
Your price
Available

Sheath

AY000141
AY000141
Plastic sheath, Ø17mm, Inner diameter 10mm, -40-250°C, Glass fiber with silicone rubber, Short-term resistance to weld…
39,30 €
Your price
Available
Classification Class
eClass-7.0 27270909
eClass-7.1 27270909
eClass-8.0 27270909
eClass-9.0 27270909
eClass-9.1 27270909
ETIM-6.0 EC002720
ETIM-7.0 EC002720
Property Value
RoHS‑compliant Yes
Reach-compliant Yes
POP-compliant Yes
TSCA-compliant Yes
IPF Product Group 170 laser fork/angular light barriers
packaging dimensions 77 x 25 x 123mm
gross weight 50g
Carbon footprint 1,05kg CO₂e
customs tariff number 85365019
WEEE number 40951076
