Laser sensors - Contrast sensor
PK430170
| amount | price | discount |
|---|---|---|
| 1 | 320,60 € | – |
| 5 | 310,98 € | 3% / 9,62 € |
| 10 | 304,57 € | 5% / 16,03 € |
| 20 | 294,95 € | 8% / 25,65 € |
| 50 | 282,13 € | 12% / 38,47 € |
Available
Sensor laser, contrast, 43x32x15mm, Sn: 20-300, 10-30V DC, 4-pin, PMMA
Compare
Laser sensors - Contrast sensor
Contrast scanners are capable to distinguish the the visual differences (e.g. reflectivity, brightness differences) between adjacent areas. In general, the devices project a light spot on an object's surface and analyze the reflected light. Fiber optic amplifier versions can be used in addition to the incident light mode also in the transmitted light mode. Contrast scanners are versatile. They can be used, among other things, for position control of printing or color marks, distinction of brightness variations or in the intensity control of luminous objects (like LEDs, displays etc.).
Electrical properties
- Number of switching outputs
- 1
- Type of switching function
- Normally open contact (NO)

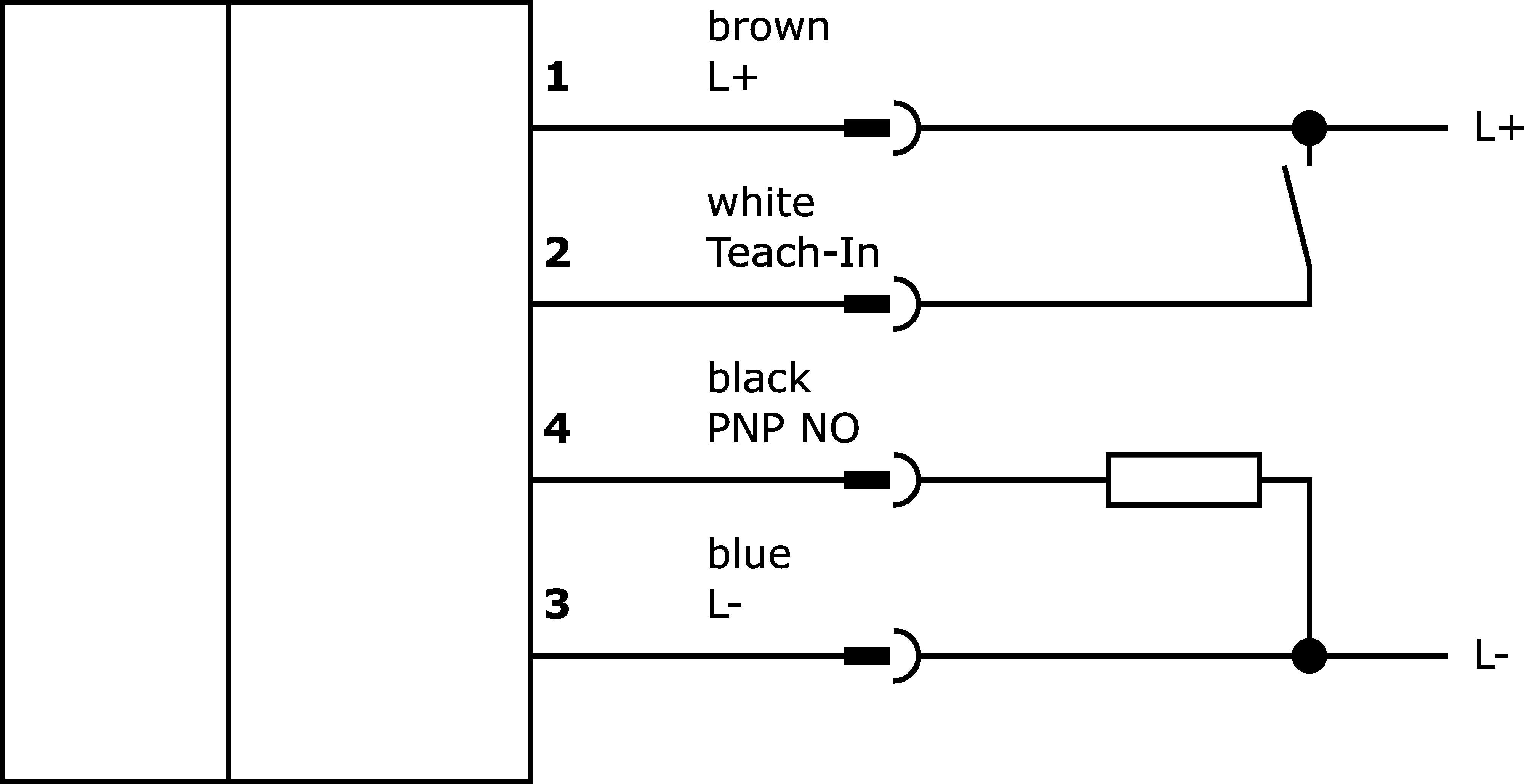

- Type of electrical connection
- Connector M8
- Type of switching output
- PNP
- Rated switching current
- 100mA
- Setting procedure
- Teach-In
- No-load current
- 50mA
- Number of pins
- 4
- Switching distance
- 20 - 300mm
- Voltage drop
- 2.2V
- Display
- LED display
- Short circuit protection, Reverse polarity protection
Mechanical properties
- Design
- Cuboid
- Width
- 14.8mm
- Height
- 43mm
- Length
- 32.5mm
- Maximum tightening torque
- 0.8Nm
- Degree of protection (IP)
- IP67
- Active area material of sensor
- Plastic (PMMA)
- Housing material
- PA 12
Optical properties
- Laser class
- Class 2
- Light source
- Laser diode, red light
- Light beam form
- Point
- Wavelength of the sensor
- 650nm
- focus
- 115mm
Other properties
- Ambient temperature
- -10 - 50°C
You can find accessories for PK430170
in these product groups:
Assembly
Fixing material design 43
Available
Mounting system for AY000120
Available
Connection technology
Cable sockets M8 4-pin field-attachable
Cable sockets M8 4-wire
Cable sockets M8-socket M8-connector 4-wire
Datasheets
Manuals
Drawings
Product Compliance
-
pdfUL declaration of conformityPDF-file, 433 KB
-
pdfCSA declaration of conformityPDF-file, 433 KB
-
pdfUKCA declaration of conformityPDF-file, 474 KB
-
pdfMaterial compliancePDF-file, 483 KB
-
pdfEU declaration of conformityPDF-file, 255 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
Product flyers
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 27270906 |
| eClass-7.1 | 27270906 |
| eClass-8.0 | 27270906 |
| eClass-9.0 | 27270906 |
| eClass-9.1 | 27270906 |
| ETIM-6.0 | EC001820 |
| ETIM-7.0 | EC001820 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| UL / CSA approval number | E486083 |
| OzDS-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 168 laser contrast readers |
| packaging dimensions | 77 x 25 x 123mm |
| gross weight | 35g |
| 0,42kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
