AY000096
Accessories Sensor, mounting kit, metal, ball joint
Available
Laser sensors - Distance measurement
PT49C070
| amount | price | discount |
|---|---|---|
| 1 | 873,30 € | – |
| 5 | 847,10 € | 3% / 26,20 € |
| 10 | 829,64 € | 5% / 43,67 € |
| 20 | 803,44 € | 8% / 69,86 € |
| 50 | 768,50 € | 12% / 104,80 € |
Scarce
Sensor laser, diffuse reflection sensor, 49x40x14mm, Sn:50-350mm, triangulation, 12-28V DC, 4-20mA, M8 plug connector 4-pin, IP67, zinc diecast+glass, laser diode, red light, line, teach-in
Compare
Laser sensors - Distance measurement
Optical sensors work contactless. They detect objects, regardless of their properties (e.g. shape, color, surface structure, material). The basic mode of operation is based on the transmitter and receiver of light. There are three different versions: 1. the through-beam sensor consists of two separate devices, a transmitter and a receiver, which are aligned with each other. If the light beam between the two devices is interrupted, the switching output integrated in the receiver changes its status. 2. in the reflex light barrier, the transmitter and receiver are located in one device. The transmitted light beam is reflected onto the receiver by a reflector to be mounted opposite. As soon as the light beam is interrupted, the switching output integrated in the device changes its status. 3. the diffuse reflection sensor has a transmitter and receiver in one device. The transmitted light beam is reflected by the object to be detected. As soon as the receiver detects the reflected light, the switching output integrated in the device changes its status.
Electrical properties
- Response/decay time
- 0.4ms
- Type of alarm output
- PNP/NPN
- Type of analog output
- 4 - 20mA

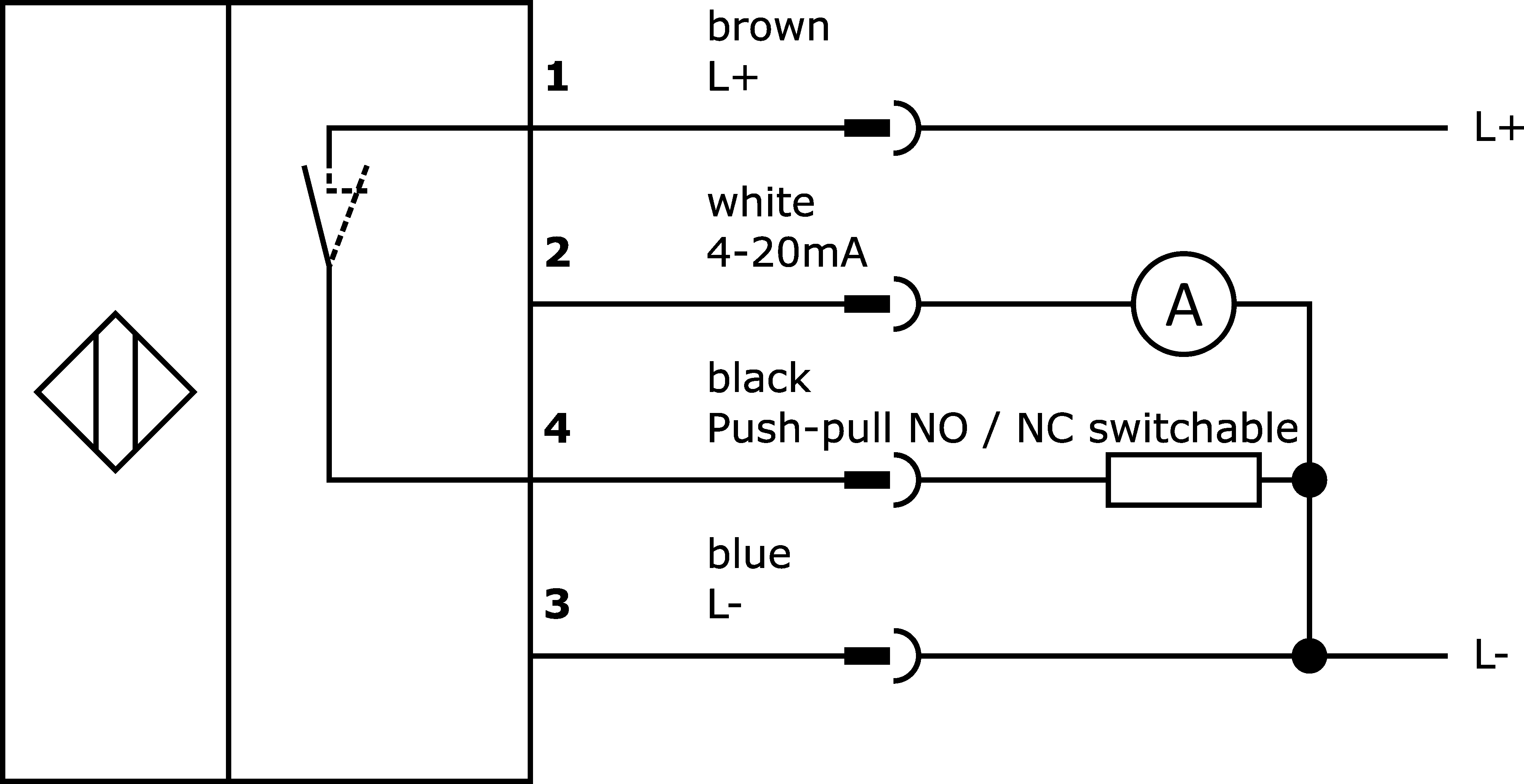

- Type of electrical connection
- Connector M8
- Rated switching current
- 100mA
- Setting procedure
- Teach-In
- Laser power
- 2mW
- No-load current
- 50mA
- Linearity deviation
- 1.1mm
- Number of pins
- 4
- Relative linearity deviation
- 0.15%
- Absolute linearity deviation
- 1.1mm
- Absolute repeat accuracy
- 0.03mm
- Measurement principle
- triangulation
- Measuring range
- 50 - 350mm
- Display
- LED display
- Short circuit protection, Reverse polarity protection
Mechanical properties
- Design
- Cuboid
- Width
- 13.6mm
- Height
- 49mm
- Length
- 40.3mm
- Storage temperature
- -20 - 60°C
- Maximum tightening torque
- 1Nm
- Degree of protection (IP)
- IP67
- Active area material of sensor
- glass
- Housing material
- Zinc die-cast
Optical properties
- Teach-in limits distance
- 5mm
- Laser class
- Class 2
- Light source
- red light
- Light beam form
- Line
- Wavelength of the sensor
- 660nm
Other properties
- Ambient temperature
- -10 - 50°C
- Reference medium / object
- Material with 90% reflectivity
You can find accessories for PT49C070
in these product groups:
Assembly
Accessories design 49
Mounting system for AY000096
Available
Connection technology
Cable sockets M8 4-pin field-attachable
Cable sockets M8 4-wire
Cable sockets M8 4-wire shielded
Cable sockets M8-socket M8-connector 4-wire
Other sensors
License plate laser class 2
Power supply 24V DC / 2 – 10A
Test protocol for PT analog
Tool
Sensor tester
Datasheets
Manuals
Drawings
Product Compliance
-
pdfUKCA declaration of conformityPDF-file, 475 KB
-
pdfMaterial compliancePDF-file, 482 KB
-
pdfEU declaration of conformityPDF-file, 254 KB
-
pdfUL declaration of conformityPDF-file, 254 KB
-
pdfCCC declaration of conformityPDF-file, 248 KB
-
pdfCSA declaration of conformityPDF-file, 243 KB
Product flyers
-
pdfSensor solutions for the foil industryPDF-file, 2.7 MB
-
pdfProducts that inspirePDF-file, 8.5 MB
Whitepapers
| Classification | Class |
|---|---|
| eClass-7.0 | 27270801 |
| eClass-7.1 | 27270801 |
| eClass-8.0 | 27270801 |
| eClass-9.0 | 27270801 |
| eClass-9.1 | 27270801 |
| ETIM-6.0 | EC001825 |
| ETIM-7.0 | EC001825 |
| Property | Value |
|---|---|
| RoHS‑compliant | Yes |
| Reach-compliant | Yes |
| OzDS-compliant | Yes |
| POP-compliant | Yes |
| TSCA-compliant | Yes |
| IPF Product Group | 169 laser diffuse reflection sensors (analog) |
| packaging dimensions | 77 x 25 x 123mm |
| gross weight | 94g |
| 0,55kg CO₂e | |
| Customs tariff number | 85365019 |
| WEEE number | 40951076 |
